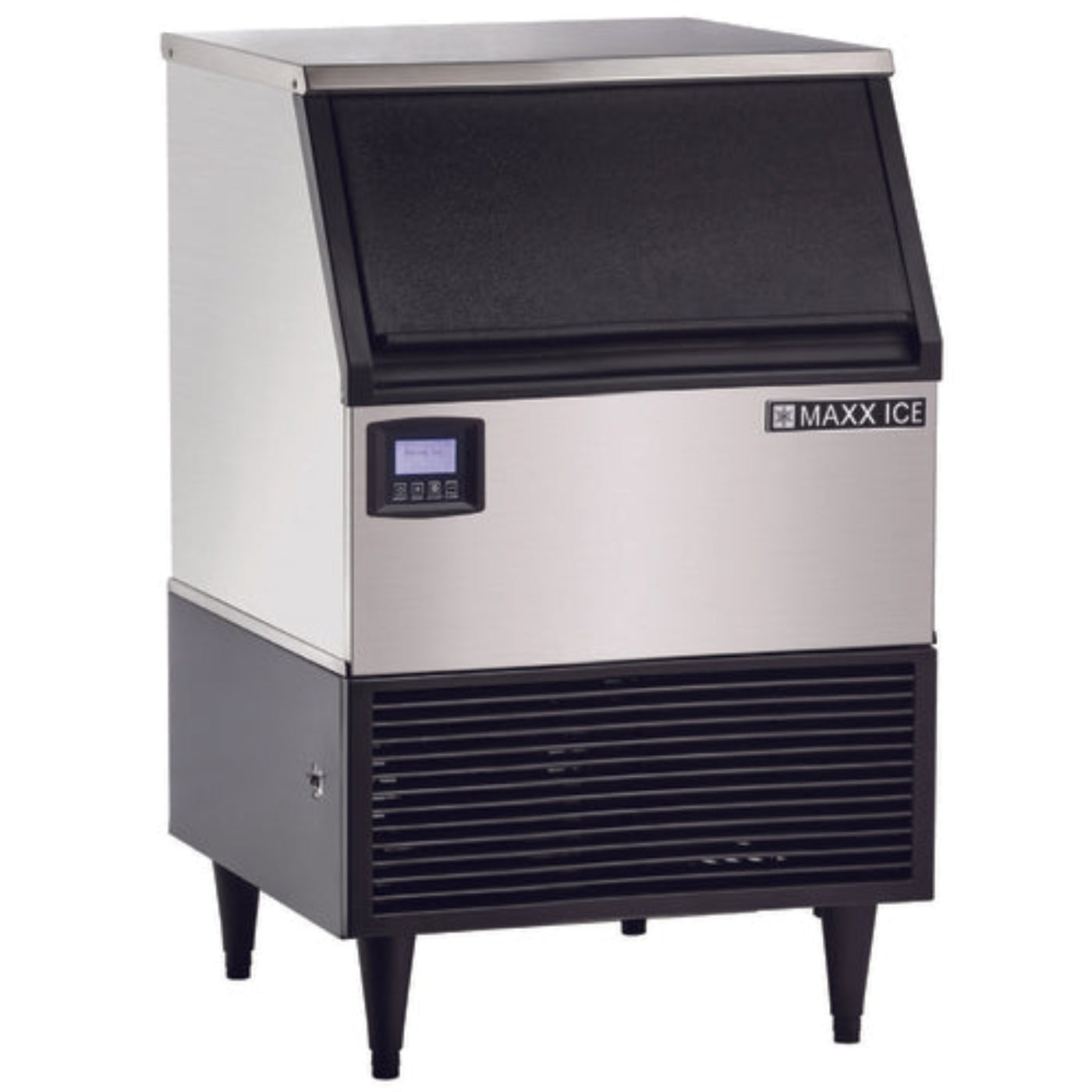

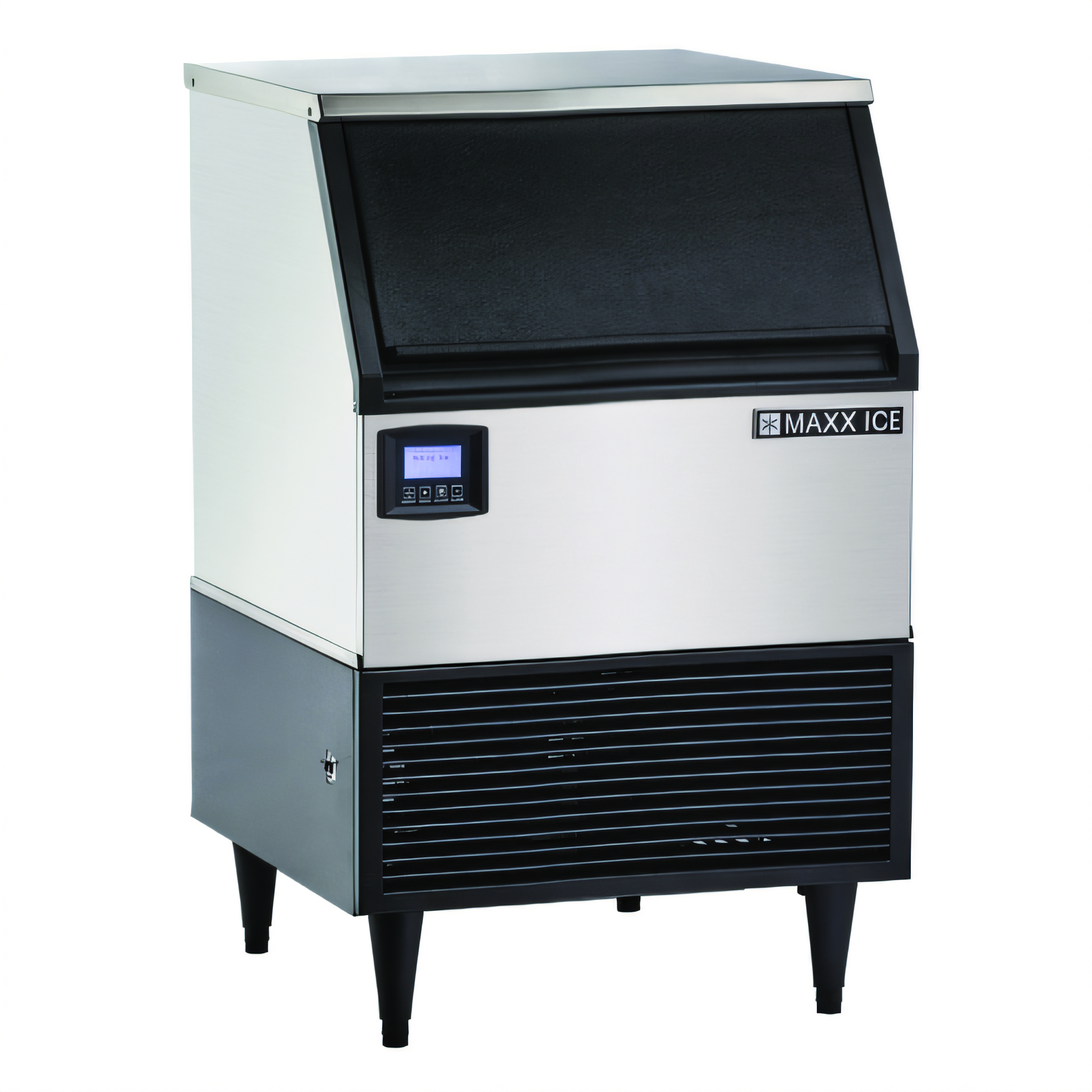

Maxximum MIM200N Maxx Ice Ice Machines
Maxx Ice Digital Undercounter Ice Maker With Bin, cube-style (full dice), air-cooled, self-contained condenser, approximately 199 lb. production/24 hours, 75 lb. built-in storage capacity, digital display & controls, automatic cleaning, overflow prevention, internal LED light, polyethylene storage bin liner, stainless steel exterior with black trim, 6" adjustable legs, R404a refrigerant, NSF, cULus Classified
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Ice |
| Certifications |
NSF, cULus Classified, ENERGY STAR |
| Height |
38.8 in |
| Width |
24.0 in |
| Depth |
24.0 in |
| Shipping Weight |
155.0 lbs |
| Bin Storage Capacity |
51 – 100 lb bin capacity |
| Production per 24 hr |
101 – 200 lb (46 – 90 kg) |
| Condenser Type |
Air-cooled |
| Finish |
Black & stainless steel exterior |
| Cube Type |
Full size / Dice |
| Energy Efficiency |
ENERGY STAR® |
| Specifications |
Maxx Ice Digital Undercounter Ice Maker With Bin, cube-style (full dice), air-cooled, self-contained condenser, approx. 152 lb. production/24 hr, 75 lb. built-in storage capacity, digital display & controls, automatic cleaning, overflow prevention, internal LED light, stainless steel exterior with black trim, 6" adjustable legs, R134a refrigerant, NSF, cULus Classified, ENERGY STAR |
Documents
What our Experts Think
-
High Daily Production: Produces up to 199 lbs of full-dice ice daily, with a 75 lbs built-in storage bin—perfect for high-demand settings like restaurants, bars, and cafes.
-
Energy & Water Efficient: Designed to use up to 40% less water and produce ice up to 20% faster, helping reduce operational costs.
-
User-Friendly Digital Controls: Equipped with an intuitive digital display that shows ice machine status and temperature, with programmable settings for ease of use.
-
Sanitary Design: Features an antimicrobial-treated polyethylene storage bin liner and an interior LED light for improved sanitation and visibility.
-
Automatic Maintenance Features: Includes automatic cleaning cycles and bin overflow prevention, ensuring consistent performance with minimal manual upkeep.
-
Versatile Installation: The front-breathing, air-cooled design allows for both freestanding and built-in installation options, offering flexibility for your space.
-
Durable Construction: Made with corrosion-resistant stainless steel, providing durability and easy cleaning in high-traffic environments.
-
Comprehensive Warranty: Backed by a 1-year limited warranty, ensuring peace of mind and support for your investment.
Q&A
Q: What is the Maxximum MIM200N?
A: A compact, self-contained undercounter ice machine that produces up to 199 lbs of full-dice ice cubes daily, with a 75 lbs built-in storage bin.
Q: What are the dimensions?
-
Dimensions: 24" W x 24" D x 39" H
-
Weight: 141 lbs (unit), 150 lbs (shipping)
-
Power Requirements: 115V/60Hz/1Ph, 7.4A, 6-ft cord with NEMA 5-15P plug
-
Water Inlet: 3/8" FPT
-
Drain: Requires a 3/4" gravity drain
-
Refrigerant: R-404a
Q: Is it energy efficient?
A: Yes, the MIM200N is designed to consume up to 40% less water and produce ice up to 20% faster than similar units.
Maintenance Tips
-
Clean condenser coils monthly to maintain optimal performance and energy efficiency.
-
Sanitize interior surfaces and storage bin at least every 6 months to prevent mold and bacteria growth.
-
Check water filter and replace as needed to ensure clean ice production.
-
Inspect drainage system regularly for blockages to avoid water pooling or malfunction.
-
Monitor ice production and temperature to ensure the machine is working at peak efficiency.
