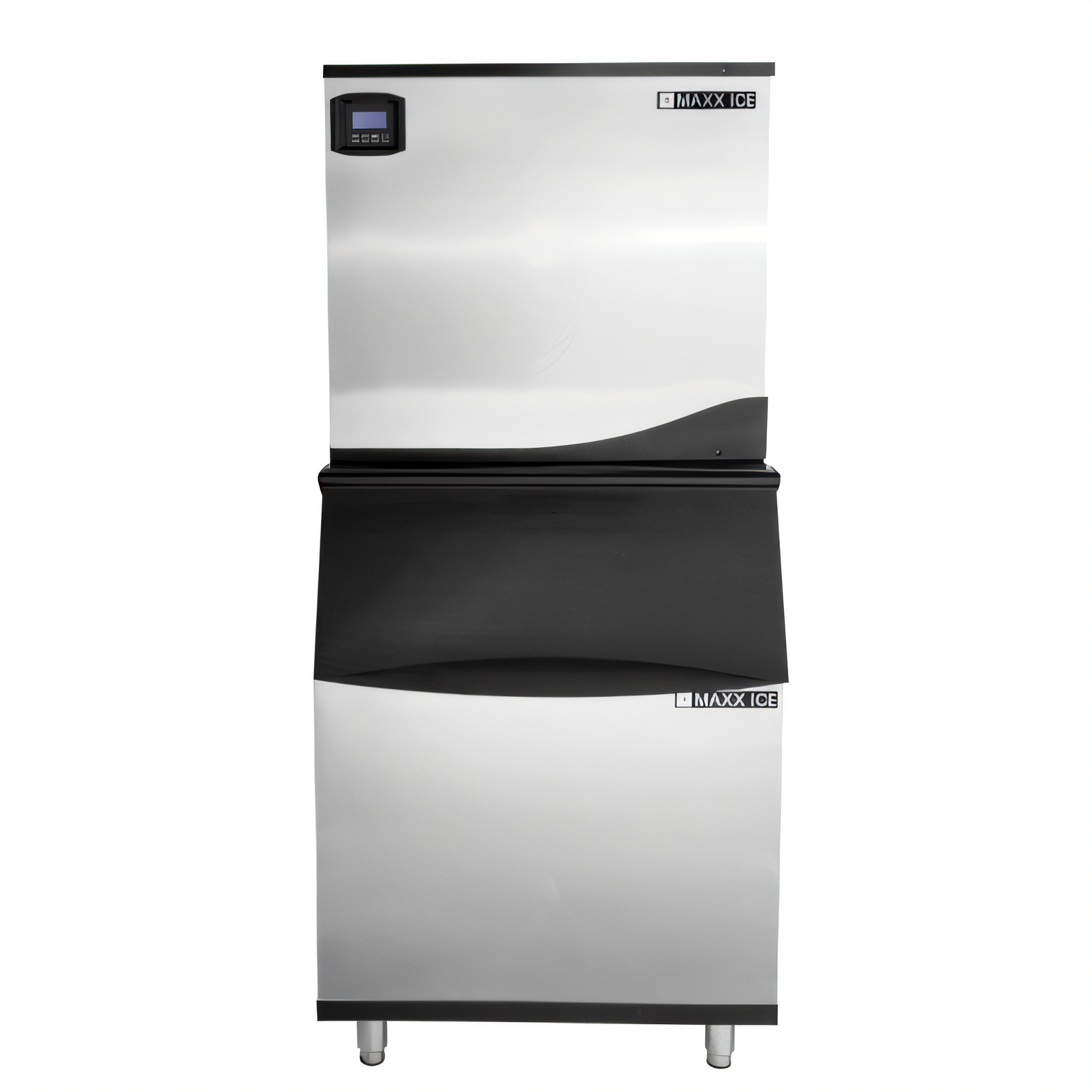

Maxximum MIM500N-B580 Maxx Ice Ice Machines

Maxximum MIM500N-B580 Maxx Ice Ice Machines

Maxx Ice Intelligent Series Modular Ice Machine, 30"W, cube-style (full dice), air-cooled, self-contained condenser, digital, approximately 521 lb. production/24 hours, slab cube ice type, stainless steel with black trim, and Storage Bin, 30"W, 580 lbs, R404a refrigerant, NSF, cULus Classified, CE, ENERGY STAR® (MIM500N-B580)

Specifications

Documents

• Cutsheet

What our Experts Think

• High Daily Output: Produces up to 521 lbs of full-dice ice per day, ideal for high-demand environments like large restaurants, hotels, and event venues.

• Energy and Water Efficient: Designed to consume up to 40% less water and produce ice up to 20% faster than similar units, reducing operational costs.

• Durable Construction: Features a stainless steel exterior with black trim, ensuring longevity and a professional appearance.

• User-Friendly Controls: Equipped with an intuitive digital controller that displays machine status and temperature, simplifying operation and monitoring.

• Easy Maintenance: The hinged front panel design allows for easy access for cleaning and servicing, ensuring consistent performance.

• Stackable Design: Can be stacked with an adapter to increase ice production in high-volume kitchens, offering flexibility in ice production capacity.

• Compatible Storage Bin: Pairs with the Maxx Ice MIB580N 30" ice storage bin, which holds up to 580 lbs of ice, providing ample storage capacity.

Q&A

Q: What type of ice does the Maxximum MIM500N-B580 produce?
A: The Maxximum MIM500N-B580 produces full-dice ice cubes measuring 0.875" x 0.875" x 1", ideal for beverages and food display.

Q: What is the daily ice production capacity?
A: It produces up to 521 lbs (236 kg) of ice per day under optimal conditions (70°F air and 50°F water).

Q: Is the MIM500N-B580 energy-efficient?
A: Yes, it's Energy Star rated, consuming up to 40% less water and producing ice up to 20% faster than similar units.

Q: What are the installation requirements?
A: The MIM500N-B580 requires a gravity drain line and a 115V electrical connection. A 2-inch clearance from the wall is recommended for proper ventilation.

Q: Is the MIM500N-B580 easy to maintain?
A: Yes, it features a hinged front panel for easy access, automatic cleaning cycle, and bin overflow prevention.

Maintenance Tips

• Exterior Cleaning: Use a soft cloth with a mild detergent and warm water solution. Rinse with clean water and wipe with a soft towel to prevent water spots.

• Interior Cleaning (Water Tank and Ice Storage Bin): Sanitize using a solution of 1 oz of household bleach mixed with 2 gallons of hot water (95º to 115ºF). Wipe down the water tank and inside the ice storage bin with a clean cloth, then rinse thoroughly with clean water.

• Preparation: Remove all ice cubes from the storage bin.

• Cleaning Solution: Add 8 oz of nickel-safe ice machine cleaner to the water tank.

• Cleaning Cycle: Turn on the machine and press the "Clean" button to start the cleaning cycle.

• Rinsing: Repeat the cleaning cycle three times without adding cleaning solution to ensure thorough rinsing.

• Sanitization: After cleaning, sanitize the water tank and ice storage bin with the bleach solution mentioned above.

• Restart: Discard the first batch of ice produced after cleaning and sanitizing.

• Inspection: If ice cubes are incompletely formed or production is low, check if the water distribution tube is blocked.

• Cleaning: Remove the top panel, rotate the water distribution tube so that the holes face up, and clear any obstructions using a toothpick or similar tool. Reassemble the unit after cleaning.
