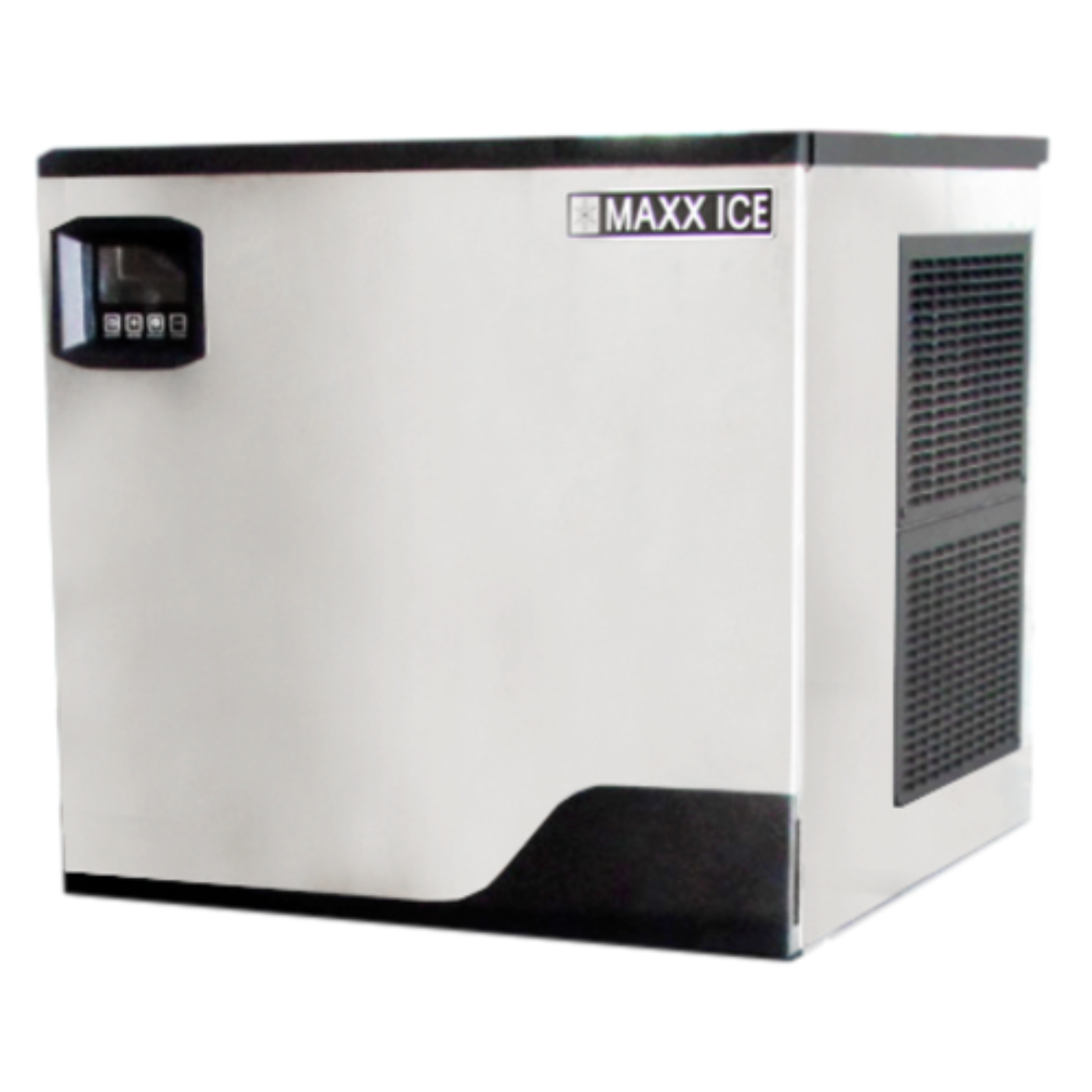

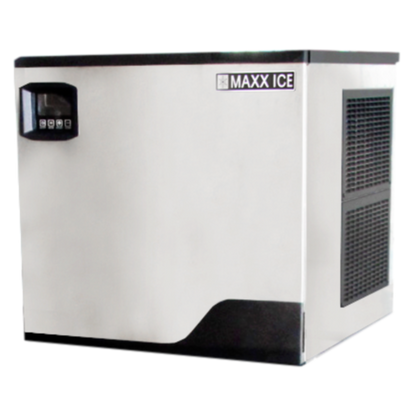

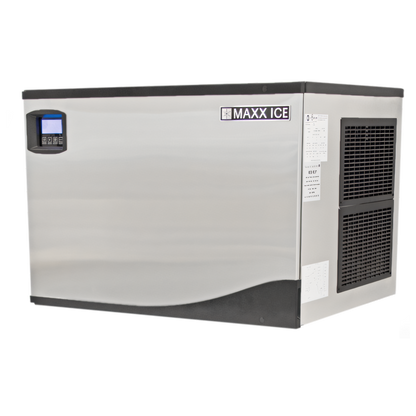

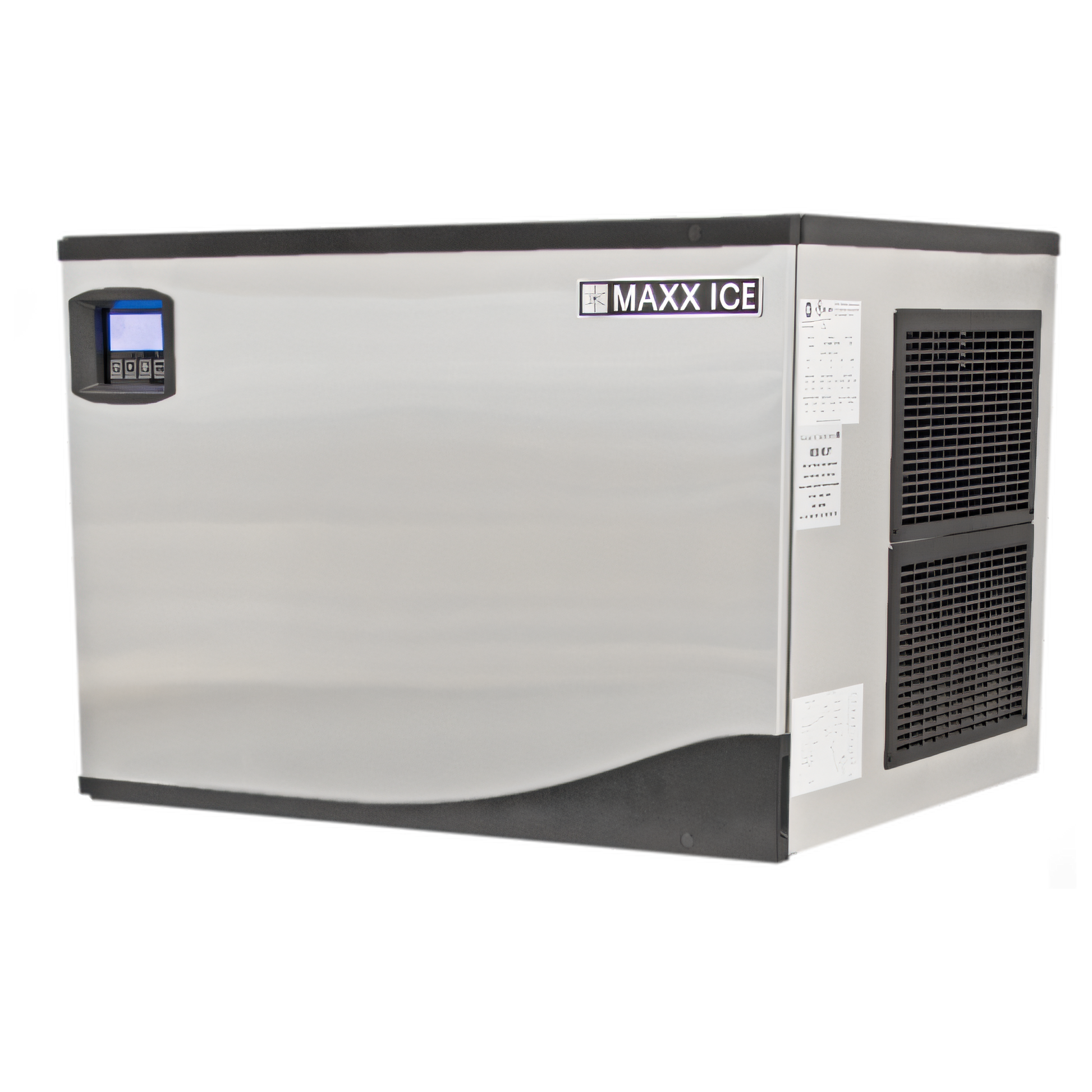

Maxximum MIM500NH Maxx Ice Ice Machines
Maxx Ice Modular Ice Maker, cube-style (half dice), air-cooled, self-contained condenser, digital, approximately 513 lb. production/24 hours, slab cube ice type, stainless steel with black trim, R404a refrigerant, NSF, cULus Classified, CE, ENERGY STAR
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Ice |
| Certifications |
NSF, CE, cULus Classified, ENERGY STAR |
| Height |
21.0 in |
| Width |
30.0 in |
| Depth |
24.6 in |
| Shipping Weight |
148.0 lbs |
| Ice Type |
Full size / Dice cubes |
| Width (side-to-side) |
30 – 39" wide |
| Condenser Type |
Air-cooled |
| Production per 24 hr |
501 – 600 lb (approximately 521 lb / 228 – 272 kg) |
| Refrigeration |
Self-contained refrigeration |
| Energy Efficiency |
ENERGY STAR® certified |
| Specifications (Full) |
Maxx Ice Modular Ice Maker, cube-style (full dice), air-cooled, self-contained condenser, digital controls, approx. 521 lb/24 hrs, slab cube ice type, stainless steel with black trim, R404a refrigerant, NSF, cULus Classified, CE, ENERGY STAR |
Documents
What our Experts Think
-
High Ice Production: Delivers up to 500 lbs of ice per day, ideal for large-scale operations like hotels, restaurants, and event venues.
-
Large Storage Capacity: The 400 lbs built-in storage bin ensures a consistent ice supply, minimizing downtime and ensuring you're always stocked.
-
Sturdy & Durable: Constructed with stainless steel, providing long-lasting performance and easy maintenance even in the toughest environments.
-
Energy Efficient: The air-cooled system helps reduce energy consumption, keeping operational costs low without compromising on performance.
-
Space-Saving Design: Its front-breathing ventilation system allows for versatile installation in compact spaces, making it perfect for under-counter or built-in setups.
-
Low Maintenance: Features like removable air filters and easily accessible components make regular upkeep and cleaning simple and efficient.
-
NSF & ETL Certified: Meets all necessary health and safety standards, ensuring it’s a trusted and reliable choice for commercial establishments.
Q&A
Q: What is the Maxximum MIM500NH Maxx Ice Ice Machine used for?
A: This modular, air-cooled ice machine produces up to 513 lbs of half-dice ice cubes daily, making it ideal for high-volume commercial settings like restaurants, bars, hotels, and event venues.
Q: What type of ice does it produce?
A: The MIM500NH produces half-dice ice cubes measuring 0.5" x 0.875" x 0.875", known for their clarity and slow-melting properties.
Q: Does the MIM500NH include an ice storage bin?
A: No, the MIM500NH is a modular unit and does not include an ice storage bin. Compatible bins are sold separately.
Q: Is the Maxx Ice MIM500NH energy-efficient?
A: Yes, it is designed to consume up to 40% less water than similar units and produces ice up to 20% faster. It meets Energy Star, UL, and NSF guidelines.
Q: What are the installation requirements?
A: It requires a 115V electrical connection, water supply, and gravity drain. Professional installation is recommended for optimal performance.
Maintenance Tips
-
Monthly Cleaning: Clean the ice-making system with a nickel-safe ice machine cleaner. Run the automatic cleaning cycle and repeat if necessary. After cleaning, sanitize the interior with a bleach solution (1 oz bleach to 2 gallons hot water) and discard the first batch of ice produced.
-
Water Distribution Tube Maintenance: If ice cubes are incomplete or production is low, clean the water distribution tube. Rotate it to expose the holes and clear any blockages.
-
Condenser Cleaning: Regularly clean the condenser coils to prevent dust and debris buildup, ensuring the machine operates efficiently.
-
Water Filter Replacement: Replace water filters every three months to maintain ice quality and machine performance.
-
Exterior Cleaning: Clean the stainless steel exterior weekly using a mild detergent and warm water. Avoid using abrasive or solvent-based cleaners.
