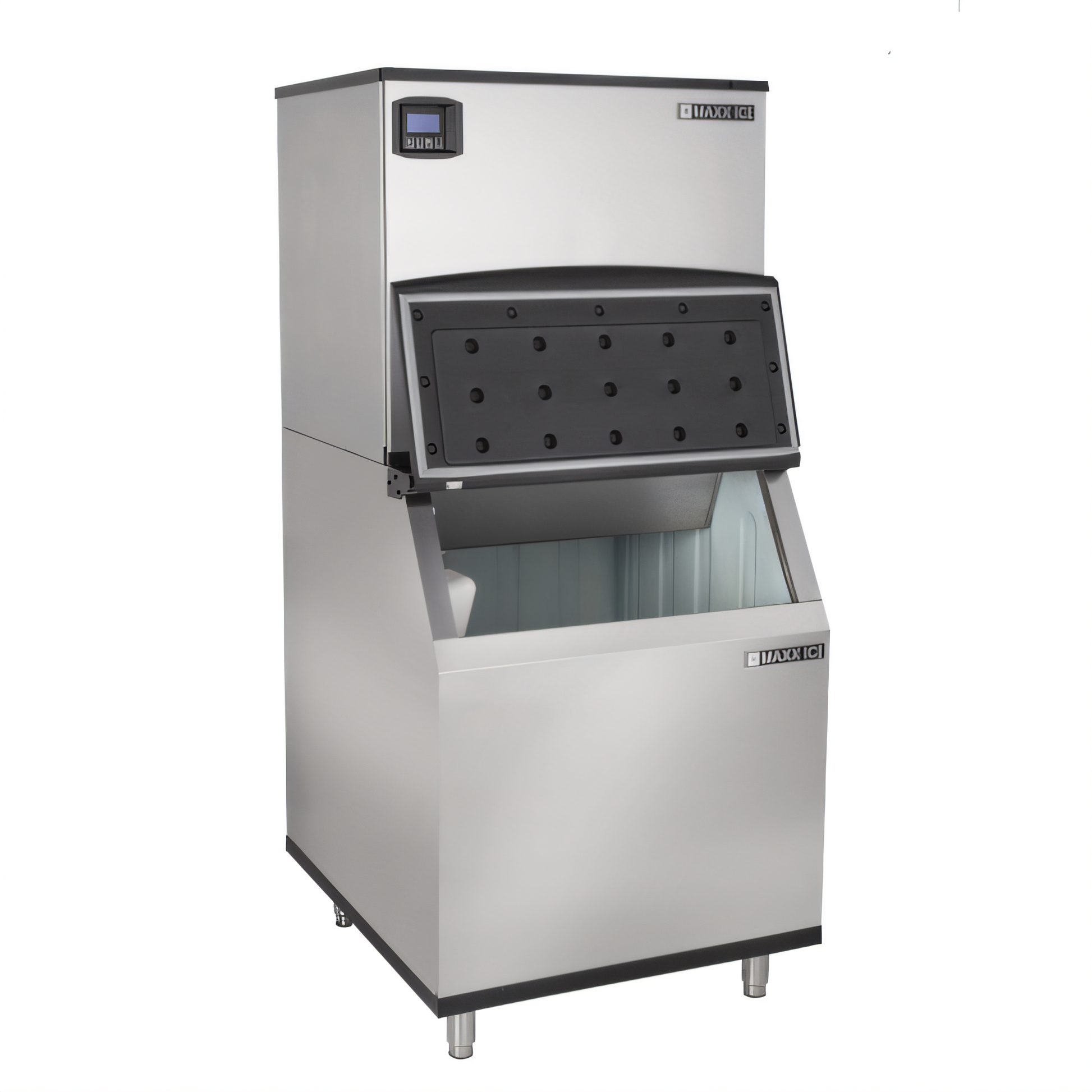

Maxximum MIM650N-B470 Maxx Ice Ice Machines
Maxx Ice Intelligent Series Modular Ice Machine, 30"W, cube-style (full dice), air-cooled, self-contained condenser, programmable digital controls & display, automatic cleaning, overflow prevention, approximately 650 lb. production/24 hours, on/off switch, LED light, vertical evaporator, stainless steel exterior with black trim, and Storage Bin, 30"W, 470 lbs, R404a refrigerant, 230v/60/1-ph, 8.0 amps, NEMA L14-20, hard wired, NSF, cULus Classified, CE (MIM650N-B470)
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Ice |
| Height |
62.4 in |
| Width |
30.0 in |
| Depth |
34.0 in |
| Shipping Weight |
186.0 lbs |
| Cube Type |
Full size / dice |
| Condenser Type |
Air-cooled |
| Bin Storage Capacity |
400 – 499 lb (470 lb) |
| Finish |
Stainless steel with black trim |
| Specifications |
Maxx Ice Intelligent Series Modular Ice Machine (MIM650N-B470), 30"W, cube-style (full dice), air-cooled, self-contained condenser, programmable digital controls & display, automatic cleaning, overflow prevention, on/off switch, LED light, vertical evaporator, stainless steel exterior with black trim, storage bin (470 lb capacity), R404a refrigerant, 230v/60/1-ph, 8.0 amps, NEMA L14-20, hard wired, NSF, cULus Classified, CE |
Documents
What our Experts Think
-
High-Volume Production: Produces up to 650 lbs of ice per day, ideal for busy restaurants, hotels, hospitals, and event venues.
-
Large-Capacity Bin: Includes a 470 lbs storage bin, ensuring continuous access to ice during peak demand.
-
Built for Commercial Use: Durable stainless steel construction resists corrosion and stands up to heavy daily use.
-
Energy-Efficient Performance: Air-cooled system helps lower utility costs while maintaining consistent ice output.
-
Low Maintenance: Easy-access components and an automatic cleaning system simplify service and upkeep.
-
Certified Safe: NSF and ETL certified to meet the highest standards for food safety and sanitation.
Q&A
Q: What is the Maxximum MIM650N-B470 Maxx Ice Ice Machine?A:
The Maxximum MIM650N-B470 is a high-capacity, air-cooled modular ice machine designed for commercial use. It produces up to 650 lbs of full-dice ice cubes daily and includes a 470-lb capacity storage bin.
Q: What type of ice does it produce?
A: This machine produces full-dice ice cubes, each measuring 0.875" x 0.875", ideal for beverages and foodservice applications.
Q: Is the storage bin included?
A: Yes, the MIM650N-B470 includes a 470-lb capacity storage bin, which features an LED-illuminated interior for easy ice access.
Q: What are the power and water requirements?
A: The unit operates on a 230V electrical supply and requires a potable water line with a 3/8" FPT connection. It uses 16 gallons of water per 100 lbs of ice produced.
Q: Is it Energy Star certified?
A: Yes, the MIM650N-B470 is Energy Star certified, ensuring energy-efficient operation and reduced utility costs.
Q: What are the dimensions and weight?
A: The unit measures 30" W x 34" D x 62.4" H and weighs approximately 222.5 lbs.
Q: Does it have any special features?
A: Yes, it features a hinged front panel for easy access and service, an automatic cleaning cycle, bin overflow prevention, and a user-friendly digital control panel. The stainless steel exterior is durable and easy to clean.
Q: Where is it best used?
A: Ideal for high-volume commercial environments like restaurants, bars, hotels, and catering services that require consistent ice production.
Maintenance Tips
-
Weekly Cleaning: Wipe the stainless steel exterior with a mild detergent solution to prevent dirt buildup.
-
Monthly Descaling: Use a nickel-safe ice machine cleaner to remove mineral buildup from the evaporator and water distribution system.
-
Sanitize Regularly: Every 1–3 months, sanitize the ice-making components with a bleach solution (1 oz bleach per gallon of warm water) to ensure ice purity.
-
Replace Filters: Change the water filter as recommended to maintain high ice quality
-
Inspect Components: Regularly check the water inlet valve, evaporator, and condenser for any signs of wear or blockage.
