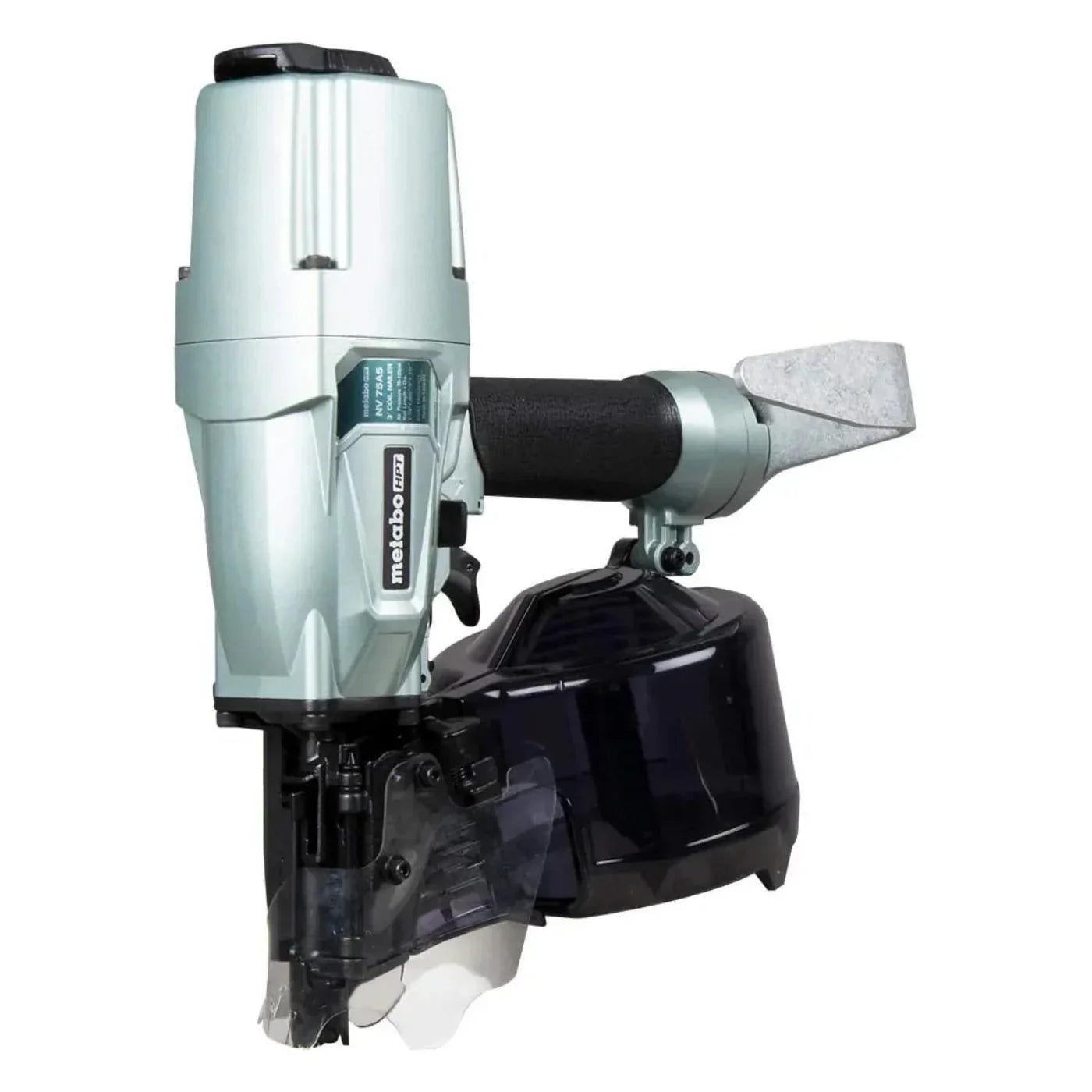

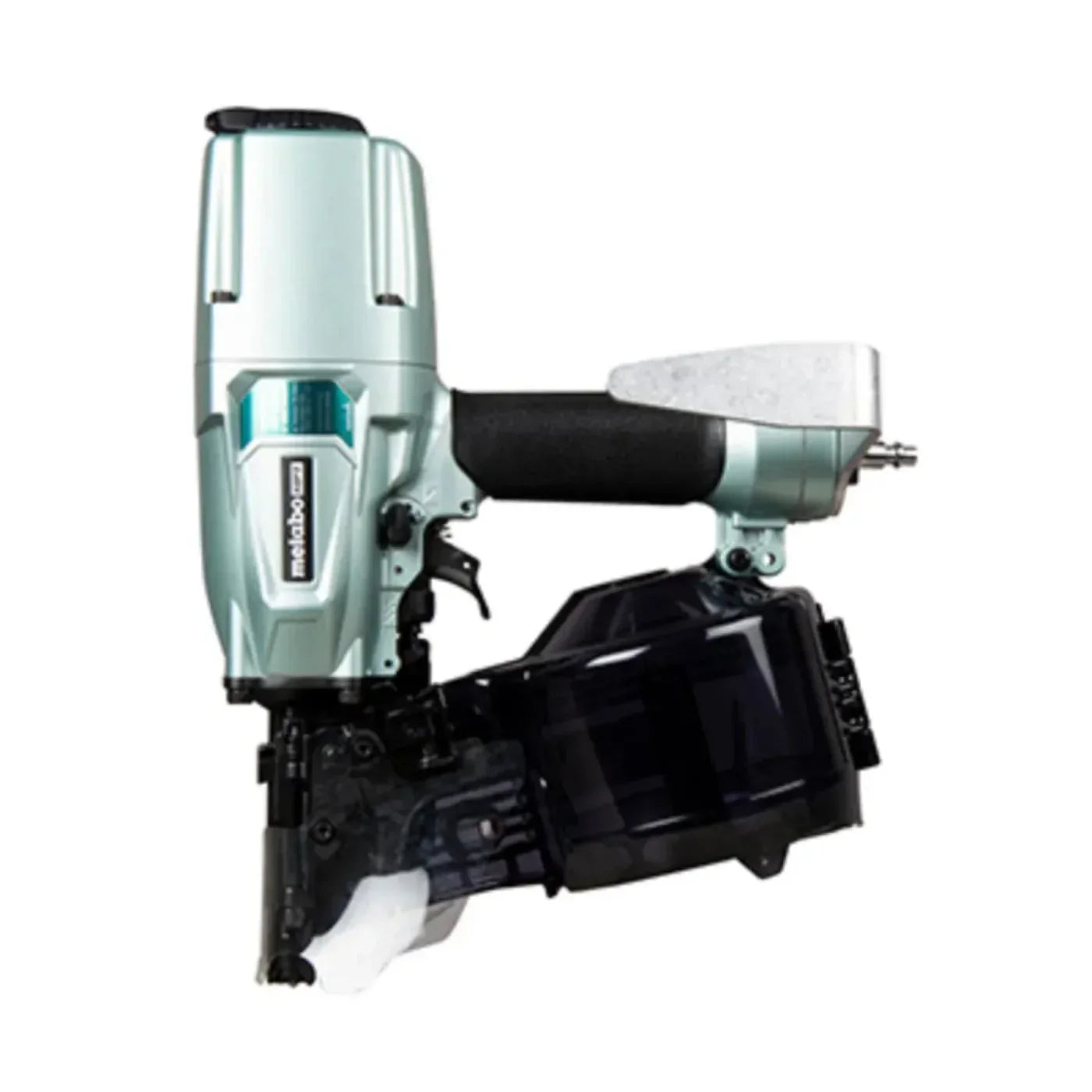

Metabo 3" Siding/Light Framing Coil Nailer - NV75A5M
Metabo 3" Siding/Light Framing Coil NailerThe 3-inch Siding/Light Framing Coil Nailer (NV75A5) bridges the gap between framing and siding on the job site. It has the power to frame and the precision and convenient features needed for siding work. The capability to drive up to 3" x 0.131" fasteners, and adjustable depth of drive make it the perfect tool for sheathing applications.
Features
- Accepts 16º wire coil nails from 1-3/4" - 3" and 15º plastic coil nails from 1-3/4" - 2-1/4"
- Only 5.7 lbs for easy maneuverability

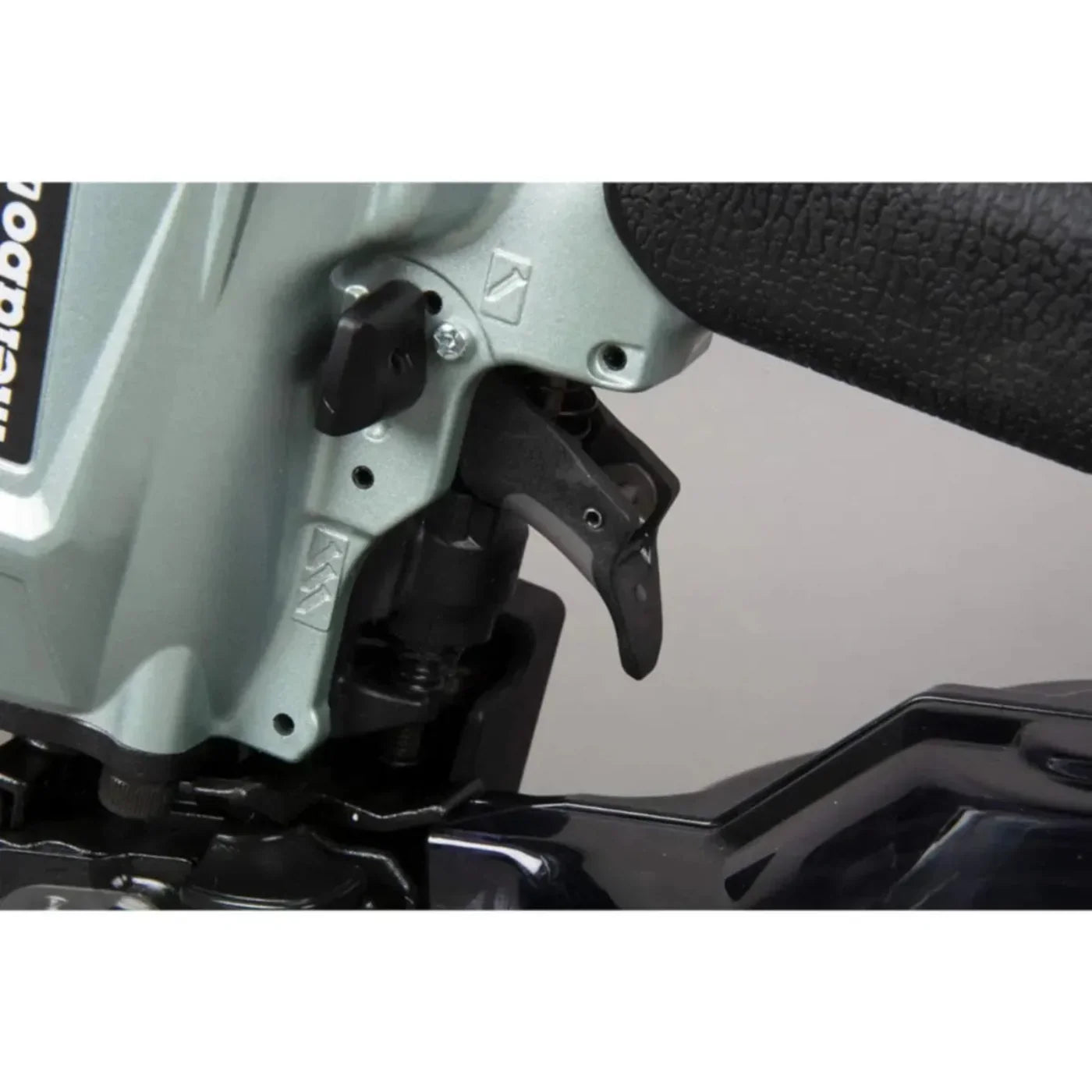

- Selective actuation allows for quick changes between sequential and contact nailing with the flip of a switch

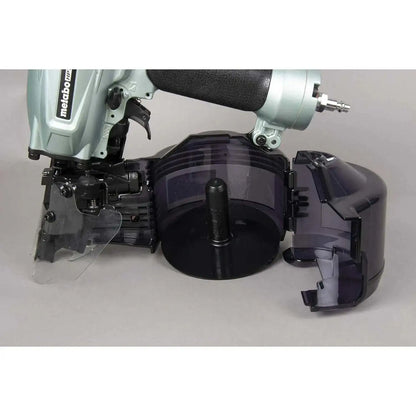

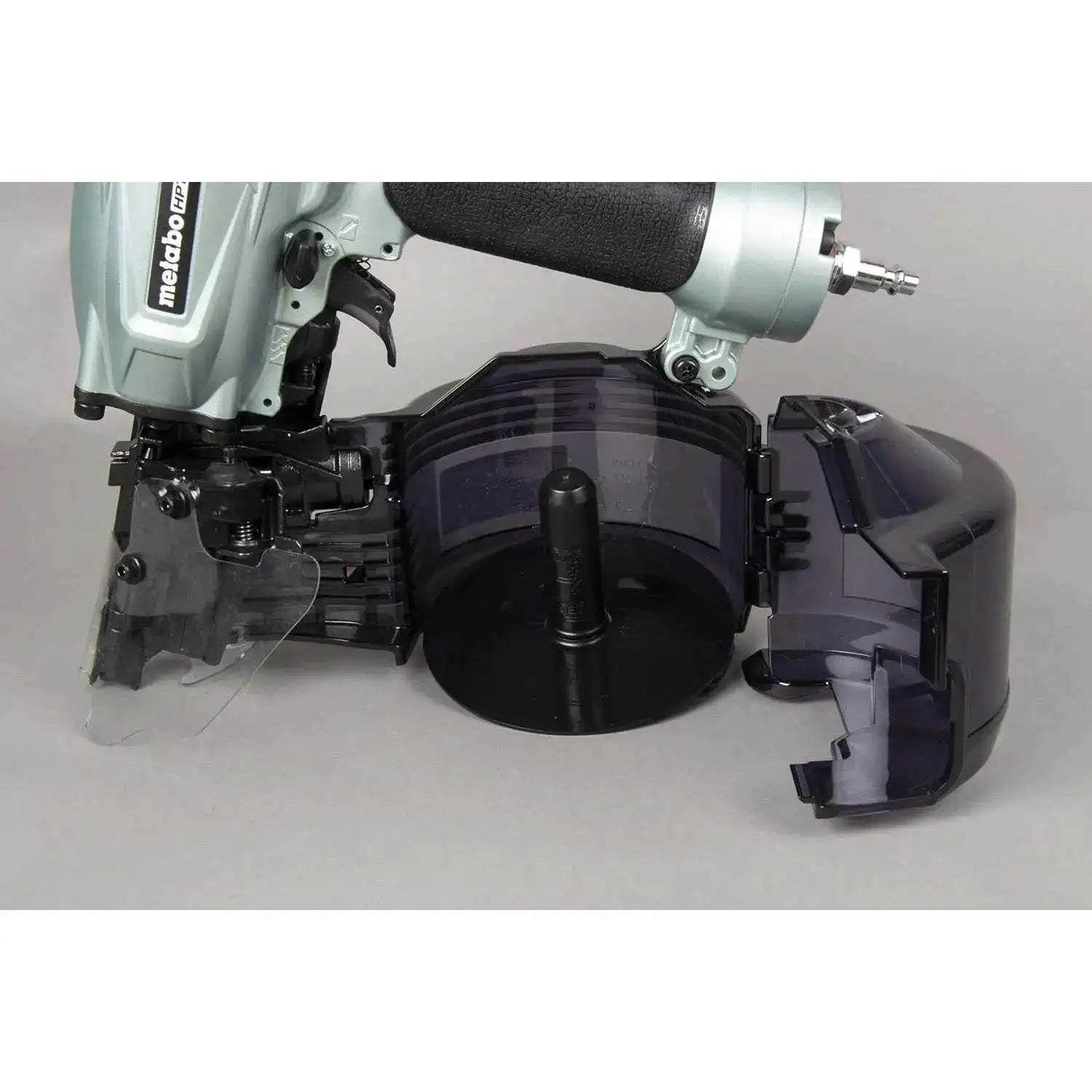

- Side load, tilt bottom magazine for fast and easy reloads

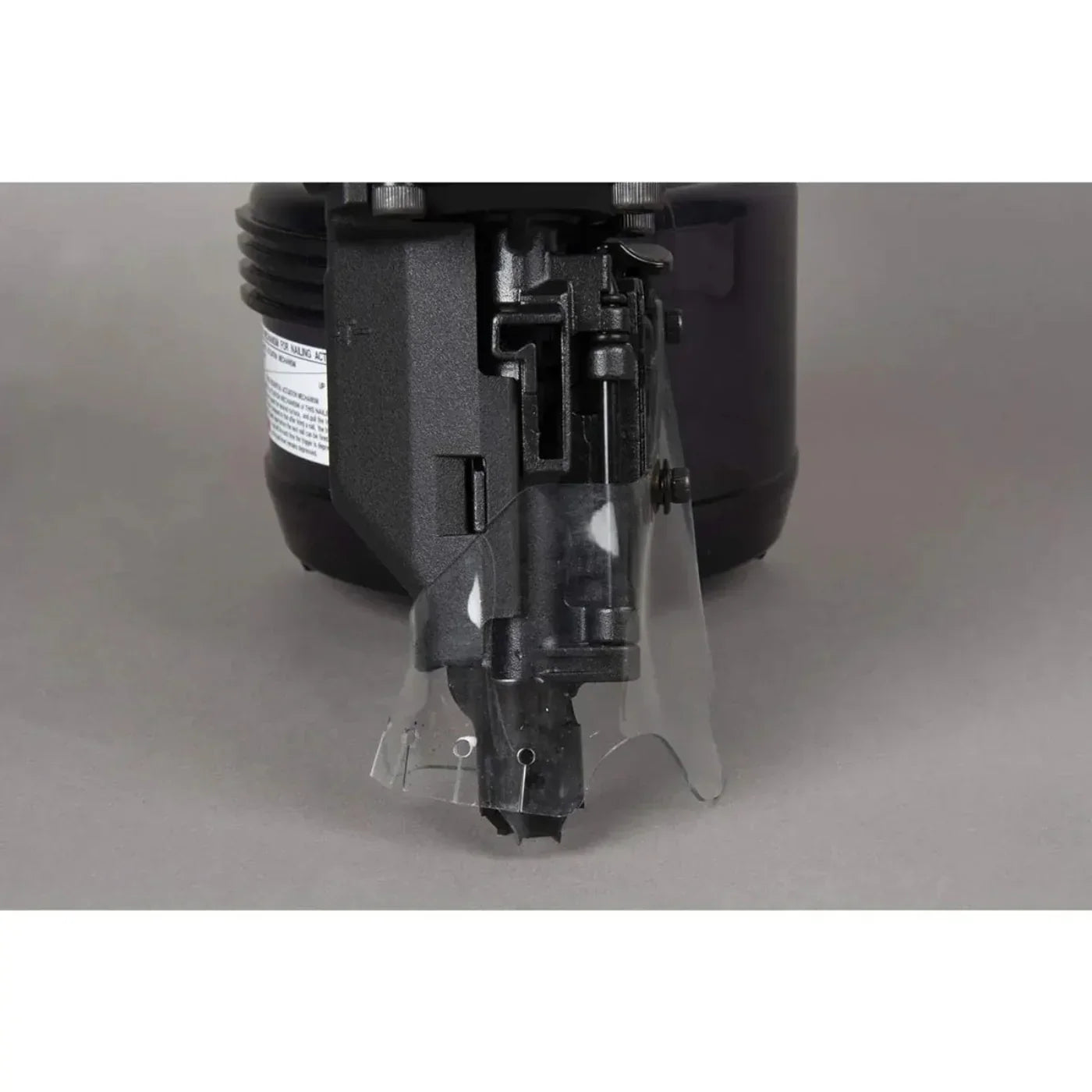

- No mar nose cap protects material from accidental marks
- Adjustable air deflector directs the air exhaust in any direction
- Side load, tilt bottom magazine for fast and easy reloads
- Compliant safety standards for pneumatic nailers in the United States
- 5 year warranty
- Safety glasses included
Specification
| Nail Length (Plastic Collated) |
1-3/4" - 2-1/4" |
| Nail Length (Wire Collated) |
1-3/4" - 3" |
| Nail Diameter (Wire Collated) |
.099" - .131" |
| Nail Diameter (Plastic Collated) |
.090" - .099" |
| Actuation |
Selective (Sequential/Contact) |
| Magazine Angle |
16-degree Wire - 15-degree Plastic |
| Magazine Loading |
Side Load - Tilt Bottom |
| Nail Capacity |
200-300 |
| Operating Pressure |
70-120 PSI |
| Dry-fire Lockout |
No |
| Depth Adjustment |
Tool-less |
| Jam Clearing |
Open Nose Design |
| Dimensions (LxWxH) |
10-11/16" x 5-3/16" x 13-3/8" |
| Weight |
5.7 lbs. |
What Our Experts Think
-
Versatile 2-in-1 Design – Ideal for both siding installation and light framing applications.
-
High-Speed Performance – Drives nails from 1-3/4" to 3" efficiently for fast-paced jobs.
-
Tool-Free Depth Adjustment – Ensures precise nailing without hassle.
-
Selective Actuation Trigger – Switch easily between sequential and bump fire modes.
-
Durable & Lightweight – Built for professional use with a well-balanced, ergonomic design.
Q&A
Q: What is the Metabo 3" Siding/Light Framing Coil Nailer - NV75A5M used for?
A: It’s designed for siding installation, fencing, decking, and light framing applications, delivering high-speed nailing with precision.
Q: What nail sizes does it accommodate?
A: It supports coil nails from 1-3/4" to 3" in length and .099" to .131" in diameter, making it versatile for various projects.
Q: Is it lightweight and easy to handle?
A: Yes, its lightweight magnesium body and ergonomic grip enhance maneuverability and reduce fatigue.
Q: Does it have jam-clearing or maintenance features?
A: Yes, it includes an easy-access nose design for quick jam clearing, ensuring smooth operation on the job.
Q: What type of applications is this nailer ideal for?
A: It’s perfect for wood siding, sheathing, subflooring, fencing, and light framing tasks.
Maintenance Tips
-
Lubricate Regularly – Apply pneumatic tool oil before each use to prevent wear.
-
Check Air Pressure – Maintain recommended PSI to ensure proper operation.
-
Clean the Magazine – Remove dust and debris to prevent jamming.
-
Inspect O-Rings & Seals – Replace worn parts to maintain air pressure efficiency.
-
Use Quality Fasteners – Avoid low-quality nails that can cause misfires.
