Micro Matic USA Pro-Line Draft Beer & Wine Dispensers - MDD23W-E-E

Micro Matic USA  Pro-Line Draft Beer & Wine Dispensers - MDD23W-E-E

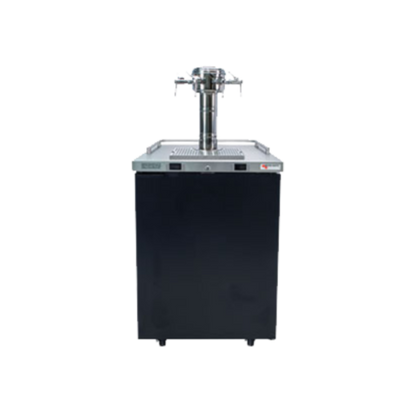

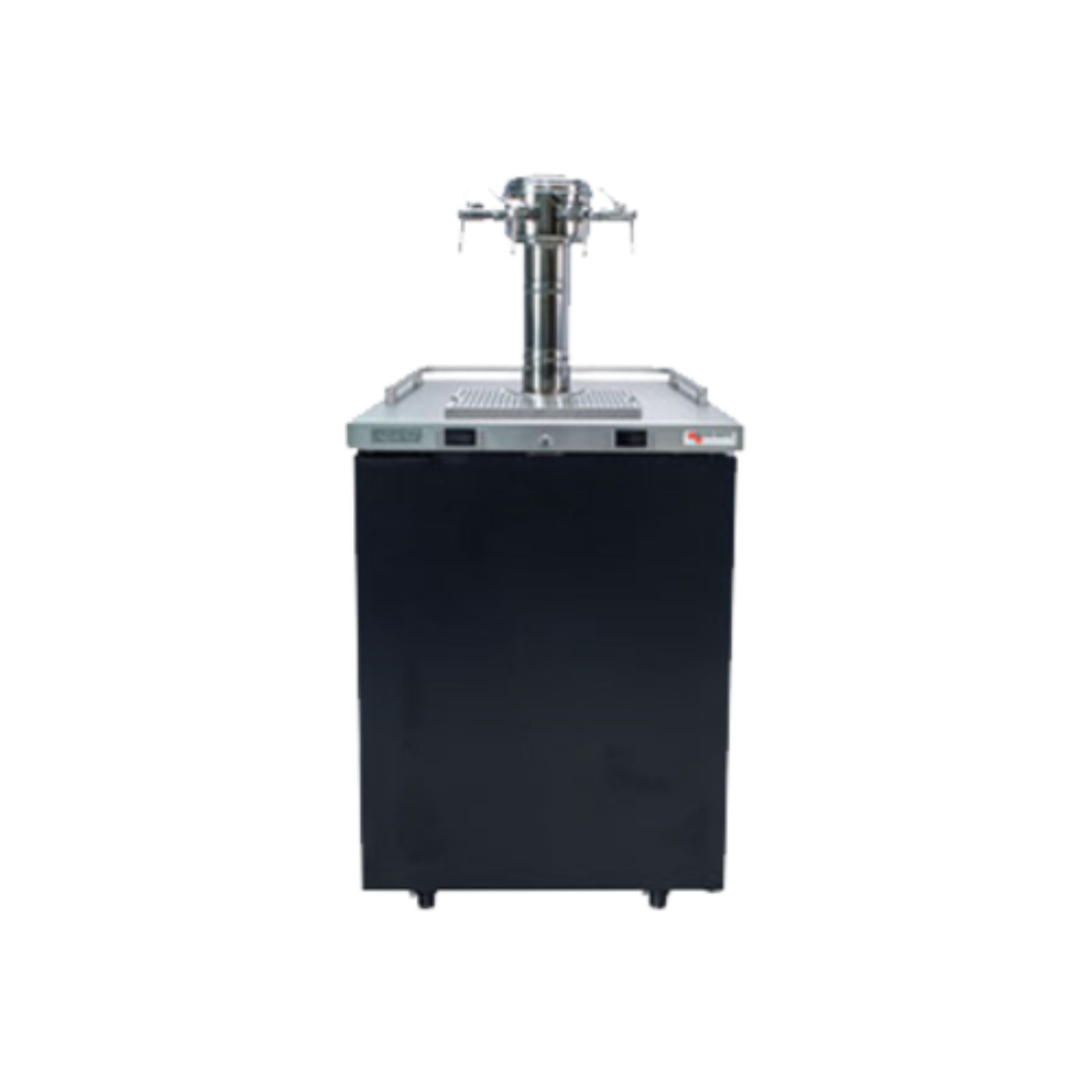

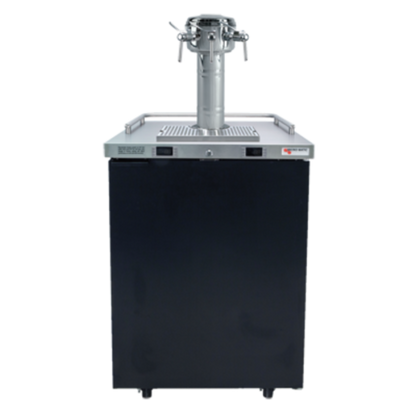

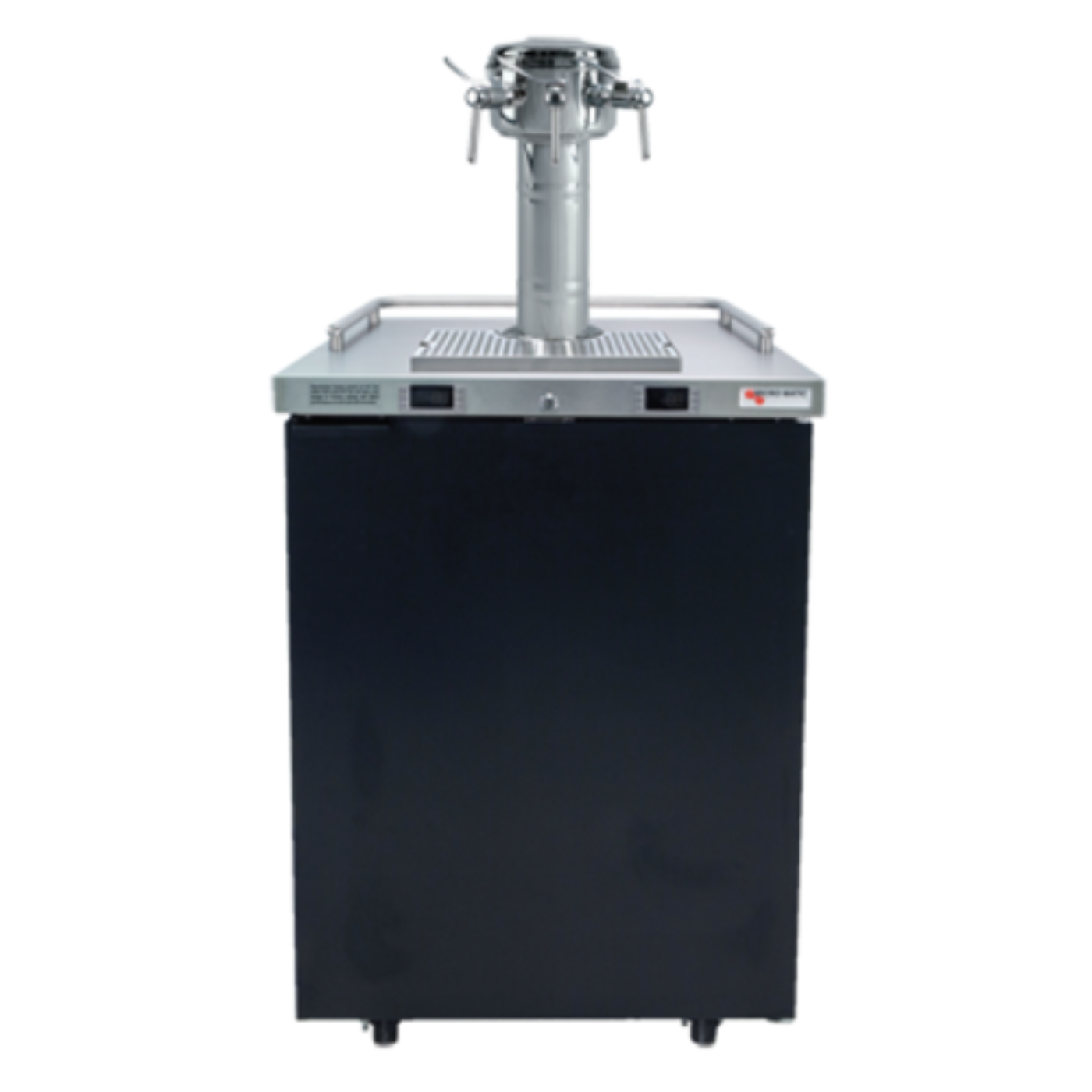

Pro-Line E-Series Dual Temperature Wine Cooler Dispenser, one-section, 25"W, self-contained refrigeration, 8.4 cu. ft. capacity, (1) Sommelier wine font with tap handle holder, with (4) side pull faucet, order one per faucet, stainless steel drip tray with removable grill includes hose & drain bottle, (1) hinged door with lock, (2) LED digital temperature displays, automatic condensate evaporator, stainless steel interior, stainless steel top with glass guard rail on front & sides, black vinyl over steel exterior, casters, R134a, 1/6 HP, 115v/60/1-ph, 2.7 amps, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)

Specifications

What Our Experts Think

• Dual-Temperature Zones
  Features two independently controlled zones to maintain optimal serving temperatures for both red and white wines.

• Compact & Efficient Design
  Measuring 25" W x 31.5" D x 39" H with an 8.4 cu. ft. capacity, this unit accommodates up to four 1/6 barrel kegs, making it ideal for establishments with limited space.

• Durable Construction
  Built with a black vinyl over steel exterior, stainless steel top with glass guard rails, and a galvanized interior with a stainless steel floor, ensuring longevity and ease of cleaning.

• User-Friendly Features
  Equipped with a Sommelier wine font featuring four side-pull faucets, two LED digital temperature displays, a stainless steel drip tray with a removable grill, and a hinged door with a lock for secure storage.

• Efficient Refrigeration
  Utilizes a 1/6 HP self-contained refrigeration system with R-134a refrigerant and foamed-in-place polyurethane insulation, maintaining temperatures between 42°F and 65°F.

Q&A

Q: What is the Micro Matic MDD23W-E-E?
A: A compact, dual-zone direct-draw wine dispenser designed to serve red and white wines at their ideal temperatures, perfect for upscale bar, restaurant, and hospitality applications.

Q: What is its keg capacity and internal volume?
A: Offers 8.4 cu. ft. of storage, holding up to four 1/6-barrel wine kegs—two per independently controlled zone.

Q: What type of cooling system does it use?
A: Features a 1/6 HP compressor and eco-friendly R134a refrigerant, delivering quiet, energy-efficient performance.

Q: Does it include tap hardware?
A: Yes, it comes with a factory-installed Sommelier wine font featuring four side-pull faucets for controlled wine pours.

Q: What power source does it require?
A: Standard 115V/60Hz with a NEMA 5-15P plug—no special wiring required.

Q: Who is this unit designed for?
A: Ideal for wine bars, restaurants, taprooms, and tasting rooms that want to offer premium wine-on-tap service in a space-saving, professional-grade format.

Q: How does this model support wine quality and service?
A: Independent cooling zones ensure red and white wines are stored and served at their ideal temps, while the closed system reduces oxidation, preserving taste and extending shelf life.

Maintenance Tips

To ensure optimal performance and longevity of your Micro Matic MDD23W-E-E, adhere to the following maintenance practices:

• Temperature Settings: Maintain internal temperatures between 45°F and 55°F. Use the digital thermostat to monitor and adjust settings as needed.

• Condenser Coil Cleaning: Clean the condenser coils every six months to prevent compressor malfunction. Disconnect power, access the condensing unit, and vacuum thoroughly.

• Cabinet Cleaning: Use lukewarm water and mild detergent to clean both interior and exterior surfaces. Avoid abrasive materials to prevent scratches.

• Door Seal Inspection: Regularly check door gaskets for wear or damage. Replace if seals are loose or cracked to maintain energy efficiency.

• Ventilation Maintenance: Ensure vents are unobstructed to allow proper airflow. Avoid placing items that block ventilation paths.

• Defrosting: If ice buildup occurs, defrost the unit to maintain efficiency.

• Electrical Safety: Avoid using extension cords. If necessary, use a grounded 16 AWG or heavier cord, not exceeding 20 feet in length.
