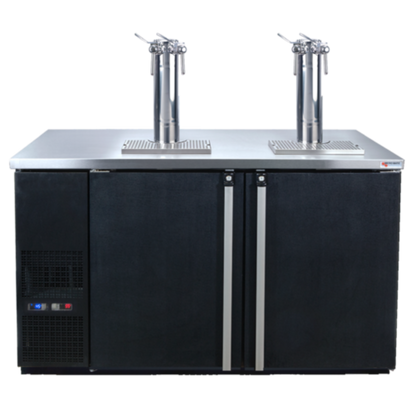

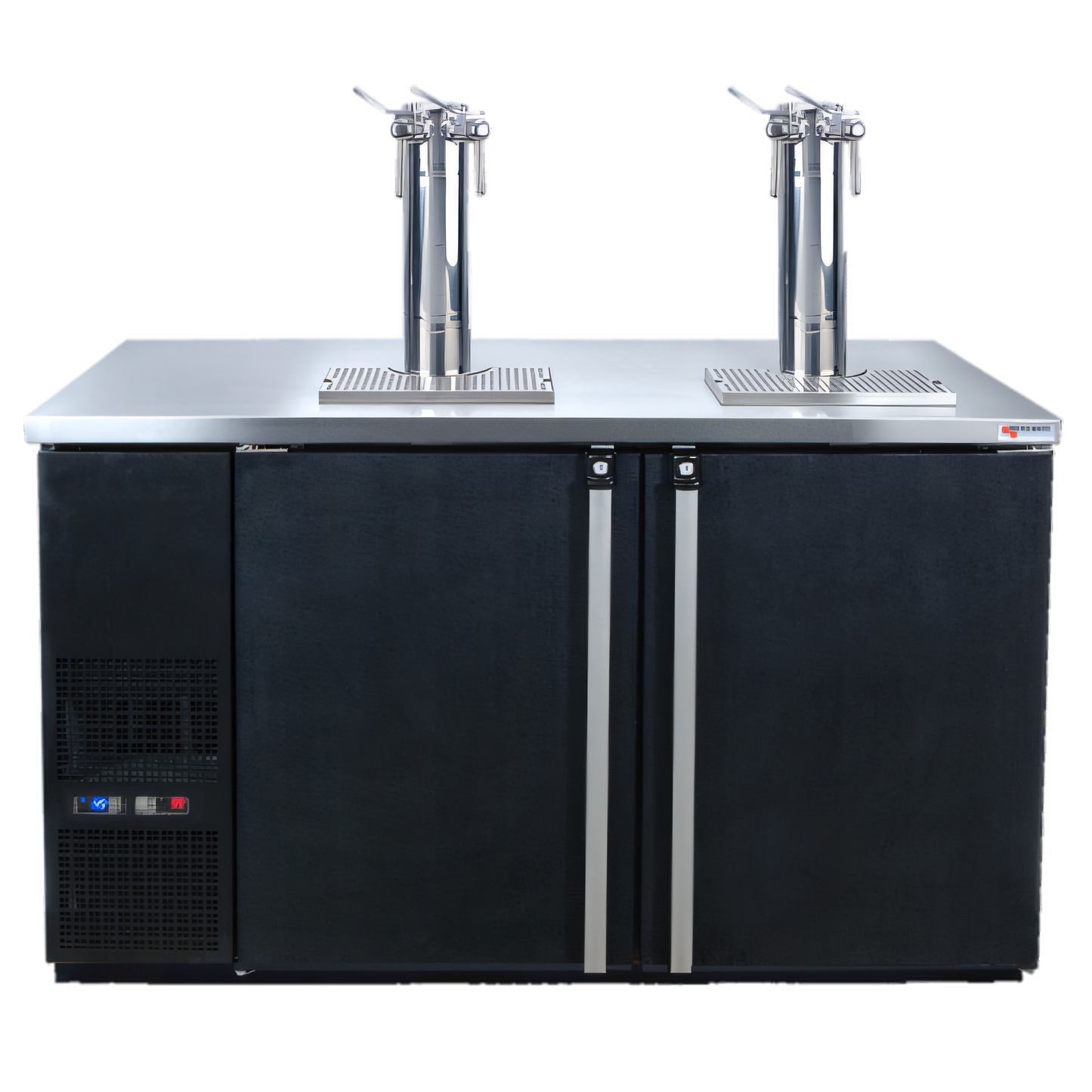

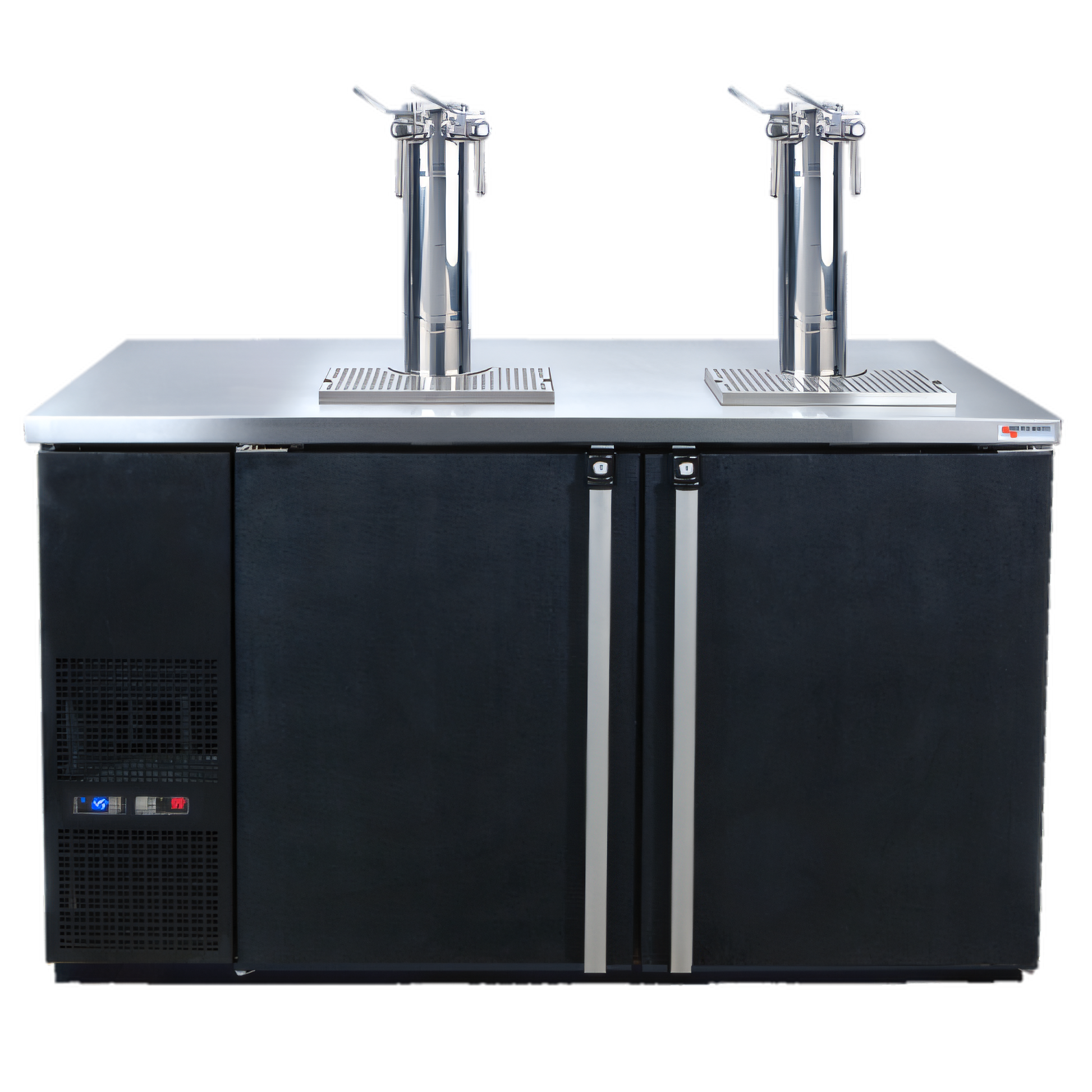

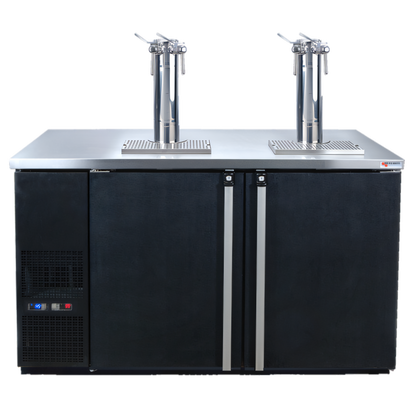

Micro Matic USA Pro-Line Draft Beer & Wine Dispensers - MDD58W-E-A
Pro-Line E-Series Dual Temperature Wine Cooler Dispenser, two-section, 59-1/2"W, self-contained refrigeration, accommodates (8) 1/6 barrel kegs, (2) solid hinged doors with locks, (2) Finesse wine fonts with (2) 304 stainless steel side pull faucets each (medallion holders not included), stainless steel drip tray, (2) LED digital temperature displays, (2) 4-way gas distributor manifolds, front ventilated, automatic condensate evaporator, includes (2) rear knock-out plugs for gas lines, stainless steel interior floor, stainless steel top, black vinyl over steel exterior, R134a, 1/3 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)
| Manufacturer |
Micro Matic USA |
| Brand Name |
Pro-Line |
| Certifications |
cETLus, ETL-Sanitation |
| Height |
37.25 in |
| Width |
59.5 in |
| Depth |
28.25 in |
| Shipping Weight |
318.0 lbs |
| Width (side to side) |
59 in |
| Exterior Finish |
All black exterior |
| Top |
Flat top, stainless steel |
| Refrigeration Type |
Self-contained refrigeration |
| Towers/Taps |
(2) dual faucet columns (4 total faucets) |
| Internal Capacity |
Accommodates (8) 1/6 barrel kegs |
| Doors |
(2) solid hinged doors with locks |
| Wine Fonts |
(2) Finesse wine fonts with (2) 304 stainless steel side pull faucets each (medallion holders not included) |
| Drip Tray |
Stainless steel drip tray |
| Temperature Displays |
(2) LED digital temperature displays |
| Gas Distributor |
(2) 4-way gas distributor manifolds |
| Ventilation |
Front ventilated |
| Refrigerant Type |
R134a |
| Refrigeration |
Automatic condensate evaporator |
| Interior Floor |
Stainless steel |
| Electrical |
115v / 60Hz / 1-phase, 6.5 amps, NEMA 5-15P |
| Additional Notes |
Includes (2) rear knock-out plugs for gas lines, tapping equipment sold separately |
Documents
What Our Experts Think
-
Dual-Zone Temperature Control
Features two dedicated temperature zones: 42–48°F for white wines and 55–65°F for red wines, ensuring optimal serving conditions for each varietal.
-
High Capacity
Accommodates up to eight 1/6 barrel kegs (four per zone), allowing for a diverse selection of wines on tap.
-
Efficient Dispensing System
Equipped with two Finesse wine fonts, each featuring two stainless steel side pull faucets, enabling simultaneous service of multiple wine options.
-
Durable Construction
Built with a rugged stainless steel top and interior, complemented by a black vinyl over steel exterior, designed for long-term commercial use.
-
User-Friendly Design
Includes LED digital temperature displays for each zone, facilitating easy monitoring and temperature adjustments.
Q&A
Q: What is the Micro Matic MDD58W-E-A?
A: A dual-zone commercial dispenser for serving both draft beer and wine at ideal temperatures.
Q: What is its keg capacity?
A: Fits up to two 1/2-barrel kegs or multiple smaller kegs for versatile service.
Q: Is it wine-compatible?
A: Yes, it includes a dedicated wine zone with precise temperature control to preserve wine quality.
Q: Who should use it?
A: Perfect for bars, restaurants, and venues offering both wine and draft beer on tap.
Maintenance Tips
To ensure optimal performance and longevity of your Micro Matic MDD58W-E-A, adhere to the following maintenance practices:
-
Condenser Coil Cleaning: Clean the condenser coils every six months to prevent compressor malfunction. Disconnect power, access the condensing unit, and vacuum thoroughly.
-
Cabinet Cleaning: Use lukewarm water and mild detergent to clean both interior and exterior surfaces. Avoid abrasive materials to prevent scratches.
-
Door Seal Inspection: Regularly check door gaskets for wear or damage. Replace if seals are loose or cracked to maintain energy efficiency.
-
Ventilation Maintenance: Ensure vents are unobstructed to allow proper airflow. Avoid placing items that block ventilation paths.
-
Temperature Monitoring: Maintain internal temperatures between 34°F and 38°F. Use the digital thermostat to monitor and adjust settings as needed.
-
Defrosting: If ice buildup occurs, defrost the unit to maintain efficiency.
-
Electrical Safety: Avoid using extension cords. If necessary, use a grounded 16 AWG or heavier cord, not exceeding 20 feet in length.
