Micro Matic USA Pro-Line Draft Beer & Wine Dispensers - MDD58W-E-E

Micro Matic USA  Pro-Line Draft Beer & Wine Dispensers - MDD58W-E-E

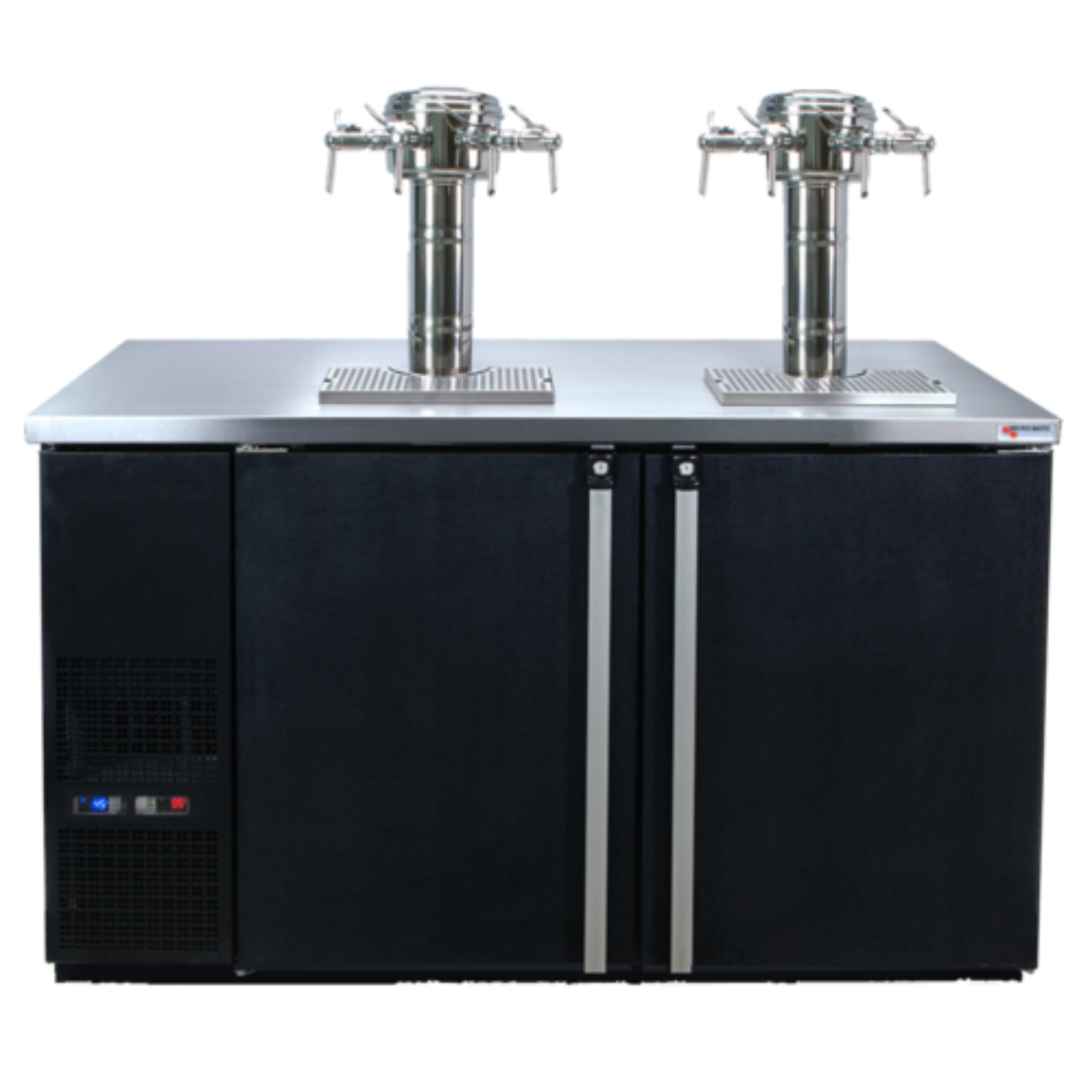

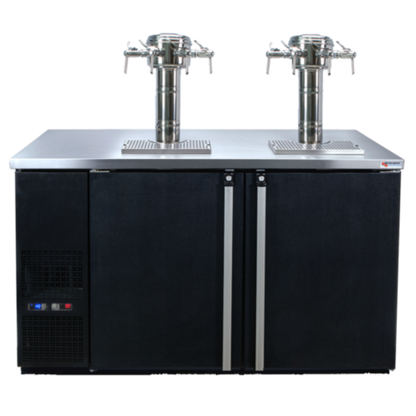

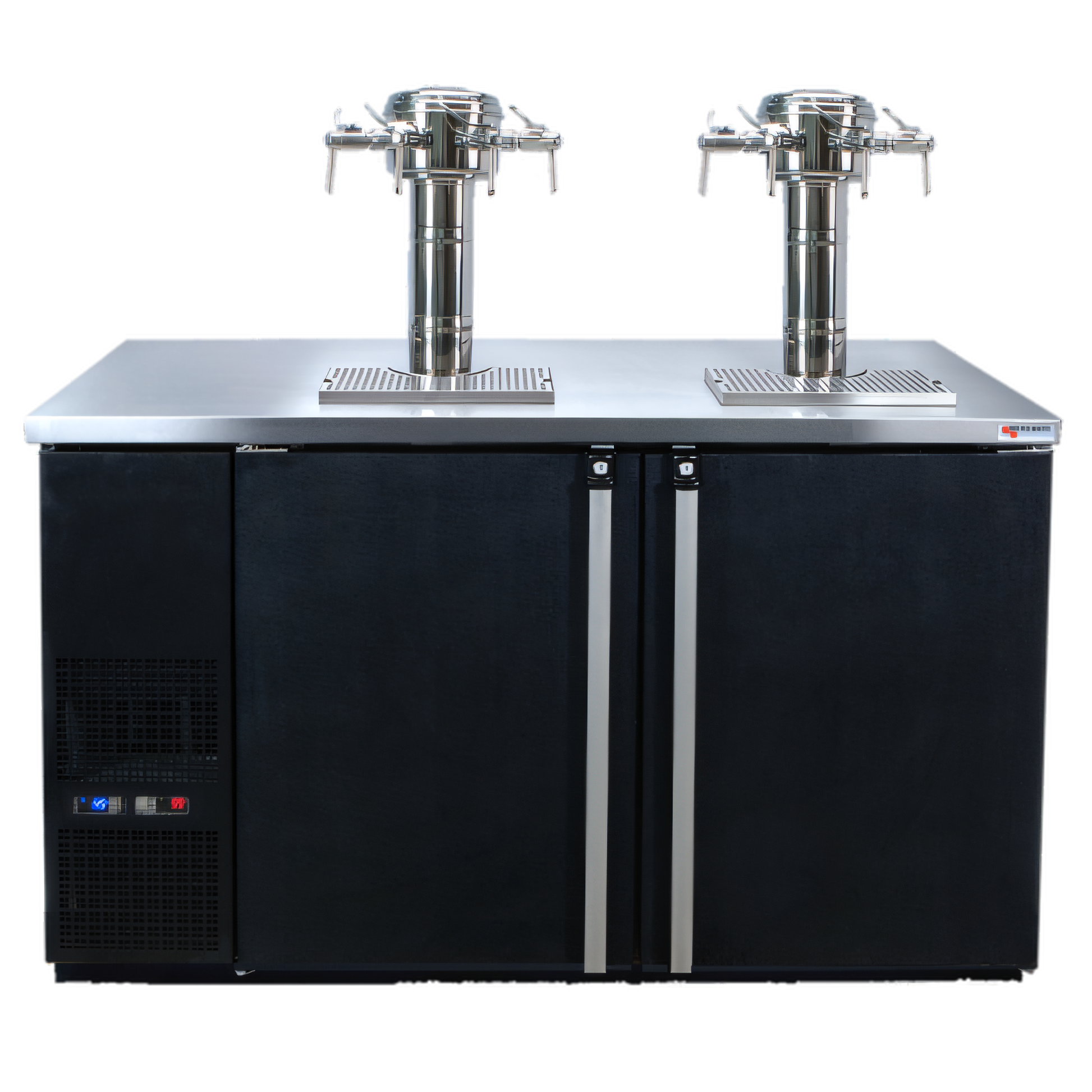

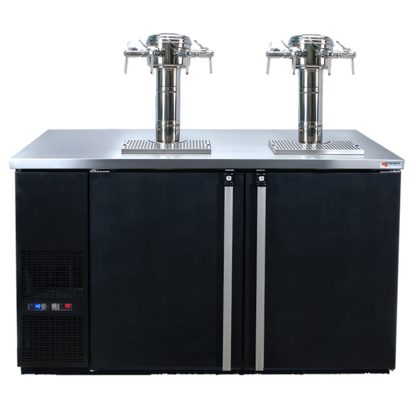

Pro-Line E-Series  Dual Temperature Wine Cooler Dispenser, two-section, 59-1/2"W, self-contained refrigeration, accommodates (8) 1/6 barrel kegs, (2) solid hinged doors with locks, (2) sommelier wine fonts with (4) side pull faucets each (NSF-approved faucet knobs not included), stainless steel drip tray, (2) LED digital temperature displays, (2) 4-way gas distributor manifolds, front ventilated, automatic condensate evaporator, includes (2) rear knock-out plugs for gas lines, stainless steel interior floor, stainless steel top, black vinyl over steel exterior, R134a, 1/3 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)

Specifications

Documents

• Cutsheet
• Owner's manual

What Our Experts Think

• Dual-Zone Temperature Control
  Features two dedicated temperature zones: 42–48°F for white wines and 55–65°F for red wines, ensuring optimal serving conditions for each varietal.

• High Capacity
  Accommodates up to eight 1/6 barrel kegs (four per zone), allowing for a diverse selection of wines on tap.

• Efficient Dispensing System
  Equipped with two sommelier towers, each featuring four faucets, enabling simultaneous service of multiple wine options.

• Durable Construction
  Built with a rugged stainless steel exterior and galvanized steel interior with a stainless steel floor, designed for long-term commercial use.

• User-Friendly Design
  Includes color-coded digital thermostats for each zone, facilitating easy monitoring and temperature adjustments.

Q&A

Q: What is the Micro Matic MDD58W-E-E dispenser used for?
A: It's a dual-zone commercial dispenser designed for serving both draft beer and wine at optimal temperatures.

Q: How much capacity does it offer?
A: Holds up to two 1/2-barrel kegs or various combinations of smaller kegs.

Q: What makes it ideal for wine dispensing?
A: The wine zone maintains a stable, customizable temperature to protect flavor and integrity.

Q: Who should use this unit?
A: Ideal for bars, restaurants, tasting rooms, and event spaces serving both beer and wine on tap.

Maintenance Tips

To ensure optimal performance and longevity of your Micro Matic MDD58W-E-E, adhere to the following maintenance practices:

• Condenser Coil Cleaning: Clean the condenser coils every six months to prevent compressor malfunction. Disconnect power, access the condensing unit, and vacuum thoroughly.

• Cabinet Cleaning: Use lukewarm water and mild detergent to clean both interior and exterior surfaces. Avoid abrasive materials to prevent scratches.

• Door Seal Inspection: Regularly check door gaskets for wear or damage. Replace if seals are loose or cracked to maintain energy efficiency.

• Ventilation Maintenance: Ensure vents are unobstructed to allow proper airflow. Avoid placing items that block ventilation paths.

• Temperature Monitoring: Maintain internal temperatures between 34°F and 38°F. Use the digital thermostat to monitor and adjust settings as needed.

• Defrosting: If ice buildup occurs, defrost the unit to maintain efficiency.

• Electrical Safety: Avoid using extension cords. If necessary, use a grounded 16 AWG or heavier cord, not exceeding 20 feet in length.
