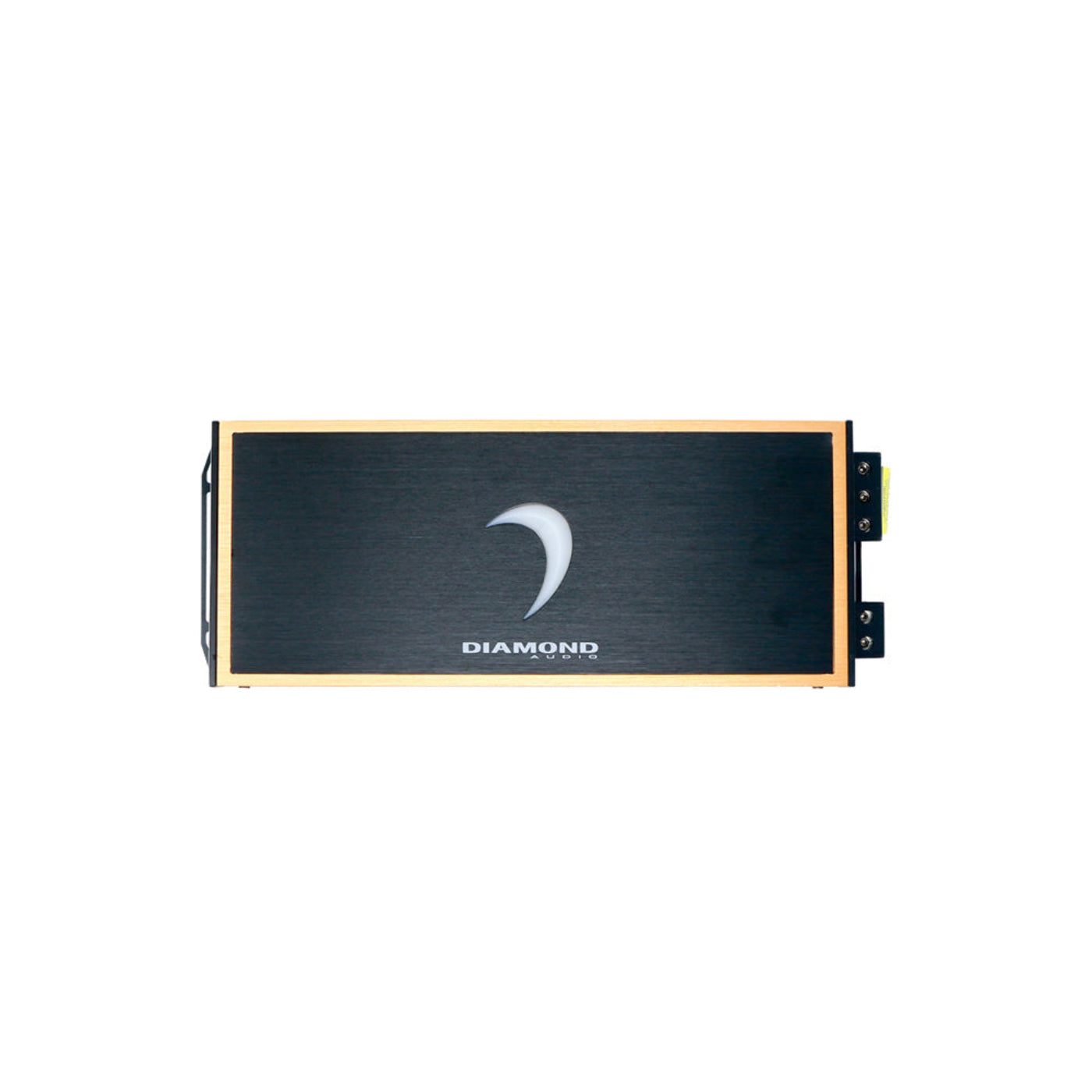

Diamond Audio MICRO8U Series 5-Channel Full Range Class D Amplifier - MICRO85U

Diamond Audio MICRO8U Series 5-Channel Full Range Class D Amplifier - MICRO85U

Diamond Audio continues to push boundaries with the introduction of the MICRO8U series amplifiers for 2018. Building on the success of the popular MICRO series, the big-brother MICRO8U series amplifiers deliver even more power and performance, setting a new standard in audio excellence.

Engineered from the ground up, these amplifiers not only provide increased power but are also conformal-coated for all-weather applications and outdoor environments. This makes them perfect for a wide range of installations, ensuring durability and reliability no matter the conditions.

All MICRO8U models, except for the MICRO85U and MICRO88U, share the same platform and dimensions, making for a sleek and uniform installation. Their subtle yet elegant design, combined with the signature Diamond Audio aesthetics, ensures that these amplifiers not only perform exceptionally but also look stunning in any setup.

Experience the next level of power, performance, and design with the MICRO8U series amplifiers from Diamond Audio. Upgrade your audio system today and enjoy unparalleled sound quality and durability, whether you're indoors or out.

What our Experts Think

• 5‑Channel Full-Range Amplifier: Powers front and rear speakers plus a subwoofer in a single compact unit.

• High Output: Delivers up to ~1,035 W total, with configurations like 85 W × 4 + 200 W × 1 at 4 Ω, or 165 W × 4 + 375 W × 1 at 2 Ω.

• Advanced Class D Design: DirectFET MOSFET output and SMD components on a 4-layer PCB ensure efficiency, reliability, and durability.

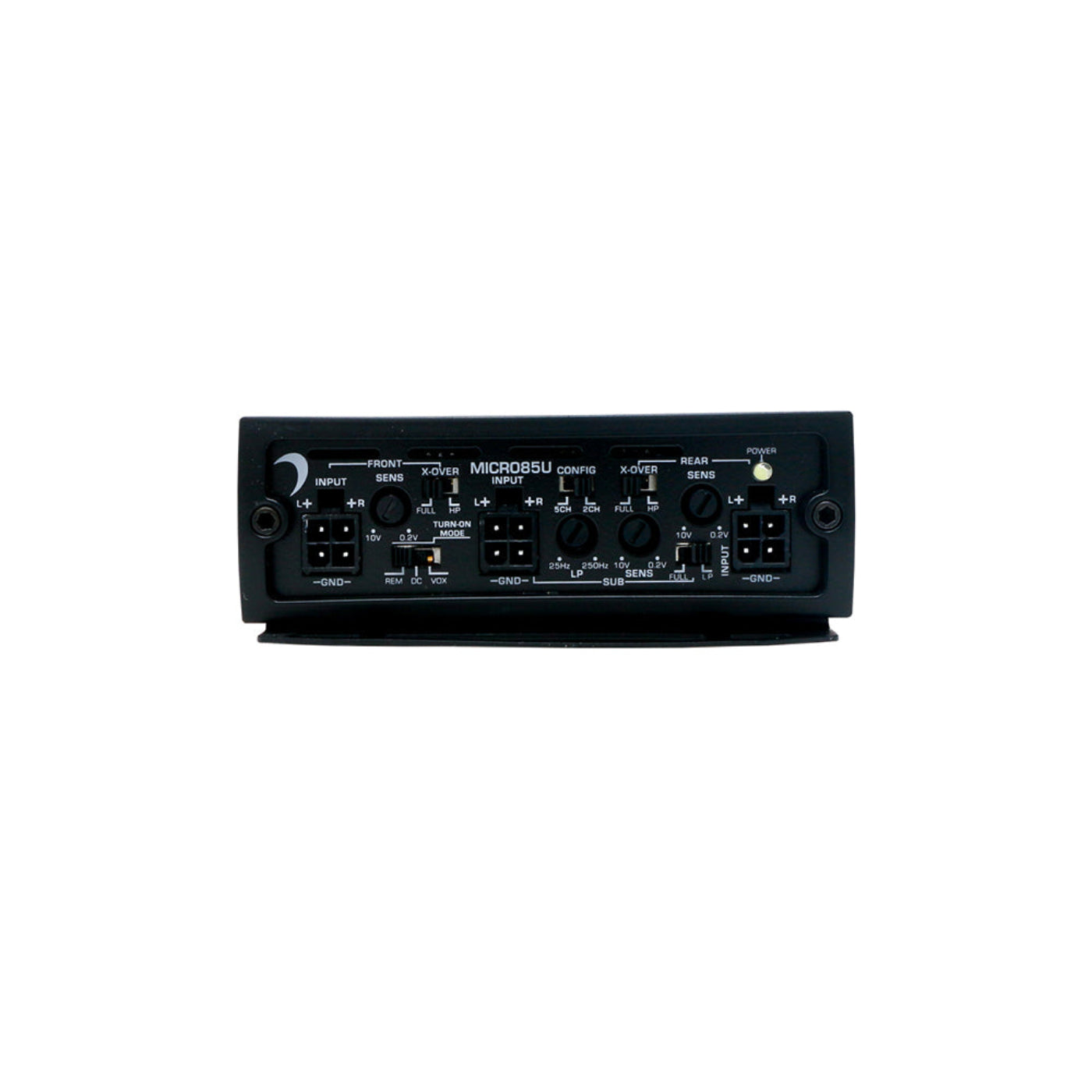

• Customizable Sound Control: Features adjustable high-pass and low-pass crossovers (40–400 Hz), input sensitivity (200 mV–10 V), and +12 dB bass boost at 45 Hz.

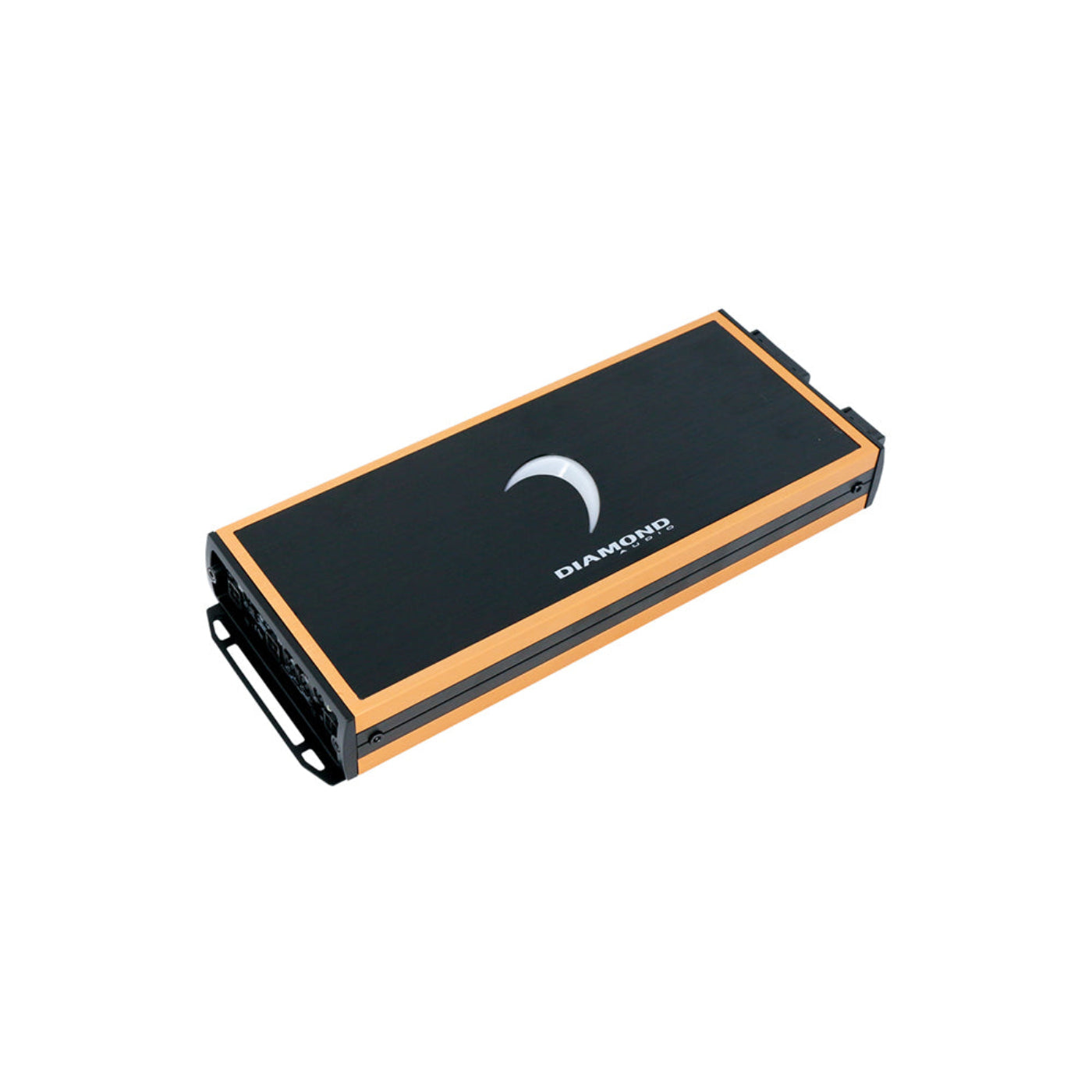

• Compact & Space-Saving: Small footprint (10.45″ × 4.02″ × 1.4″) fits tight installations while delivering big performance.

• System Considerations: Optimal performance requires proper wiring, speaker/sub impedance, and heat management.

Q&A

Q: What type of amplifier is the Diamond Audio MICRO85U?
A: It’s a 5-channel, full-range Class D amplifier, delivering high efficiency and clean power for complete car audio systems.

Q: How much power does it provide?
A: The MICRO85U offers high-output power across all channels, suitable for driving multiple speakers and subwoofers simultaneously.

Q: What are the key features of the MICRO8U Series?
A: Features include Class D efficiency, compact design, low distortion, thermal protection, and adjustable crossovers for precise tuning.

Q: Can it power both speakers and subwoofers?
A: Yes. Its 5-channel design allows simultaneous high-quality output to full-range speakers and a subwoofer.

Q: Is installation straightforward?
A: Absolutely. Its compact footprint, standard terminal connections, and versatile mounting options make installation simple in most vehicles.

Maintenance Tips

• Ensure Ventilation: Install in a location with unobstructed airflow; avoid heat sources and heavy insulation.

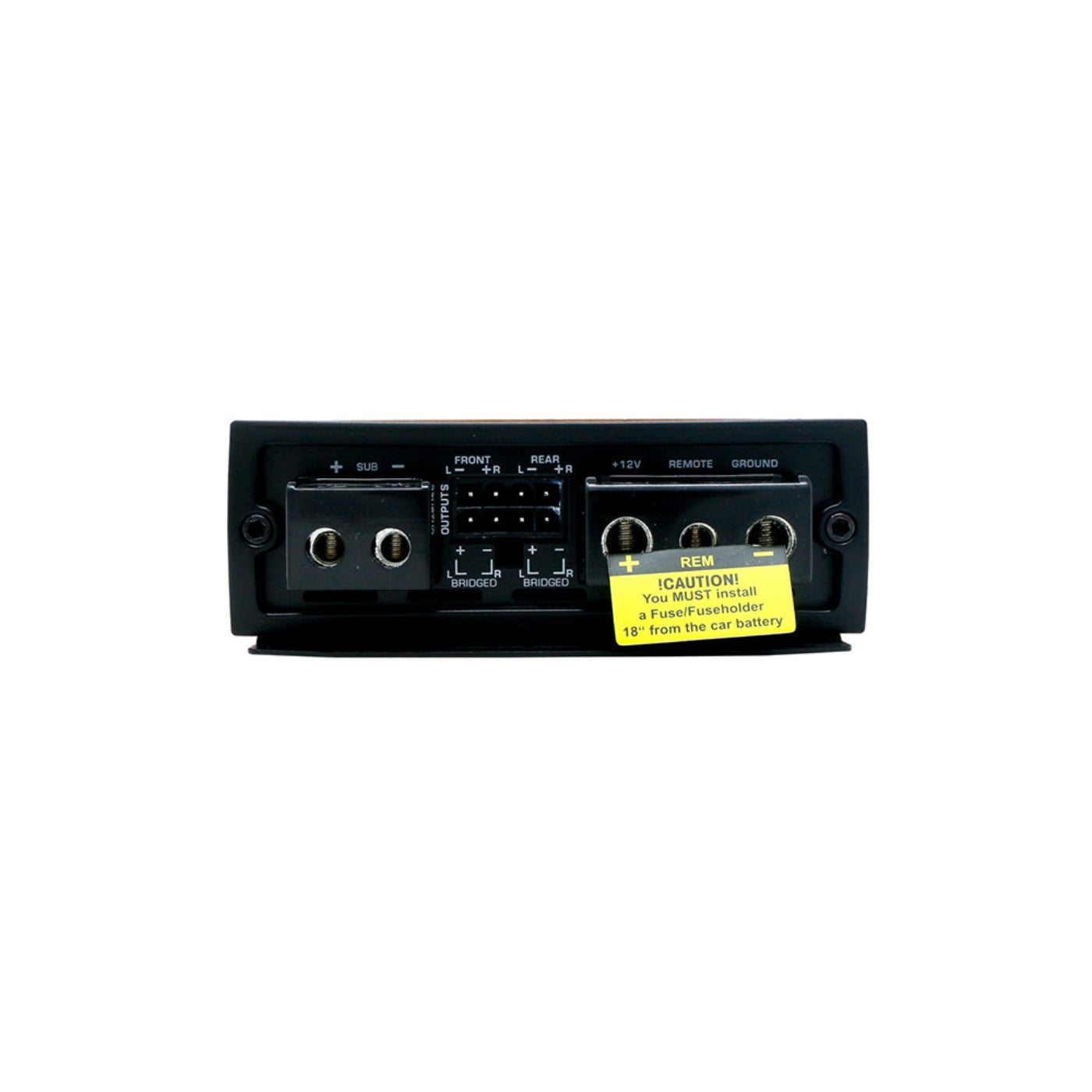

• Secure Wiring & Connections: Use proper gauge wires, keep terminal screws tight, and connect the ground to clean metal chassis.

• Match Speaker Loads: Operate within recommended 2 Ω–4 Ω loads to prevent amplifier stress.

• Set Crossovers Correctly: Use built-in HP/LP crossovers to route signals properly to speakers and subwoofer.

• Protect from Moisture: Keep the amplifier dry; wipe away any condensation to avoid corrosion.

• Avoid Clipping: Maintain proper gain and input levels to prevent distortion and overheating.

• Monitor Status LEDs: The protect light indicates wiring, load, or thermal issues—check if it illuminates.

• Periodic Checkups: Inspect mounting, wiring, and cable routing every few months to ensure stability.

• Break-in & Usage: Gradually increase power during initial use to optimize performance and longevity.
