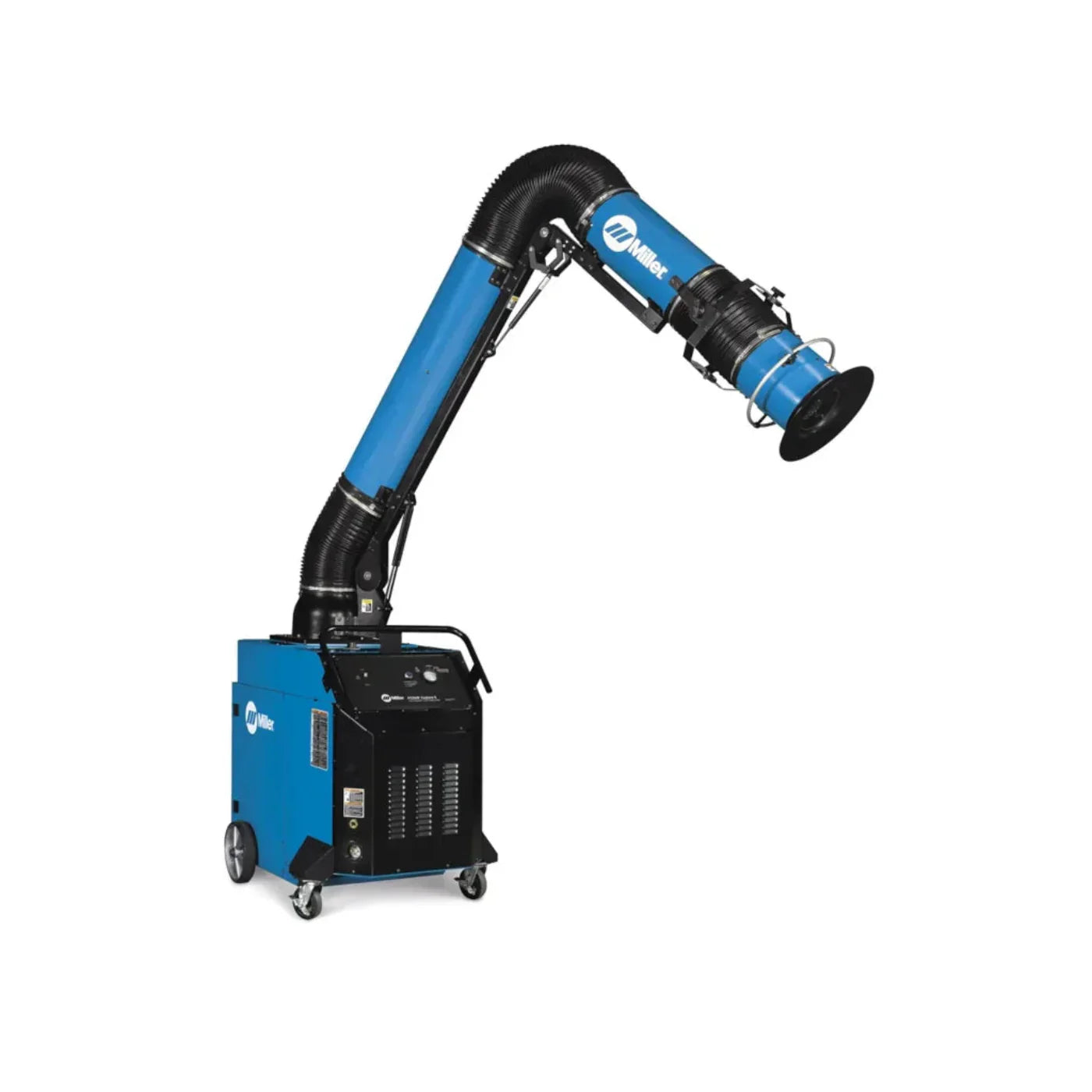

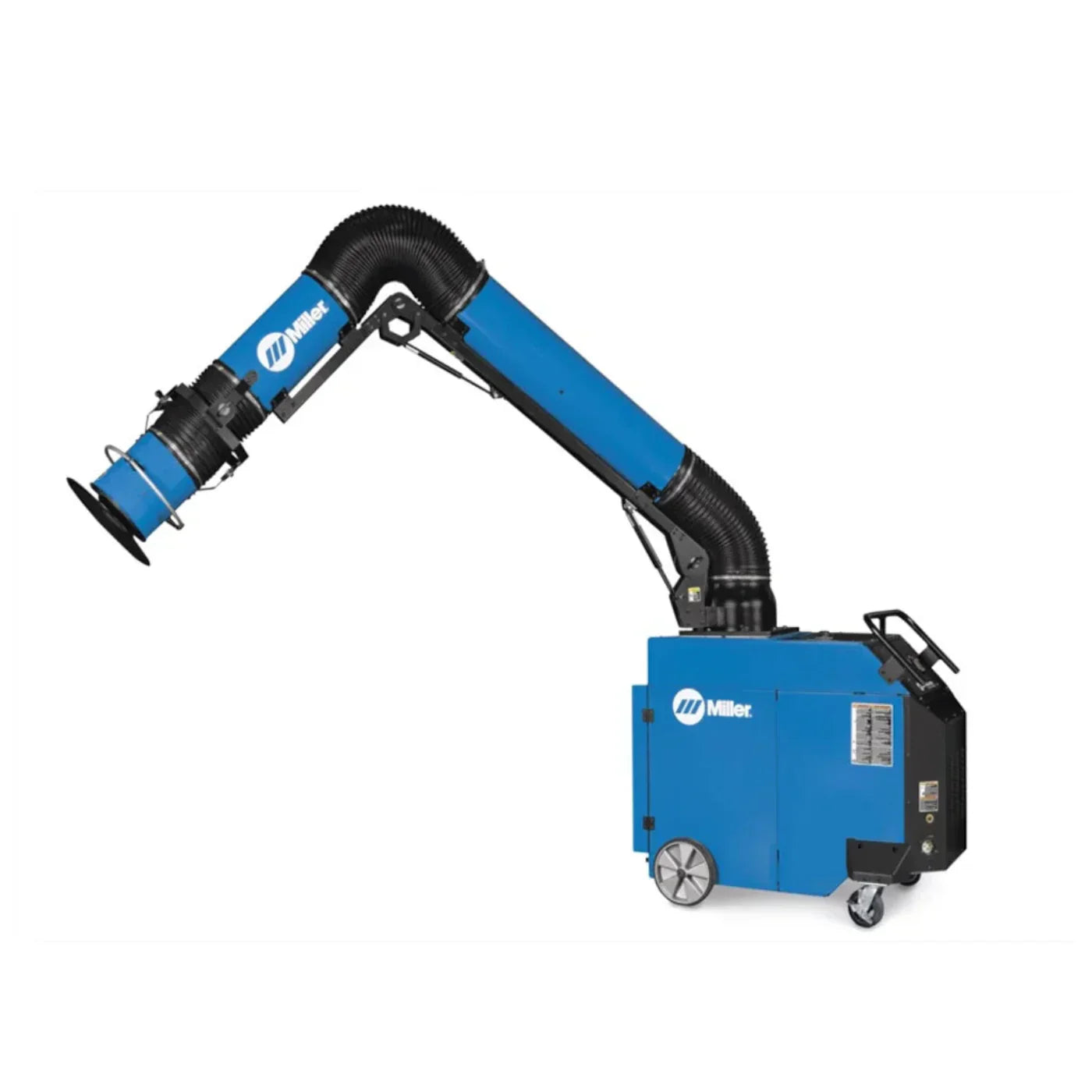

Miller Welding 951574 FILTAIR Capture 5 Mobile Fume Extraction 460V - Reconditioned - Miller 951574
The Miller FILTAIR Capture 5 is a mobile fume extraction system designed exclusively for welding applications. Featuring ZoneFlow technology, it extends the capture zone up to 5 feet, improving efficiency over traditional systems. With a high-efficiency MERV 15 FilTek XL filter and automatic pulse cleaning, it ensures optimal air filtration while extending filter life. Built for durability, the metal cabinet construction and lockable casters enhance mobility and stability in industrial environments.
Features
- ZoneFlow technology creates a larger fume capture area
- FilTek XL filter with MERV 15 rating for superior filtration
- Automatic filter cleaning system extends filter life
- Particulate disposal bin for easy maintenance
- Metal cabinet construction for industrial durability
- Hinged filter hatch for tool-free filter replacement
- Filter pressure gauge for real-time monitoring
- Compressed air connection for cleaning mechanism
- Lockable swivel casters and large rear wheels for mobility
- Conveniently located power switch for easy operation
Specifications
| Filter Media |
452 sq. ft. (42 sq. m) |
| Airflow |
900 CFM (425 L/sec.) |
| Extraction Arm Diameter |
10 in. (254 mm) |
| Extraction Arm Lengths |
10 ft. (3 m) |
| Sound Level |
77 dBA at 5 ft. (1.5 m) |
| Motor |
3 hp, 3,450 rpm |
| Input Power |
460V, 3-phase, 60 Hz |
| Dimensions (H x W x D) |
43 in. x 36 in. x 48 in. (1,092 mm x 915 mm x 1,219 mm) |
| Net Weight |
660 lbs. (300 kg) with 12 ft. arm |
Included
- Miller FILTAIR Capture 5 Mobile Fume Extraction System
- FilTek XL filter
- Particulate disposal bin
Applications
- Heavy equipment manufacturing
- Fabrication shops
- Maintenance and repair operations
- Training centers
What our Experts Think
-
Advanced Fume Extraction: The Miller 951574 FILTAIR Capture 5 effectively removes welding fumes, improving air quality and workplace safety.
-
Reconditioned for Value: Fully inspected and restored, delivering top-tier performance at a lower cost.
-
Exclusive ZoneFlow™ Technology: Expands the capture area, requiring less repositioning for greater efficiency.
-
Mobile & Versatile: Designed for easy movement, making it ideal for dynamic work environments.
-
Heavy-Duty Construction: Built to withstand industrial use while maintaining strong suction power.
-
460V Power Supply: Ensures reliable operation for high-demand welding applications.
Q&A
Q: What is the Miller 951574 FILTAIR Capture 5 Mobile Fume Extraction System?
A: The Miller 951574 FILTAIR Capture 5 is a mobile fume extraction system designed to efficiently remove welding fumes, improving air quality in work environments. This reconditioned model offers industrial-grade performance at a lower cost.
Q: What does "reconditioned" mean?
A: "Reconditioned" means the unit has been inspected, tested, and restored to full working condition, providing a cost-effective alternative to a new unit.
Q: What is the voltage requirement for this system?
A: It operates on 460V power, making it suitable for industrial applications.
Q: What makes the Capture 5 system unique?
A: It features exclusive ZoneFlow™ technology, which creates a much larger fume capture area than standard extraction arms, reducing the need for frequent repositioning.
Q: Is it suitable for heavy-duty welding operations?
A: Yes, the FILTAIR Capture 5 is designed for industrial welding, fabrication shops, and manufacturing facilities that require high-performance fume extraction.
Maintenance Tips
-
Clean or Replace Filters: Regularly inspect and clean the filters; replace when airflow decreases.
-
Check Hose & Ducting: Ensure no blockages, leaks, or damage to maintain proper suction.
-
Inspect Motor & Fan: Keep the motor and fan free from dust buildup for optimal performance.
-
Monitor Airflow: Verify proper airflow and suction power; adjust settings as needed.
-
Store in a Dry Area: Protect electrical components from moisture to avoid malfunctions.
