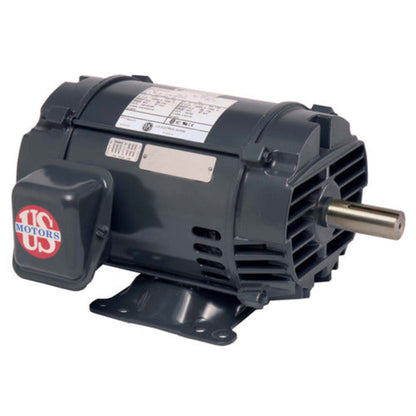

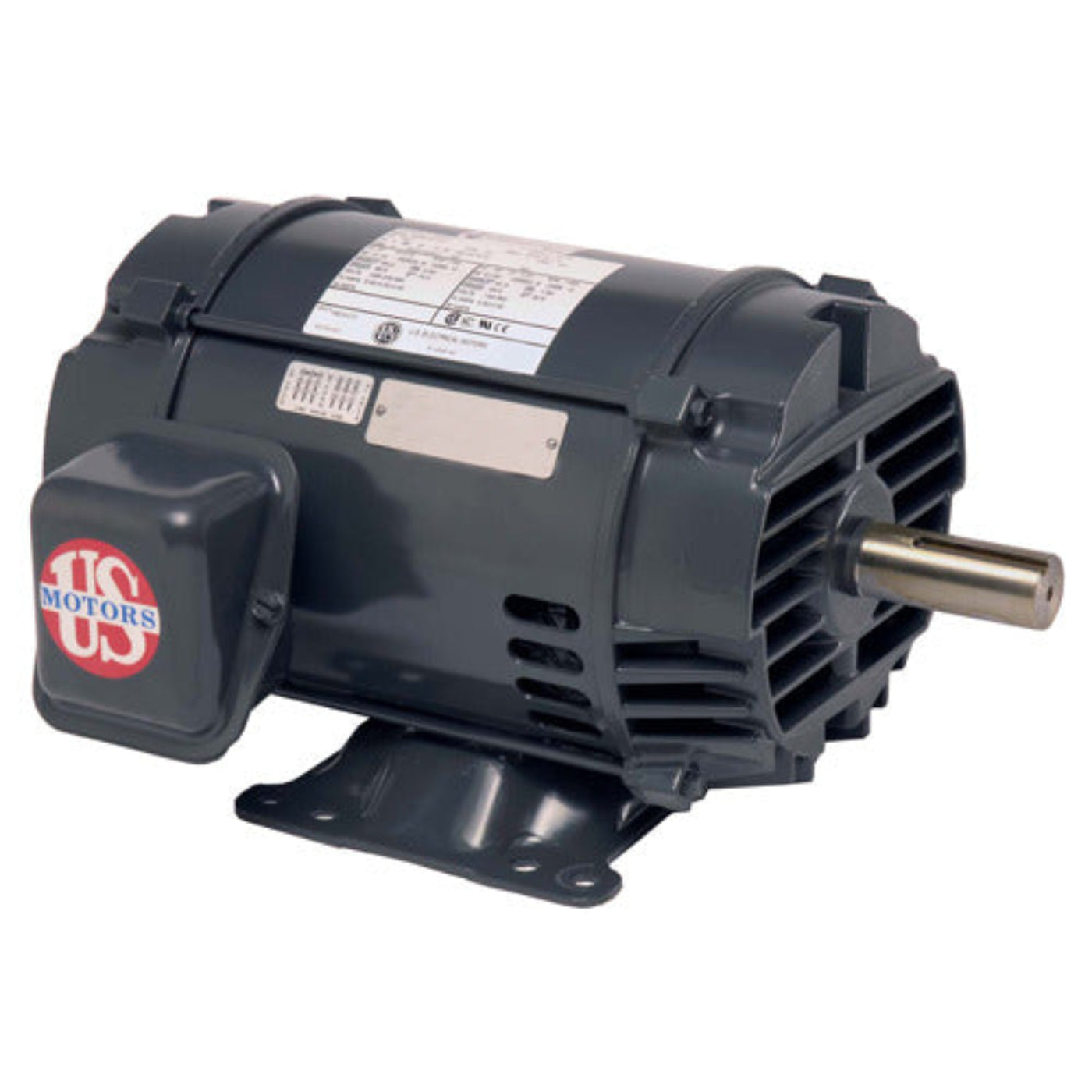

U. S. Motors US-Nidec D25P1D General Purpose Motor Three Phase 25HP 208-230/460V - D25P1D
The US-Nidec D25P1D General Purpose Motor is designed for three-phase applications, featuring a power rating of 25 horsepower. It operates at 208-230/460 volts with a speed of 3540 RPM.
Product Highlights
This motor is suited for various industrial applications needing efficient power transmission. With its open drip-proof enclosure, it ensures optimal performance in numerous environments.
Features
- Three-phase motor
- 25 horsepower
- 208-230/460 volt
Specifications
| Brand |
US-Nidec |
| Model / MPN |
D25P1D |
| Motor Type |
General Purpose |
| Horsepower |
25 HP |
| KW |
18.6 kW |
| RPM |
3540 RPM |
| Voltage Rating |
208-230/460V |
| Phase |
Three Phase |
| Frame Size |
256T |
| Enclosure Type |
Open Dripproof (ODP) |
| Rotation |
REV (Reverse) |
| Material |
Rolled Steel |
| Bearings Type |
Ball / Ball |
| Bearings Size |
6309-2Z-J/C3 / 6309-2Z-J/C3 |
| Mounting Type |
Horizontal / Footed |
| Amperage |
65-57/28.7A |
| Shaft Type |
Single Shaft |
| Assembly |
F1 |
| Service Factor |
1.15 |
What our Experts Think
-
High Performance: Delivers 25 HP at 3600 RPM, ideal for demanding industrial applications.
-
Robust Construction: Features a 256T frame and open drip-proof (ODP) enclosure, ensuring durability and efficient cooling.
-
Energy Efficient: Operates at 208-230/460V with a 1.15 service factor, providing reliable performance while maintaining energy efficiency.
-
Versatile Applications: Suitable for pumps, fans, compressors, and other general-purpose industrial needs.
-
Maintenance-Friendly: Equipped with regreasable bearings and a rigid base for straightforward installation and minimal maintenance.
Q&A
Q: What applications is the D25P1D motor suitable for?
A: This motor is perfect for use in heavy-duty industrial applications such as pumps, fans, compressors, conveyor systems, and other machinery requiring reliable, high-power operation.
Q: What are the benefits of the ODP (Open Drip Proof) enclosure?
A: The ODP enclosure offers ventilation and cooling while providing protection from larger particles and moisture, making it suitable for indoor, dry environments.
Q: Is the D25P1D motor reversible?
A: Yes, this motor supports reversible rotation, offering flexibility in installation and direction control for various equipment.
Q: What is the duty rating of the D25P1D motor?
A: The motor is rated for continuous duty, ensuring long-term reliability and consistent performance in demanding industrial environments.
Q: Does the D25P1D motor include thermal protection?
A: No, the motor does not come with built-in thermal protection. It is recommended to use external overload protection for safe operation.
Maintenance Tips
-
Regular Inspections: Check for wear, loose connections, or abnormal noises to catch potential issues early.
-
Clean Air Vents: Ensure vents are free from debris to maintain proper airflow and cooling.
-
Lubrication: Apply recommended lubricants to bearings as per manufacturer guidelines to reduce friction and wear.
-
Monitor Operating Conditions: Regularly monitor motor temperature, voltage, and current to ensure optimal performance.
-
Check Alignment: Ensure proper alignment with driven equipment to avoid stress and premature wear.
-
Inspect Electrical Components: Tighten electrical connections and inspect cables for signs of damage.
-
Replace Filters: If applicable, replace air or oil filters to prevent contaminants from affecting performance.
-
Test Motor Rotation: Verify the motor rotation direction periodically to ensure proper operation.
