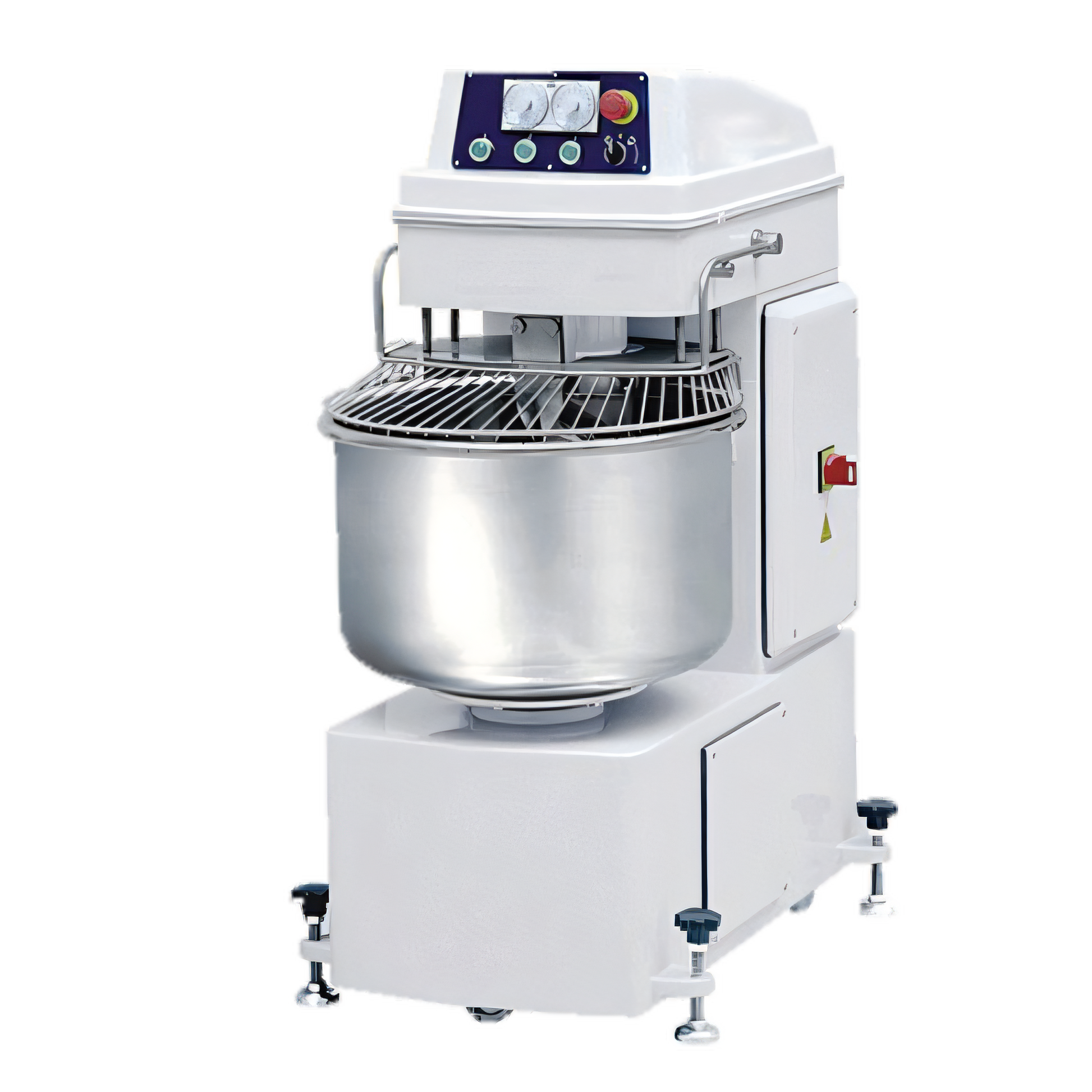

Omcan USA 27767 Spiral Dough Mixers - USA 27767
(MX-CN-0127) Spiral Dough Mixer, 120 L (127 qt.) bowl capacity, 82.6 lbs. kneading capacity, with guard rail, 220v/60/3-ph, NEMA L11-30P, cETLus (shipped on pallet)
Specifications
| Manufacturer |
Omcan USA |
| Height |
56.3 in |
| Width |
28.34 in |
| Depth |
47.63 in |
| Weight |
1080.0 lbs |
| Bowl Type |
Removable |
| Housing Construction |
Painted |
| Attachments |
Bowl, Dough Hook |
| Controls |
Timer |
| Dough Capacity |
1 - 100 lbs |
| Speed |
2-speed |
| Model/Specifications |
(MX-CN-0127) Spiral Dough Mixer, 120 L (127 qt.) bowl capacity, 82.6 lbs. kneading capacity |
| Features |
With guard rail |
| Power Requirements |
220v/60/3-phase, NEMA L11-30P |
| Certifications (Repeat) |
cETLus |
What our Experts Think
-
High Capacity: With a 127 qt (120 L) bowl and the ability to handle up to 82.6 lbs (37.5 kg) of dough, this mixer is perfect for high-volume bakeries and pizzerias.
-
Powerful Motor: Equipped with a 5 HP motor and dual-speed settings (120/240 RPM for the spiral and 17 RPM for the bowl), it ensures efficient and consistent dough mixing.
-
Durable Construction: Made with stainless steel, it is built for long-lasting performance and easy cleaning. The removable bowl and safety guard add to its convenience.
-
User-Friendly: Features a micro-computer controller for precise speed adjustments and a built-in timer for accurate mixing, giving you full control over your dough.
-
Compact Design: Despite its high capacity, the mixer has a space-efficient footprint, making it suitable for kitchens with limited space.
Q&A
Q: What is the Omcan USA 27767 Spiral Dough Mixer?
A: The Omcan USA 27767 is a commercial-grade, three-phase spiral dough mixer, designed for high-volume bakeries, pizzerias, and pastry shops.
Q: What is the dough capacity of the Omcan USA 27767?
A: It has a 120-liter (127-quart) stainless steel bowl and can knead up to 82.6 lbs (37.5 kg) of dough at a time.
Q: What are the key features of the Omcan USA 27767?
A: The mixer features a 2-speed motor (120/240 RPM), a micro-computer controller, a safety cover, and simultaneous rotation of the spiral and bowl for efficient mixing.
Q: What are the power requirements for the Omcan USA 27767?
A: It operates on 220V, 60Hz, 3-phase electricity and has a 5 HP motor.
Q: Is the Omcan USA 27767 easy to clean?
A: Yes, its stainless steel construction and removable components make cleaning easy.
Q: What are the dimensions and weight of the Omcan USA 27767?
A: The mixer measures 47.6" (W) x 28.3" (D) x 56.3" (H) and weighs approximately 1,256.5 lbs.
Maintenance Tips
-
Clean Regularly: After each use, disconnect the power and clean the bowl, spiral, and column with warm water. Dry completely and sanitize with a soft cloth.
-
Lubricate Components: Grease the transmission gear box every 6 months. Check the grease level and replenish as needed to keep the mixer running smoothly.
-
Electrical Safety: Always disconnect power before cleaning or performing maintenance.
-
Inspect for Wear: Regularly check the mixer for signs of damage or wear, especially moving parts. Replace any worn components promptly.
-
Proper Storage: Store the mixer in a dry, cool environment to prevent rust and prolong its life.
