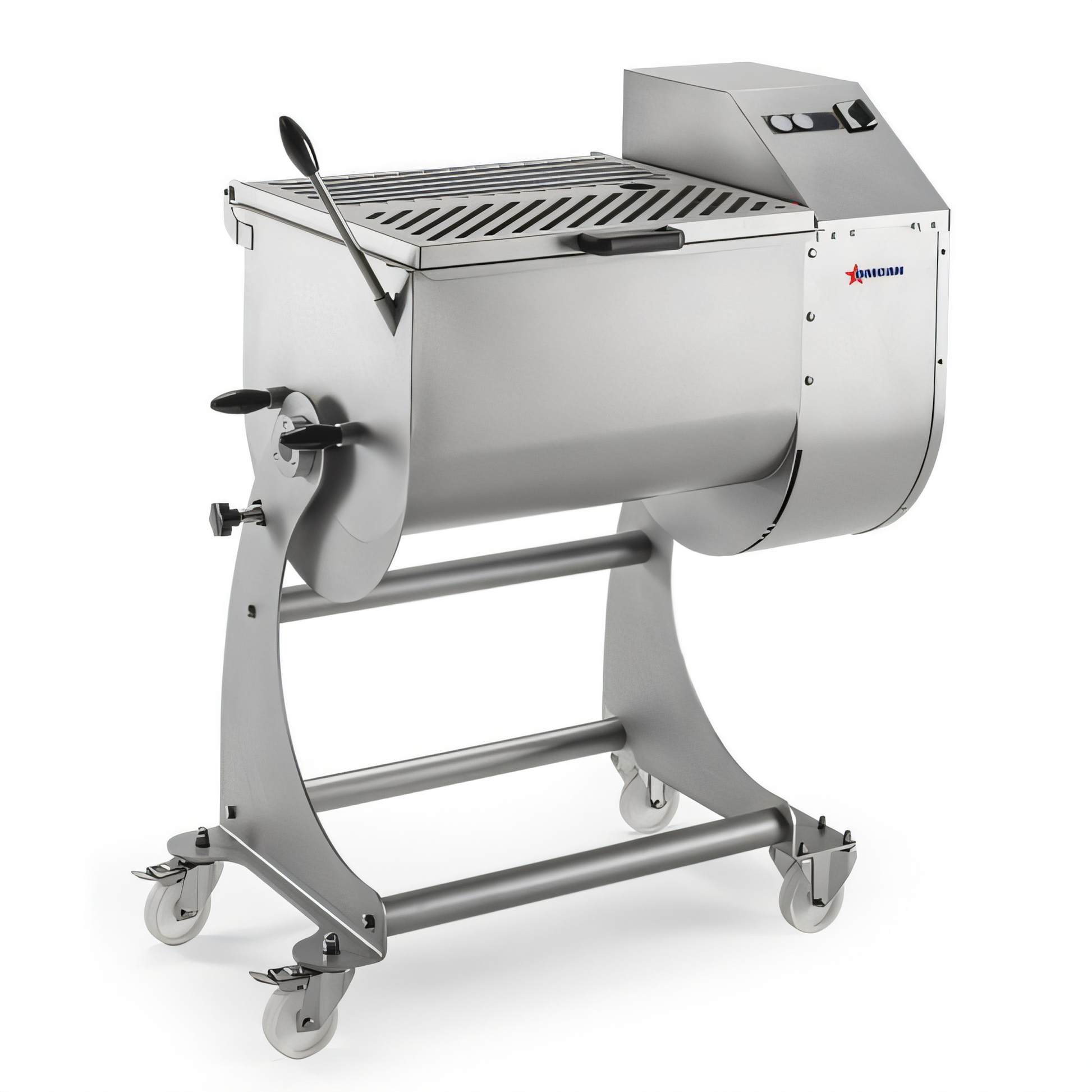

(MM-IT-0120-ETL) Trento Meat Mixer, electric, 265 lbs. (120 kg.) bowl capacity, reverse switch, timer, tilting tank with automatic locking system & safety lock, (2) removable stainless steel mixing arms, stainless steel cover, oil-bath gear box, ground & tempered helical gears, stainless steel construction, 2 HP, 1500 watts, 220v/60/3-ph, NEMA L15-20P, cETLus, Made in Italy (shipped on pallet)

Specifications

What our Experts Think

• Large Capacity: Handles up to 265 lbs (120 kg) of meat, making it ideal for butcher shops, meat plants, and high-volume food processing operations.

• Tilting Tank: Features a tilting design with automatic locking and safety lock, allowing for quick unloading and easy cleaning.

• Dual Mixing Arms: Comes with two removable stainless steel mixing arms that ensure thorough blending and are easy to clean—no tools required for removal.

• Heavy-Duty Construction: Built entirely with AISI 304 stainless steel, ensuring durability, hygiene, and corrosion resistance.

• Advanced Gear System: Equipped with an oil-bath gearbox and hardened helical gears for smoother operation and longer lifespan.

• User-Friendly Controls: Includes forward/reverse function, auto-reverse, and a 1-minute timer, all managed through IP67-rated stainless steel controls.

• Safety-Oriented Design: Fitted with a stainless steel cover and safety microswitch to prevent operation when the lid is open.

• Mobile and Stable: Mounted on swivel casters—two with brakes—for easy mobility and secure placement in any workspace.

• Efficient Operation: Powered by a 1 HP motor on 220V, 3-phase, delivering reliable performance for intensive mixing tasks.

Q&A

Q: What is the Omcan USA 48057 Trento Meat Mixer?
A: The Omcan USA 48057 is a commercial-grade, electric tilting meat mixer designed for high-volume meat processing, capable of mixing up to 265 lbs (120 kg) of meat.

Q: What are the key features of the Omcan USA 48057?
A: It includes a tilting tank with an automatic locking system and safety lock, two removable stainless steel mixing arms, IP67-rated control panel with forward, reverse, auto-reverse, and timer functions, plus a durable oil-bath gearbox with ground and tempered helical gears.

Q: What are the power specifications for the Omcan USA 48057?
A: The unit runs on 220V, 60Hz, three-phase power, with a 1 HP motor and 1,500 watts of power consumption.

Q: What are the dimensions and weight of the Omcan USA 48057?
A: The mixer measures 43" (W) x 27.6" (D) x 40.5" (H) and weighs approximately 368.2 lbs (167 kg).

Q: What certifications does the Omcan USA 48057 have?
A: It is ETL listed, confirming it meets recognized safety standards.

Maintenance Tips

• Daily Cleaning: After each use, unplug the machine. Thoroughly wash the mixing tank, arms, and cover with warm, soapy water. Rinse and dry completely to prevent rust and contamination.

• Lubrication: Regularly apply food-grade lubricant to moving parts such as the gearbox and mixing arms to ensure smooth and quiet operation.

• Routine Inspection: Frequently check for wear or damage on mechanical components and seals. Replace worn parts immediately to maintain safe and efficient use.

• Safety System Check: Verify that all safety features—such as locking mechanisms and emergency stops—are functioning properly before each use.

• Proper Storage: Store in a dry, well-ventilated space when not in use to avoid corrosion and electrical issues.
