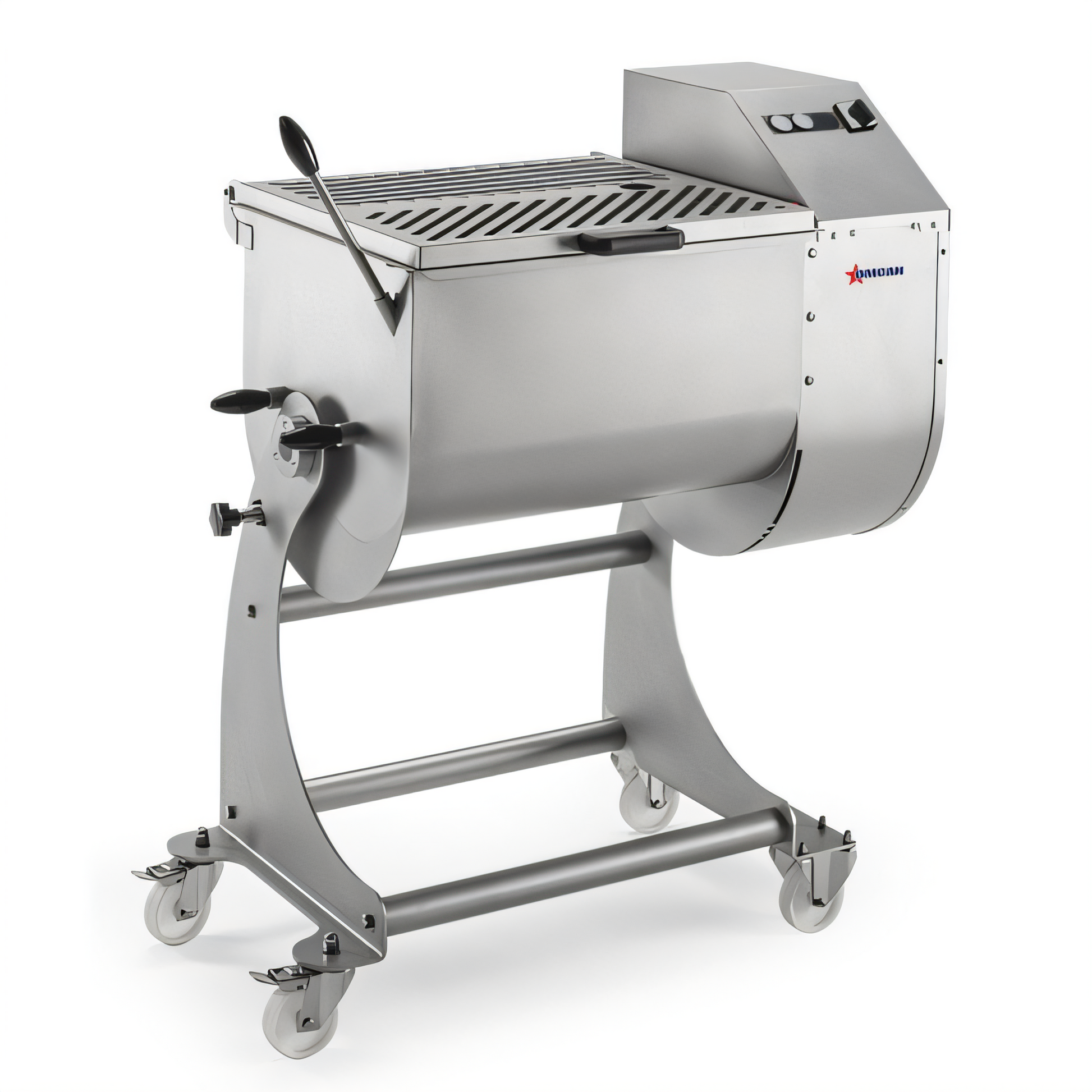

(MM-IT-0180-ETL) Trento Meat Mixer, electric, 397 lbs. (180 kg.) bowl capacity, reverse switch, timer, tilting tank with automatic locking system & safety lock, (2) removable stainless steel mixing arms, stainless steel cover, oil-bath gear box, ground & tempered helical gears, stainless steel construction, 1-1/2 HP, 1100 watts, 220v/60/3-ph, NEMA L15-20P, cETLus, Made in Italy (shipped on pallet)

Specifications

What our Experts Think

• High-Capacity Mixing
  Handles up to 397 lbs (180 kg) of meat—ideal for commercial meat processing operations.

• Premium Stainless Steel Build
  Constructed from AISI 304 stainless steel for maximum durability, hygiene, and easy cleanup.

• Efficient & Consistent Performance
  Features dual removable mixing arms and a tilting tank with automatic locking for thorough, even blending.

• Simple, Reliable Controls
  Includes IP67-rated stainless steel control panel with forward, reverse, auto-reverse functions, and a built-in timer.

• Built-In Safety Systems
  Equipped with a protective stainless steel cover, safety microswitch, and sealed gearbox for safe operation.

• Mobility with Stability
  Comes with swivel casters (two locking) for easy movement while maintaining secure positioning during use.

Q&A

Q1: What is the Omcan USA 48058?
A1: The Omcan USA 48058 is a heavy-duty electric tilting meat mixer with a 397 lb (180 kg) capacity, designed for high-volume commercial meat processing.

Q2: What are its power specifications?
A2: It operates on 220V, 3-phase power with a 3/4 HP (0.56 kW) motor and uses 1,100 watts.

Q3: What are its dimensions and weight?
A3: The unit measures 56" W x 27.6" D x 47.6" H and weighs approximately 441 lbs (200 kg).

Q4: What features does it offer?
A4: Key features include a tilting tank with automatic safety lock, two removable stainless steel mixing arms, IP67-rated forward and reverse controls, and a gear-driven oil-bath system with tempered helical gears.

Q5: Is it certified for safety?

A5: Yes, it is ETL listed for compliance with safety standards.

Q8: Who is this mixer best suited for?
A8: It is ideal for butcher shops, meat processors, and commercial kitchens needing consistent, high-volume meat mixing.

Maintenance Tips

• Unplug Before Cleaning: Always disconnect the power supply before cleaning or performing maintenance tasks.

• Clean Thoroughly: After each use, clean the mixing drum, mixing arms, and safety cover with hot water and a mild detergent. Dry all parts completely to prevent corrosion.

• Inspect for Wear: Check the mixing arms and other components for signs of wear or damage. Replace any worn or damaged parts promptly to maintain optimal performance.

• Lubricate Moving Parts: Apply food-grade lubricant to all moving parts, including the mixing arms and gearbox, to ensure smooth operation.

• Check for Loose Parts: Tighten any loose screws or bolts on the mixer to prevent operational issues.

• Inspect Electrical Components: Check the power cord and plug for any signs of wear or damage. Replace damaged components immediately to prevent electrical hazards.

• Check Gearbox Oil Level: Inspect the oil level in the gearbox. If necessary, top up with the recommended oil to ensure proper lubrication.
