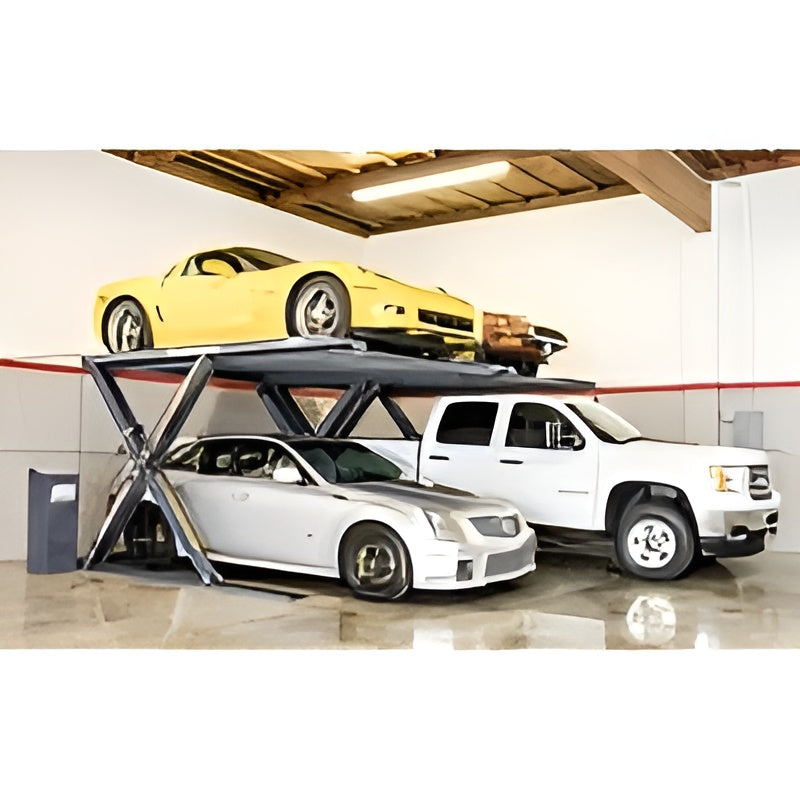

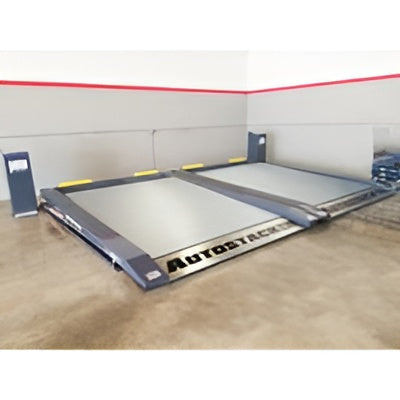

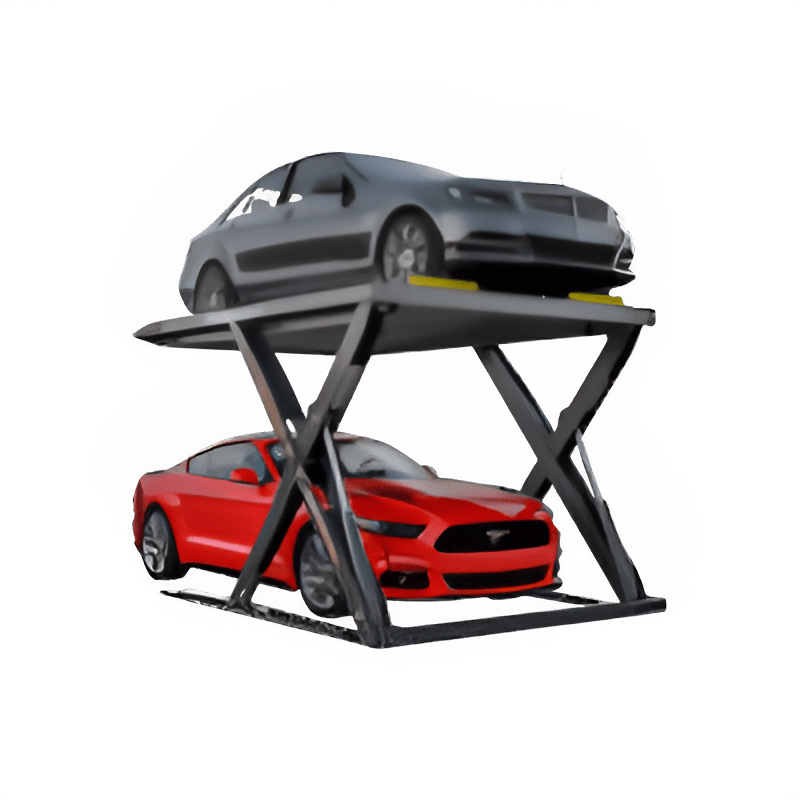

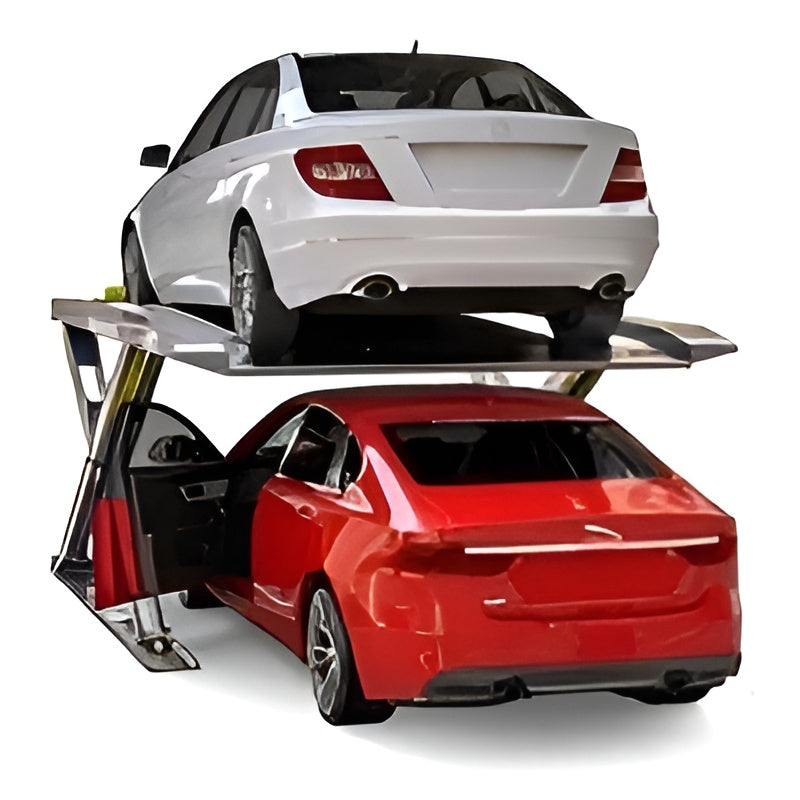

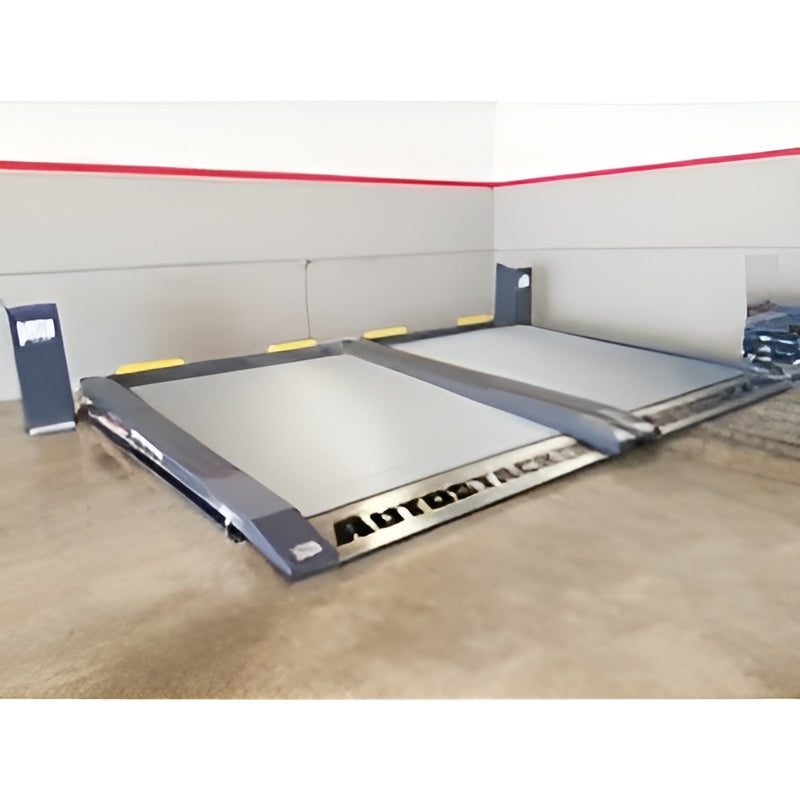

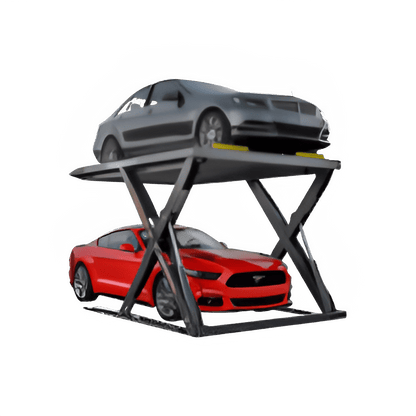

Autostacker A6W-OPT1-G 6,000 Lbs STD Console w/PU, WIDE Parking Lift (Galvanized) - 5175283

Features

• 6,000‐lb. lifting capacity

• Extra-wide construction for increased door clearance

• Key‐switch disconnect fully disables operation for enhanced security

• Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation

• Accommodates cars, light trucks and SUVs

• Rugged, welded‐steel construction is strong and durable

• 100% hot‐dipped, galvanized steel platform

• Attractive slate gray, baked‐on powder coat finish provides added toughness

• Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward

• Extra-wide, gradual sloping platform reduces entry ramp height

• Automatic safety locks engage at five different parking heights

• Simple push‐button controls

• Dual, direct‐drive hydraulic lifting cylinders

• Dependable hydraulic circuit that provides precise, equalized lifting

• Variable height parking accommodates a wide range of vehicle and ceiling heights

• Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height

• Full‐width, straight‐through axles increase overall stability and tracking through the vertical travel range

• Full‐width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads

• Extra‐wide, heavy‐duty steel scissor arms with cross member bracing enhance stability

• Unique clevis‐design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins

• Patented asymmetric scissor arms provide greater underside door clearance

• Patented Door‐sentry car door protectors are made from energy‐absorbing rubber to protect against accidental scratches or door dings

• Space‐saving design is perfect for commercial or residential applications

• Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure

• UL Listed electrical components meet National Electrical Code (NEC) requirements

Specifications

Product Manual

Manual

What's include

5260592 A6W Ex-Wide Scissors Parking Lift Platfo

• Right side scissors superstructure
• Left side scissors superstructure
• Front wheel trough
• Ramp assembly with logo plate
• Lower front tie-bar
• Galvanized decking section
• Front tire stops
• Complete parts package including all fasteners, hoses, fittings & anchor bolts
• Installation and operators manual

What Our Experts Think

The Autostacker A6W-OPT1-G 6,000 Lbs STD Console w/PU, WIDE Parking Lift (Galvanized) - 5175283 is an exceptional vehicle storage solution. Here’s why it’s a top pick:

• Impressive Capacity: Lifts up to 6,000 lbs, making it perfect for a range of vehicles including large cars, trucks, and SUVs.
• Wide Platform: Designed to accommodate wider vehicles, ensuring flexibility and efficiency in vehicle storage.
• STD Console with PU: Features a standard console with a polyurethane coating, providing additional protection and ease of use.
• Galvanized Coating: The corrosion-resistant galvanized finish ensures durability and longevity, even in challenging environments.
• Space-Saving: Maximizes garage space by allowing multiple vehicles to be stacked while maintaining safety and accessibility.
• Safety Features: Equipped with advanced safety mechanisms to ensure smooth and secure lifting and lowering operations.
• Easy Installation: Includes all necessary parts for a simple, quick setup.

This parking lift is ideal for those seeking a reliable, space-saving solution to store wide and heavy vehicles safely while optimizing garage space.

Q&A

Q: What is the weight capacity of this parking lift?
A: The Autostacker A6W-OPT1-G has a 6,000 lbs weight capacity, suitable for a variety of vehicles, including cars, trucks, SUVs, and other heavy-duty vehicles.

Q: What is the advantage of the "wide" design?
A: The wide platform provides additional space, making it ideal for larger vehicles or for easier access when lifting and working on cars.

Q: How is the lift controlled?
A: This model comes with a standard console equipped with PU (Polyurethane) controls, allowing for smooth and reliable operation during lifting and lowering.

Q: Is this lift suitable for both home and commercial use?
A: Yes, the Autostacker A6W-OPT1-G is designed for both residential garages and commercial workshops, making it versatile for different settings.

Q: What is the material of the lift?
A: The lift is made with a galvanized finish, ensuring excellent corrosion resistance and long-term durability, even in tough environments.

Q: Is the installation process straightforward?
A: The lift includes detailed instructions for installation, although professional installation is recommended for safety and optimal performance.

Q: What types of vehicles can this lift accommodate?
A: With a 6,000 lb capacity and wide platform, this lift is perfect for larger vehicles, trucks, SUVs, and other heavy-duty cars.

Q: Does the lift require regular maintenance?
A: The lift requires minimal maintenance, including periodic inspections and lubrication to maintain smooth operation.

Q: Is there a warranty on the lift?
A: Yes, the lift comes with a manufacturer’s warranty, ensuring peace of mind and reliable long-term performance.

Maintenance Tips

• Inspect Components Regularly: Check the frame, lifting arms, cables, and control kit for wear, corrosion, or damage.
• Lubricate Moving Parts: Grease joints, bearings, and lift arms to ensure smooth, efficient operation and reduce friction.
• Monitor Hydraulic System: Ensure hydraulic fluid is at optimal levels and inspect hoses, cylinders, and valves for leaks or damage.
• Test Safety Features: Periodically test limit switches, emergency stop systems, and overload protection to ensure they are functioning properly.
• Clean the Lift: Regularly remove debris, dirt, and dust to keep moving parts clear and ensure optimal performance.

Routine maintenance will ensure safe operation and prolong the lifespan of your parking lift system.
