PECRON EB3000-24V Expansion Battery 3072Wh for E2000LFP ONLY - EB3000-24V

PECRON EB3000-24V  Expansion Battery 3072Wh for E2000LFP ONLY - EB3000-24V

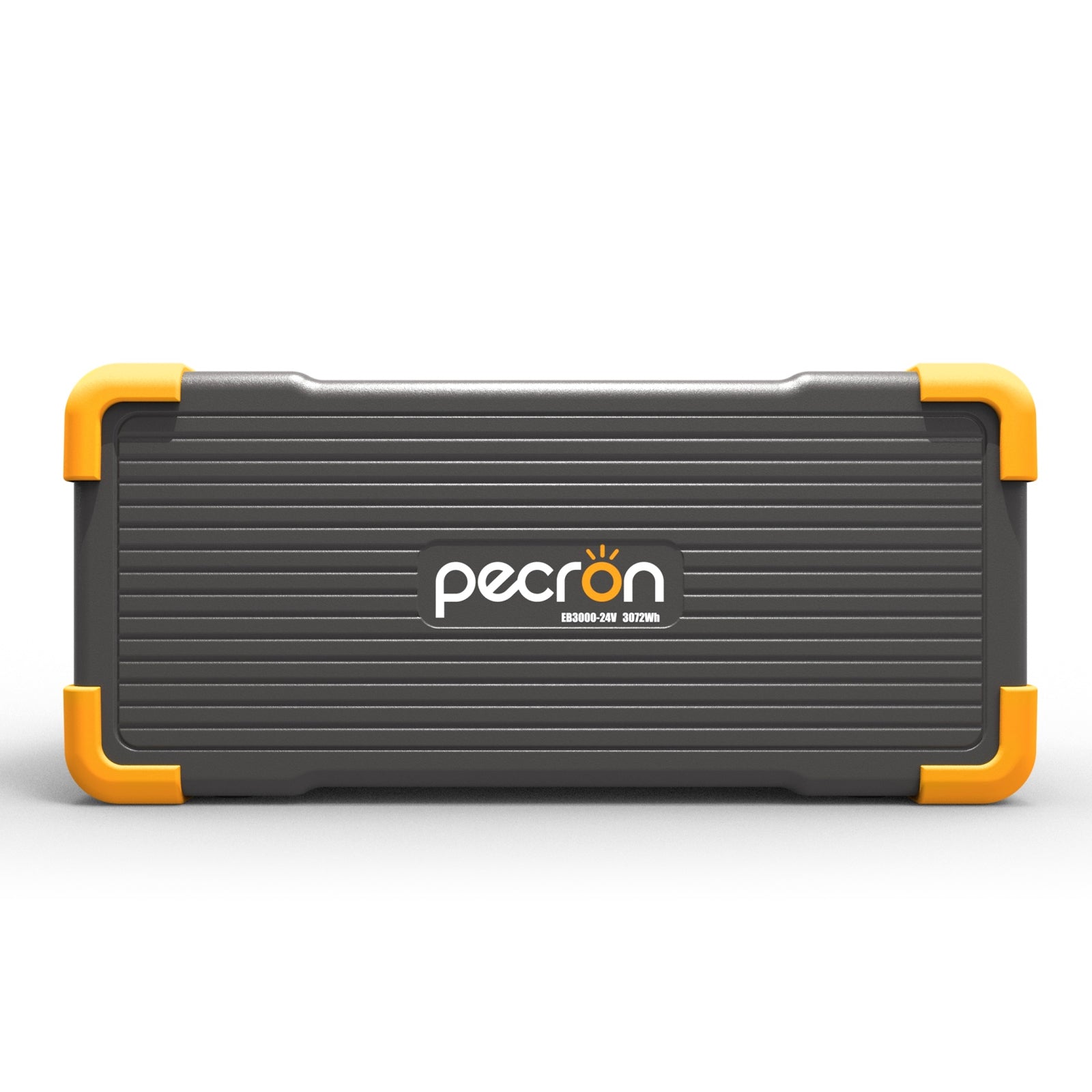

The EB3000-24V is an Expansion battery.

· GX16MF-5 Charging Port: PV(operating voltage) range 12V~95V, 400W maximum;

· EB3000-24V has a built-in MPPT charge controller, which supports 12V-95V(max 400W).

· EB3000-24V can be used as an alone DC output.

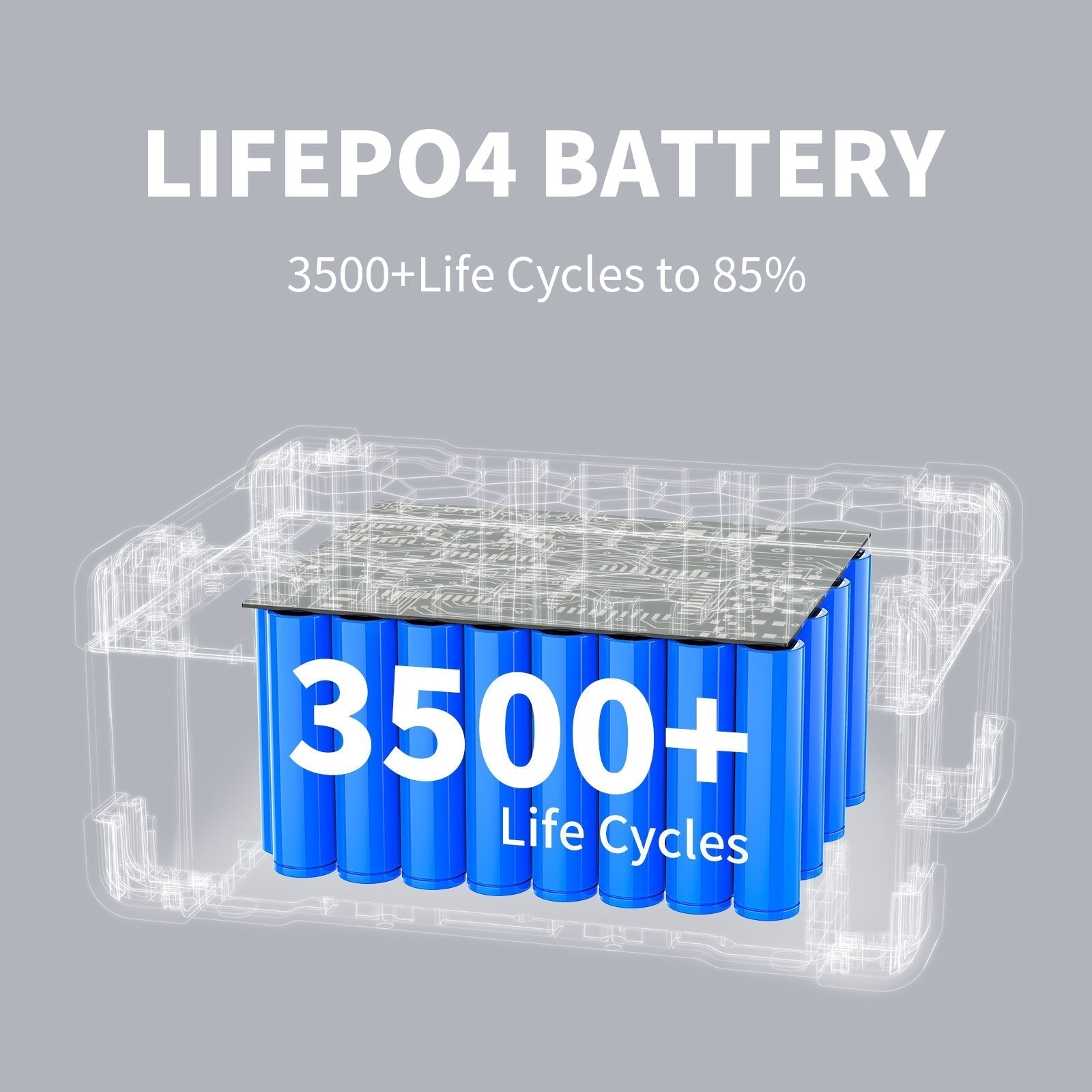

· EB3000-24V utilizes high quality UL certified automotive LiFePO4 battery.

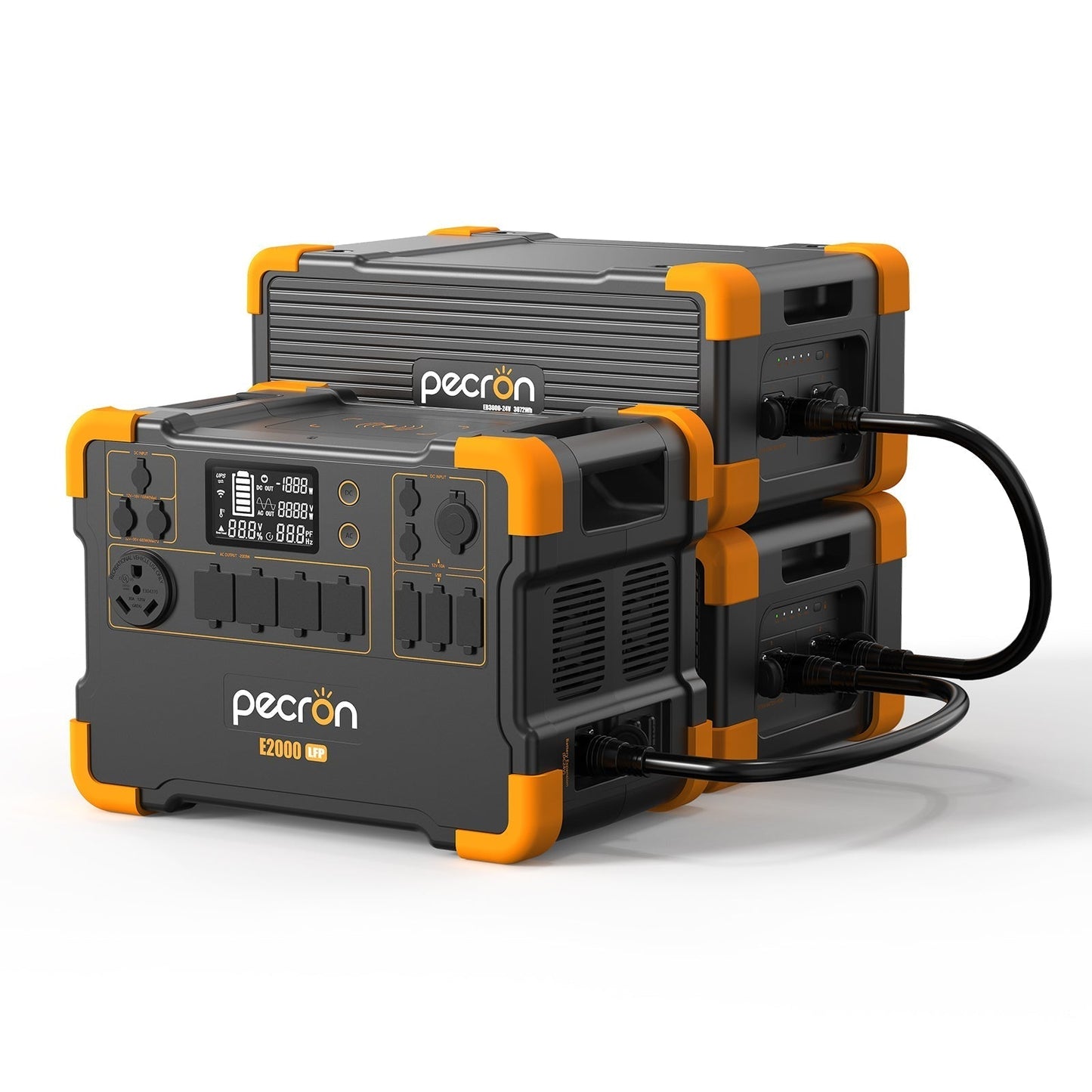

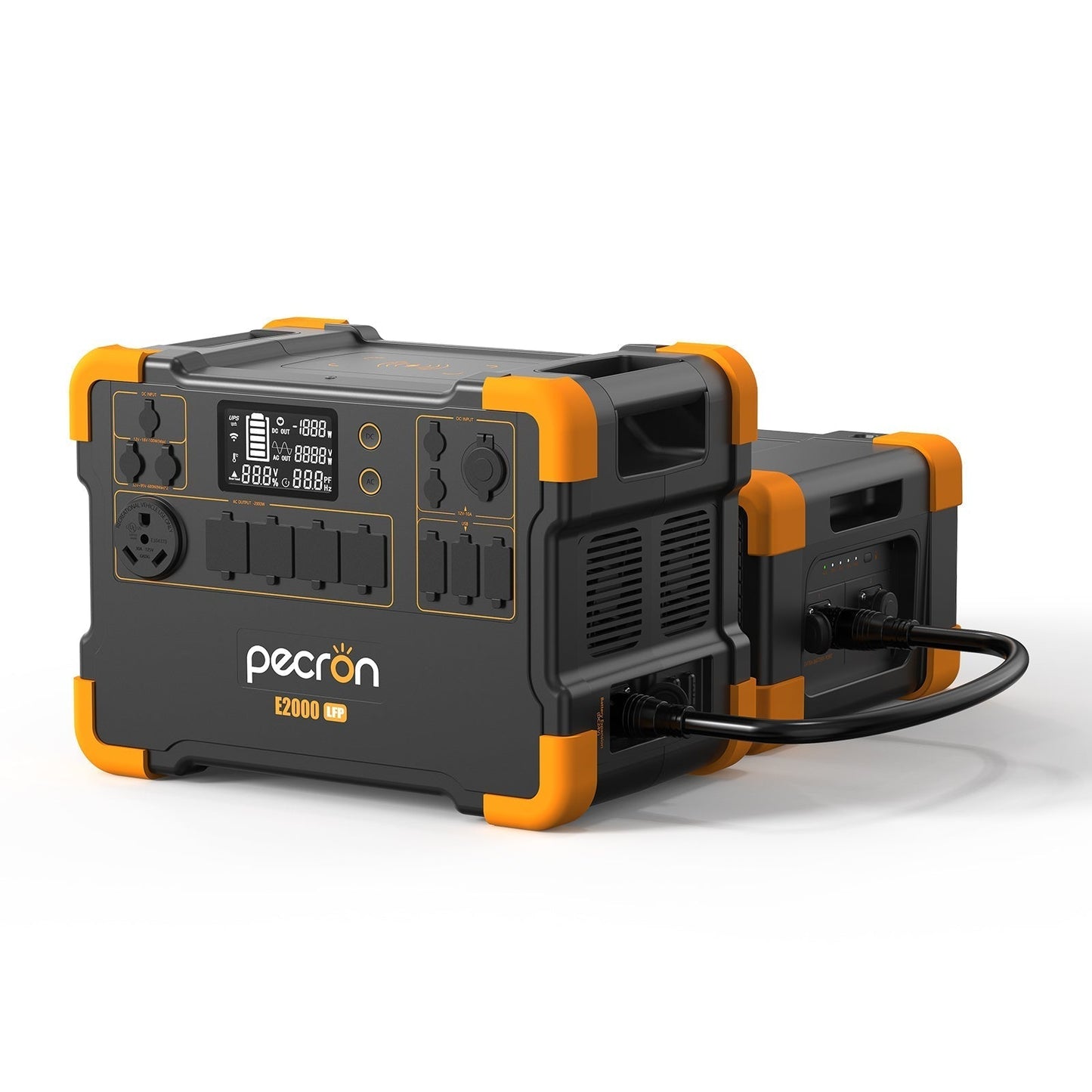

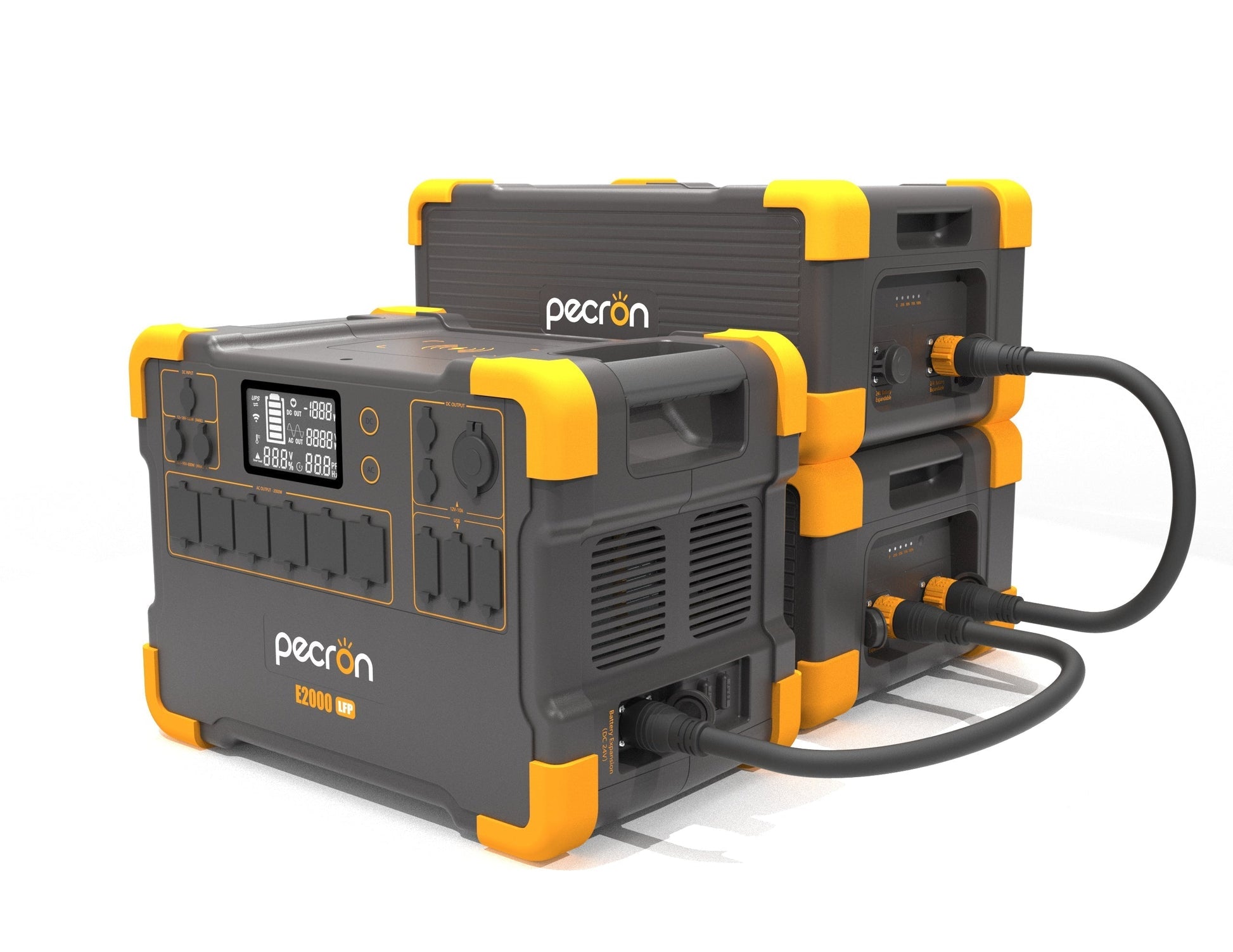

CASCADE FUNCTION:

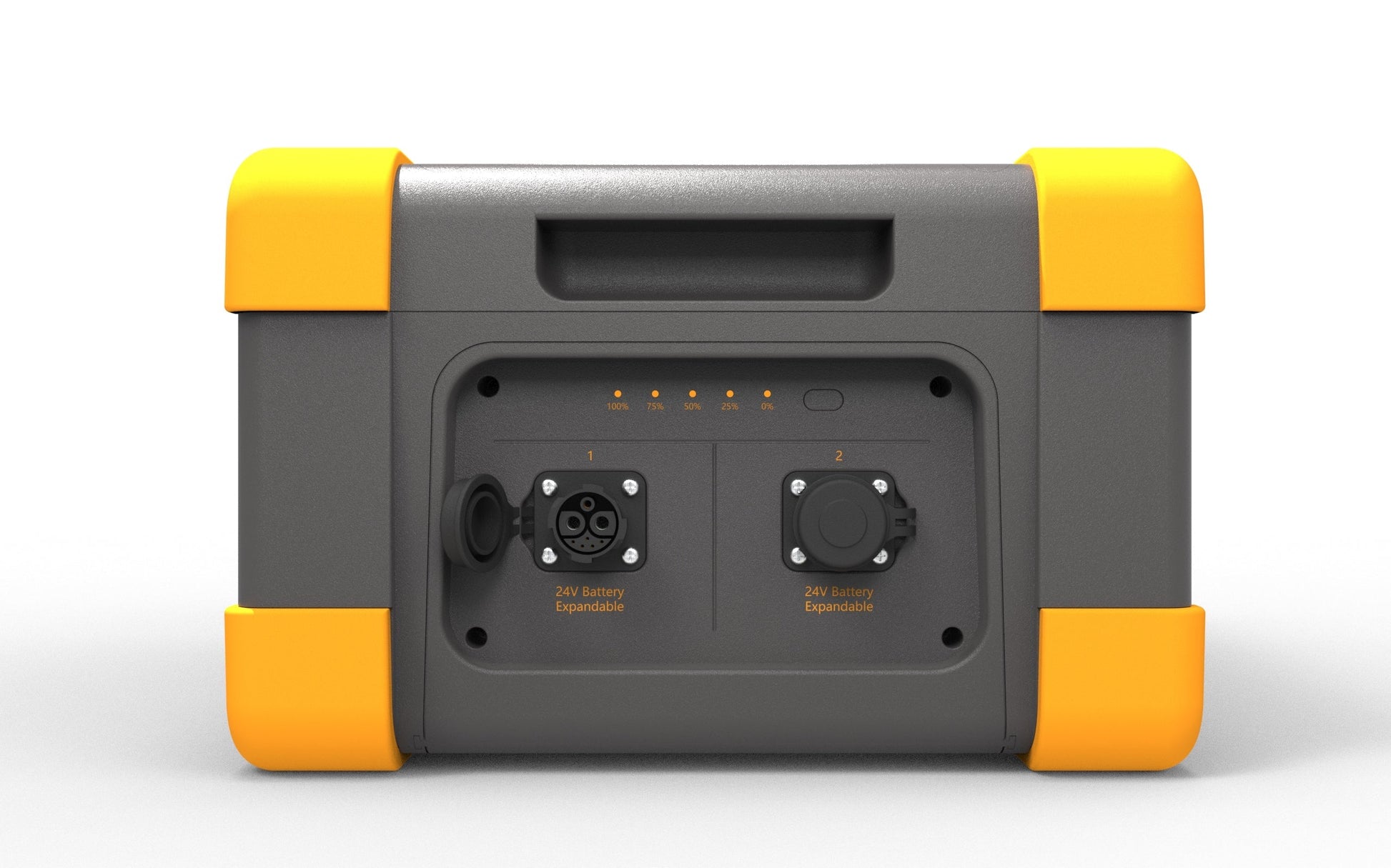

Port for Cascade *2 (Cascade available for E2000LFP)

Video

Specifications

• Capacity: 3072Wh （25.6V/120Ah）
• Battery Type: LiFePo4
• Input: AC Adapter charging /Solar charging / Car charging
• AC Adapter Input: 100Vac~120Vac  .Output：42V⎓15A
• Solar Input: Voc 12V~95V / 400W Max / 15A Max
• Car Input: DC 12V~95V-100W（Max）

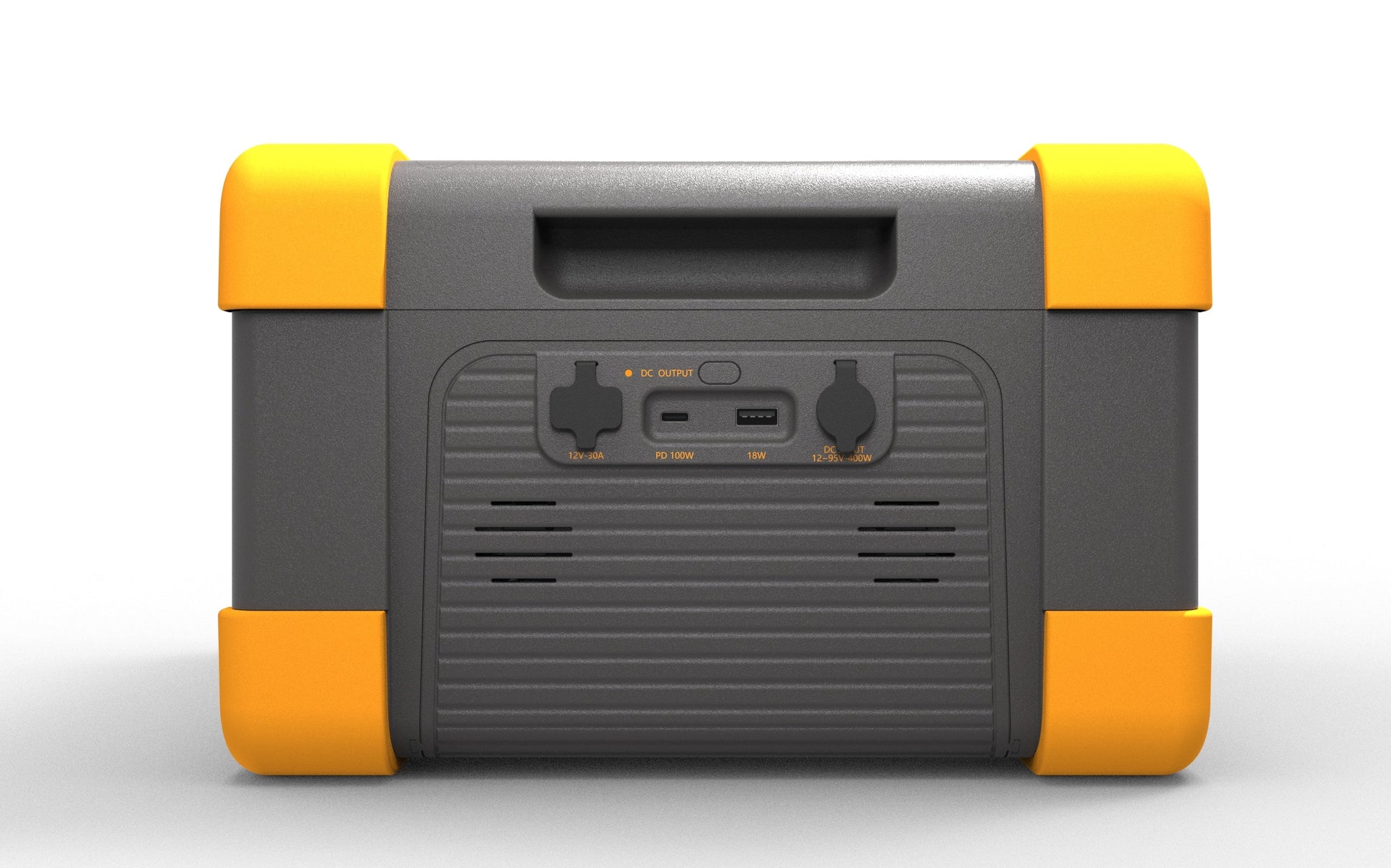

• DC Output: 1x12V XT60 (30A Max) ; 1xUSB-C ; 1xUSB-A
• USB Output: 1 x 100W PD, 1 x 18W
• Battery Type: LiFePO4
• Weight: 57.3lbs(26KG)
• L441*W312*H200mm；L17.3xW12.2xH7.8in
• Charge Temperature: 0°C~45°C / 32°F-113°F
• Discharge Temperature: -20°C~45°C / -4°F-113°F

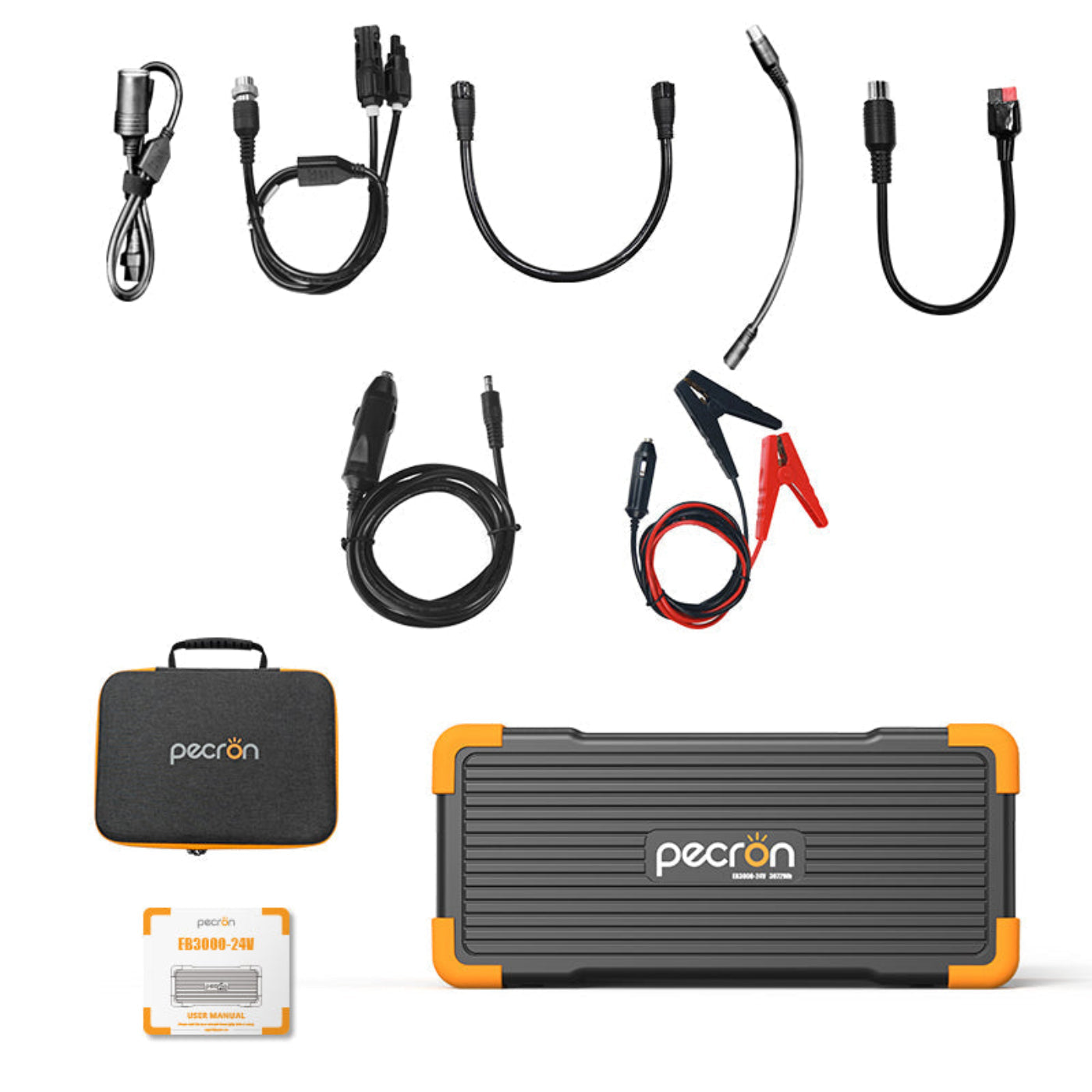

 Package list

· Pecron EB3000-24V *1
· Cable from XT60 to Cigar port and 5525 port *1
· MC4 port to 5-pin Solar Charging Cable(LSMC4-5GX16) *1
· M25 Cascade cable *1
· Solar Cable with 5521 Connector *1
· Anderson Solar Charging Cable *1
· Car charge cable with GX16MF-5 connector *1
· 12V Alligator Clips *1

What Our Experts Think

• Regular Charging: Keep the battery charged between 20%-80% for optimal lifespan.
• Storage: Store in a cool, dry place with a 50% charge if not in use for long periods.
• Avoid Overcharging: Do not exceed the recommended voltage to prevent battery degradation.
• Clean Terminals: Periodically clean battery terminals with a dry cloth to ensure a good connection.
• Temperature Management: Avoid extreme temperatures (over 113°F/45°C) during use or storage to maintain efficiency.
• Monitor Health: Regularly check battery health via the E2000LFP system and replace if performance drops significantly.

Q&A

Q: What devices is the PECRON EB3000-24V Expansion Battery compatible with?

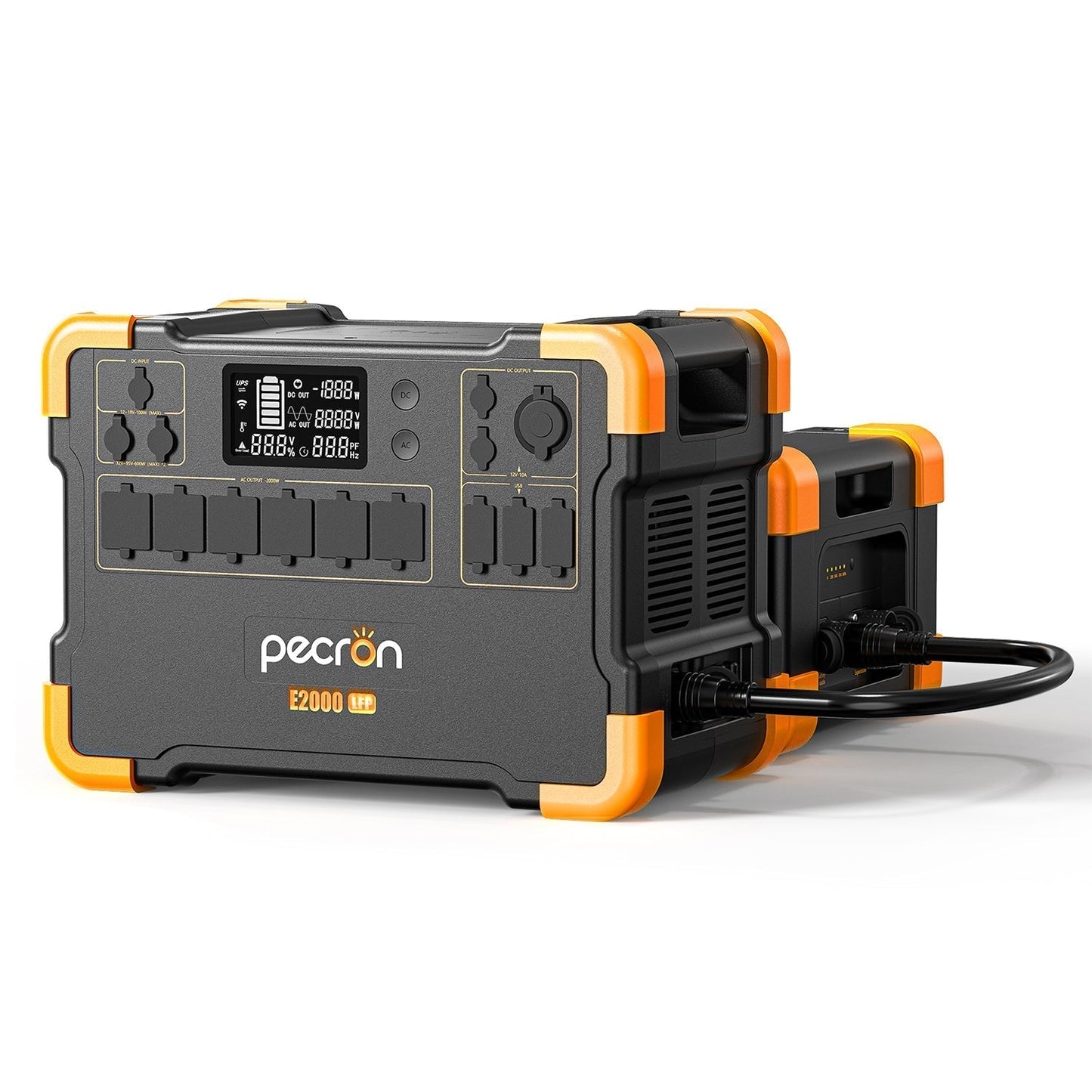

A: The PECRON EB3000-24V Expansion Battery is specifically designed for use with the PECRON E2000LFP Portable Power Station, expanding its capacity to 3072Wh.

Q: How much additional power does the PECRON EB3000-24V provide?
A: The PECRON EB3000-24V adds 3072Wh to the E2000LFP, increasing runtime for longer power support in outdoor, emergency, or off-grid situations.

Q: Can I use the PECRON EB3000-24V independently?
A: No, this expansion battery is designed to work exclusively with the PECRON E2000LFP and cannot be used independently.

Q: How do I charge the PECRON EB3000-24V?
A: The EB3000-24V charges through the PECRON E2000LFP’s charging system, ensuring seamless integration for easy recharging.

Q: Is the PECRON EB3000-24V durable?
A: Yes, built with robust, high-quality materials, the EB3000-24V ensures long-term reliability and durability for extended off-grid use.

Maintenance Tips

• Charge Properly – Use the recommended charger and avoid overcharging.
• Store in a Cool, Dry Place – Keep the battery away from moisture and extreme temperatures.
• Regularly Check Voltage – Monitor voltage levels to ensure optimal performance.
• Avoid Deep Discharges – Recharge when the battery reaches 20-30% to prolong lifespan.
• Clean Contacts – Keep battery terminals free of dirt and corrosion by wiping them regularly.
• Use Only with Compatible Devices – Ensure it is connected to the E2000LFP for safe operation.
