Pioneer 12,000 BTU 20 SEER Ductless Mini-Split Inverter+ - WYS012AMFI20RL-25

Pioneer 12,000 BTU 20 SEER Ductless Mini-Split Inverter+ - WYS012AMFI20RL-25

Features:

• Ultra High Efficiency Inverter+ ductless mini split heat pump system
• Cooling capacity: 12,000 BTU/H with 20 SEER/10.3 EER efficiency
• Heating capacity: 12,000 BTU/H with 10.5 HSPF/3.13 COP efficiency
• Voltage: 110~120V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• AHRI Estimated Annual Operating Costs:
• Cooling: $79.00
• Heating: $242.00
• Low Ambient Heating. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.

IMPORTANT

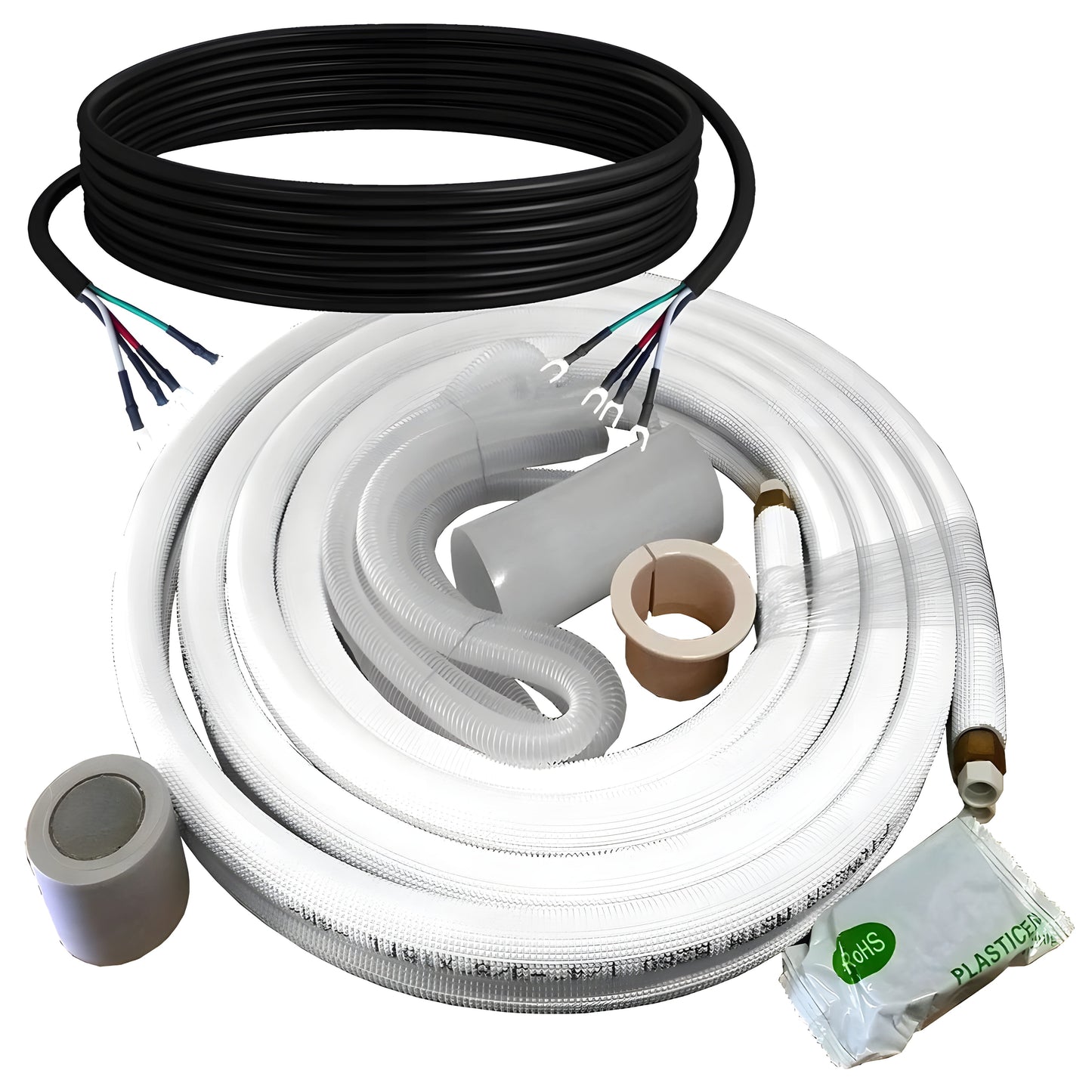

The installation kit is: 25 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

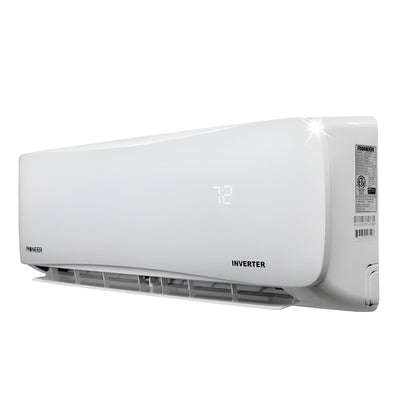

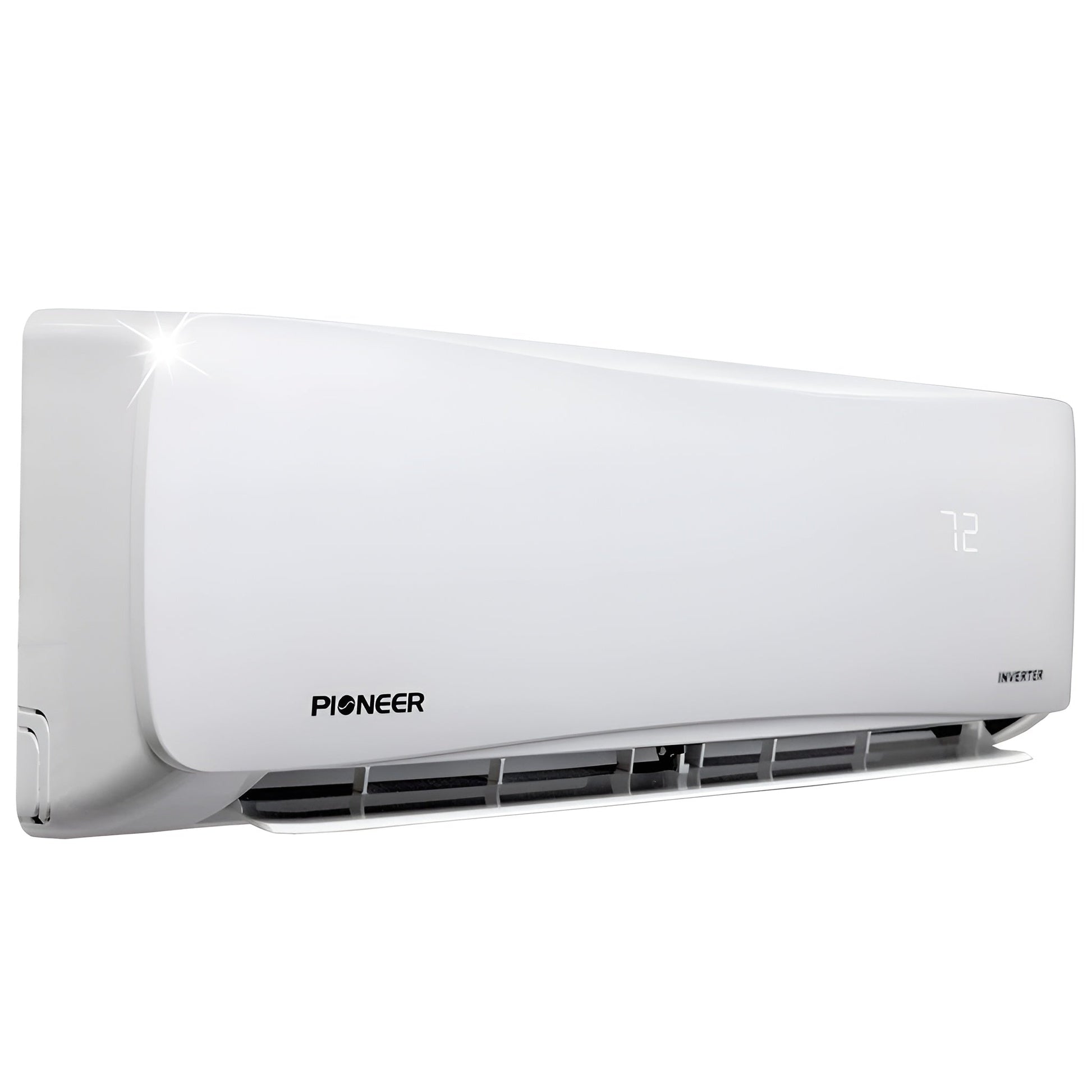

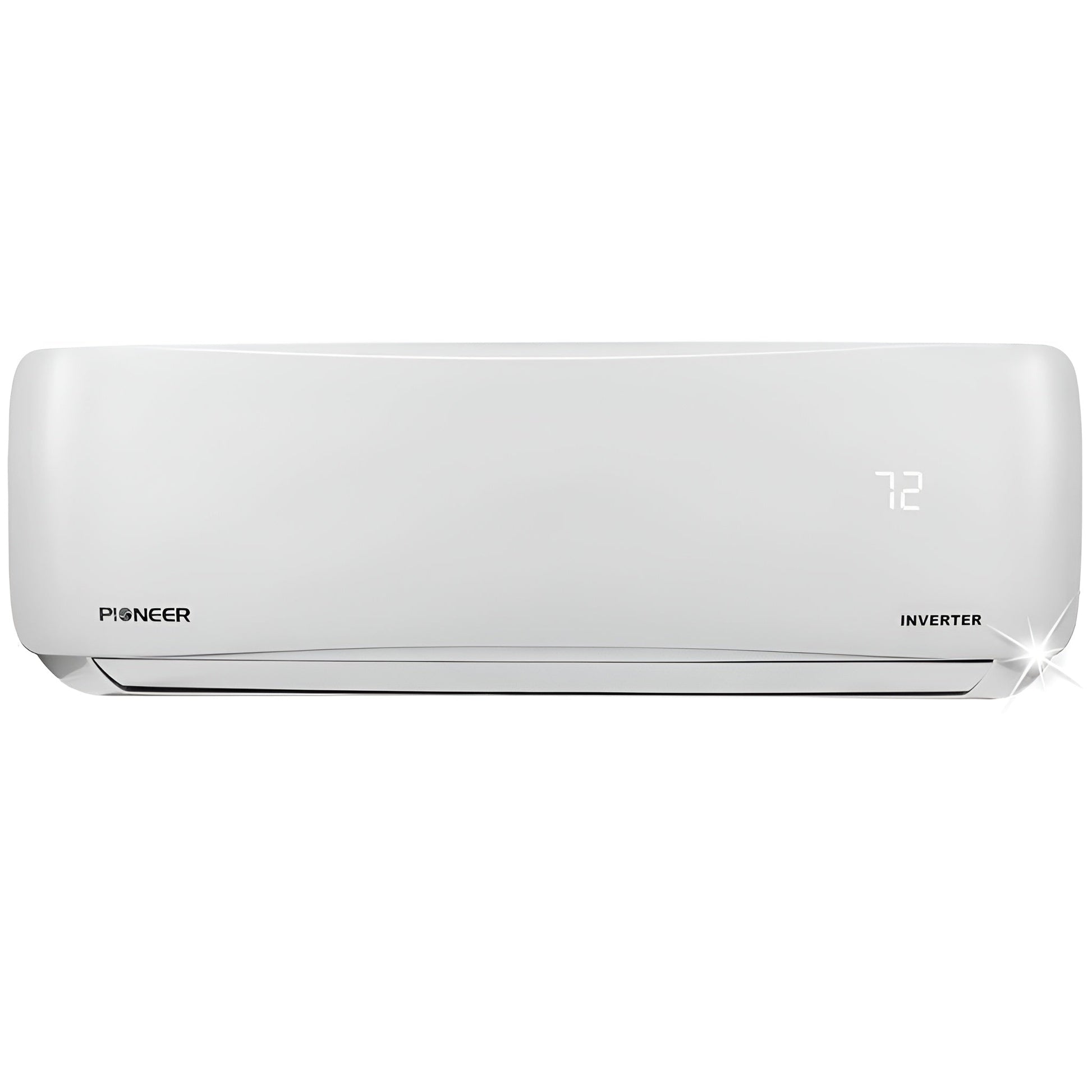

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• R410A Pre-Charged Outdoor Unit
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

System Includes

• Pioneer Diamante Ultra Series 22 SEER Triple Zone Air Conditioner and Heat Pump, YN030GLFI22M3D
• Pioneer9,000 BTU Diamante Ultra 23 SEER Air Handler, WT009GLFI22HLD-25
• Pioneer18,000 BTU Diamante Ultra 21.5 SEER Air Handler, WT018GLFI22HLD-25

Condenser

• Energy Efficient. This 3 Zone condenser, when paired with select Pioneer air handlers, is capable of producing up to an impressive 22 SEER efficiency rating.
• Works In All Environments. The ability to heat even when temperatures drop to -4°F and cool up to 122°F
• Iron-Clad Warranty. For added peace of mind, this condenser comes with a 5 Year Warranty. Simply register within 90 days and you'll be covered!

Air Handler, 9K BTU, Quantity 1

• Large Coverage Area. Handler covers an area of up to 350 sq. ft
• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, TURBO, ECO and SLEEP.
• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Air Handler, 18K BTU, Quantity 1

• Large Coverage Area. Handler covers an area of up to 650 sq. ft
• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, TURBO, ECO and SLEEP.
• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

What's Not Included and Required for Installation

• Electrical Requirements, such as Disconnect Box or Electrical Whip
• Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)

• 12,000 BTU Capacity: Perfect for cooling or heating medium-sized rooms, providing efficient and reliable performance.
• 20 SEER Energy Efficiency: Excellent energy savings, lowering your utility costs while ensuring optimal comfort.
• Inverter+ Technology: Provides precise temperature control, quieter operation, and greater energy efficiency.
• Ductless Design: Easy installation with no need for extensive ductwork, ideal for homes, apartments, or offices.
• Compact & Modern: Sleek, space-saving design that fits seamlessly into any décor while maximizing performance.
• Quiet Operation: Engineered for minimal noise, creating a comfortable, peaceful living or working environment.
• Flexible Installation: Comes with a pre-charged refrigerant line set (25 ft.), making the installation process quick and convenient.

Q: What is the cooling capacity of the Pioneer 12,000 BTU Ductless Mini-Split Inverter+ system?
A: This system provides 12,000 BTU of cooling power, suitable for medium-sized rooms or spaces up to 500 sq. ft.

Q: What is the SEER rating of the Pioneer 12,000 BTU Mini-Split Inverter+ system?
A: It features a 20 SEER rating, ensuring energy-efficient cooling while reducing energy costs.

Q: What are the key features of the Pioneer 12,000 BTU Mini-Split Inverter+ system?
A: It includes inverter technology for energy savings, quiet operation, advanced filtration, and WiFi compatibility for remote control and monitoring.

Q: Does the Pioneer 12,000 BTU Mini-Split provide both cooling and heating?
A: Yes, it works as both an air conditioner and heat pump, providing year-round comfort for both cooling in the summer and heating in the winter.

Q: Is the Pioneer 12,000 BTU Mini-Split Inverter+ system easy to install?
A: Yes, it comes with a 25 ft. lineset for easy installation and flexible placement options.

• Clean or Replace Filters: Check and clean the air filters every 2-4 weeks to ensure proper airflow. Replace filters as needed, typically once a year or when they become worn.
• Clean the Coils: Clean both the evaporator and condenser coils annually to prevent dirt and dust buildup that can reduce efficiency.
• Check the Drain Line: Ensure the condensate drain line is clear to avoid clogs, which can cause water damage and improper drainage.
• Monitor Refrigerant Levels: Check refrigerant levels regularly. If cooling or heating performance is lacking, contact a professional to inspect the system and refill if necessary.
• Clear Airflow Paths: Keep the indoor and outdoor units free from debris and obstructions to ensure optimal airflow and prevent strain on the system.
• Schedule Professional Service: Have a technician inspect the system annually to check refrigerant levels, clean coils, and ensure proper functioning.
