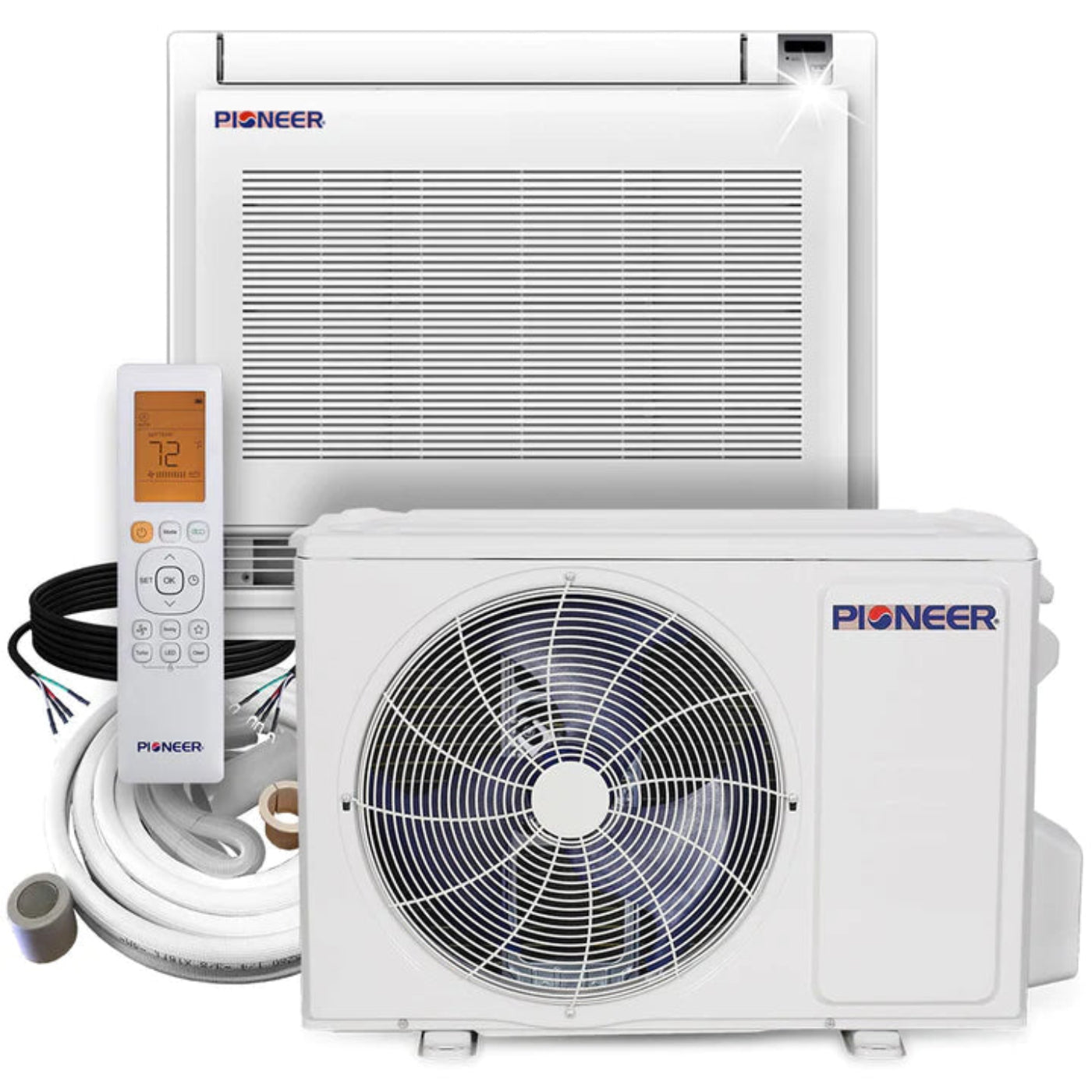

Pioneer 12,000 BTU 21.5 SEER Floor Console Mini-Split Air Conditioner Heat Pump System with 10 ft. Line Sets - FYB012GMFILCAD-10

Pioneer 12,000 BTU 21.5 SEER Floor Console Mini-Split Air Conditioner Heat Pump System with 10 ft. Line Sets - FYB012GMFILCAD-10

These mini split inverter ductless air conditioning and heating systems have ultra-quiet operation and superior efficiency. Our floor-mount mini splits are the perfect equipment for any cooling or heating application, using a single ductless indoor unit. All of our floor mini split options include an easy installation kit with a configurable length line set and various other accessories. Our floor-mount mini splits are made with high-quality materials and great attention to detail, which ensures that your unit will get the job done. Pioneer Mini Split’s floor-mount ductless mini splits are easy and convenient to install; our floor mini splits include an indoor unit, outdoor unit, wireless remote controls, manufacturer warranty, and more. Check out our selection of floor-mounted split system units today!

• Ultra High Efficiency Inverter++ floor console split heat pump system
• Cooling capacity: 12,000 BTU/H with 21.5 SEER/13 EER efficiency
• Heating capacity: 12,000 BTU/H with 10.0 HSPF/3.52 COP efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Floor Console Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $74.00
• Heating: $254.00
• Front Desk Control. With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• Refrigerant Leakage Detect. Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.

• Anti-cold Air Function. Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency Using
• Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.
• Follow Me. Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Optional

• Wired Controller. Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
• Remote in Engineer Mode
• Central Control Management. The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.

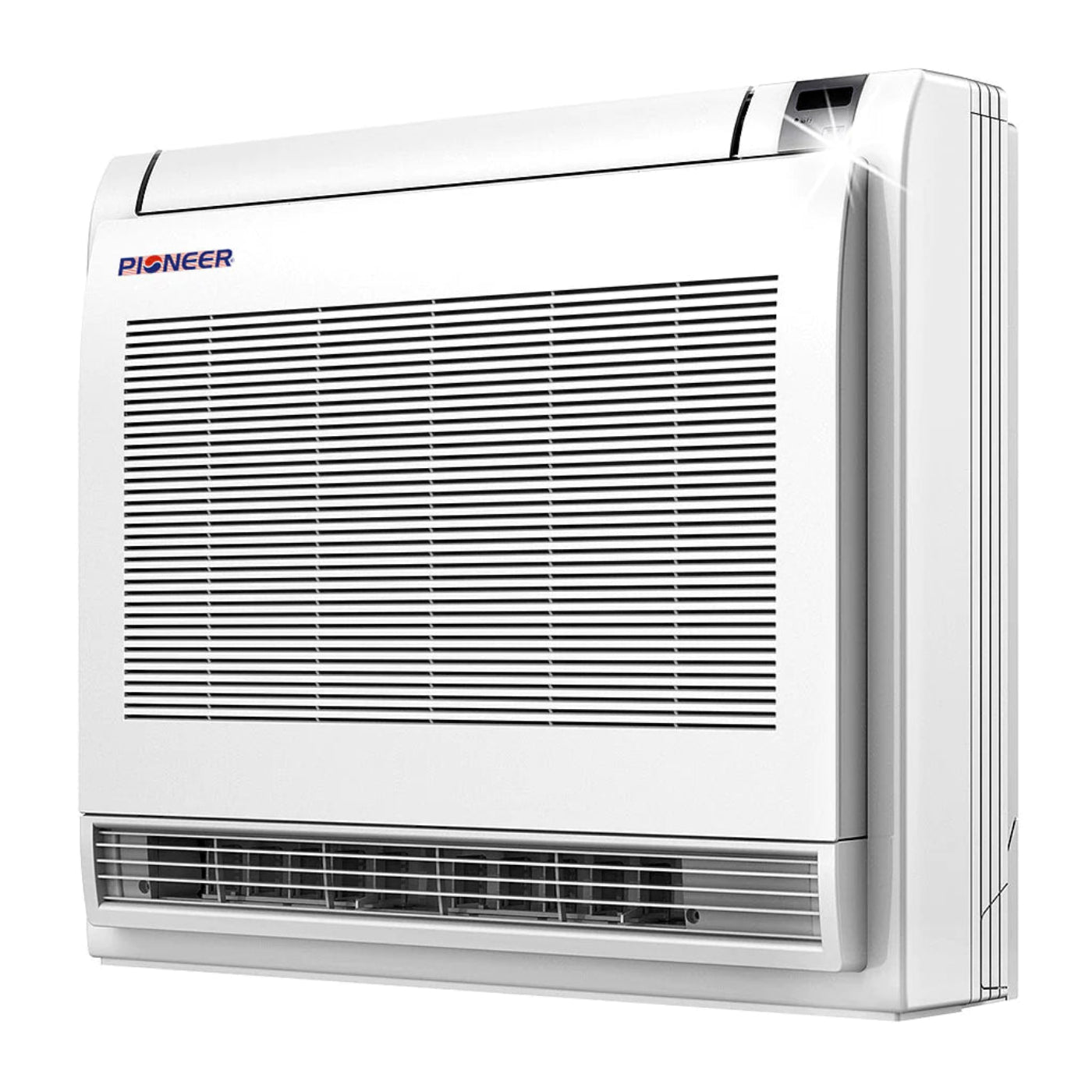

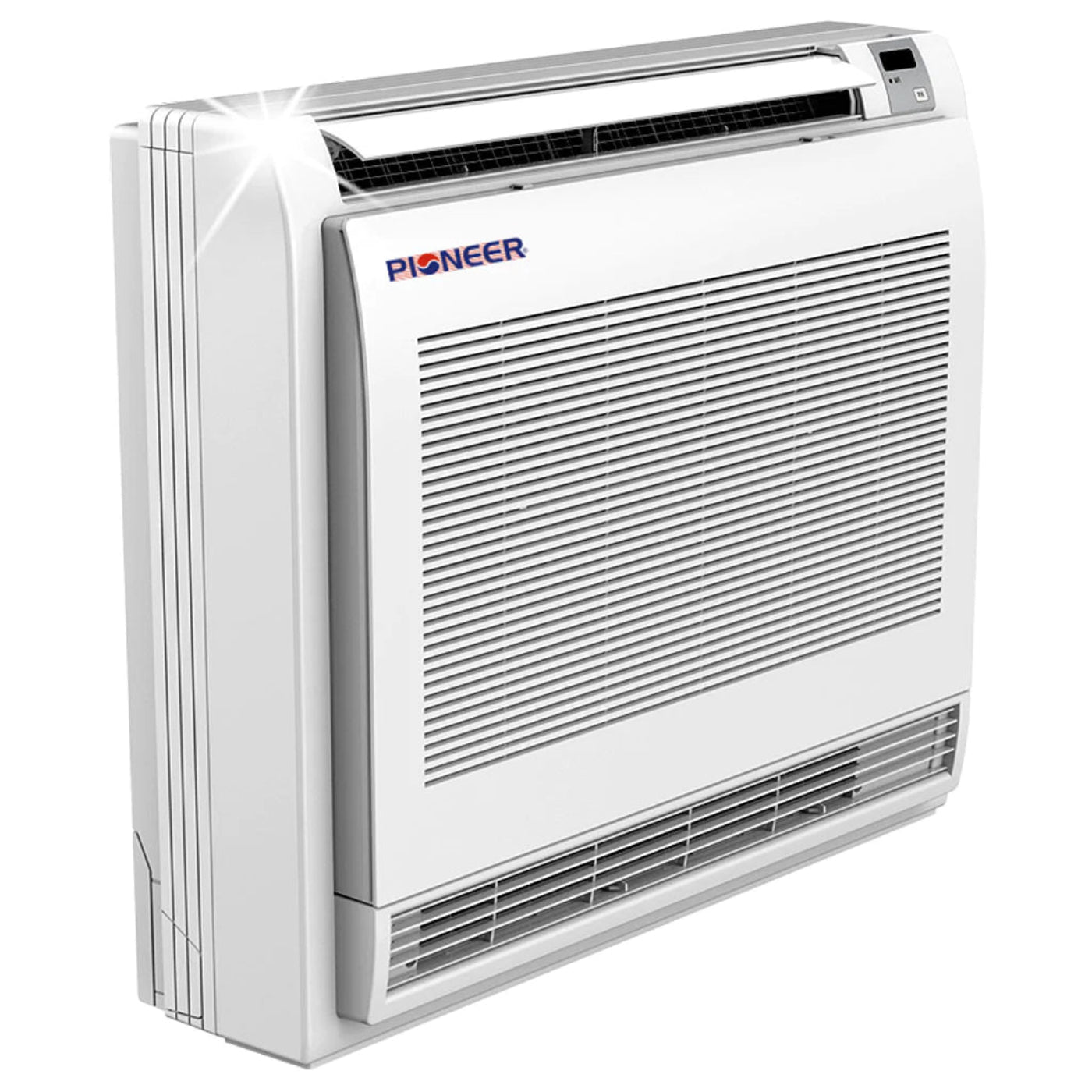

• Indoor Unit

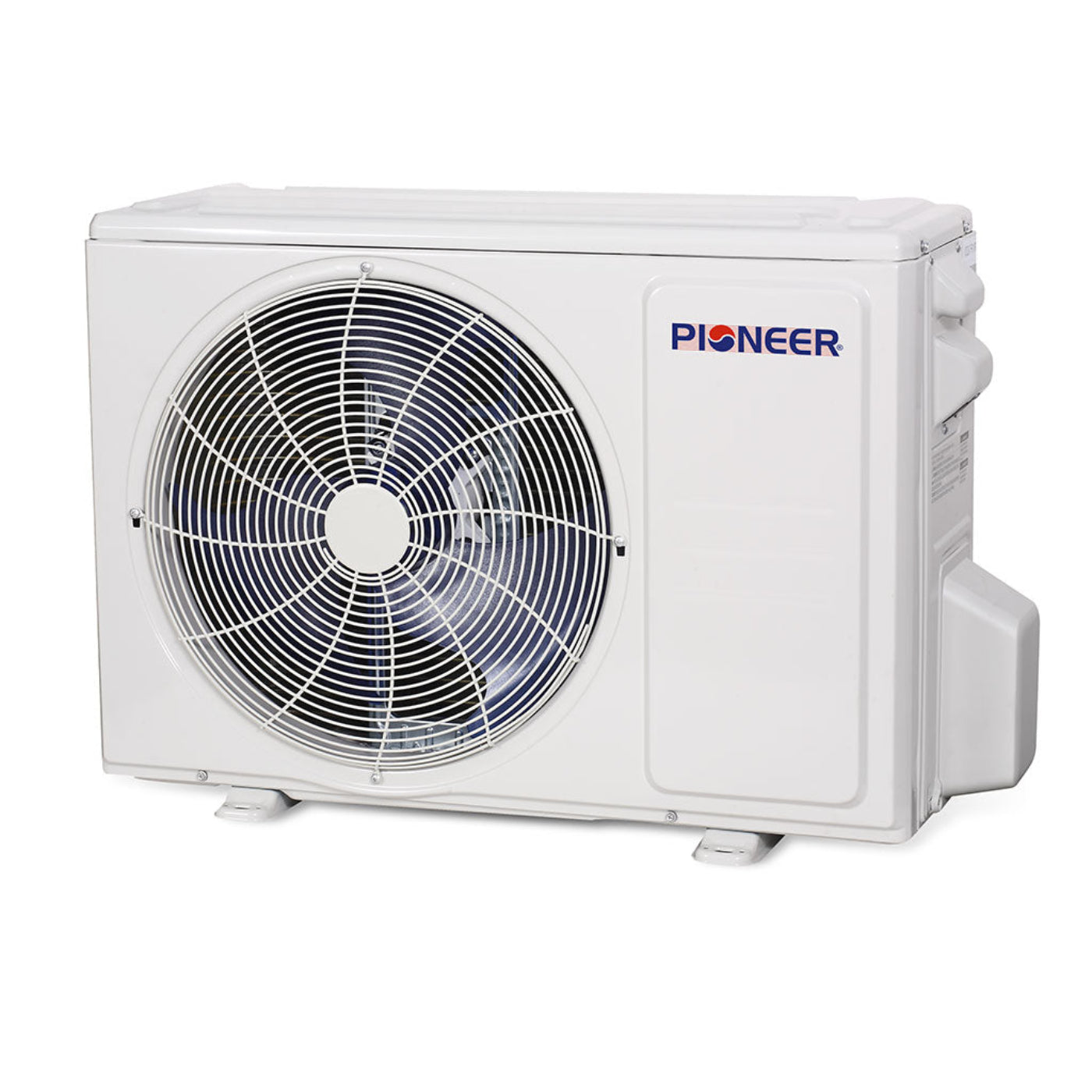

• Outdoor Unit

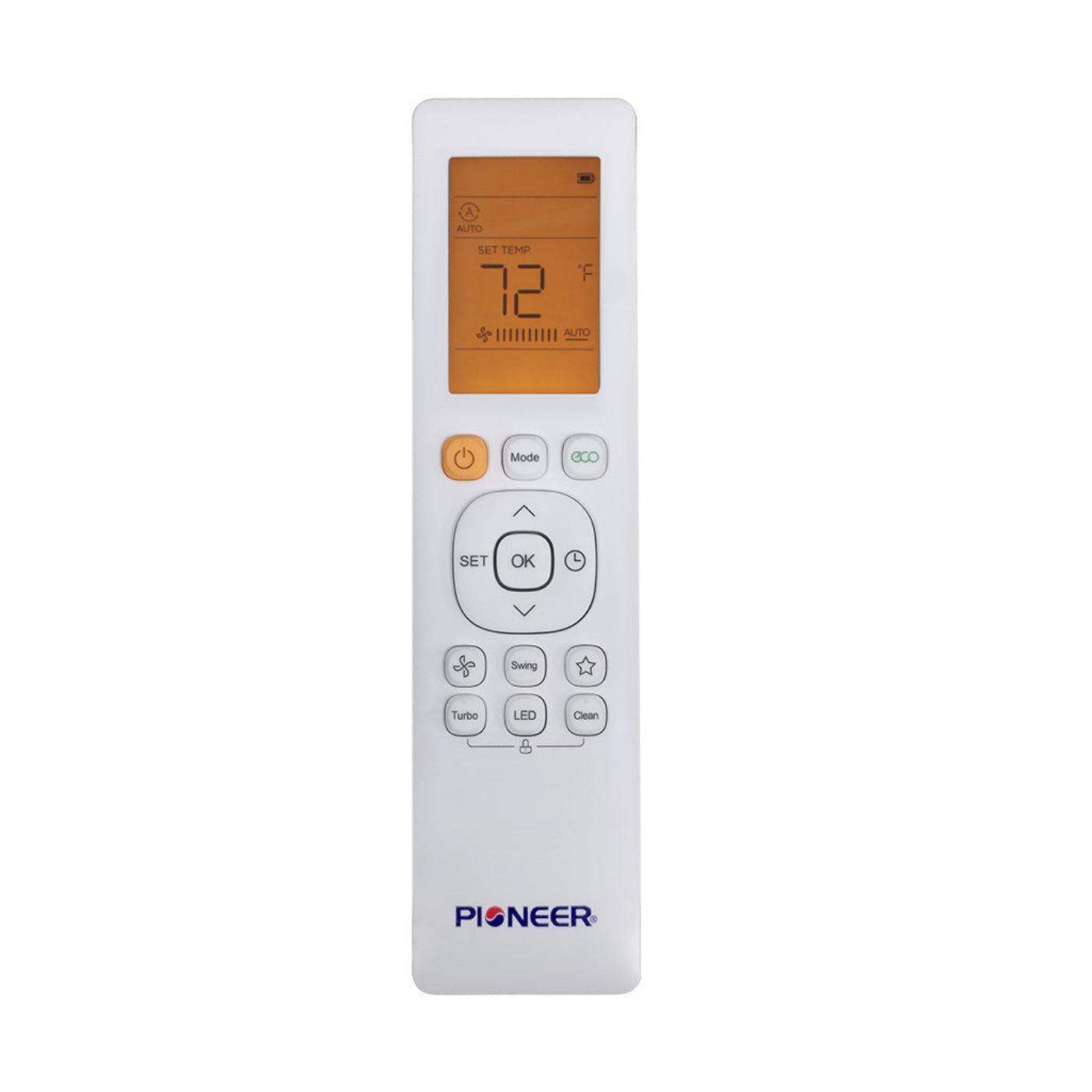

• Wireless Remote Control

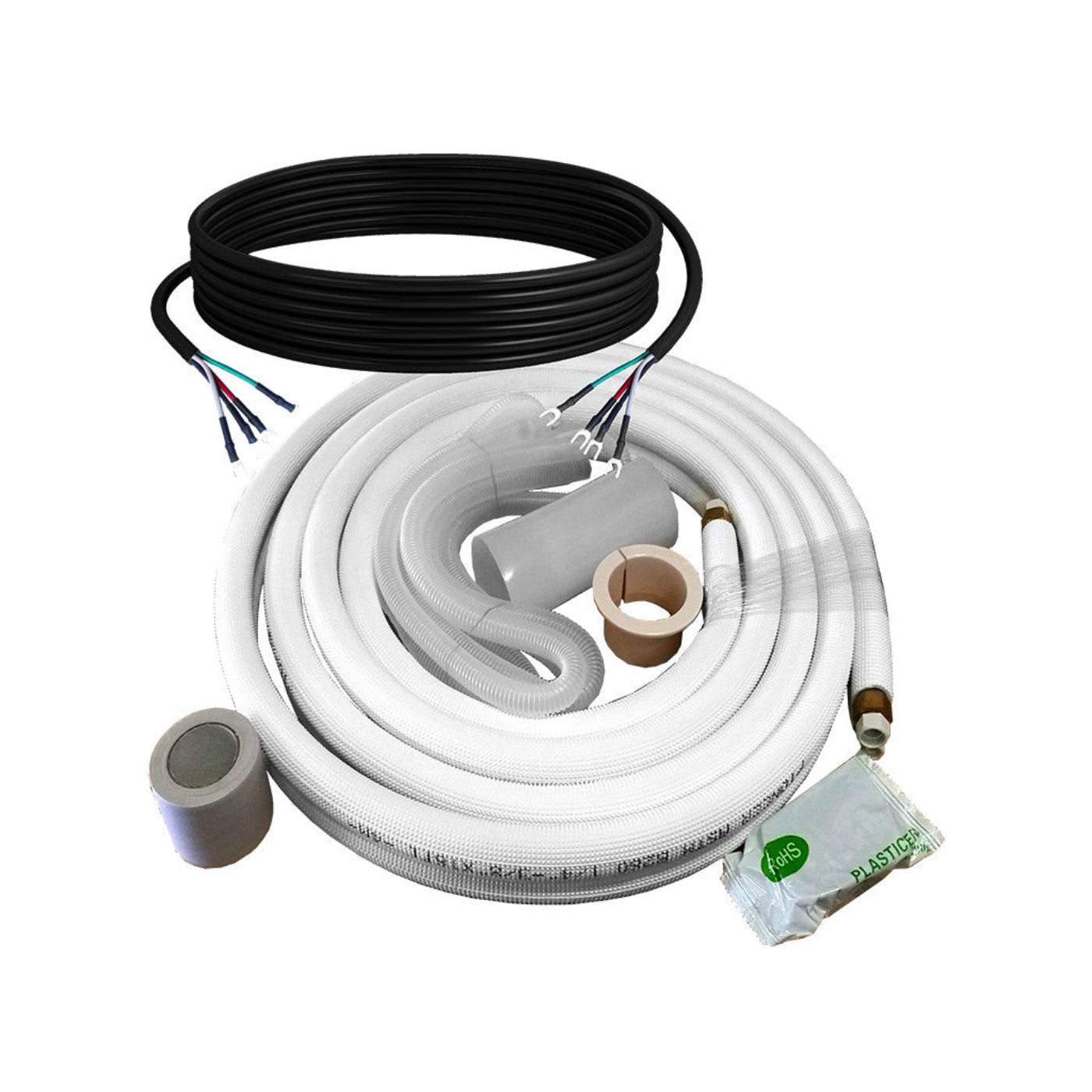

• 10 Ft. Installation Kit
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual

• Efficient Performance: 12,000 BTU with a 21.5 SEER rating delivers reliable cooling and heating, ideal for medium-sized rooms, while maintaining excellent energy efficiency.

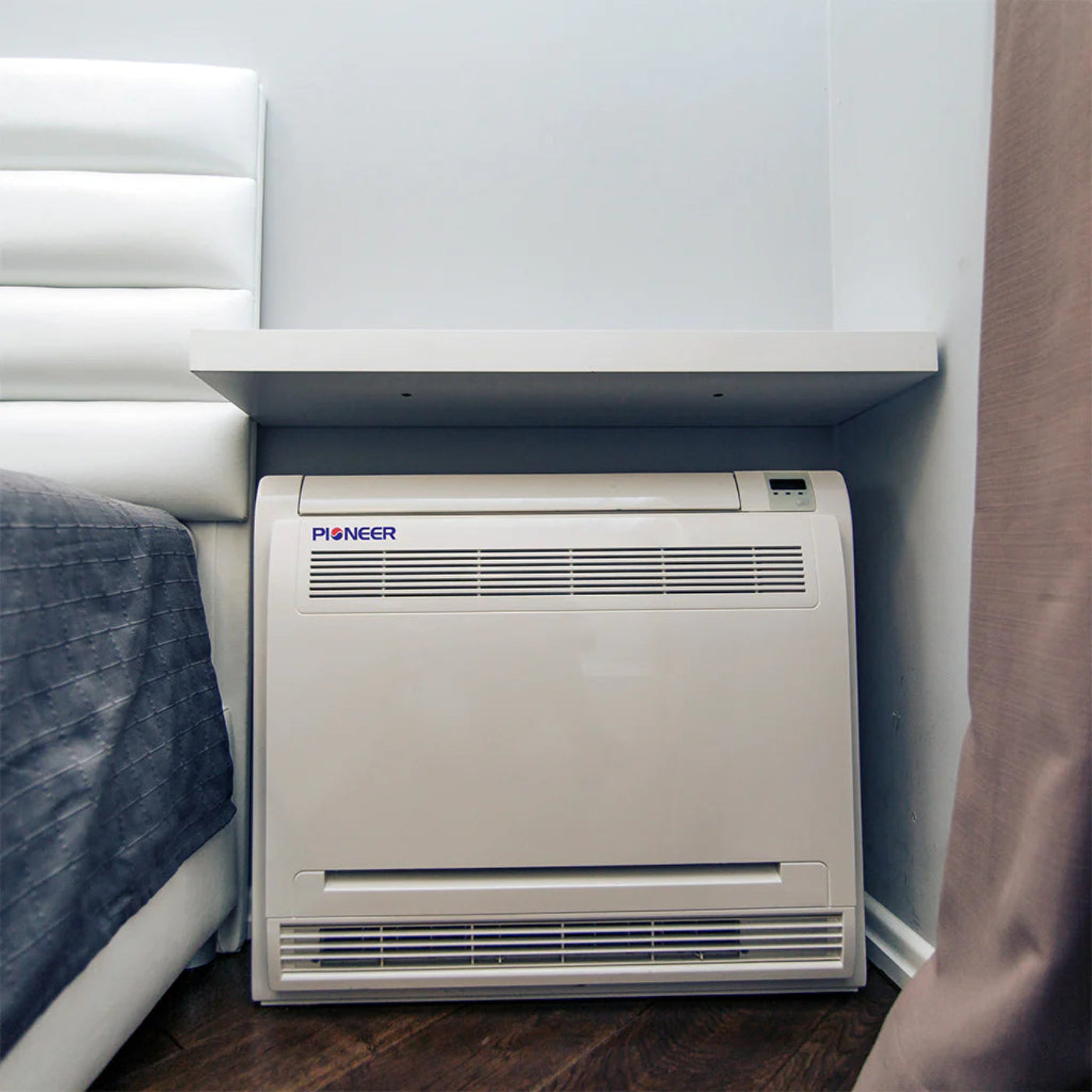

• Floor Console Design: This unit's floor-mounted design allows it to be placed in rooms where wall-mounted units aren't feasible, providing flexible installation options.
• Compact Line Sets: Includes 10 ft. line sets, ideal for installations where a shorter connection is required, perfect for smaller or simpler setups.
• Quiet Operation: Designed with noise-reduction technology, ensuring minimal disruption and a peaceful environment even during extended use.
• Year-Round Comfort: Efficiently handles both cooling in the summer and heating in the winter, making it suitable for all-season comfort.

Q: What is the Pioneer 12,000 BTU 21.5 SEER Floor Console Mini-Split Air Conditioner Heat Pump System?
A: This system offers both cooling and heating with a 21.5 SEER rating. Featuring a floor console design, it provides efficient air distribution while blending seamlessly with your space. It includes 10 ft. line sets for easy installation.

Q: How does the floor console design improve performance?
A: The floor console design allows the unit to be installed closer to the ground, optimizing airflow and providing more even temperature distribution, especially in larger rooms or spaces with varying heights.

Q: What room size is this system suitable for?
A: This system is ideal for medium-sized rooms, cooling and heating spaces up to 600 sq. ft.

Q: Is it suitable for residential use?
A: Yes, this system is well-suited for residential spaces, offering energy-efficient climate control with quiet operation.

Q: Does it require professional installation?
A: While the system includes 10 ft. line sets for flexibility, professional installation is recommended to ensure optimal performance and proper setup.

• Clean the Filters Regularly: Wash filters every 2-4 weeks to prevent dust buildup and maintain optimal airflow.
• Clean Coils Annually: Clean both the evaporator and condenser coils once a year to avoid dirt accumulation and keep the system running efficiently.
• Check Refrigerant Levels: Ensure refrigerant levels are correct for peak cooling and heating performance. Contact a professional if it’s low.
• Inspect Drain Line: Regularly clean the condensate drain to avoid clogs, mold growth, and water damage.
• Keep the Outdoor Unit Clear: Ensure the outdoor unit is free of debris like leaves, dirt, or obstructions to maintain proper airflow.
• Schedule Professional Maintenance: Have a technician inspect and service the system annually to ensure it’s functioning at its best.
