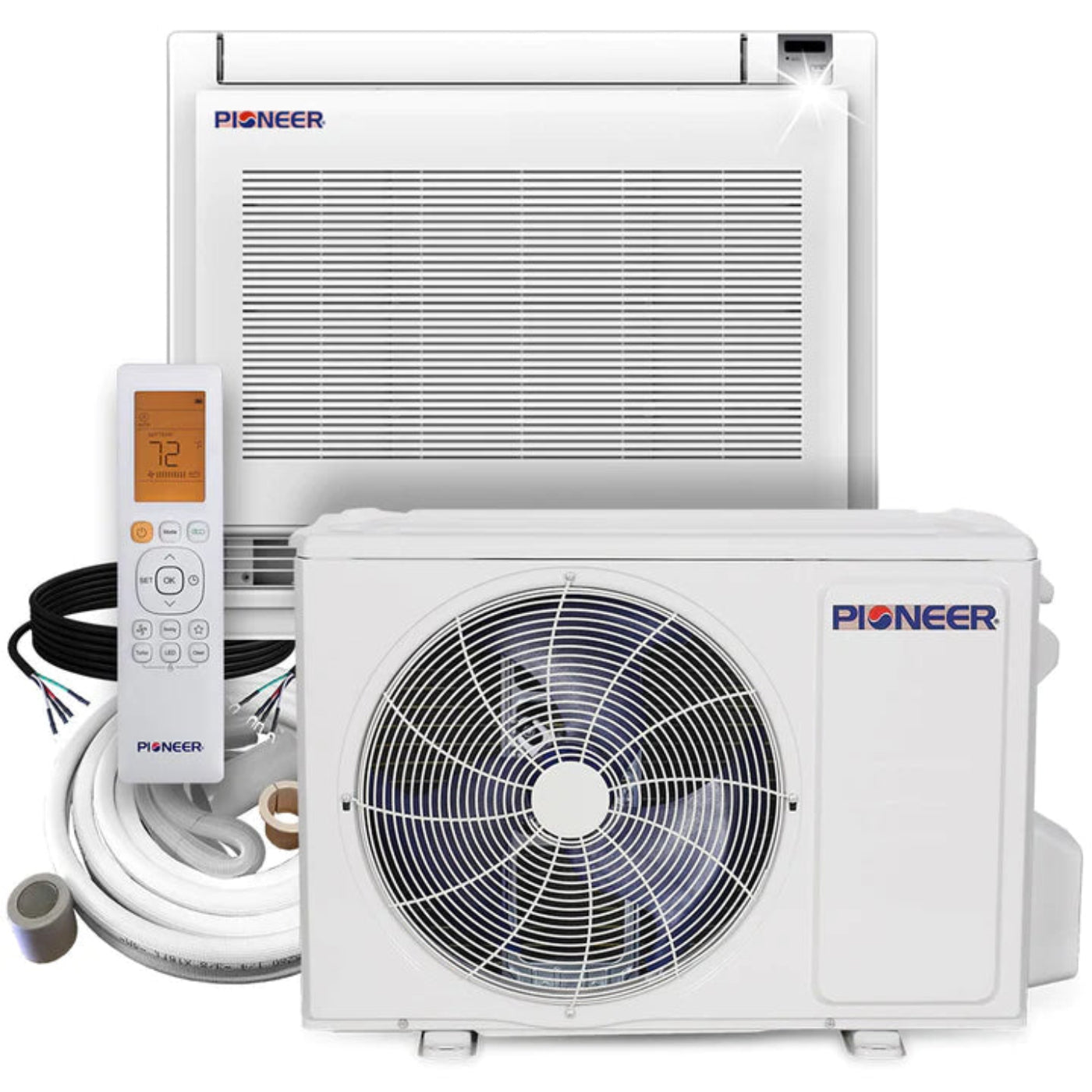

Pioneer 12,000 BTU 21.5 SEER Floor Console Mini-Split Air Conditioner Heat Pump System with 33 ft. Line Sets - FYB012GMFILCAD-33

Pioneer 12,000 BTU 21.5 SEER Floor Console Mini-Split Air Conditioner Heat Pump System with 33 ft. Line Sets - FYB012GMFILCAD-33

These mini split inverter ductless air conditioning and heating systems have ultra-quiet operation and superior efficiency. Our floor-mount mini splits are the perfect equipment for any cooling or heating application, using a single ductless indoor unit. All of our floor mini split options include an easy installation kit with a configurable length line set and various other accessories. Our floor-mount mini splits are made with high-quality materials and great attention to detail, which ensures that your unit will get the job done. Pioneer Mini Split’s floor-mount ductless mini splits are easy and convenient to install; our floor mini splits include an indoor unit, outdoor unit, wireless remote controls, manufacturer warranty, and more. Check out our selection of floor-mounted split system units today!

• Ultra High Efficiency Inverter++ floor console split heat pump system
• Cooling capacity: 12,000 BTU/H with 21.5 SEER/13 EER efficiency
• Heating capacity: 12,000 BTU/H with 10.0 HSPF/3.52 COP efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Floor Console Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• AHRI Estimated Annual Operating Costs:
• Cooling: $74.00
• Heating: $254.00
• Front Desk Control. With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• Refrigerant Leakage Detect. Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.

• Anti-cold Air Function. Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency Using
• Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.
• Follow Me. Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Optional

• Wired Controller. Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
• Remote in Engineer Mode
• Central Control Management. The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.

• Indoor Unit

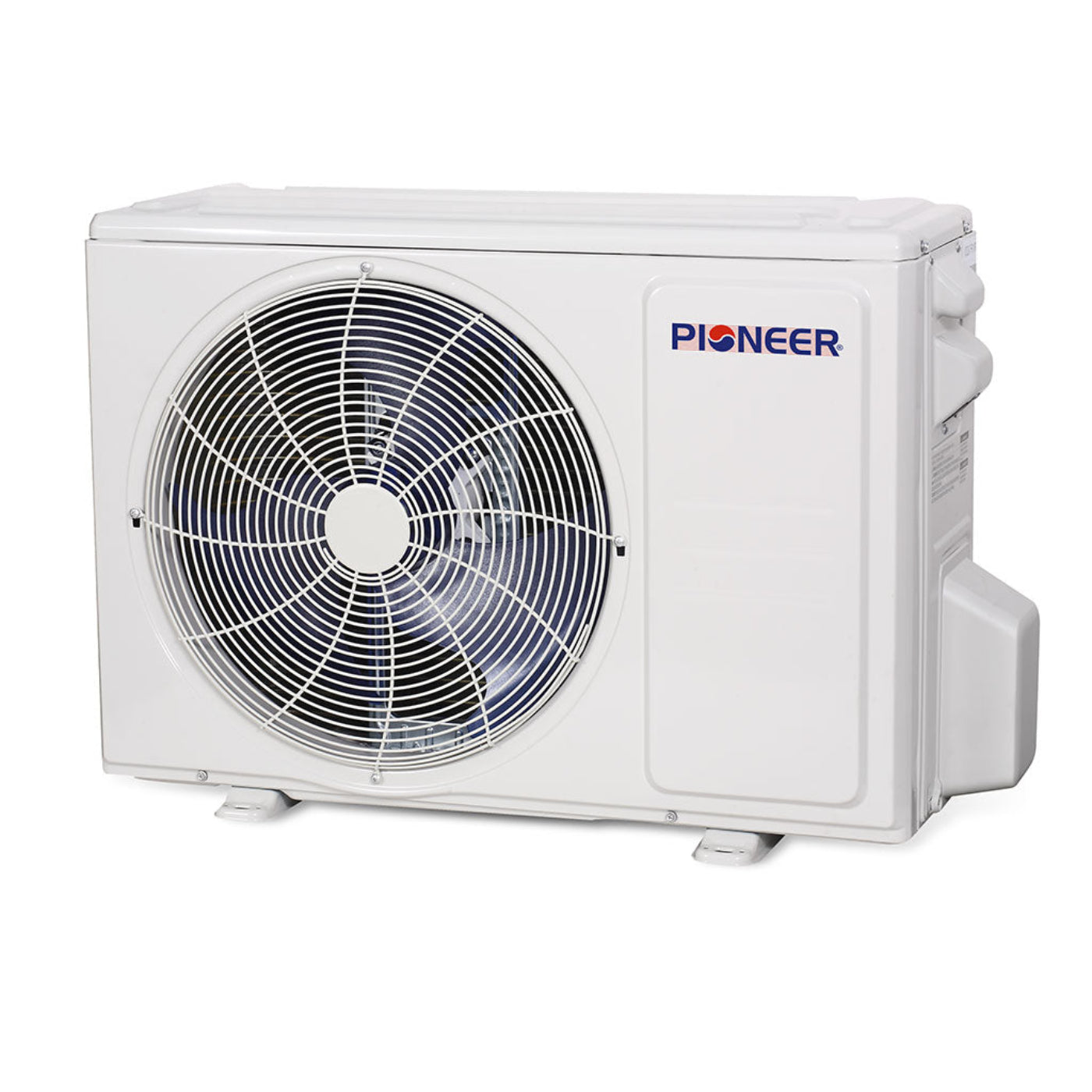

• Outdoor Unit

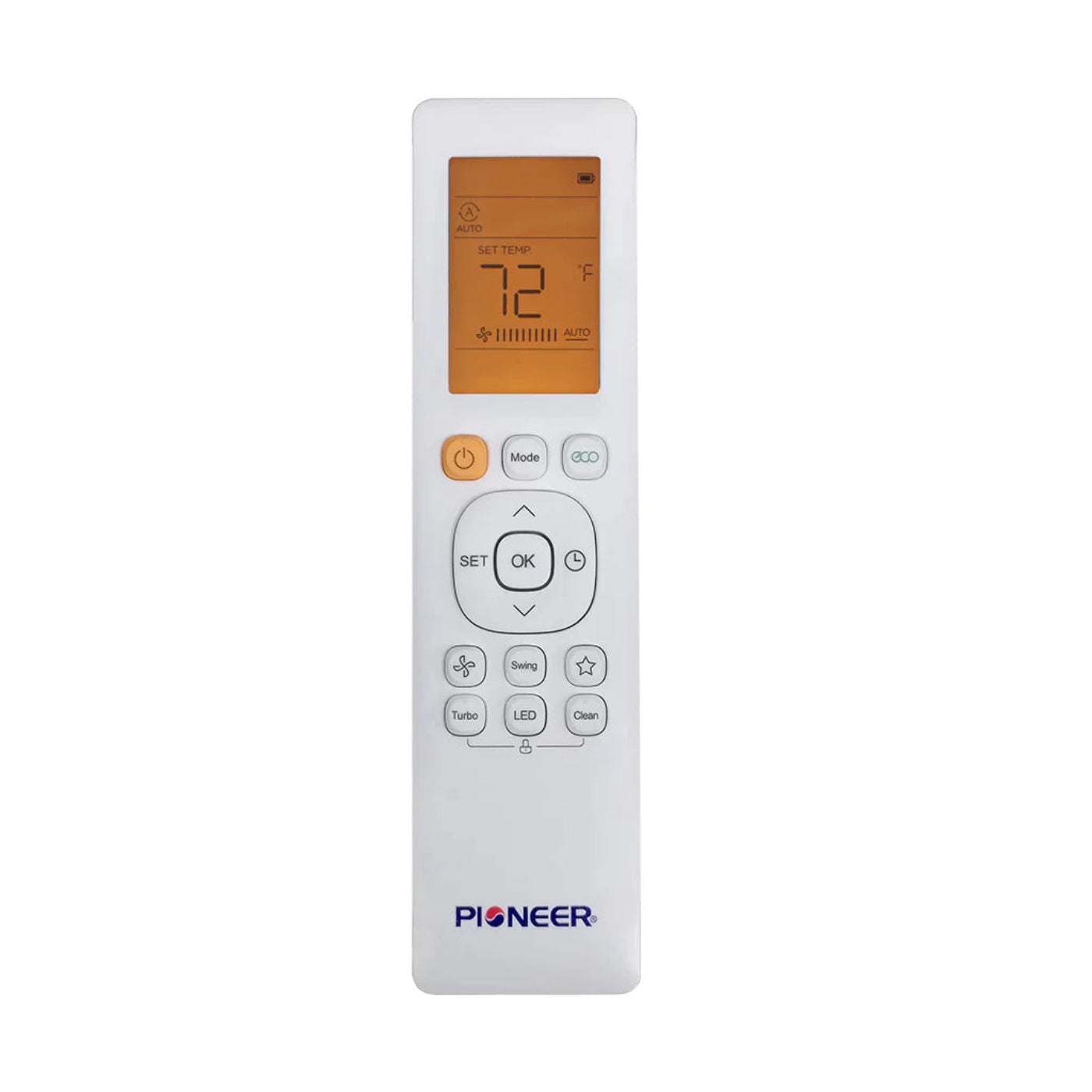

• Wireless Remote Control

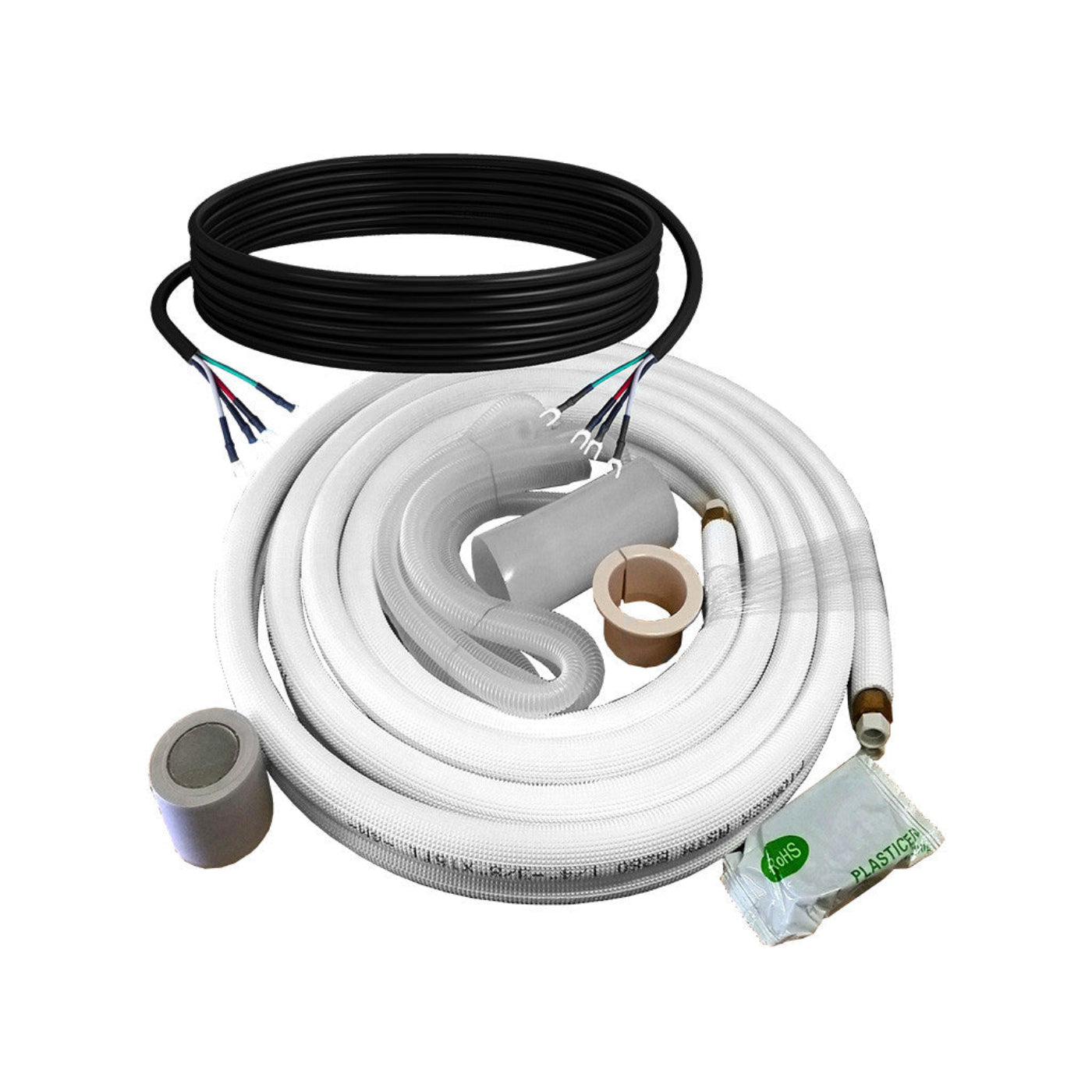

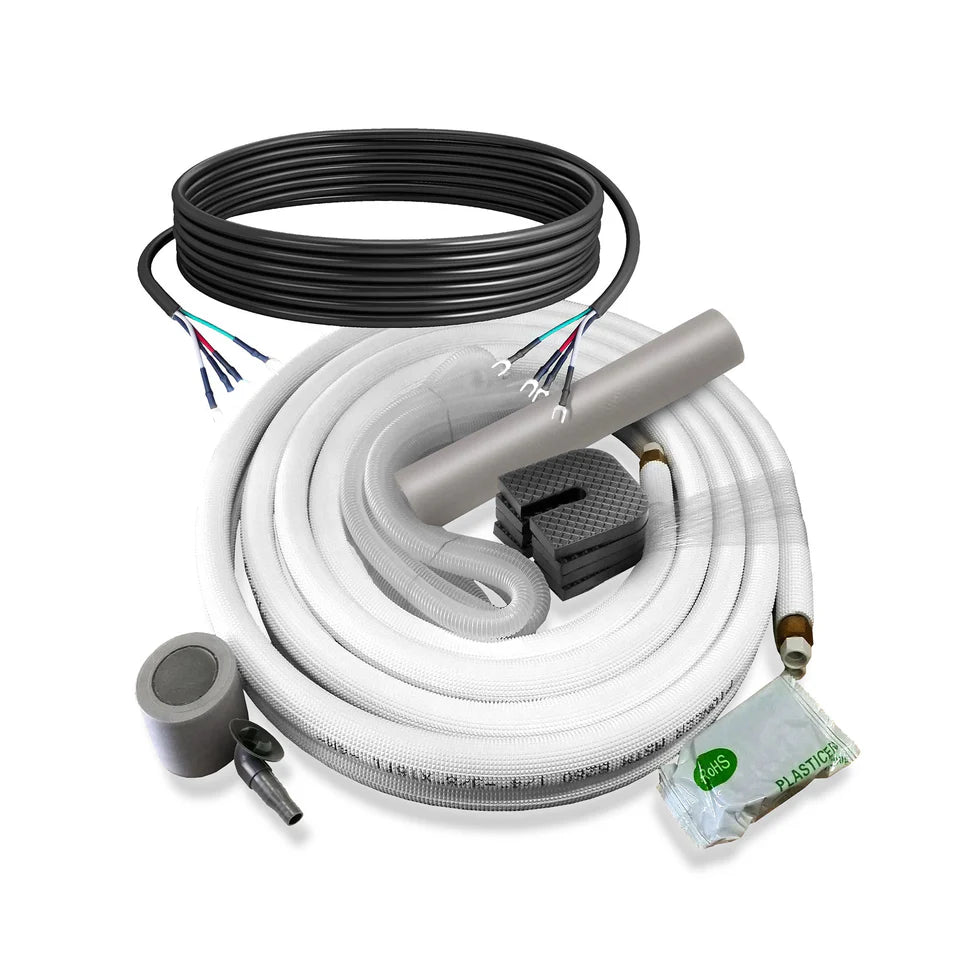

• 33 Ft. Installation Kit
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Submittal Sheet

• Energy-Efficient & Compact: 9,000 BTU capacity with a 20.5 SEER rating offers energy-efficient performance for cooling and heating while minimizing utility costs.
• Inverter Technology: Adjusts compressor speed to provide steady, reliable comfort with less energy consumption and quieter operation.
• Longer Installation Reach: Comes with 50 ft. line sets, perfect for installations requiring extended line set length or larger spaces.
• Silent Operation: Built with noise-reduction features to ensure quiet and unobtrusive comfort in any room.
• All-Season Climate Control: Efficient for both cooling in summer and heating in winter, offering year-round performance.

Q: What is the Pioneer 9,000 BTU 20.5 SEER Ductless Mini-Split Inverter + Air Conditioner Heat Pump System?
A: This mini-split system offers both cooling and heating with a 20.5 SEER rating. Featuring Inverter technology, it provides energy-efficient operation, quiet performance, and precise temperature control. It includes 50 ft. line sets for flexible installation.

Q: How does Inverter technology improve system performance?
A: Inverter technology adjusts the compressor speed based on real-time temperature demands, ensuring efficient energy use, reducing noise, and providing consistent comfort.

Q: What room size is this system suitable for?
A: This system is ideal for cooling and heating rooms up to 350 sq. ft.

Q: Is this system suitable for residential use?
A: Yes, it’s perfect for residential applications, delivering reliable comfort with minimal noise and enhanced energy efficiency.

Q: Does it require professional installation?
A: While the unit includes 50 ft. line sets for flexibility, professional installation is recommended to ensure optimal performance and longevity.

• Clean the Air Filters Regularly: To ensure optimal airflow and cooling efficiency, clean the air filters every 1-2 months by gently washing them with water. Allow them to dry completely before reinstalling.
• Check the Condensate Drain: Inspect the condensate drain every few months to ensure it is clear of blockages. A clogged drain can lead to water leakage and possible damage to the system.
• Monitor Refrigerant Levels: Low refrigerant can affect cooling and heating performance. If you notice reduced airflow or efficiency, have a licensed technician check and recharge the refrigerant if necessary.
• Clear Debris Around the Outdoor Unit: Regularly check the outdoor unit for leaves, dirt, or debris. Clean the area around the unit to maintain proper airflow and avoid overheating.
• Keep the Coils Clean: Periodically inspect the indoor and outdoor coils for dirt buildup. Use a soft brush or compressed air to gently remove any debris to prevent reduced efficiency.
• Inspect the Insulation: Ensure the insulation around the refrigerant lines is intact. Damaged insulation can lead to energy loss and inefficient operation.
• Schedule Annual Maintenance: Have a professional technician perform annual maintenance, including system checks, cleaning, and refrigerant inspection, to ensure your system runs efficiently year-round.
