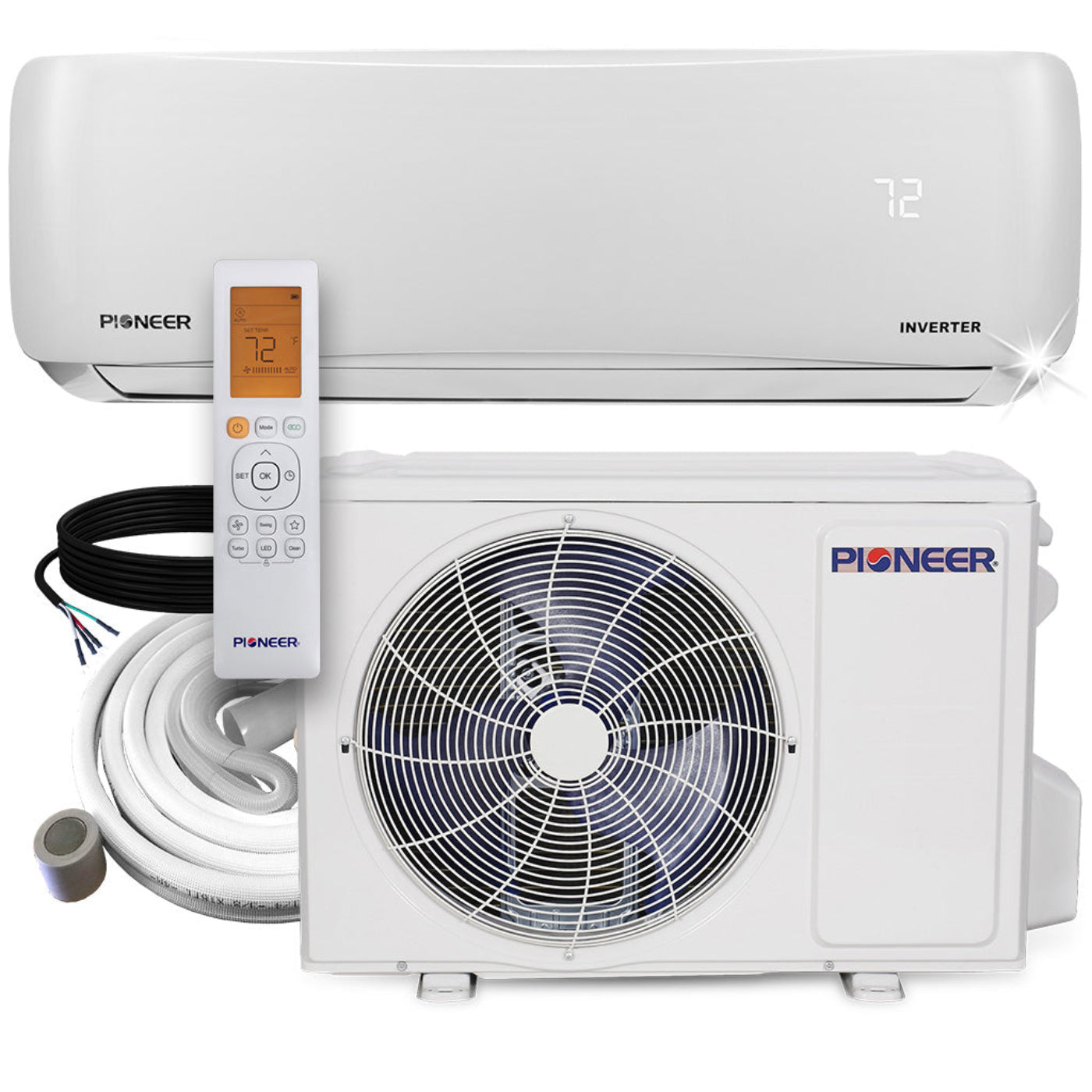

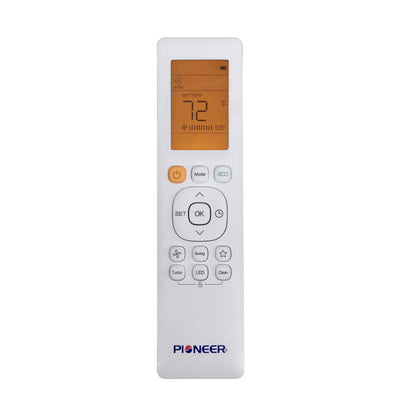

At Pioneer Mini Split, we offer variable capacity ductless wall-mounted mini split systems, available with different efficiency ratings and in a variety of capacities for simple installation and great single-zone comfort. Our ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level. This results in minimal electrical consumption for a more efficient ductless wall air conditioner and heating system. Check out our selection of wall-mounted heating and cooling units today!
Performance Data | |
---|---|
Power Supply | 208~230V, 60Hz, 1Ph |
Cooling Rated Capacity | 12,000 BTU/h |
Cooling Capacity Range | 3,536~12,931 BTU/h |
Cooling SEER | 22.0 BTU/w |
Cooling EER | 12.5 BTU/w |
SEER2 | 23.1 |
Heating Rated Capacity | 12,000 BTU/h |
Heating Capacity Range | 4,520~17,305 BTU/h |
Heating HSPF | 10.8 BTU/w |
Heating C.O.P. | 3.5 W/W |
Refrigerant Type | R410a |
Suitable Area | 200~450 Sq.F |
Warranty | 5 years parts and compressor warranty |

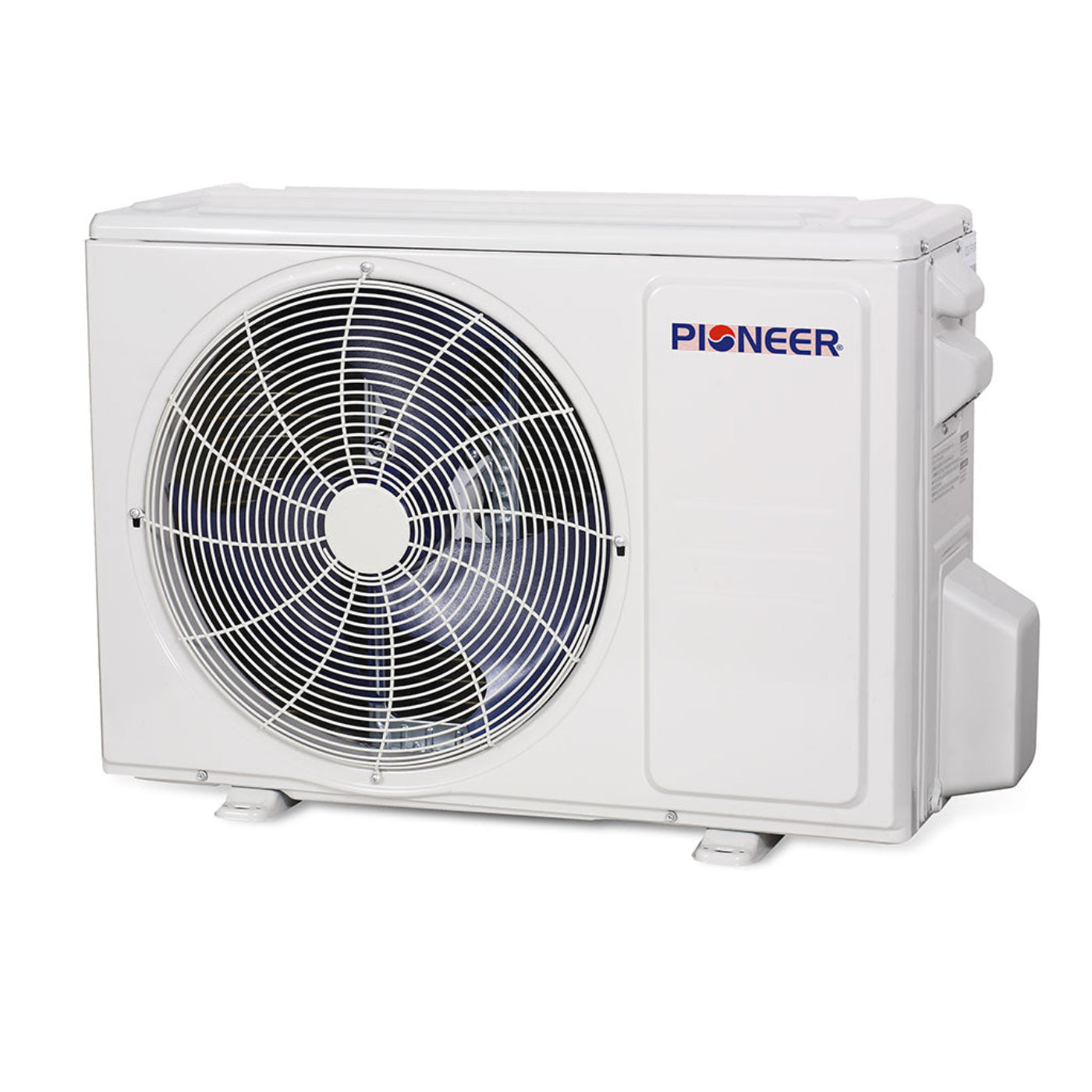

Condenser | |
Sound Level | 53.5 dB(A) |
Breaker Needed | 15A (double-pole) |
Net Dimensions (WDH) | 30 1/8"W x 11 7/8" D x 21 7/8" H |
Carton Dimensions (WDH) | 34 7/8" W x 13 1/4" D x 24" H |
Net / Gross Weight | 63.7 / 69 Lbs |
Cool Mode - Outdoor Operating Temperature Range | 5° to 122°F |
Heat Mode - Outdoor Operating Temperature Range | -13° to 75°F |

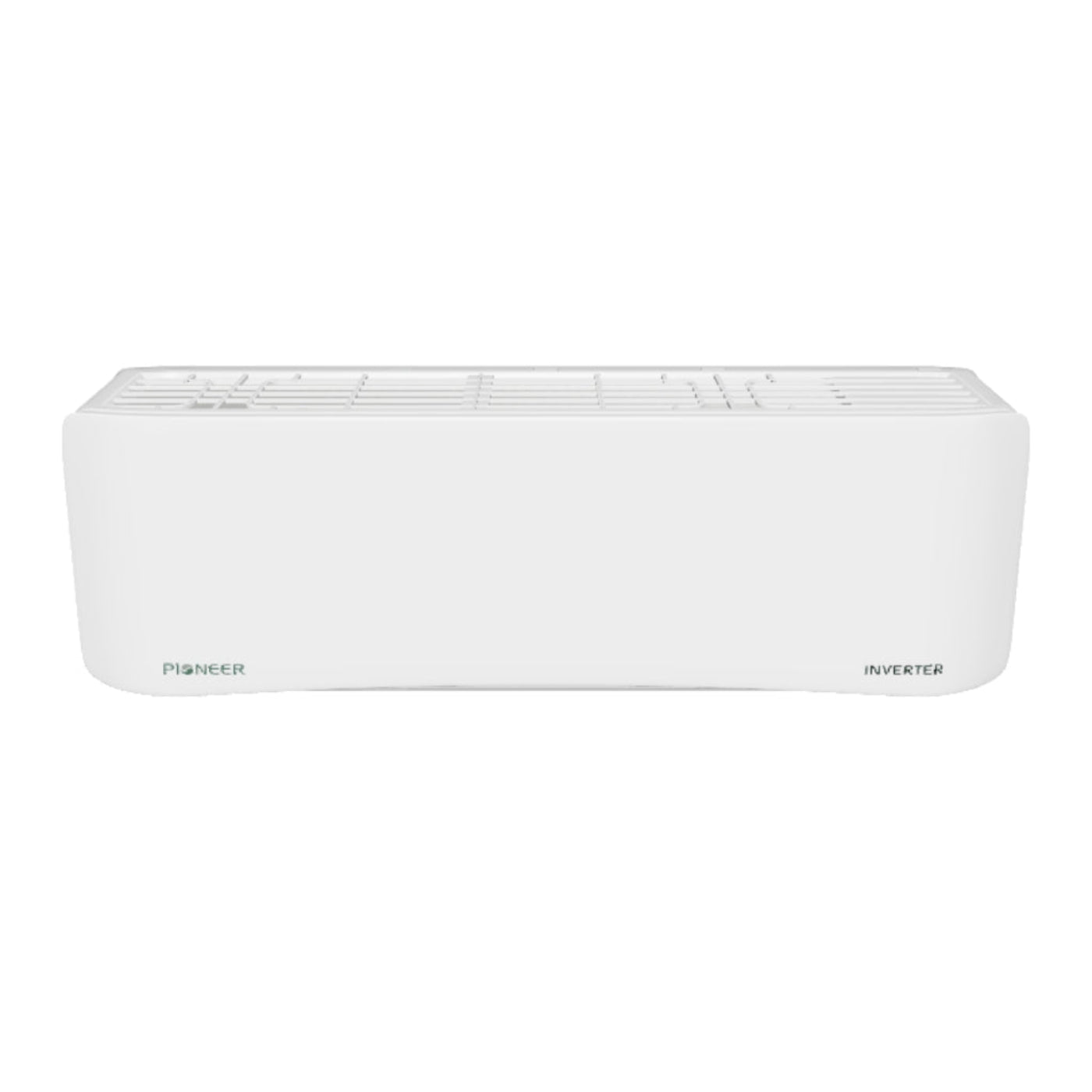

Air Handler | |
Air Flow (Hi/Med/Lo) | 306 / 212 / 147 CFM |
Sound Level (Hi/Med/Lo) | 37.5 / 30.0 / 21.5 dB(A) |
Net Dimensions (WDH) | 31 1/2" W x 7 3/8" D x 11 5/8" H |
Carton Dimensions (WDH) | 34 1/2" W x 11 1/4" D x 15" H |
Net / Gross Weight | 19 / 24 Lbs |
Q: What is the Pioneer 12,000 BTU 22 SEER Ductless Mini-Split Inverter++ Air Conditioner Heat Pump System?

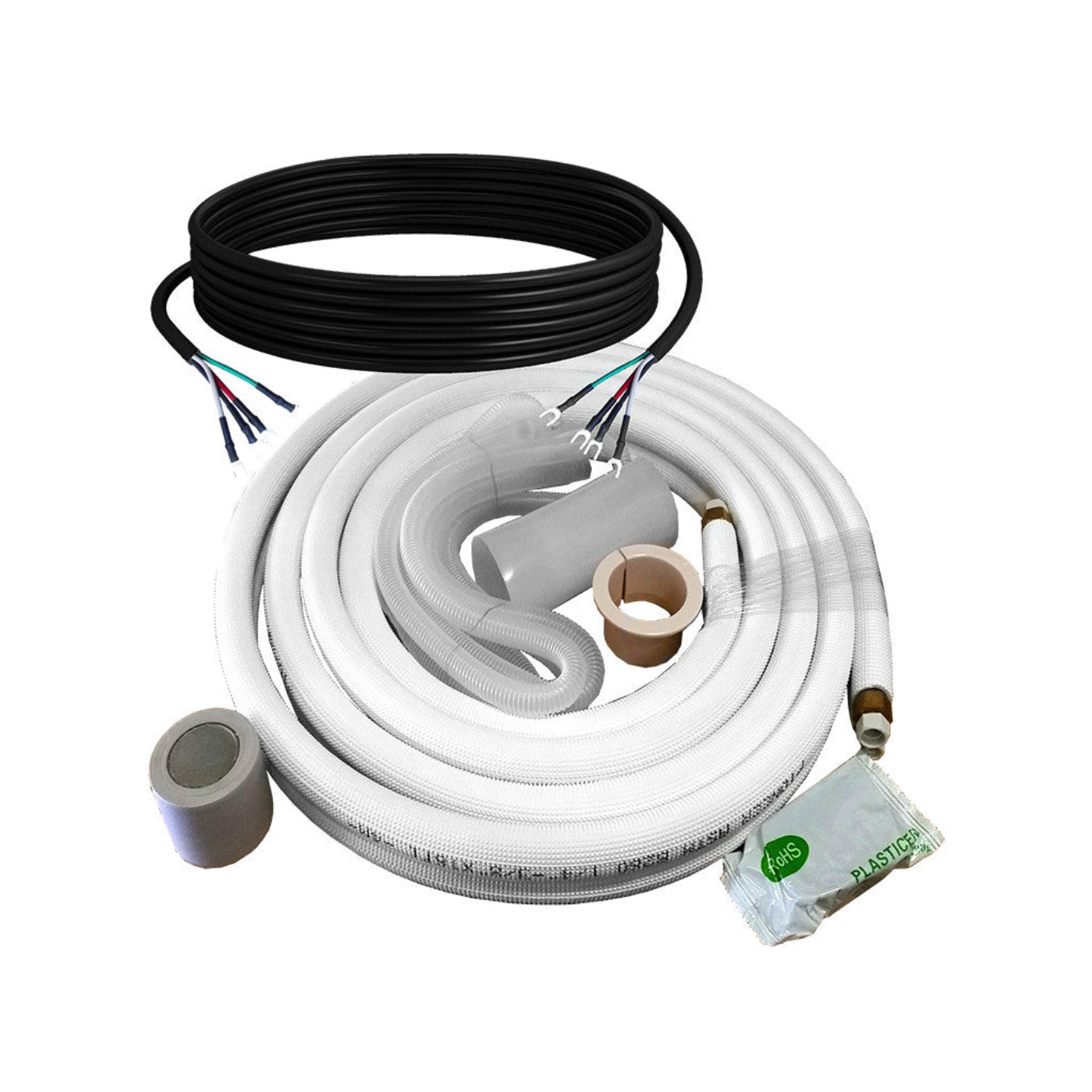

A: This advanced mini-split system provides both cooling and heating with a 22 SEER rating. With Inverter++ technology, it offers enhanced energy efficiency, quieter operation, and consistent temperature control. It comes with 33 ft. line sets for installation flexibility.
Q: How does Inverter++ technology improve performance?
A: Inverter++ technology adjusts the compressor speed to match demand, providing better energy efficiency, quieter operation, and more precise control over indoor temperatures.
Q: What size room does this system cover?
A: This system effectively cools and heats rooms up to 450 sq. ft.
Q: Is it suitable for residential use?
A: Yes, it is perfect for residential applications, offering reliable comfort with minimal noise and energy savings.
Q: Does it require professional installation?
A: While it includes 33 ft. line sets for flexible installation, professional installation is recommended to ensure the system operates at its best.
