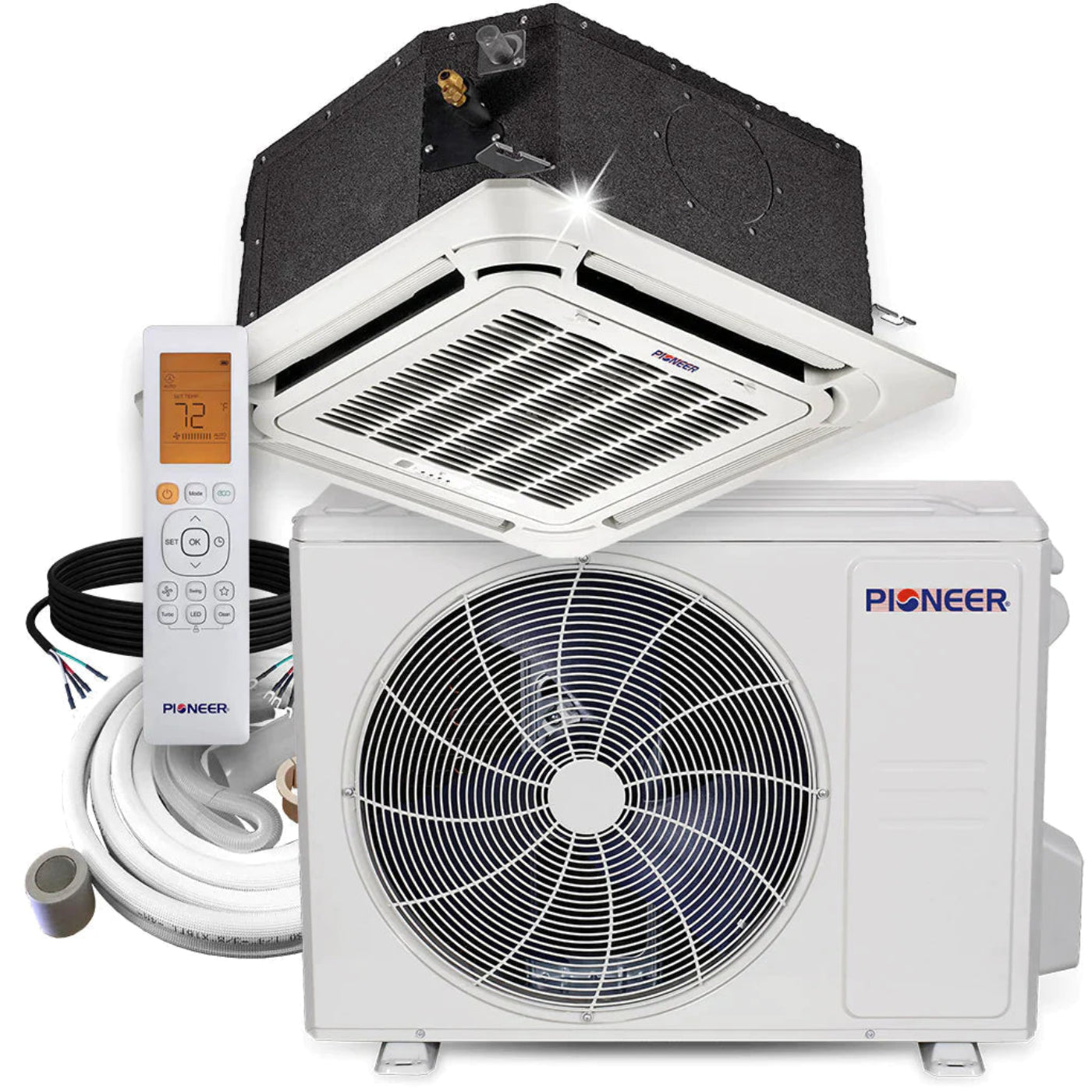

Pioneer 12,000 BTU 22 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 10 ft. Line Sets - CYB012GMFILCAD-10

Pioneer 12,000 BTU 22 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 10 ft. Line Sets - CYB012GMFILCAD-10

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 12,000 BTU/H with 22 SEER/14 EER efficiency
• Heating capacity: 12,000 BTU/H with 10.6 HSPF/3.37 COP efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $72.00
• Heating: $239.00
• Fresh Air Intake
  The Pioneer CYB series cassette offers a provision of fresh-air intake via an optional reserved 65-75 mm port. New outdoor air can be easily brought inside to replace stale room air.

• Built-in Drain Pump
  Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 30 inches for 9-18K models, and 40 inches for 24K and above models.

• 8-Way, 360° Airflow
  Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the room, thanks to an innovative design featuring 4 sides and 4 corners of airflow.

• Programmable Wired Controller Option
  The system can be operated by a wired controller (part number: TST-MLW-I-X2) which enables programming of weekly schedules, and usage without the handheld remote.

• Wi-Fi Controllable via Free App
  Control your new Pioneer CYB system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world. Requires separate purchase of the Smart Wi-Fi Kit

• Provision for Auxiliary Duct
  A great benefit of the CYB cassette system is the option for connecting a small auxiliary duct to the side of the indoor unit for cooling a small nearby room, like a closet or bathroom. This air outlet connection must be cut-out manually on the 9K-18K BTU size systems and is pre-made and reserved on the 24K BTU and above sized units.

• Indoor Unit

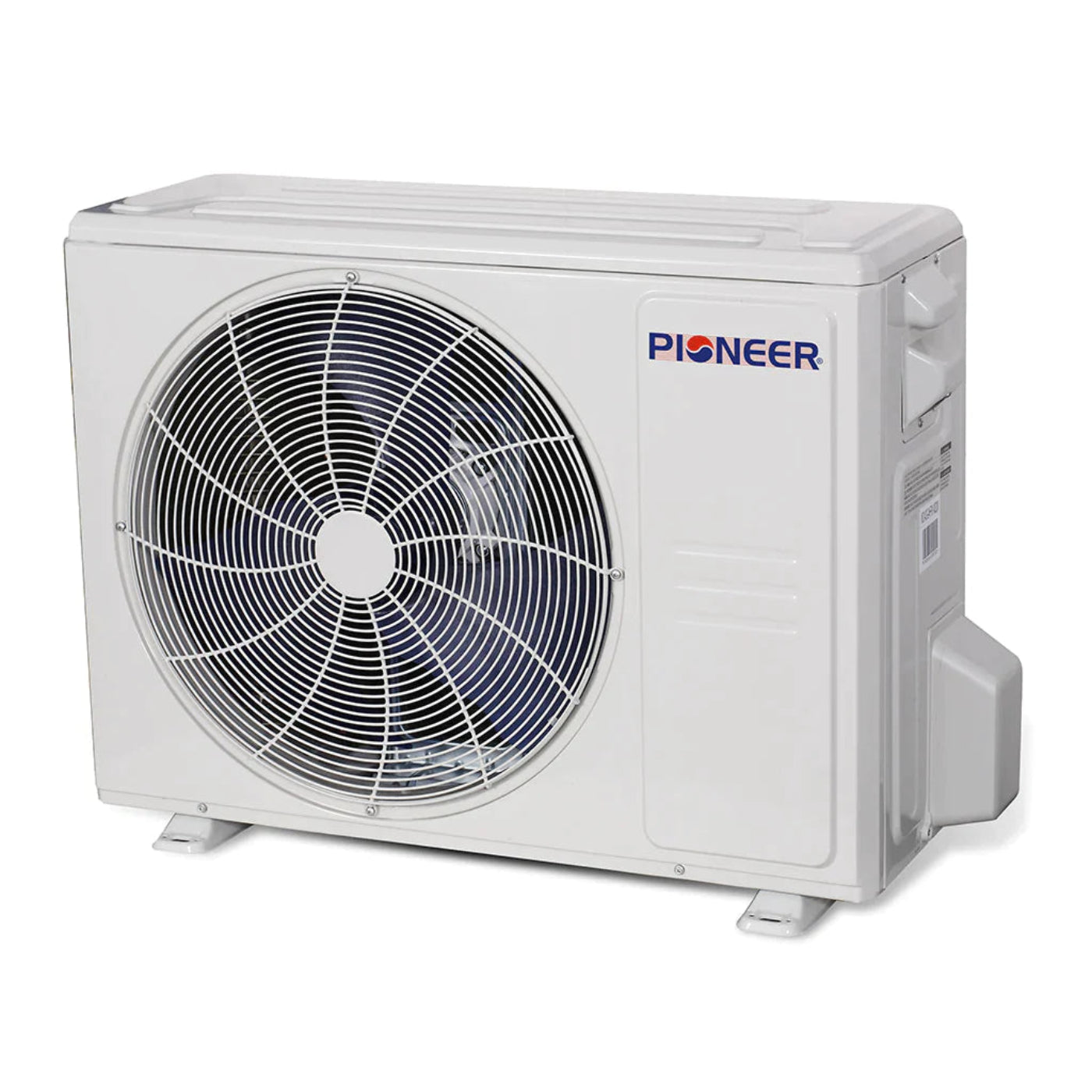

• Outdoor Unit

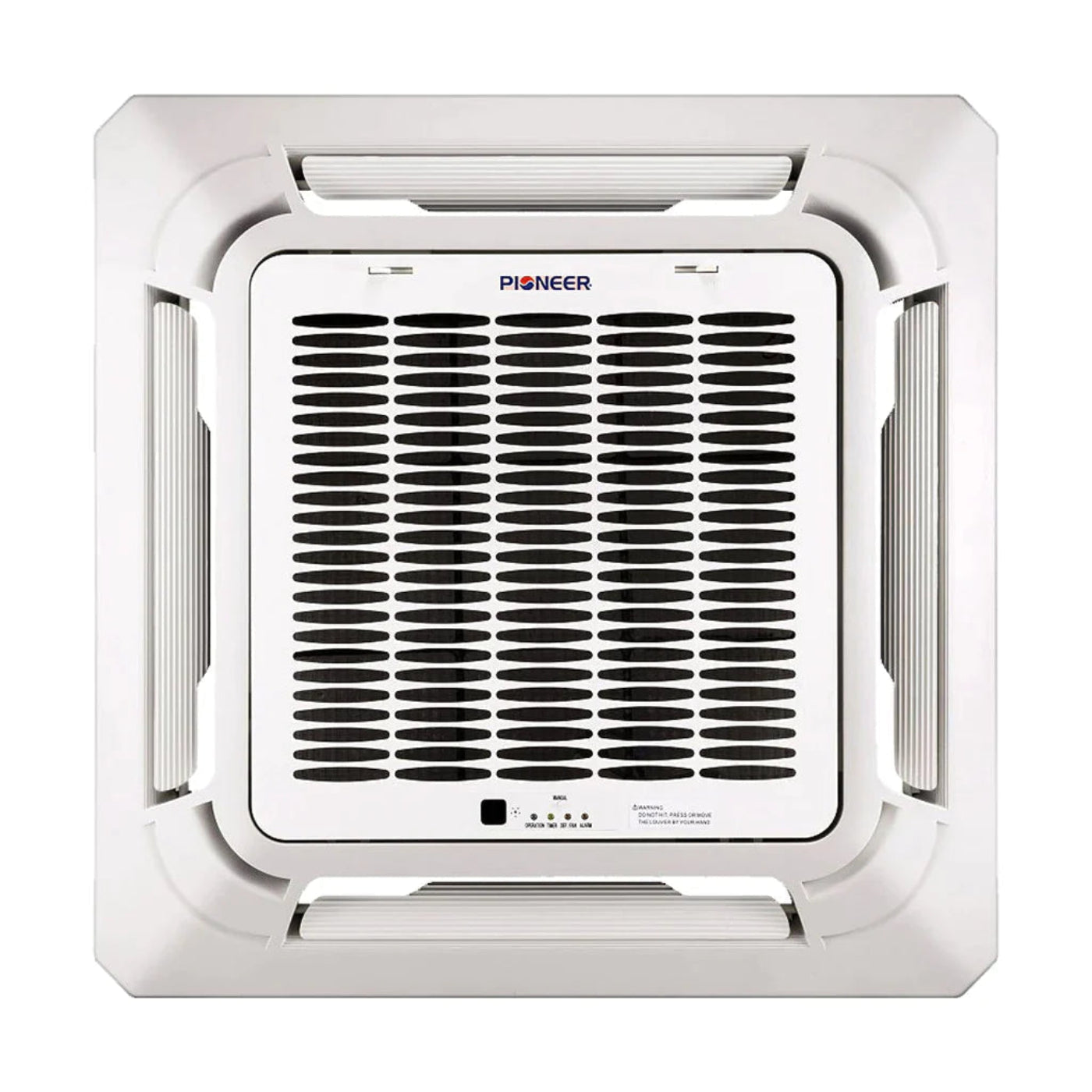

• Panel
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Energy Guide
• Submittal Sheet

• Efficient Cooling & Heating: The Pioneer 12,000 BTU Mini-Split System offers high-efficiency performance, with 22 SEER for cooling and 10 HSPF for heating, ideal for year-round comfort.
• Compact Design: The 8-way cassette design allows for versatile installation, perfect for space-saving without sacrificing power.
• Complete Package: Comes with 10 ft. line sets for easy installation, making setup faster and more cost-effective.
• Quiet Operation: Designed with noise-reduction technology, ensuring a quiet and peaceful environment.
• Energy Savings: The system’s high SEER rating ensures lower energy consumption and reduced utility bills, while providing optimal performance.

Q: What is the Pioneer 12,000 BTU 22 SEER Mini-Split Air Conditioner Heat Pump System?
A: The Pioneer 12,000 BTU Mini-Split is a high-efficiency air conditioning and heating solution with a 22 SEER rating. It includes an 8-way compact cassette design, ideal for consistent temperature control in medium-sized rooms, and comes with 10 ft. line sets for easy installation.

Q: How does the heat pump feature work?
A: The integrated heat pump provides both cooling and heating, making it a versatile system for year-round comfort, ideal for varying climates.

Q: What is the coverage area for this system?
A: The Pioneer 12,000 BTU unit is designed to effectively cool or heat rooms up to 450 sq. ft.

Q: Can this system be used in residential settings?
A: Yes, the Pioneer Mini-Split is perfect for residential use, offering quiet operation and energy-efficient performance.

Q: Is professional installation required?
A: While the unit includes line sets for easy installation, professional installation is recommended to ensure optimal performance.

• Clean Air Filters Regularly: Clean the air filters every 1-2 months to ensure efficient airflow. You can rinse the filters with water or vacuum them, but ensure they are fully dry before reinstalling.

• Inspect the Condenser and Evaporator Coils: Check both the indoor and outdoor units for dirt or debris buildup on the coils. Clean with a soft brush or compressed air to maintain optimal heat exchange.

• Clear the Drain Line: Ensure the condensate drain is free from blockages. Clean it periodically using a vacuum or brush to prevent water backup and ensure proper drainage.

• Check for Refrigerant Leaks: If the system is not cooling or heating effectively, low refrigerant levels could be the cause. Contact a professional to check for leaks and recharge the system if necessary.

• Inspect the Cassette Unit: Ensure there are no obstructions around the indoor cassette unit, allowing the air to circulate freely. Clean the cassette grill and air outlets regularly to avoid airflow issues.

• Clean the Outdoor Unit: Remove debris from the outdoor unit such as leaves, dirt, or branches that could obstruct airflow. Make sure the unit is positioned to allow for adequate airflow.

• Inspect the Fan: Check the fan blades for dust buildup, as this can reduce airflow. Clean them gently to prevent strain on the motor.

• Examine the Drain Pan: Check the indoor unit’s drain pan for water accumulation, which can cause mold or mildew. Clean and ensure that the pan is draining properly.

• Test the System: Periodically test both heating and cooling modes to ensure the system is operating efficiently. If you notice irregularities, have a technician inspect it.

• Annual Professional Maintenance: Schedule a professional technician for annual service, including refrigerant checks, deep cleaning, and full system inspection to keep the unit running optimally.
