Pioneer 12,000 BTU 22 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Without Installation Kit - CYB012GMFILCAD-00

Pioneer 12,000 BTU 22 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Without Installation Kit - CYB012GMFILCAD-00

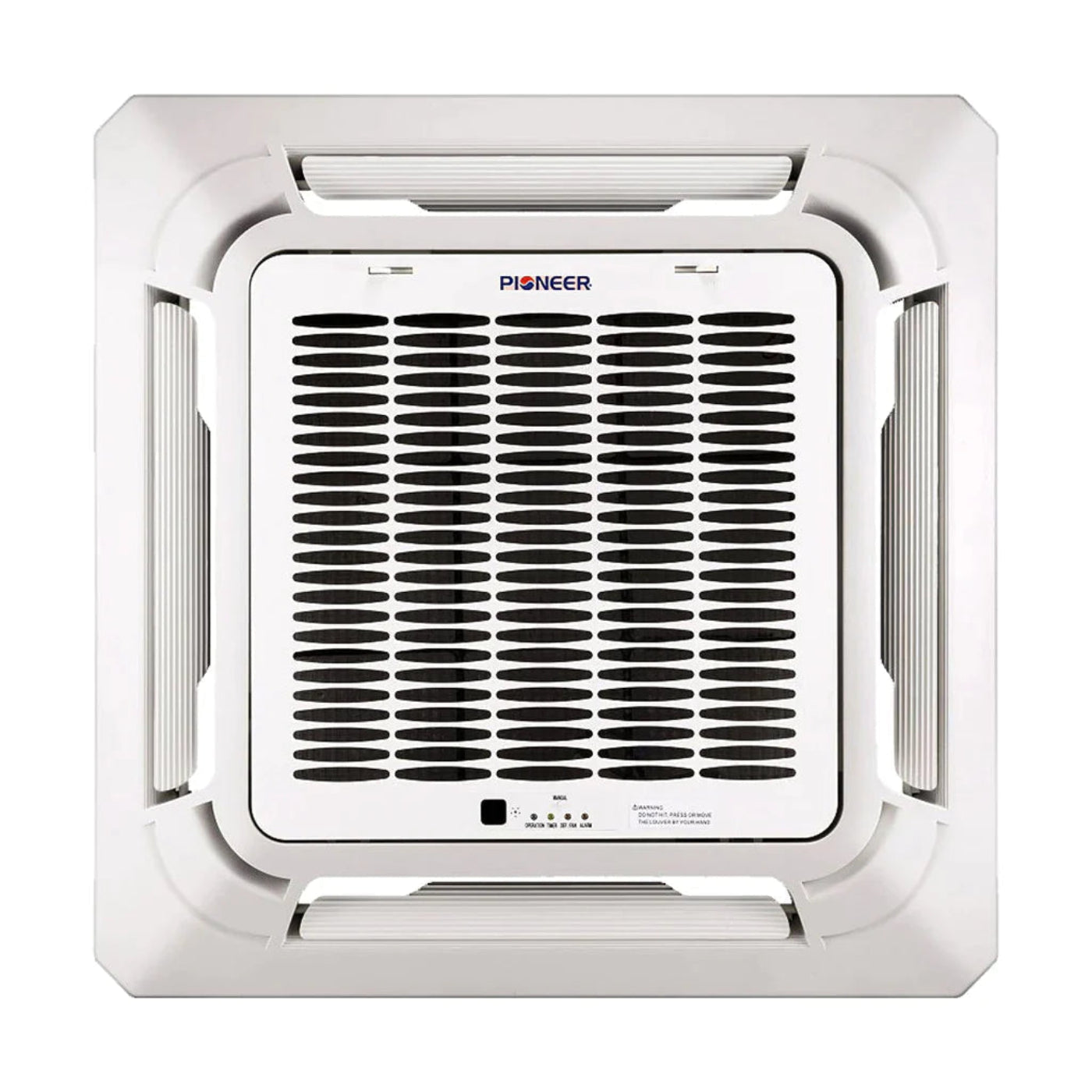

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 12,000 BTU/H with 22 SEER/14 EER efficiency
• Heating capacity: 12,000 BTU/H with 10.6 HSPF/3.37 COP efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $72.00
• Heating: $239.00
• Fresh Air Intake
  The Pioneer CYB series cassette offers a provision of fresh-air intake via an optional reserved 65-75 mm port. New outdoor air can be easily brought inside to replace stale room air.

• Built-in Drain Pump
  Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 30 inches for 9-18K models, and 40 inches for 24K and above models.

• 8-Way, 360° Airflow
  Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the room, thanks to an innovative design featuring 4 sides and 4 corners of airflow.

• Programmable Wired Controller Option
  The system can be operated by a wired controller (part number: TST-MLW-I-X2) which enables programming of weekly schedules, and usage without the handheld remote.

• Wi-Fi Controllable via Free App
  Control your new Pioneer CYB system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world. Requires separate purchase of the Smart Wi-Fi Kit

• Provision for Auxiliary Duct
  A great benefit of the CYB cassette system is the option for connecting a small auxiliary duct to the side of the indoor unit for cooling a small nearby room, like a closet or bathroom. This air outlet connection must be cut-out manually on the 9K-18K BTU size systems and is pre-made and reserved on the 24K BTU and above sized units.

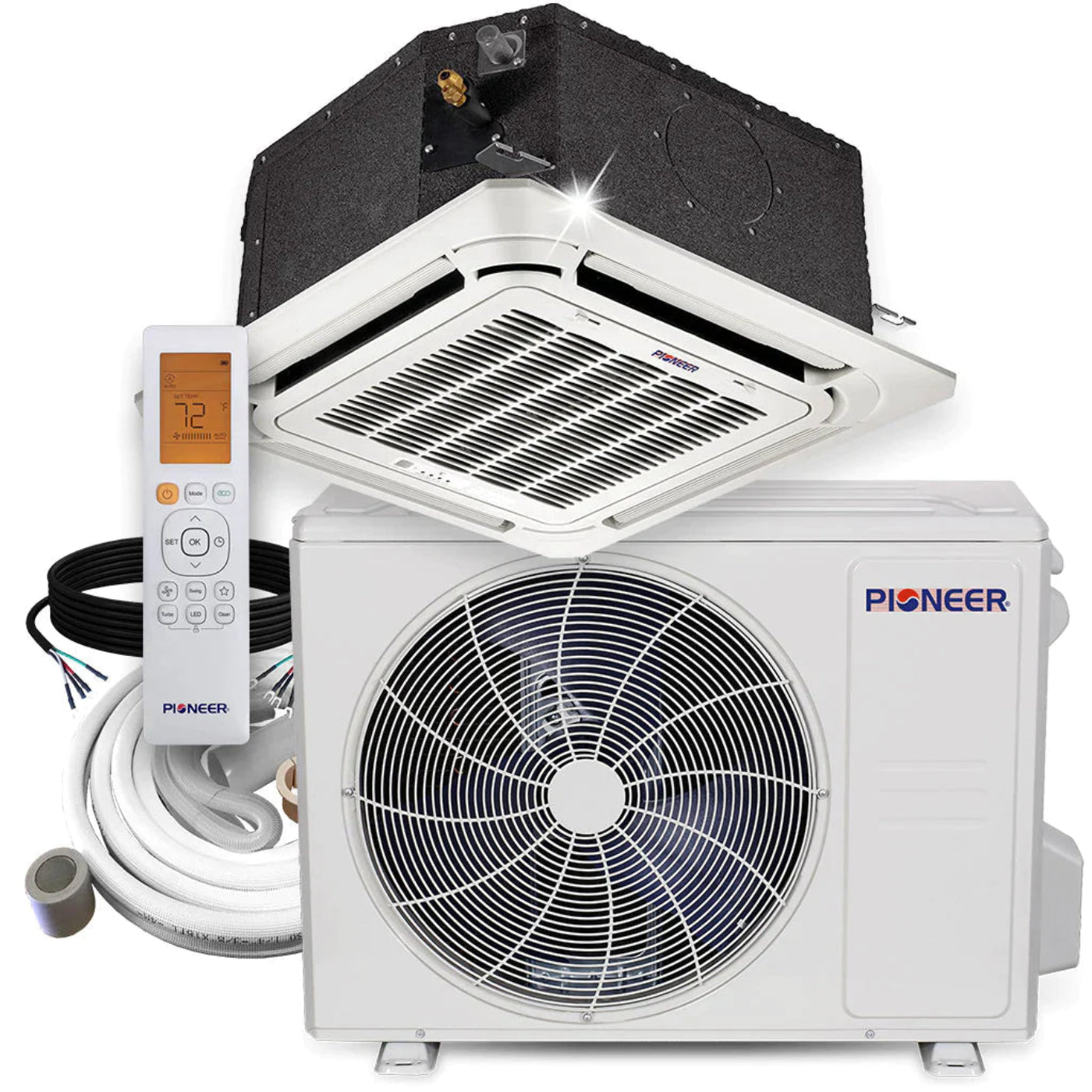

• Indoor Unit

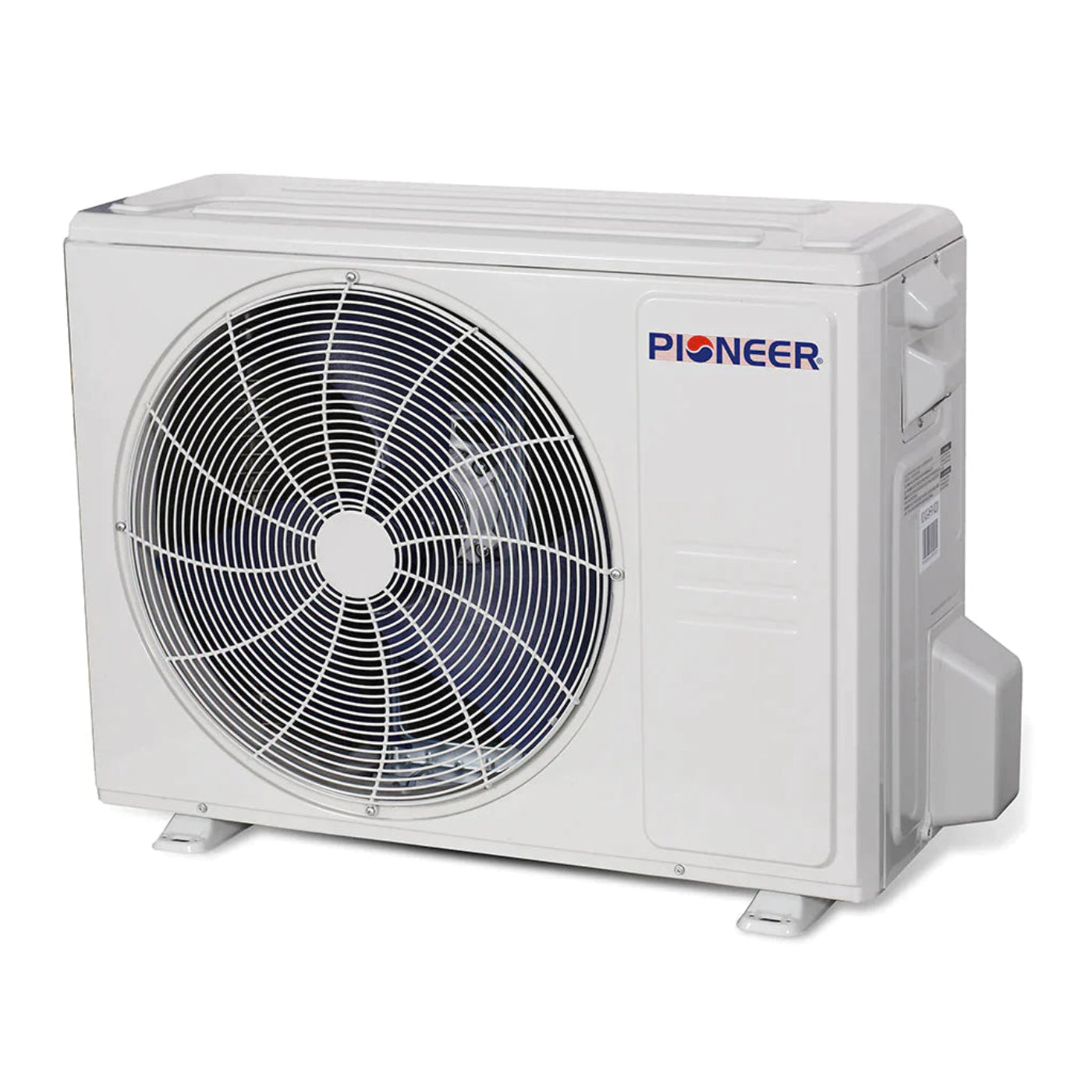

• Outdoor Unit
• Panel
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Technical Brochure
• User Manual
• Installation Manual

• High-Efficiency Performance: 12,000 BTU with a 22 SEER rating provides outstanding cooling and heating for small to medium-sized spaces, ensuring energy-efficient climate control.
• 8-Way Airflow System: The 8-way airflow system delivers even and consistent temperature distribution, improving comfort across the entire room.
• Discreet & Space-Saving Design: Ceiling-mounted unit frees up floor space, offering a sleek and modern look that integrates seamlessly into the room's decor.
• Quiet Operation: Features advanced noise-reduction technology to operate quietly, ensuring a peaceful and comfortable environment.
• Flexible Installation: Without the installation kit, it offers flexibility for custom installations, giving you the freedom to adjust to your specific space needs.
• All-Season Comfort: Provides both cooling during the summer and heating in the winter, making it ideal for year-round use.

Q: What is the Pioneer 12,000 BTU 22 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System?
A: This system offers both cooling and heating with a 22 SEER rating, providing energy-efficient comfort. Featuring an 8-way compact cassette design, it ensures even air distribution throughout the room. This model does not include an installation kit, offering flexibility for your installation setup.

Q: How does the 8-way cassette design benefit the system?
A: The 8-way cassette design allows for uniform airflow distribution in all directions, reducing temperature imbalances and ensuring consistent comfort throughout the room.

Q: What room size is this system suitable for?
A: This system is ideal for medium to large-sized rooms, efficiently cooling and heating areas up to 750 sq. ft.

Q: Is it suitable for residential use?
A: Yes, this system is designed for residential spaces, offering quiet, efficient, and reliable climate control.

Q: Does it require professional installation?
A: Since the system does not include an installation kit, professional installation is highly recommended to ensure optimal setup and performance.

• Clean Filters Regularly: Wash or replace filters every 2-4 weeks to prevent dust buildup and ensure optimal airflow.
• Inspect and Clean Coils Annually: Clean the evaporator and condenser coils at least once a year to avoid dirt buildup that can reduce system efficiency.
• Check Refrigerant Levels: Ensure refrigerant levels are optimal for effective cooling and heating. If low, contact a technician to refill.
• Clear the Condensate Drain: Regularly inspect and clean the condensate drain to avoid clogs, mold growth, and potential water damage.
• Keep the Outdoor Unit Clear: Remove debris such as leaves, dirt, and twigs from the outdoor unit to maintain proper airflow and prevent overheating.
• Schedule Annual Professional Maintenance: Have a professional technician inspect and service the system yearly to ensure smooth operation.
