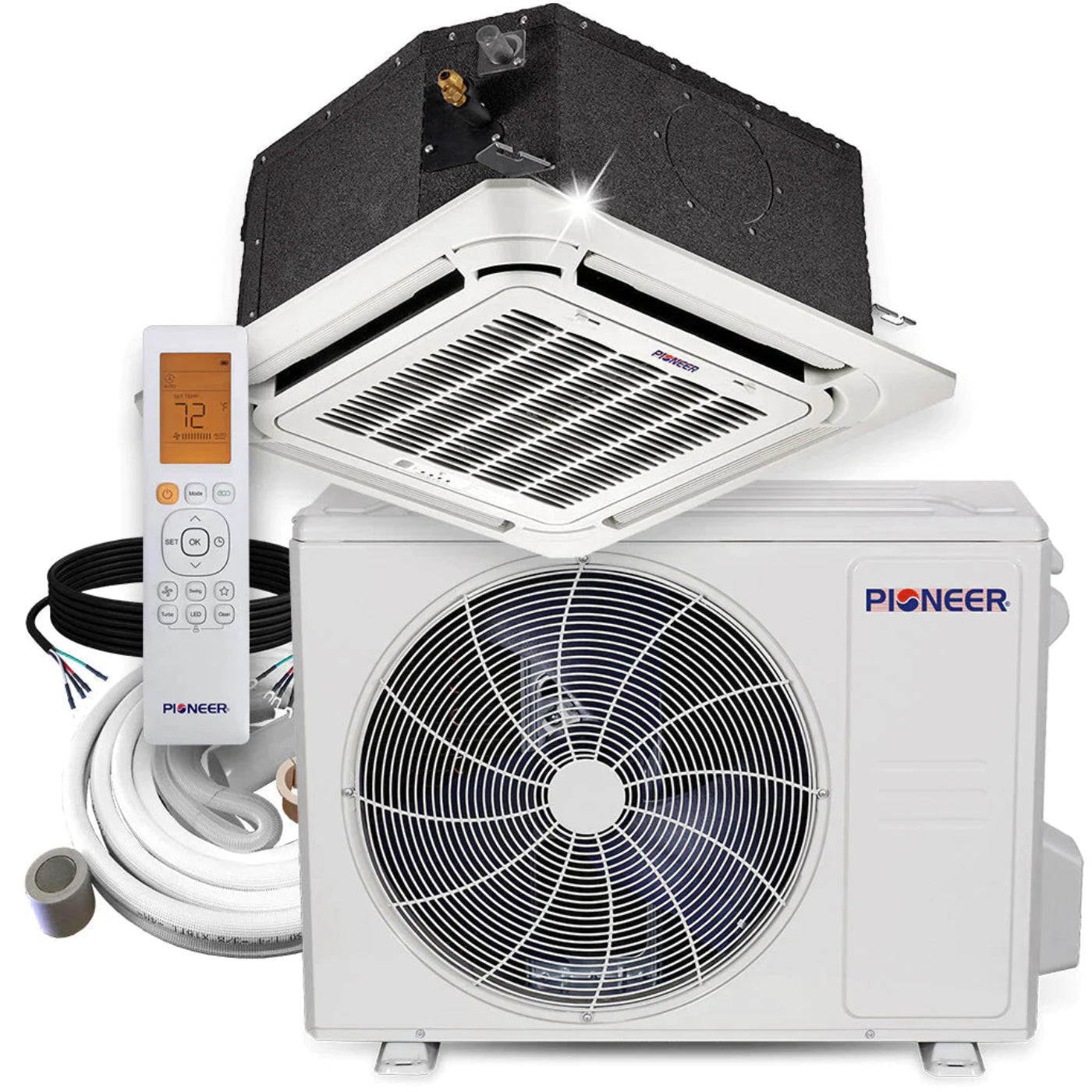

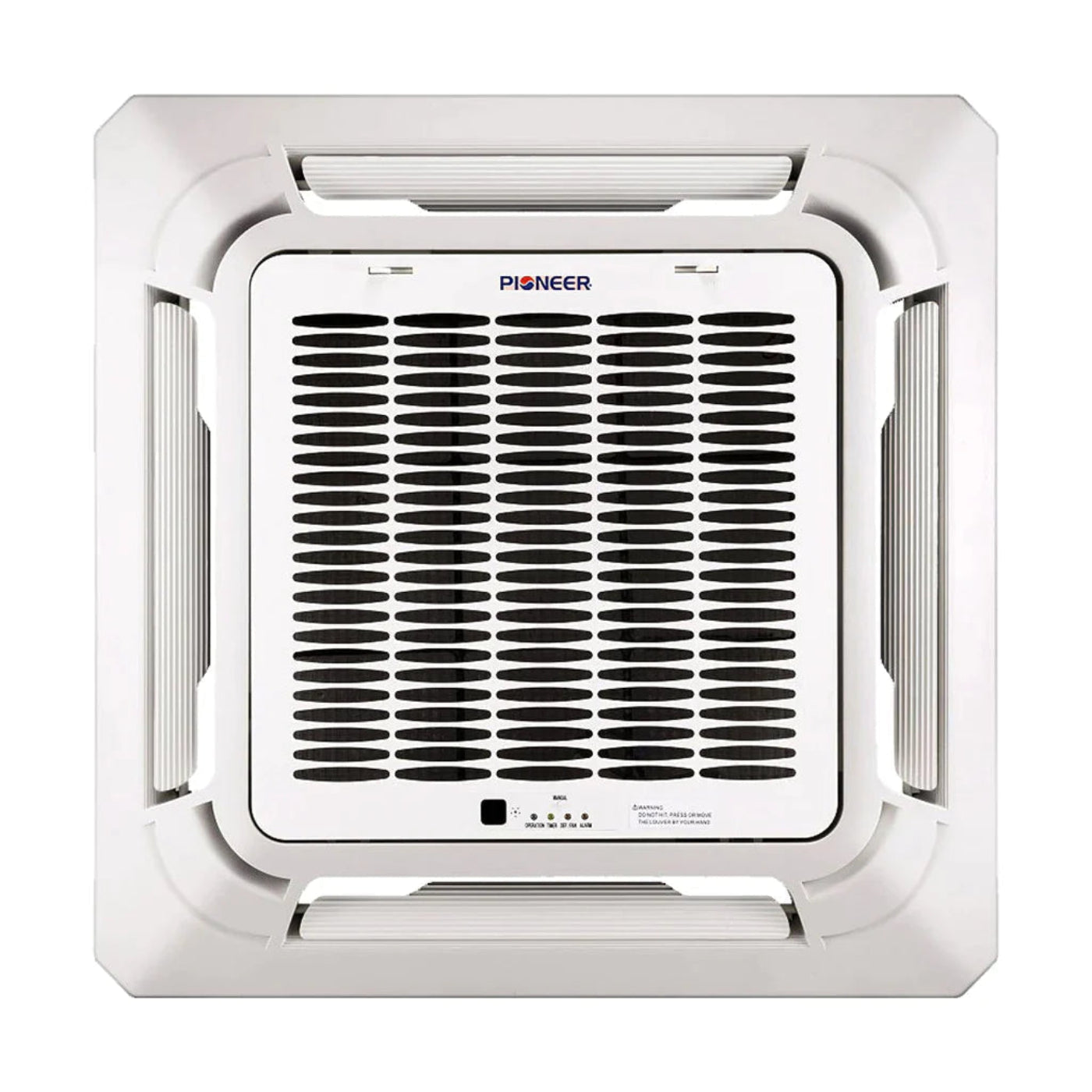

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!
Power Supply | 208~230V, 60Hz, 1Ph |
---|---|
Cooling Rated Capacity | 18,000 BTU/h |
Cooling Capacity Range | 5,600~16,000 BTU/h |
Cooling SEER | 20.5 BTU/w |
SEER2 | 20.5 |
Heating Rated Capacity | 18,500 BTU/h |
Heating Capacity Range | 7,700~18,500 BTU/h |
Heating HSPF4 | 11.0 BTU/w |
Refrigerant Type | R410A |
Suitable Area | 400~650 Sq.F |
Warranty | 5 years parts and compressor warranty |

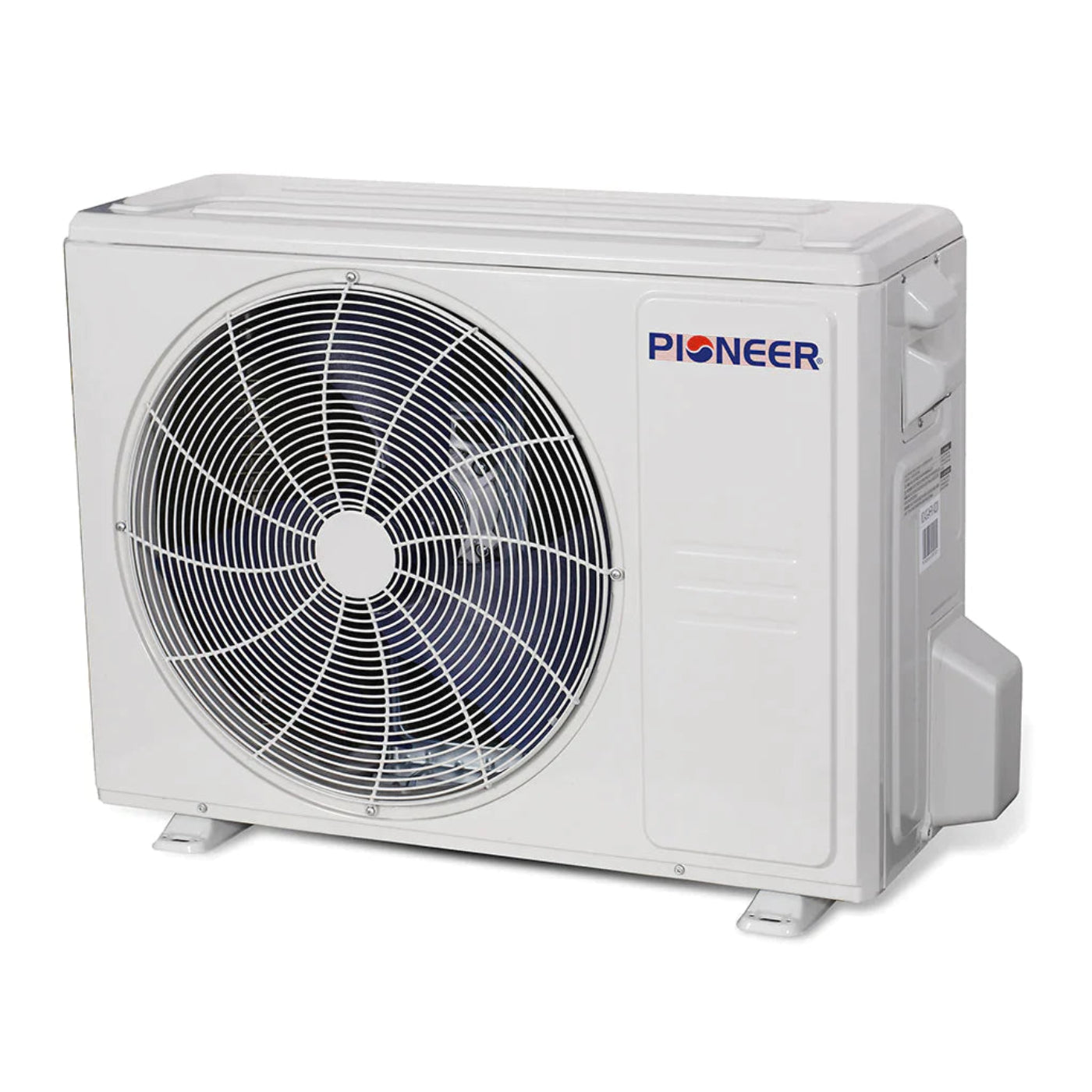

Condenser | |
Breaker Needed | 20A (double-pole) |
Sound Level | 59.0 dB(A) |
Net Dimensions (WDH) | 35.0" W x 13.5" D x 26.5" H |
Carton Dimensions (WDH) | 39.2" W x 15.6" D x 29.2" H |
Net / Gross Weight | 94.4 / 101 Lbs |
Cool Mode - Outdoor Operating Temperature Range | 5° to 122°F |
Heat Mode - Outdoor Operating Temperature Range | -13° to 75°F |
Air Handler | |
Air Flow (Hi/Med/Lo) | 365 / 310 / 265 CFM |
Sound Level (Hi/Med/Lo) | 43.0 / 38.5 / 34.5 dB(A) |
Net Dimensions (WDH) | 22.5" W x 22.5" D x 10.3" H |
Carton Dimensions (WDH) | 25.8" W x 25.8" D x 11.5" H |
Net / Gross Weight | 35.7 / 47 Lbs |
Panel Data | |
Product Dimensions | 25.5"W x 25.5"D x 2.0"H |
Weight | 28.0"W x 28.0"D x 5.0"H |
Net / Gross Weight | 5.5 / 9.9 Lbs |
Q: What is the Pioneer 18,000 BTU 20.5 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System?
A: This system offers both cooling and heating with a 20.5 SEER rating. It features an 8-way compact cassette design for even air distribution and effective temperature control. It comes with 16 ft. line sets for convenient installation.
Q: How does the 8-way cassette design improve performance?
A: The 8-way cassette design ensures uniform air distribution throughout the room, eliminating cold or hot spots and ensuring consistent comfort in the entire space.
Q: What room size is this system suitable for?
A: This system is ideal for medium to large-sized rooms, efficiently cooling and heating spaces up to 1,000 sq. ft.
Q: Is it suitable for residential use?
A: Yes, this system is perfect for residential applications, providing quiet, energy-efficient climate control.
Q: Does it require professional installation?
A: Although the system includes 16 ft. line sets for flexibility, professional installation is recommended to ensure proper setup and optimal performance.
