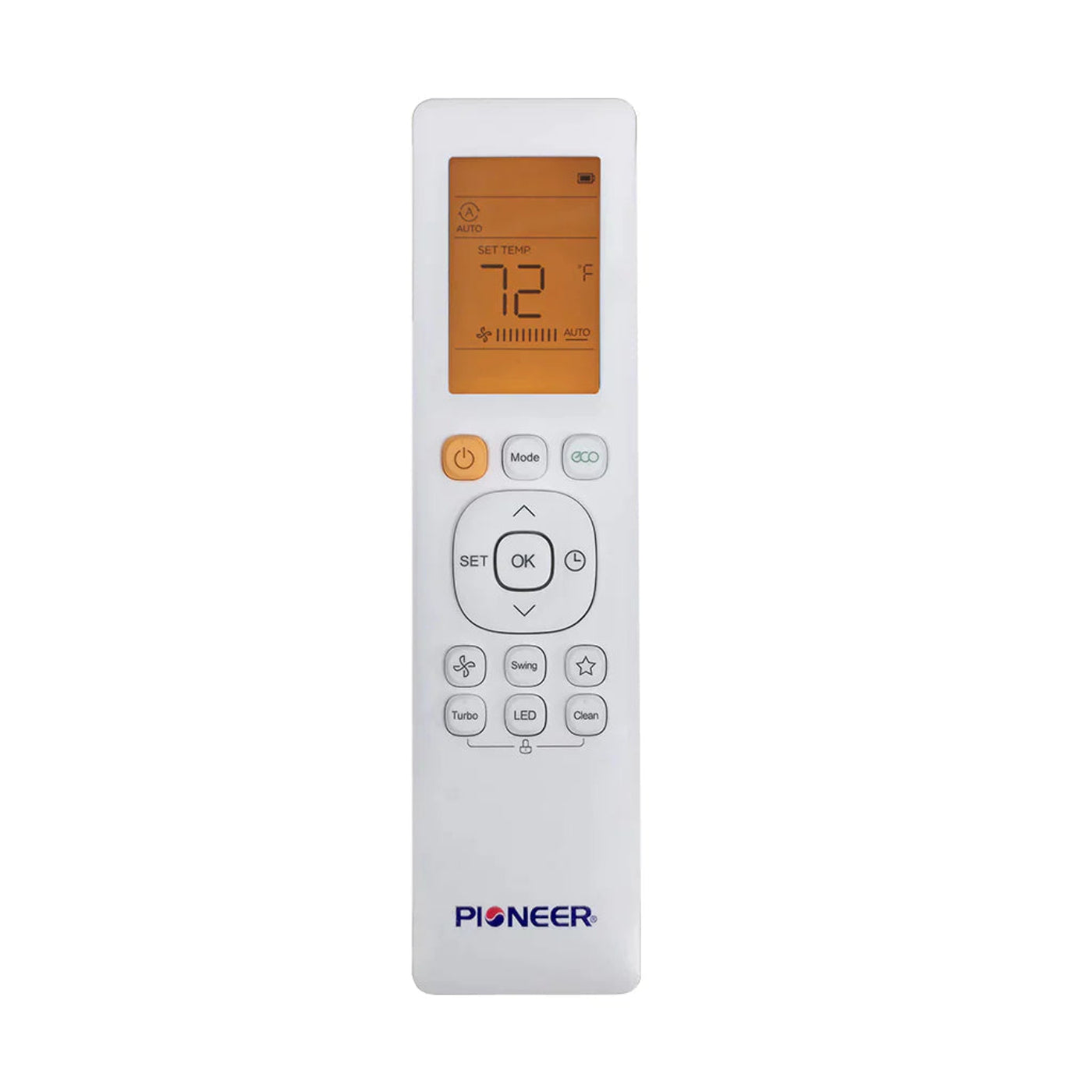

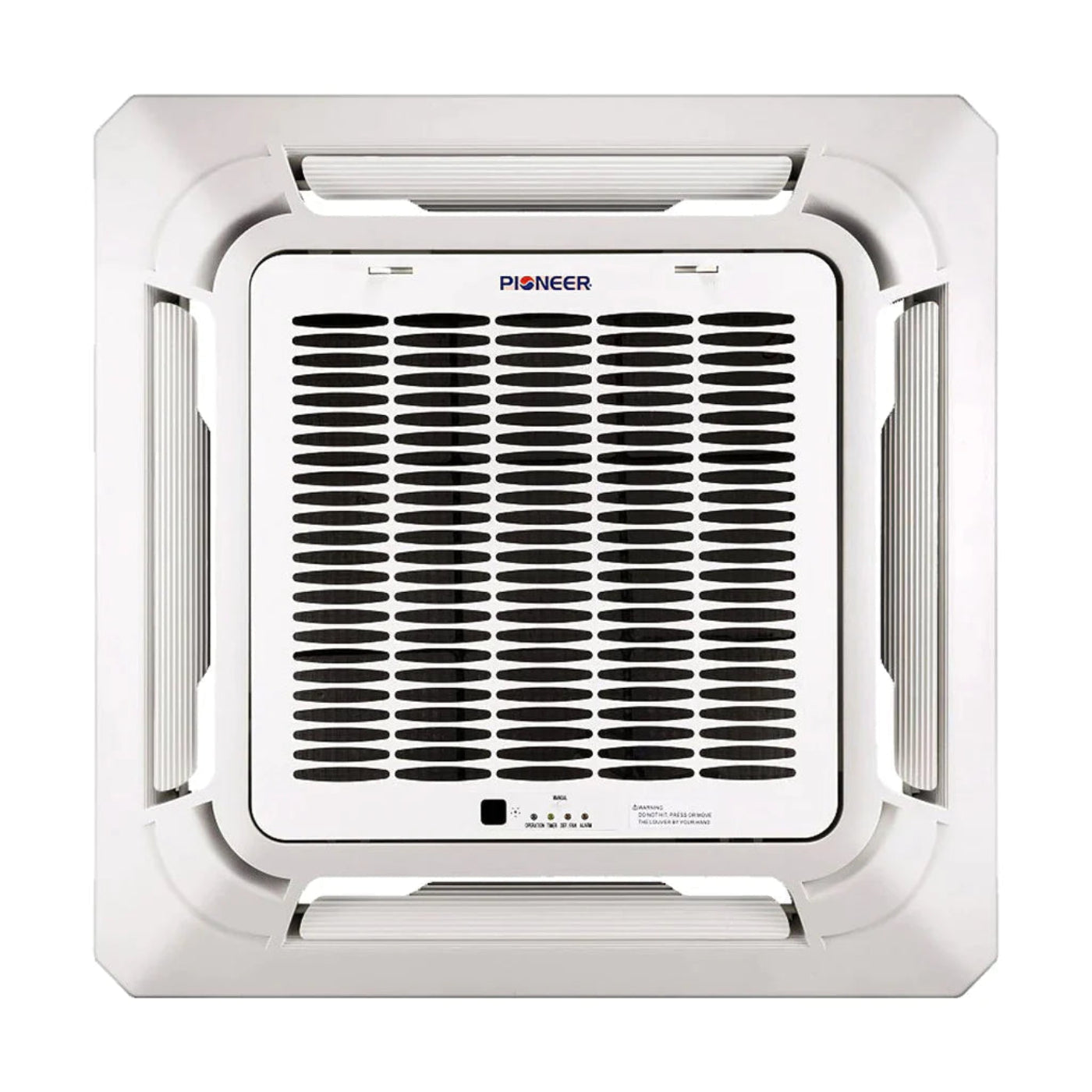

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!
Performance Data | |
---|---|
Power Supply | 208~230V, 60Hz, 1Ph |
Cooling Rated Capacity | 18,000 BTU/h |
Cooling Capacity Range | 5,600~16,000 BTU/h |
Cooling SEER | 20.5 BTU/w |
SEER2 | 20.5 |
Heating Rated Capacity | 18,500 BTU/h |
Heating Capacity Range | 7,700~18,500 BTU/h |
Heating HSPF4 | 11.0 BTU/w |
Refrigerant Type | R410A |
Suitable Area | 400~650 Sq.F |
Warranty | 5 years parts and compressor warranty |

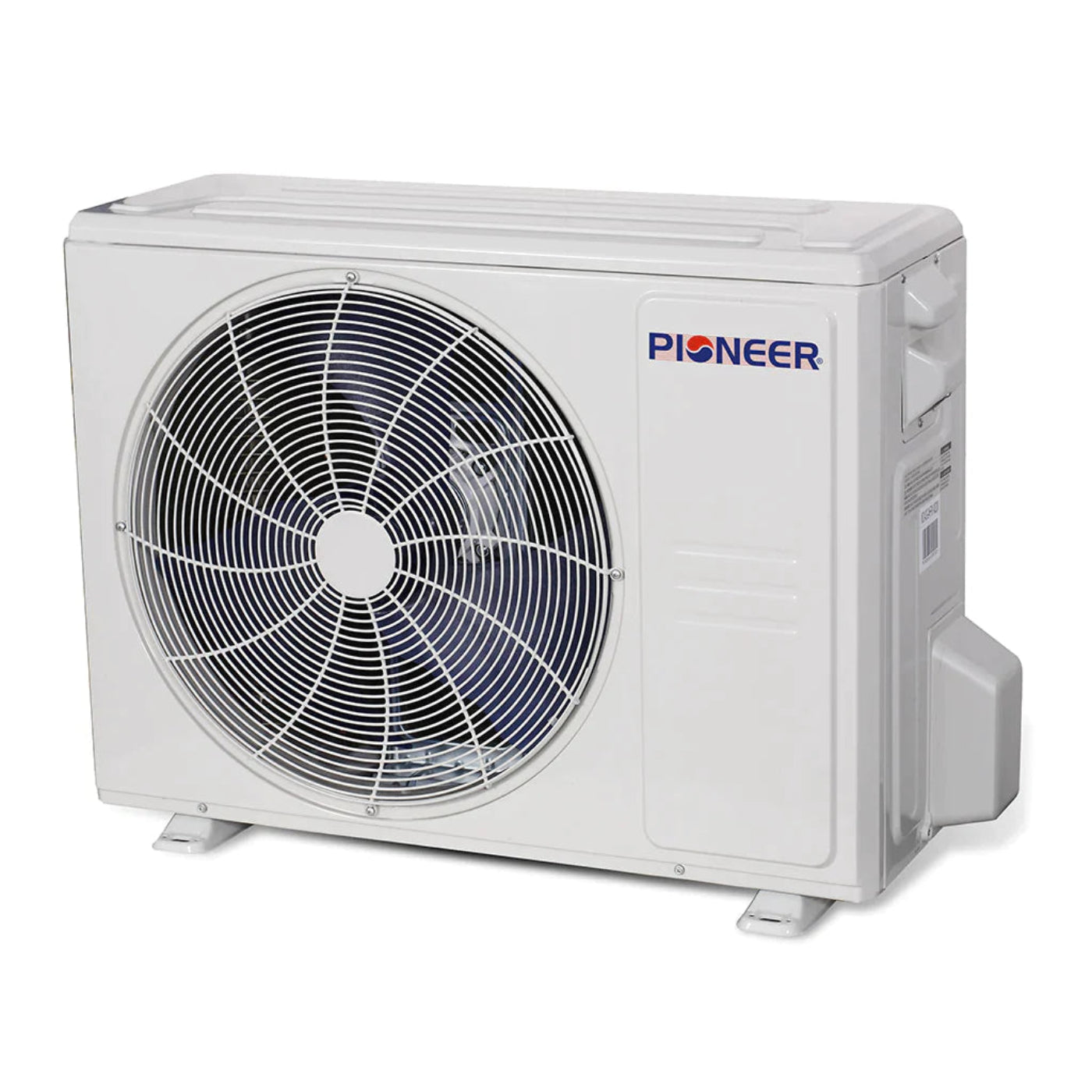

Condenser | |
Breaker Needed | 20A (double-pole) |
Sound Level | 59.0 dB(A) |
Net Dimensions (WDH) | 35.0" W x 13.5" D x 26.5" H |
Carton Dimensions (WDH) | 39.2" W x 15.6" D x 29.2" H |
Net / Gross Weight | 94.4 / 101 Lbs |
Cool Mode - Outdoor Operating Temperature Range | 5° to 122°F |
Heat Mode - Outdoor Operating Temperature Range | -13° to 75°F |
Air Handler | |
Air Flow (Hi/Med/Lo) | 365 / 310 / 265 CFM |
Sound Level (Hi/Med/Lo) | 43.0 / 38.5 / 34.5 dB(A) |
Net Dimensions (WDH) | 22.5" W x 22.5" D x 10.3" H |
Carton Dimensions (WDH) | 25.8" W x 25.8" D x 11.5" H |
Net / Gross Weigh | 35.7 / 47 Lbs |
Panel Data | |
Product Dimensions | 25.5"W x 25.5"D x 2.0"H |
Weight | 28.0"W x 28.0"D x 5.0"H |
Net / Gross Weight | 5.5 / 9.9 Lbs |

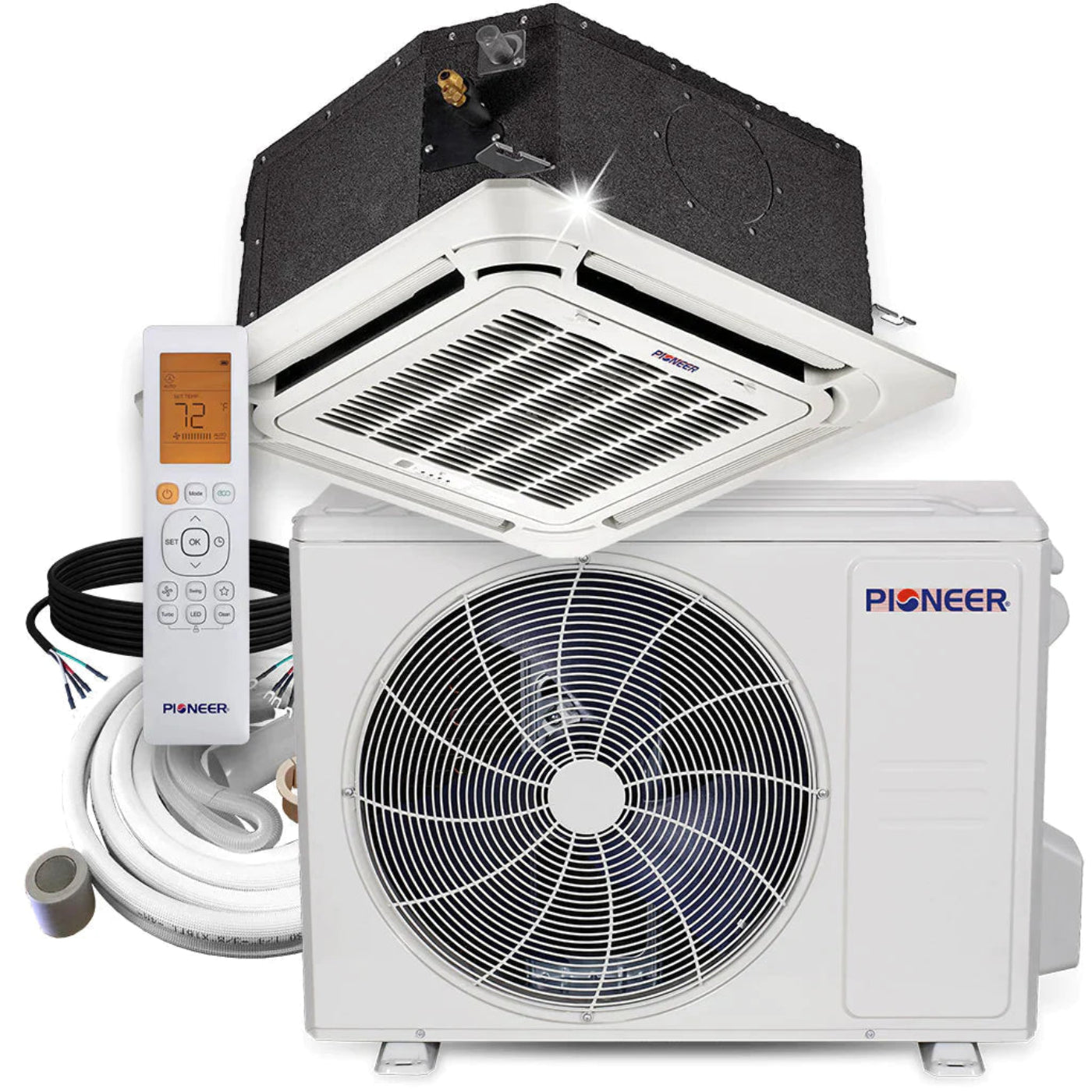

Q: What is the Pioneer 18,000 BTU 20.5 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System?

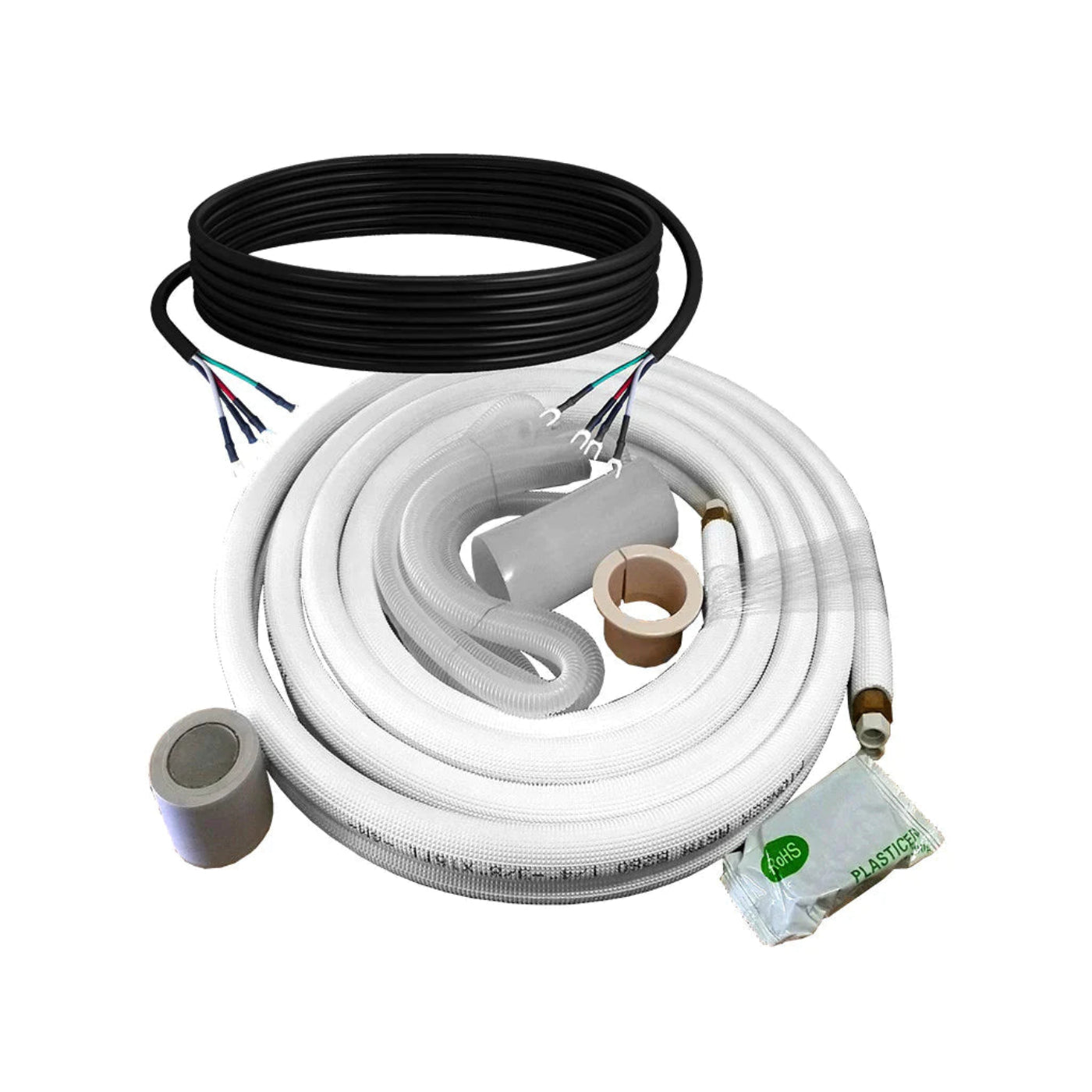

A: This system provides both cooling and heating with a 20.5 SEER rating. It features an 8-way compact cassette design, distributing air evenly across the room for optimal temperature control. It comes with 33 ft. line sets, offering flexibility during installation.
Q: How does the 8-way cassette design improve comfort?
A: The 8-way cassette design ensures even airflow throughout the space, reducing temperature imbalances and providing consistent comfort without cold or hot spots.
Q: What room size is this system suitable for?
A: This system is ideal for larger rooms, cooling and heating spaces up to 1,000 sq. ft.
Q: Is it suitable for residential use?
A: Yes, this system is perfect for residential applications, offering energy-efficient, quiet, and reliable climate control.
Q: Does it require professional installation?
A: While the system includes 33 ft. line sets for flexible setup, professional installation is recommended to ensure optimal performance and efficiency.
