Pioneer 18,000 BTU 20.5 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System without installation kit - CYB018GMFILCAD-00

Pioneer 18,000 BTU 20.5 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System without installation kit - CYB018GMFILCAD-00

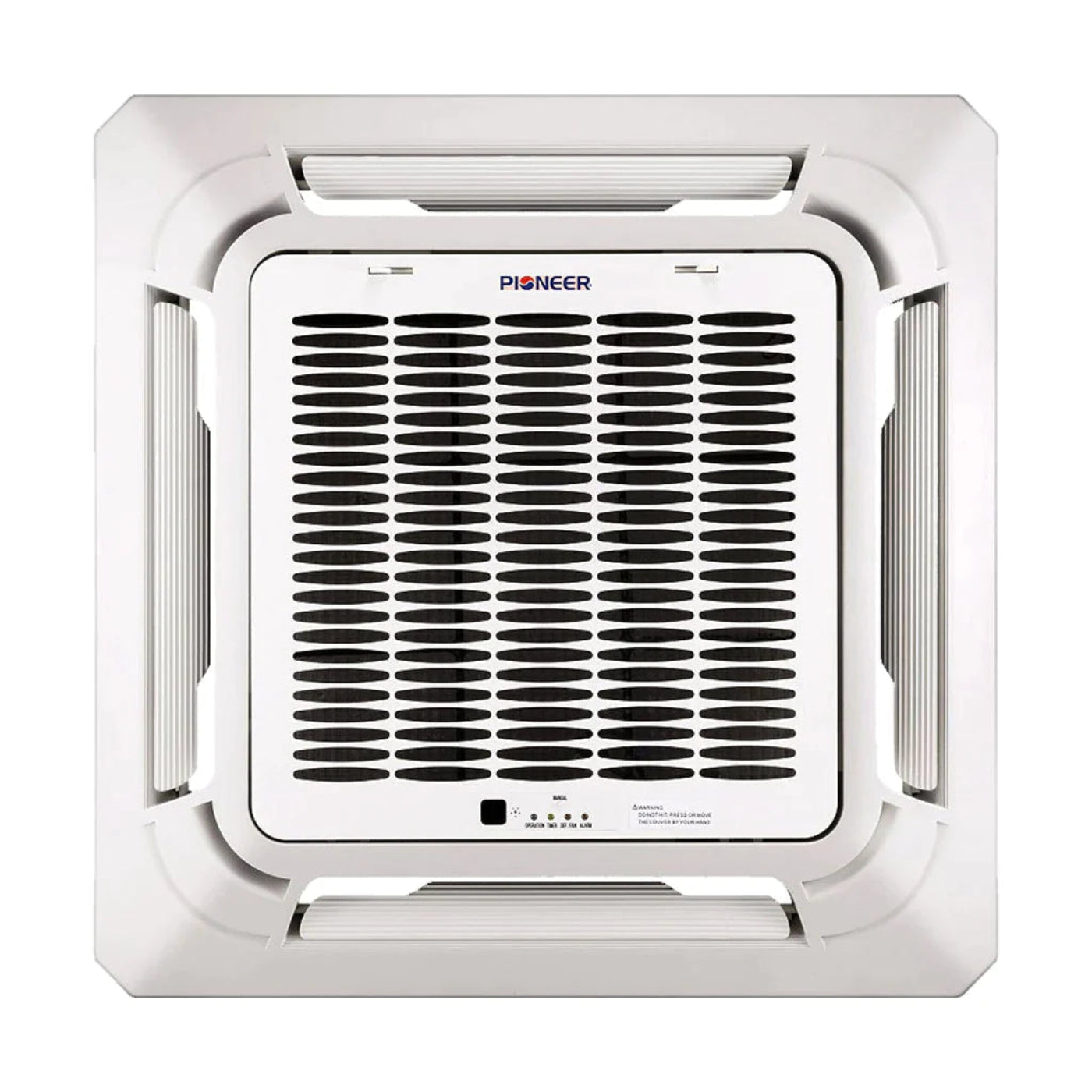

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

• Cooling capacity: 18,000 BTU/H with 20.0 SEER efficiency
• Heating capacity: 18,000 BTU/H with 10.3 HSPF efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $103.00
• Heating: $356.00
• Fresh Air Intake
  The Pioneer CYB series cassette offers a provision of fresh-air intake via an optional reserved 65-75 mm port. New outdoor air can be easily brought inside to replace stale room air.

• Built-in Drain Pump
  Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 30 inches for 9-18K models, and 40 inches for 24K and above models.

• 8-Way, 360° Airflow
  Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the room, thanks to an innovative design featuring 4 sides and 4 corners of airflow.

• Programmable Wired Controller Option
  The system can be operated by a wired controller (part number: TST-MLW-I-X2) which enables programming of weekly schedules, and usage without the handheld remote.

• Wi-Fi Controllable via Free App
  Control your new Pioneer CYB system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world. Requires separate purchase of the Smart Wi-Fi Kit

• Provision for Auxiliary Duct
  A great benefit of the CYB cassette system is the option for connecting a small auxiliary duct to the side of the indoor unit for cooling a small nearby room, like a closet or bathroom. This air outlet connection must be cut-out manually on the 9K-18K BTU size systems and is pre-made and reserved on the 24K BTU and above sized units.

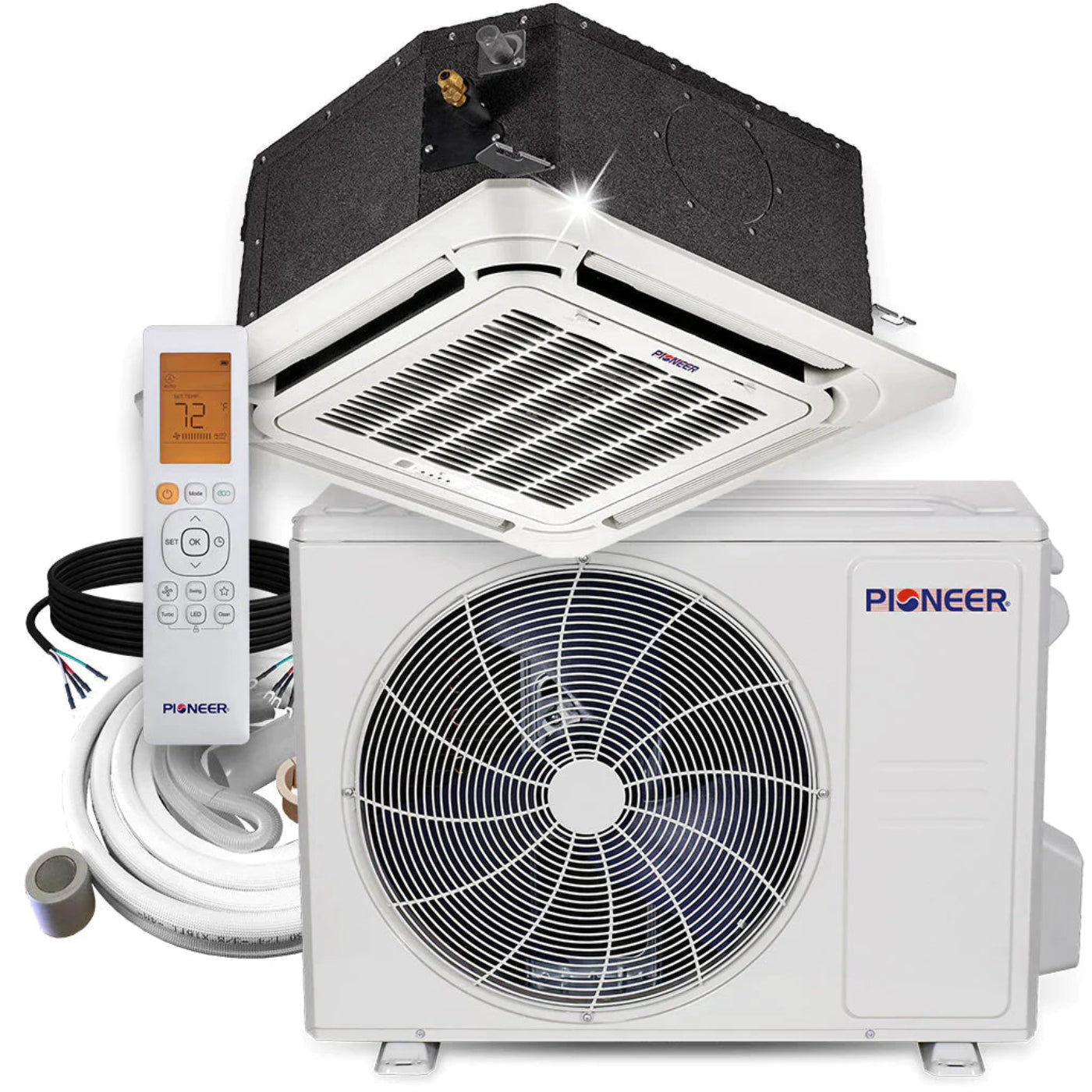

• Indoor Unit

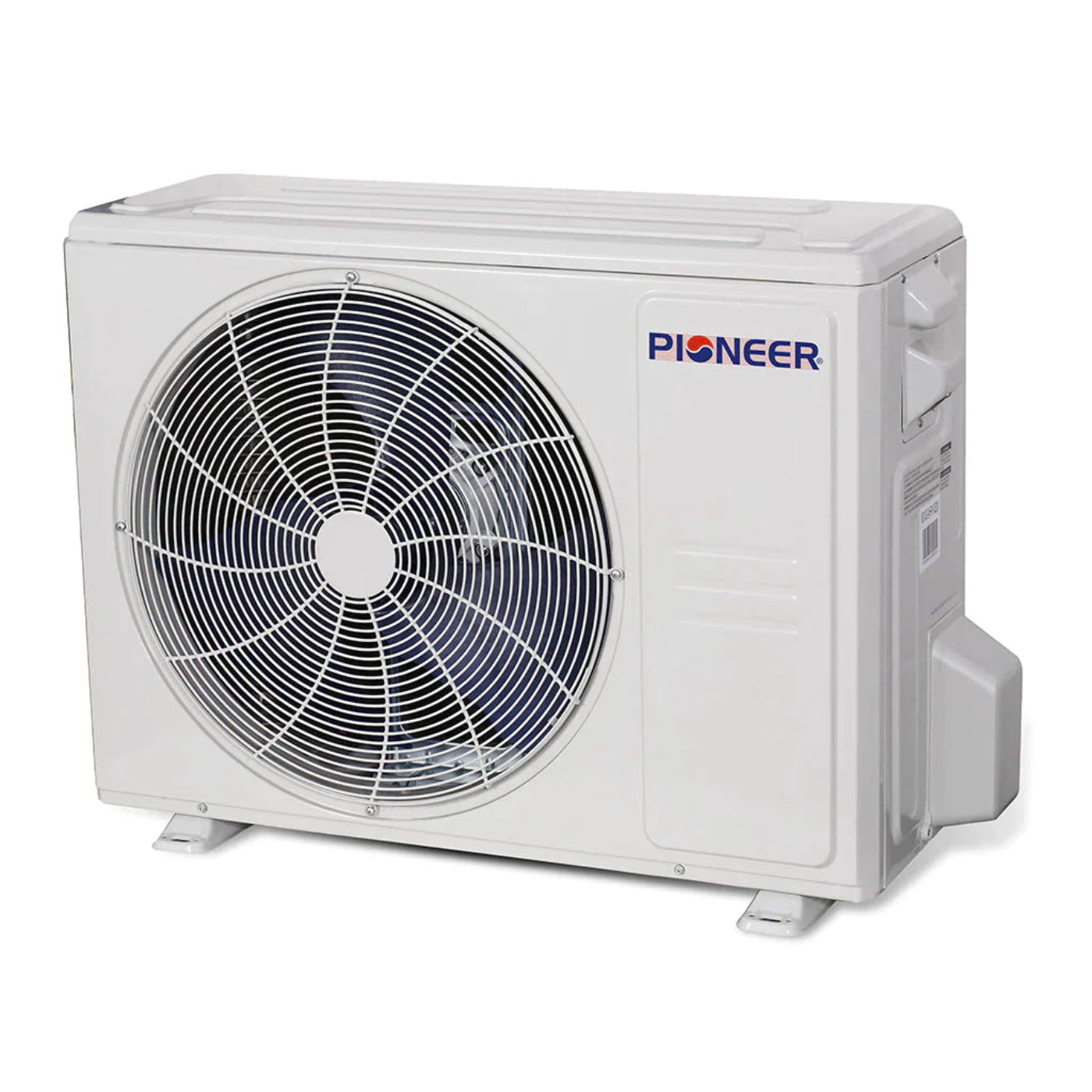

• Outdoor Unit
• Panel

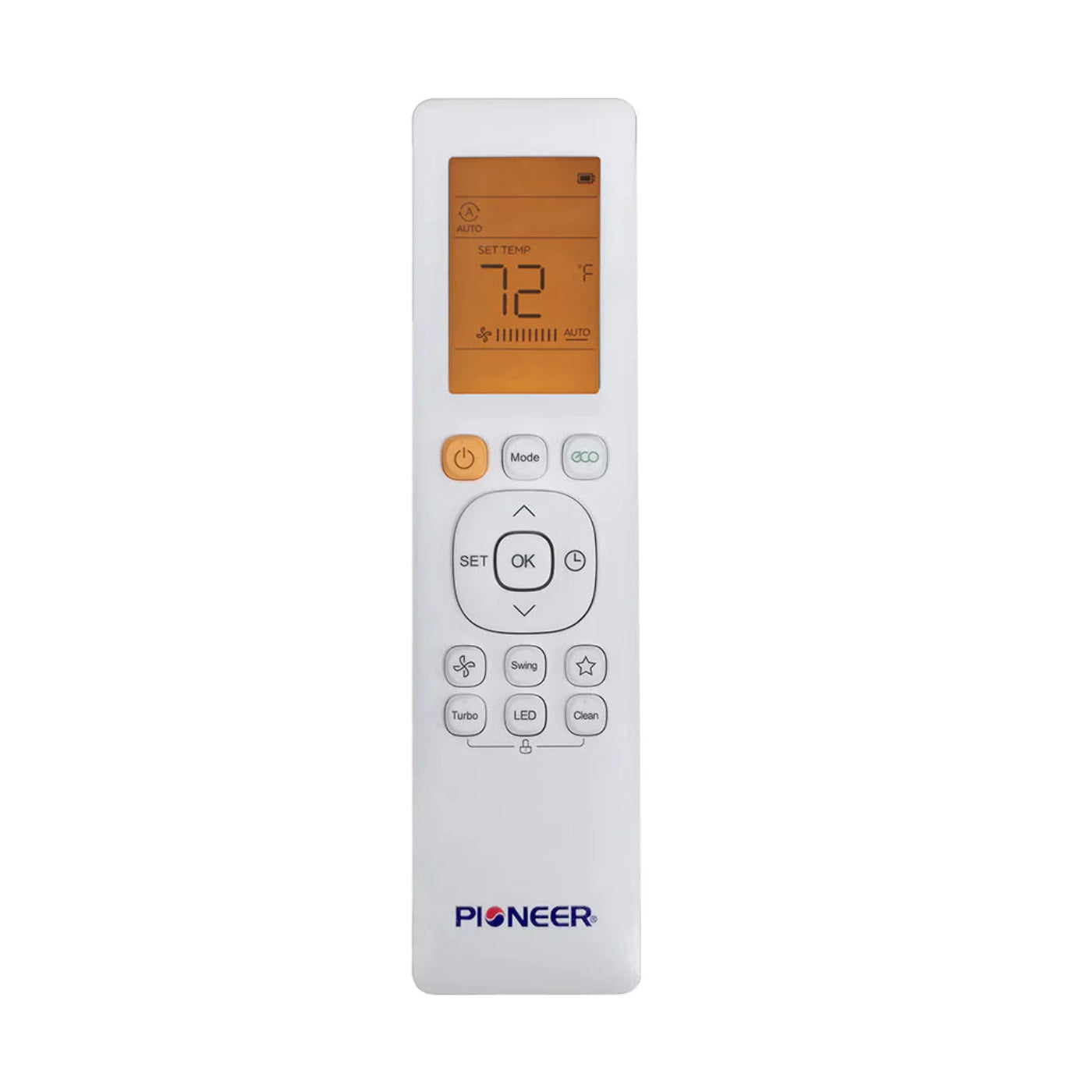

• Wireless Remote Control

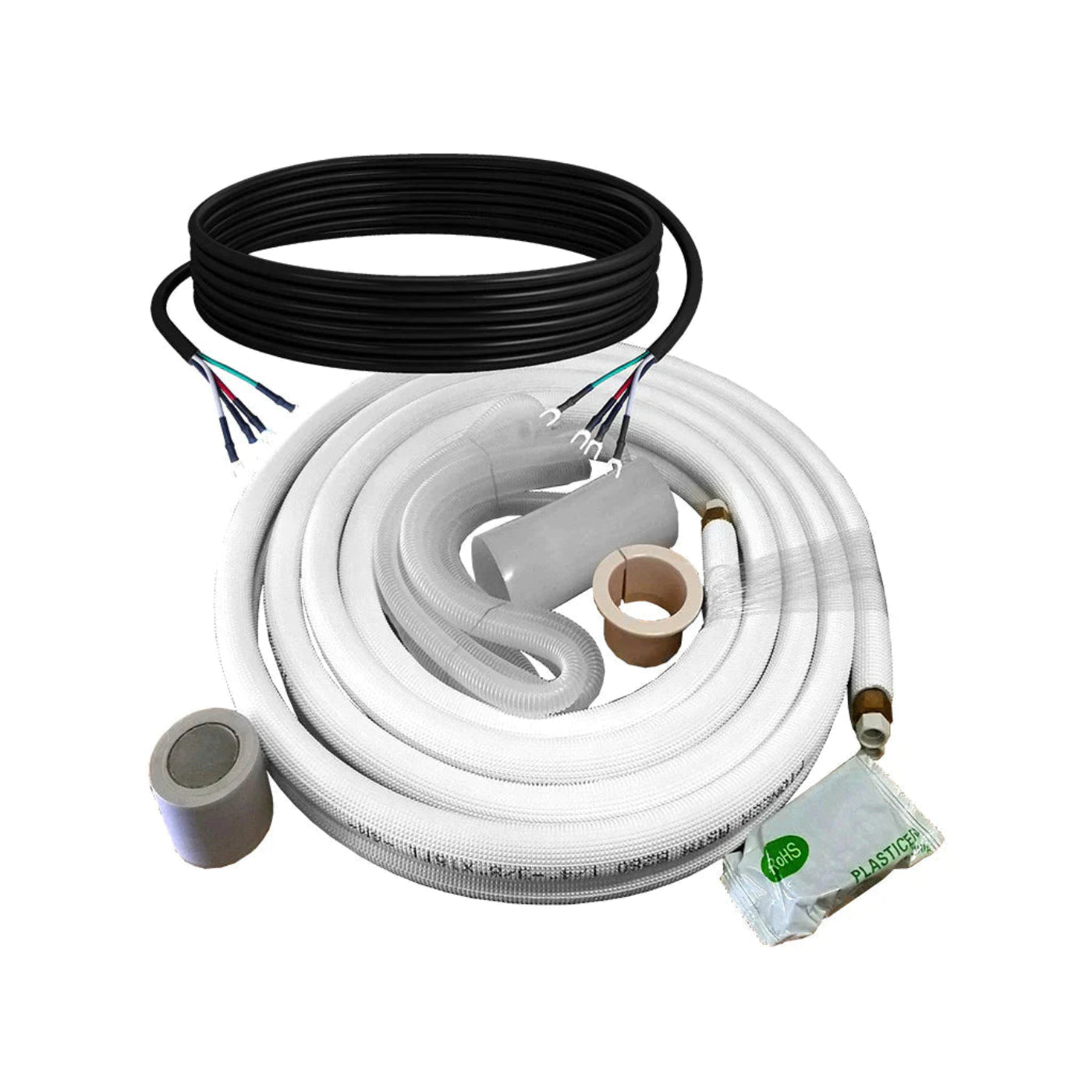

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual

• High-Efficiency Cooling & Heating: 18,000 BTU with a 20.5 SEER rating offers a great balance between performance and energy savings, making it suitable for medium to large rooms.
• 8-Way Airflow System: The compact cassette design features 8-way airflow, ensuring even distribution of cool or warm air throughout the entire space for consistent comfort.
• Space-Saving Design: Being a ceiling-mounted unit, it saves floor space while seamlessly blending into your room’s décor for a clean, modern look.
• Quiet & Efficient: Built with advanced noise-reduction technology for silent operation, allowing you to enjoy comfort without distractions.
• All-Season Comfort: Capable of both cooling in the summer and heating in the winter, providing year-round temperature control.

Q: What is the Pioneer 18,000 BTU 20.5 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System?
A: This system offers both cooling and heating with a 20.5 SEER rating. Its 8-way compact cassette design distributes air evenly throughout the room, providing optimal comfort. Note that this model does not include an installation kit, allowing for flexible installation options.

Q: How does the 8-way cassette design improve comfort?
A: The 8-way cassette design ensures that air is evenly distributed in all directions, preventing hot or cold spots in the room and promoting uniform temperature control.

Q: What room size is this system suitable for?
A: Ideal for larger rooms, this system efficiently cools and heats spaces up to 1,000 sq. ft.

Q: Is it suitable for residential use?
A: Yes, this system is well-suited for residential spaces, providing energy-efficient, quiet, and consistent temperature control for various room sizes.

Q: Does it require professional installation?
A: Since the system does not include an installation kit, professional installation is highly recommended to ensure proper setup and optimal performance.

• Clean the Filters Regularly: Clean filters every 2-4 weeks to maintain airflow and prevent dust buildup, improving cooling/heating efficiency.
• Inspect and Clean the Coils: Clean both evaporator and condenser coils at least once a year to avoid dirt buildup and ensure optimal performance.
• Check Refrigerant Levels: Ensure refrigerant is at the correct level for maximum system efficiency. If it's low, call a professional for a refill.
• Clear the Drain Line: Regularly check the condensate drain for clogs to avoid water damage and mold growth.
• Maintain the Outdoor Unit: Keep the outdoor unit free of debris like leaves, dirt, and obstructions to ensure proper airflow.
• Schedule Annual Professional Maintenance: Have a technician service the system once a year to check for any issues and optimize its performance.
