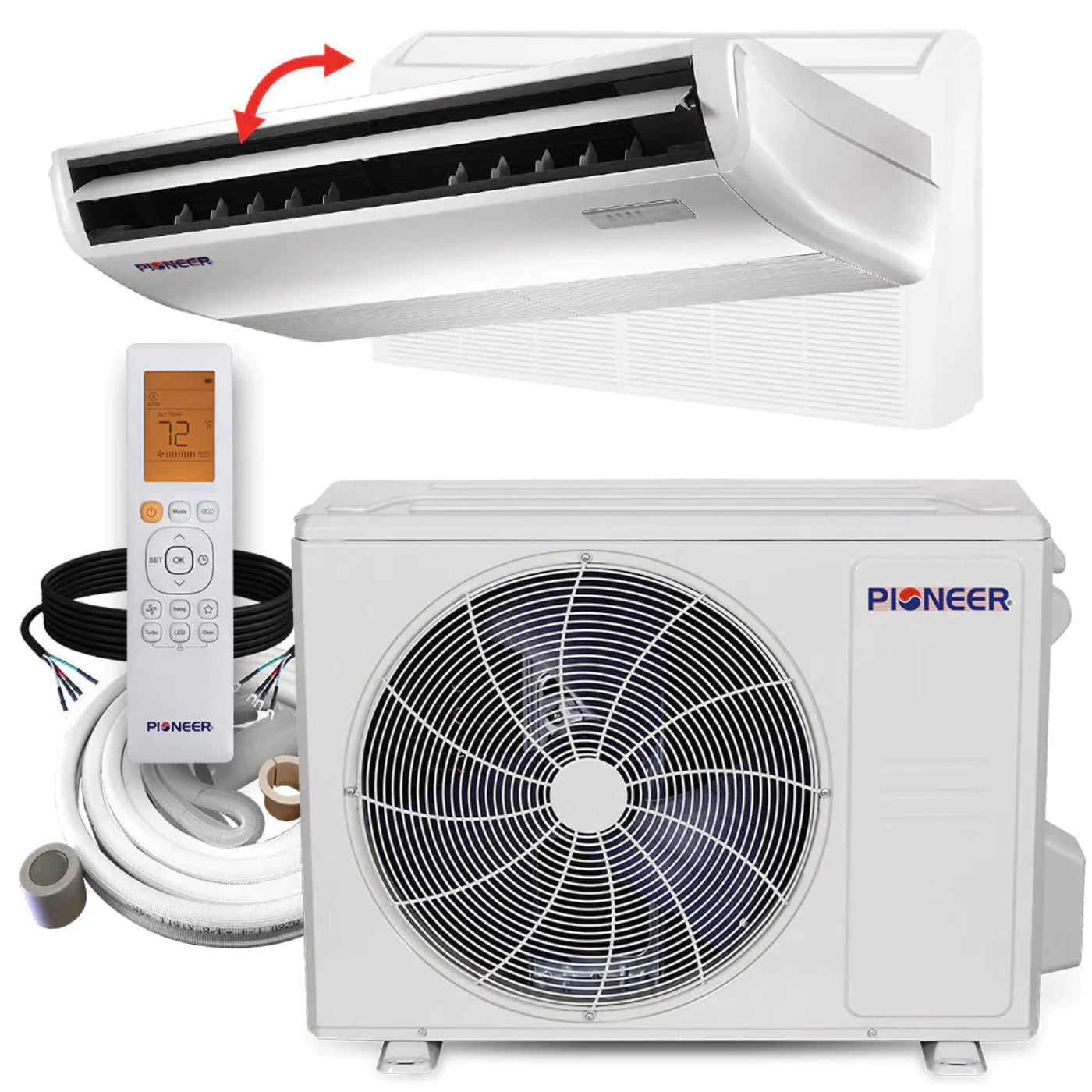

Pioneer 18,000 BTU 20 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System with 16 ft. Line Sets - UYB018GMFILCAD-16

ioneer 18,000 BTU 20 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System with 16 ft. Line Sets - UYB018GMFILCAD-16

Pioneer Mini Split offers a wide selection of flexible floor-ceiling mount ductless mini splits that are ideal for homes and commercial properties. These Flex Mount systems come with ductless indoor units that can be mounted in various positions based on requirements, including ductless air conditioning ceiling mounts. You can mount our indoor floor-ceiling flex mount mini split units of smaller-capacity systems as floor consoles or in low wall-attached positions. Our larger-capacity versions come with larger indoor units; you can mount these in ceiling-suspended positions as well. Our floor and ductless air conditioning ceiling mount mini split systems are equipped with digital frequency control for automatic capacity adjustments, convenient remote controller, automatic air sweeping louvers, cooling, heating, dehumidification, ventilation modes, and with fresh air intake options. Check out our selection of floor-ceiling flex mount ductless mini splits!

Mini Split Includes

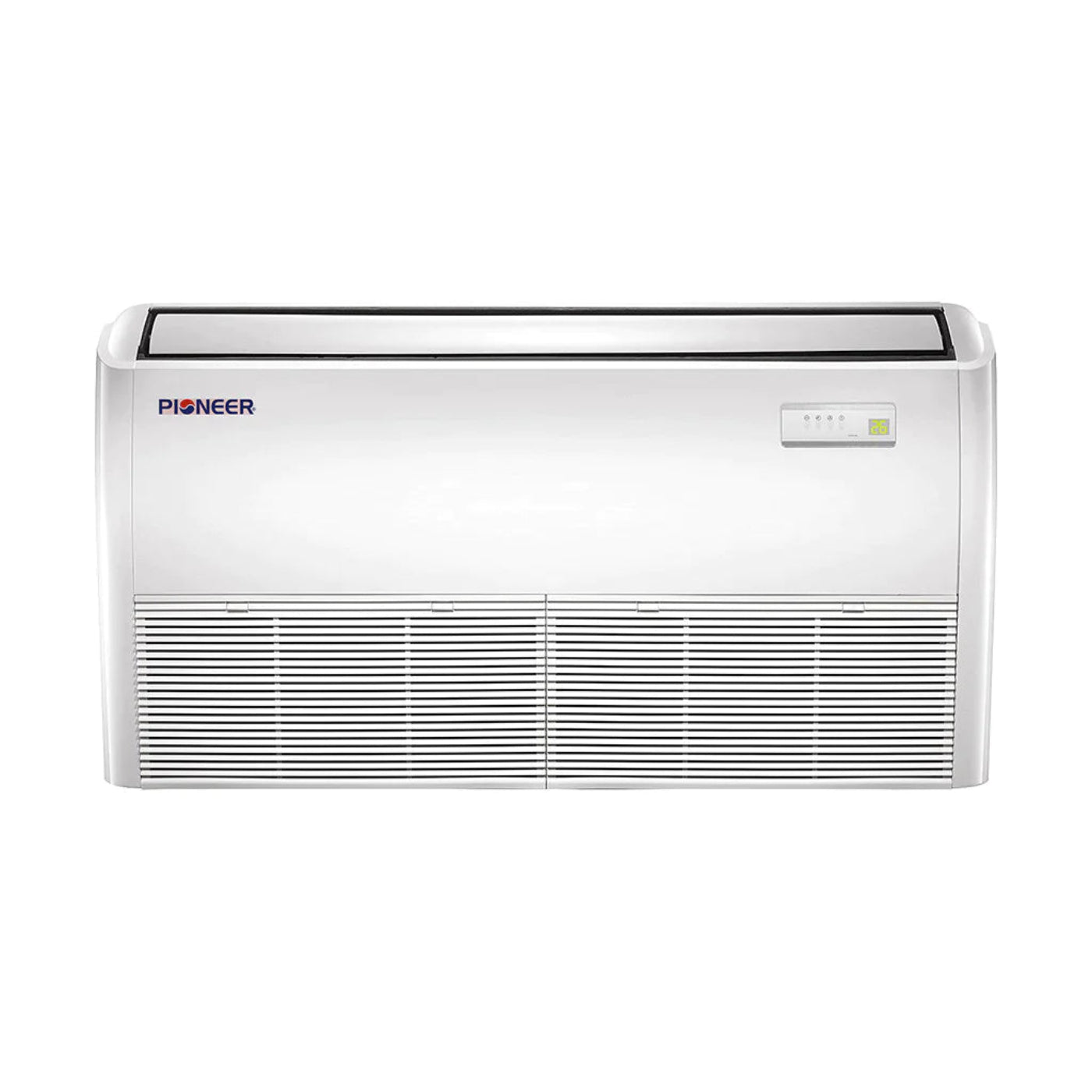

• Indoor Unit

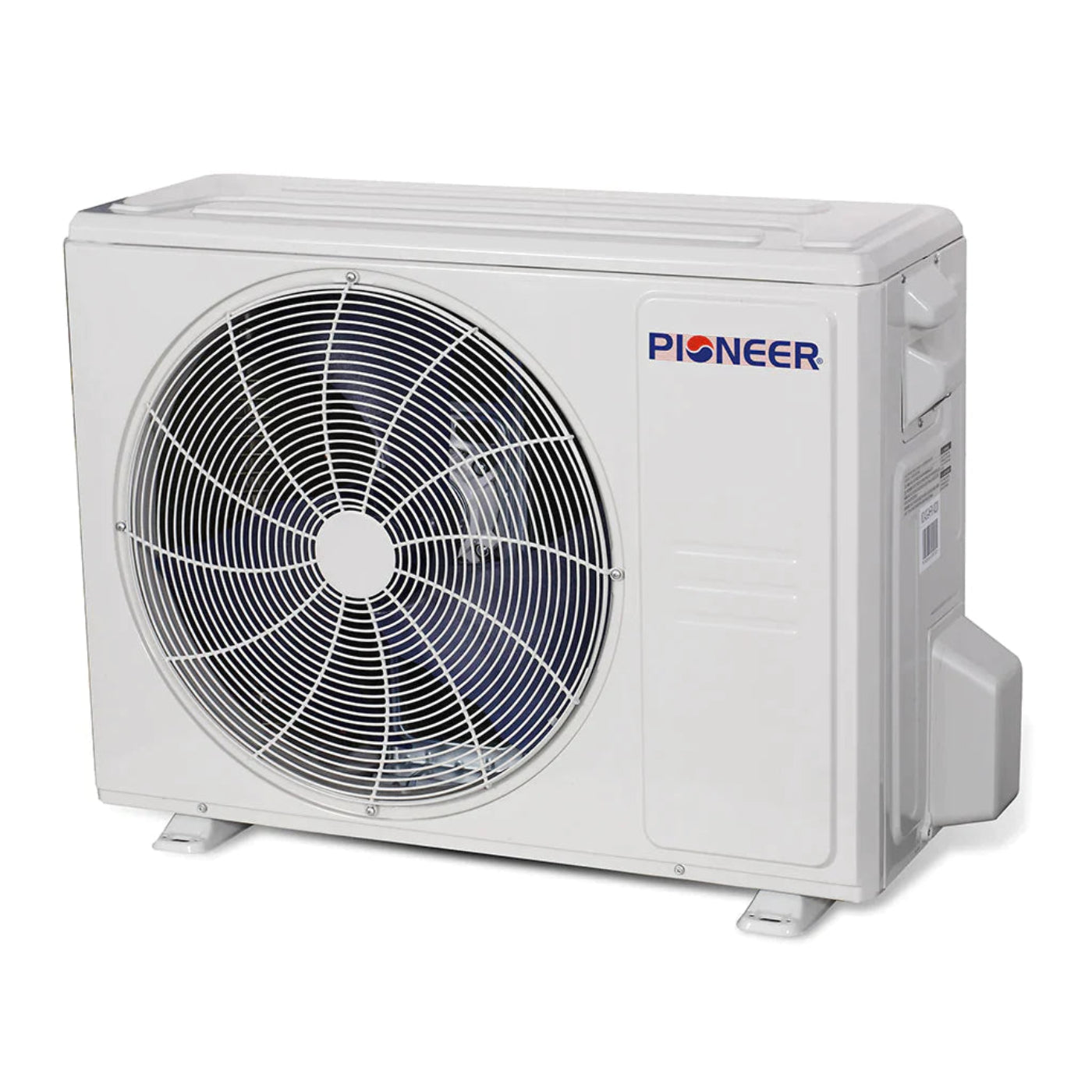

• Outdoor Unit

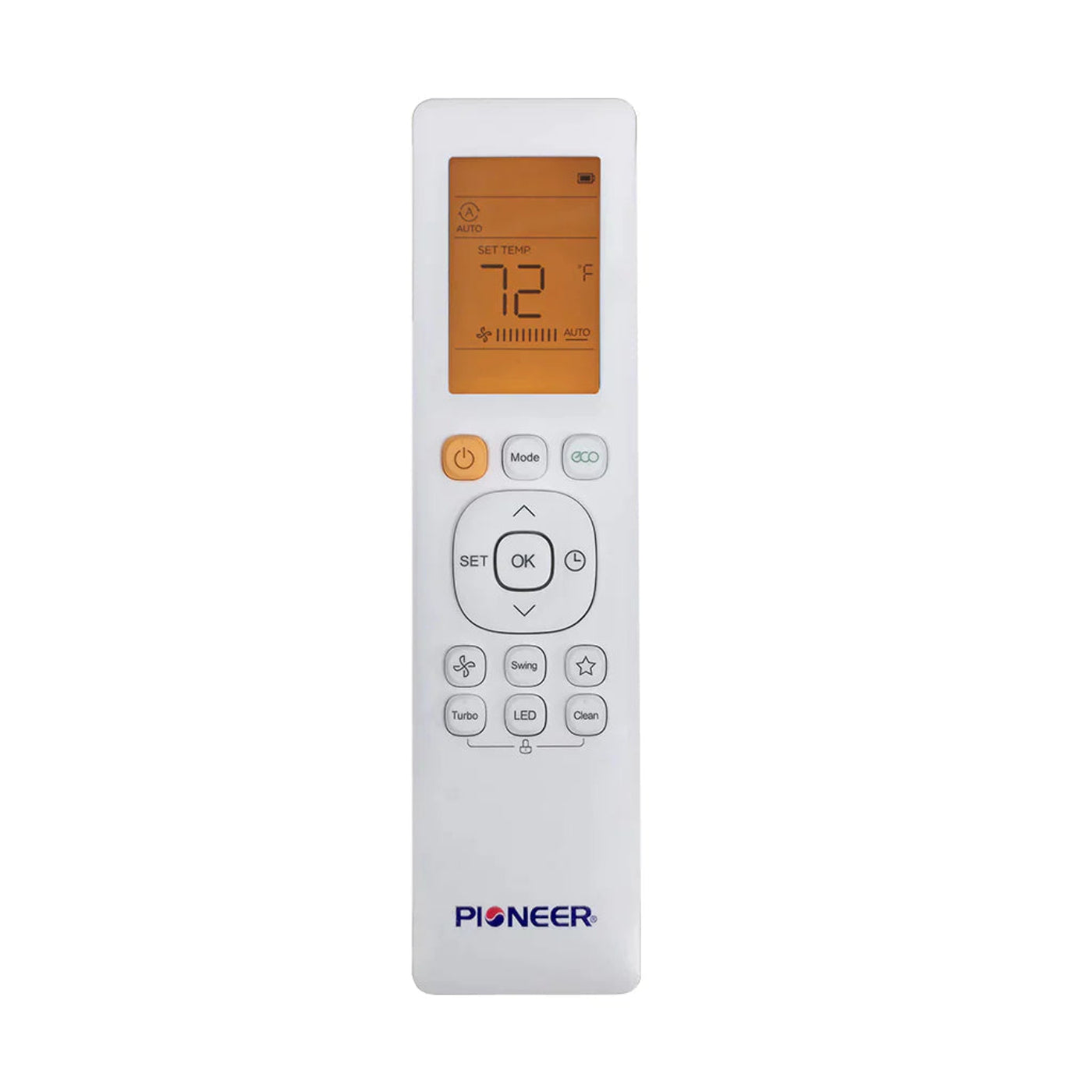

• Wireless Remote Control

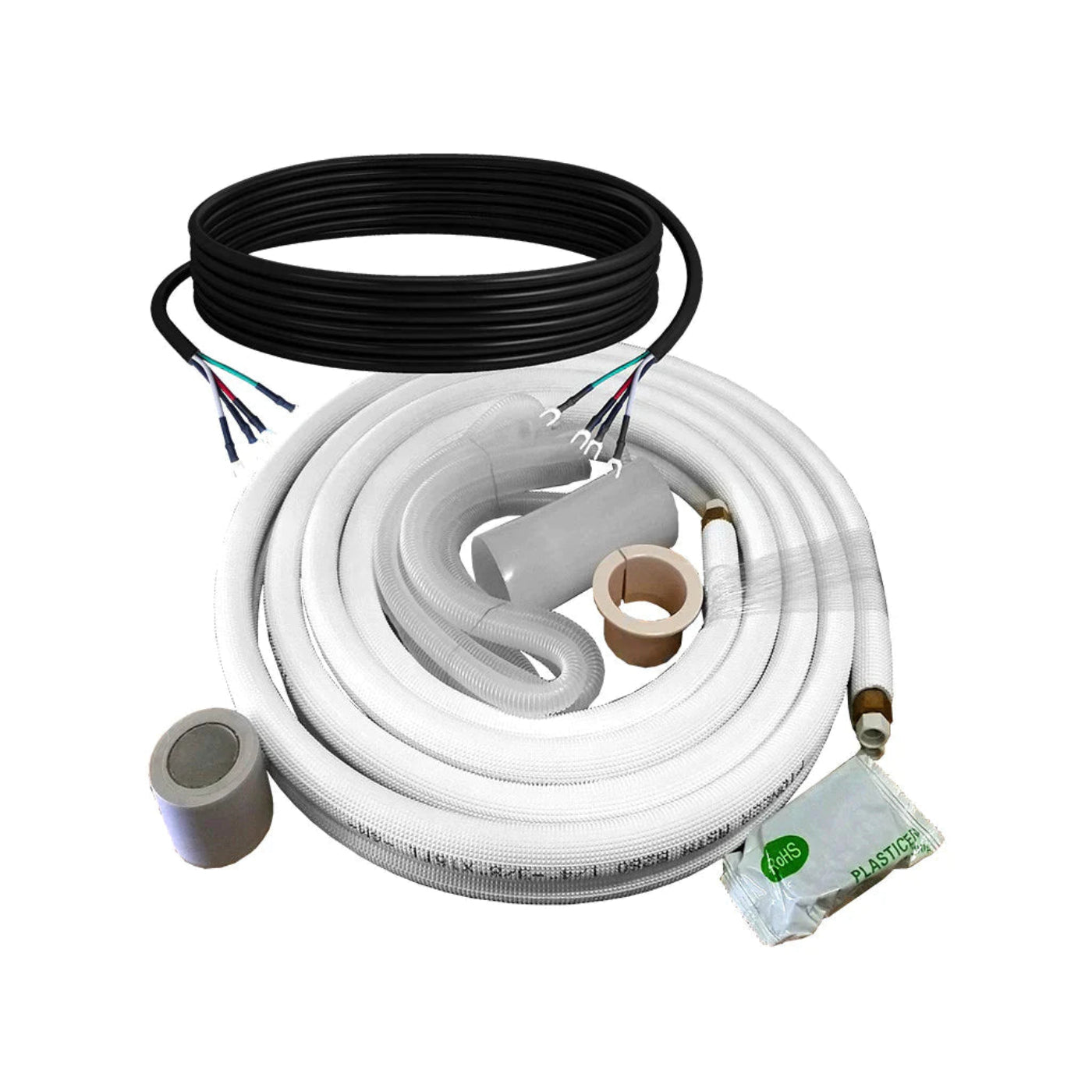

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Features

• Ultra High Efficiency Inverter++ floor/ceiling split heat pump system
• Cooling capacity: 18,000 BTU/H with 20.0 SEER efficiency
• Heating capacity: 18,000 BTU/H with 10.5 HSPF efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Floor/Ceiling Flex Mount Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• AHRI Estimated Annual Operating Costs:
• Cooling: $113.00
• Heating: $346.00
• Front Desk Control
  With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• 46° F Heating
• Refrigerant Leakage Detect
  Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function
  Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency Using
• Low Ambient Cooling
  With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.
• Follow Me
  Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Optional

• Wired Controller
  Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
• Remote in Engineer Mode


• Central Control Management
  The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.

Specifications

INSTALLATION & GUIDES

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual

What Our Experts Think

• Efficient Performance: 18,000 BTU with a 20 SEER rating provides solid cooling and heating for medium to large spaces, while minimizing energy consumption.
• Flexible Installation: The floor/ceiling mount design allows for versatile placement, making it ideal for spaces with unique layouts or when wall-mounted units aren't feasible.
• Mid-Length Line Sets: Includes 16 ft. line sets, providing flexibility for medium-sized spaces with moderate installation requirements.
• Quiet & Efficient: Features advanced noise-reduction technology to ensure quiet operation, offering comfort without disruption.
• Reliable Year-Round Comfort: Provides cooling in summer and heating in winter, ensuring year-round climate control with efficiency.

Q&A

Q: What is the Pioneer 18,000 BTU 20 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System?
A: This mini-split system provides both cooling and heating with a 20 SEER rating. Its floor/ceiling design allows for flexible installation, ensuring efficient airflow and temperature distribution. It comes with 16 ft. line sets for convenient setup.

Q: How does the floor/ceiling design improve the system’s performance?
A: The floor/ceiling design allows the system to be installed in various positions, enhancing airflow and promoting even cooling and heating throughout the room. This configuration is ideal for spaces where traditional wall units are not suitable.

Q: What room size is this system suitable for?
A: This system is suitable for rooms up to 750 sq. ft., offering effective climate control.

Q: Is it suitable for residential use?
A: Yes, this system is ideal for residential spaces, providing efficient and quiet cooling and heating with minimal energy consumption.

Q: Does it require professional installation?
A: While the unit comes with 16 ft. line sets, professional installation is recommended to ensure optimal performance and reliability.

Maintenance Tips

• Clean Filters Every 2-4 Weeks: Remove dust and dirt from filters to maintain proper airflow and efficiency.
• Clean Coils Annually: Prevent dirt buildup on evaporator and condenser coils to keep the system running smoothly.
• Check Refrigerant Levels: Ensure proper refrigerant levels for optimal cooling and heating performance; contact a technician if necessary.
• Ensure Proper Drainage: Regularly inspect and clean the condensate drain to avoid clogs and prevent mold growth.
• Maintain Outdoor Unit: Keep the outdoor unit clear of debris to ensure unobstructed airflow.
• Schedule Professional Maintenance: Have a technician perform an annual inspection to ensure the system runs efficiently and to detect potential issues early.
