Pioneer 18,000 BTU 20 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System Without Installation Kit - UYB018GMFILCAD-00

Pioneer 18,000 BTU 20 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System Without Installation Kit - UYB018GMFILCAD-00

Pioneer Mini Split offers a wide selection of flexible floor-ceiling mount ductless mini splits that are ideal for homes and commercial properties. These Flex Mount systems come with ductless indoor units that can be mounted in various positions based on requirements, including ductless air conditioning ceiling mounts. You can mount our indoor floor-ceiling flex mount mini split units of smaller-capacity systems as floor consoles or in low wall-attached positions. Our larger-capacity versions come with larger indoor units; you can mount these in ceiling-suspended positions as well. Our floor and ductless air conditioning ceiling mount mini split systems are equipped with digital frequency control for automatic capacity adjustments, convenient remote controller, automatic air sweeping louvers, cooling, heating, dehumidification, ventilation modes, and with fresh air intake options. Check out our selection of floor-ceiling flex mount ductless mini splits!

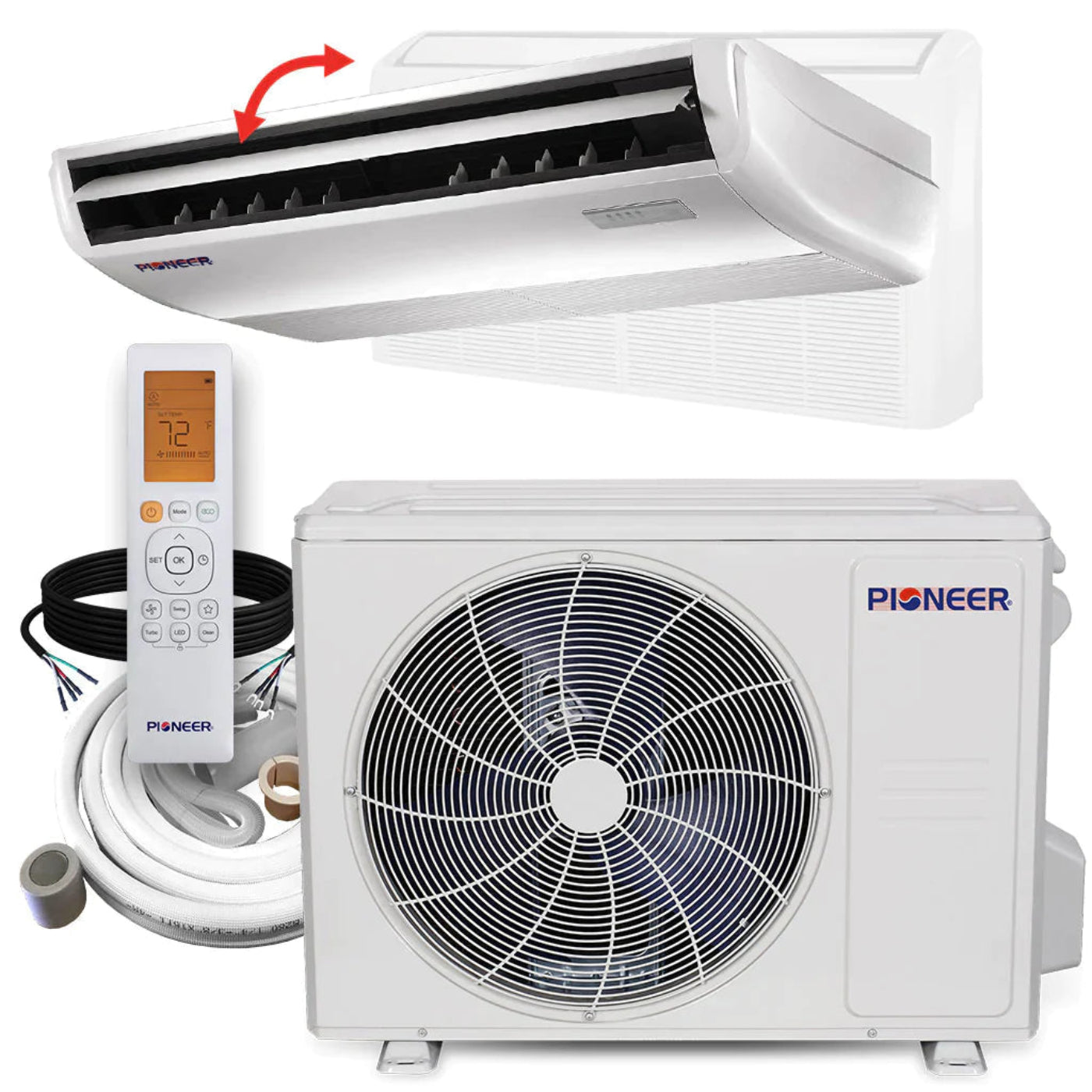

Mini Split Includes

• Indoor Unit

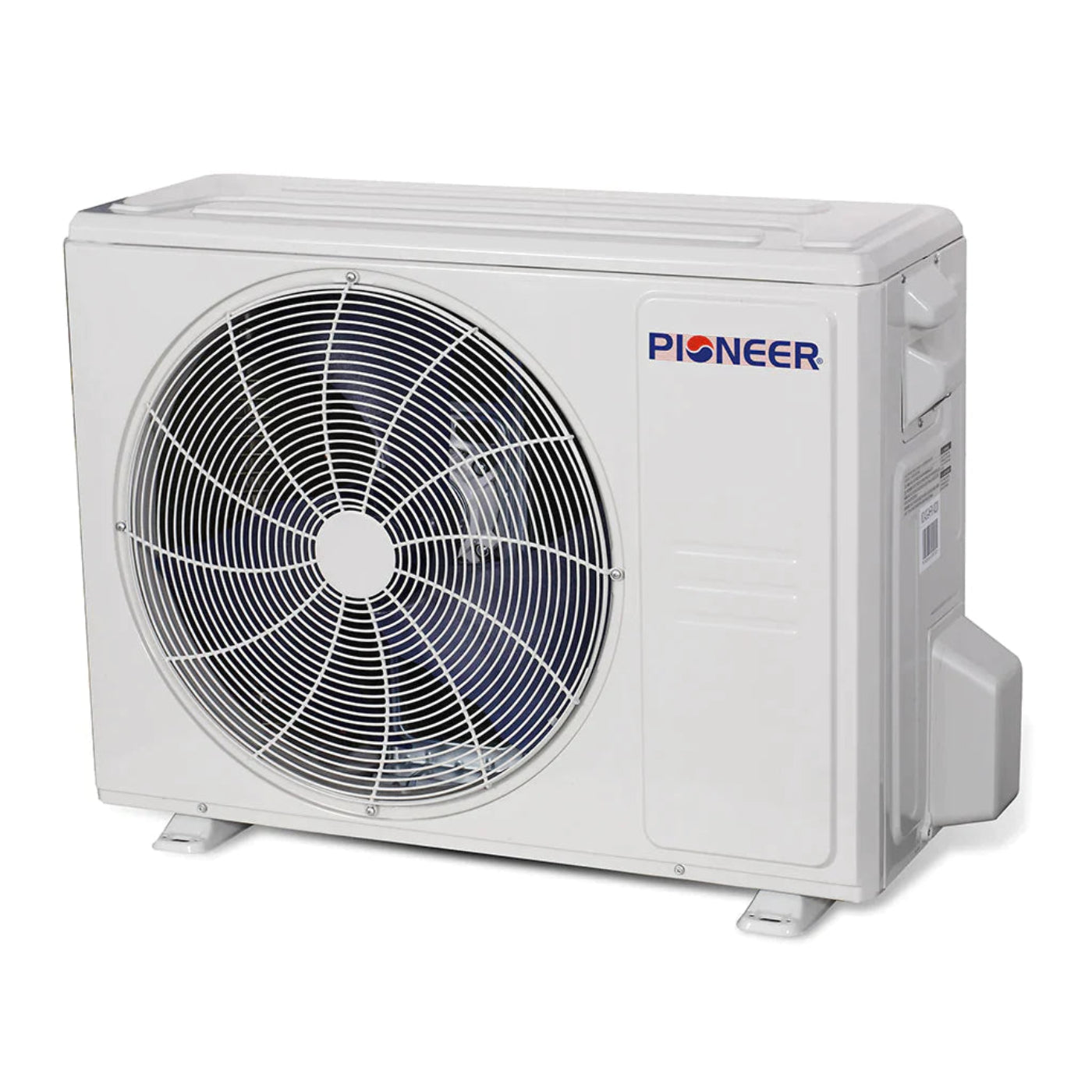

• Outdoor Unit

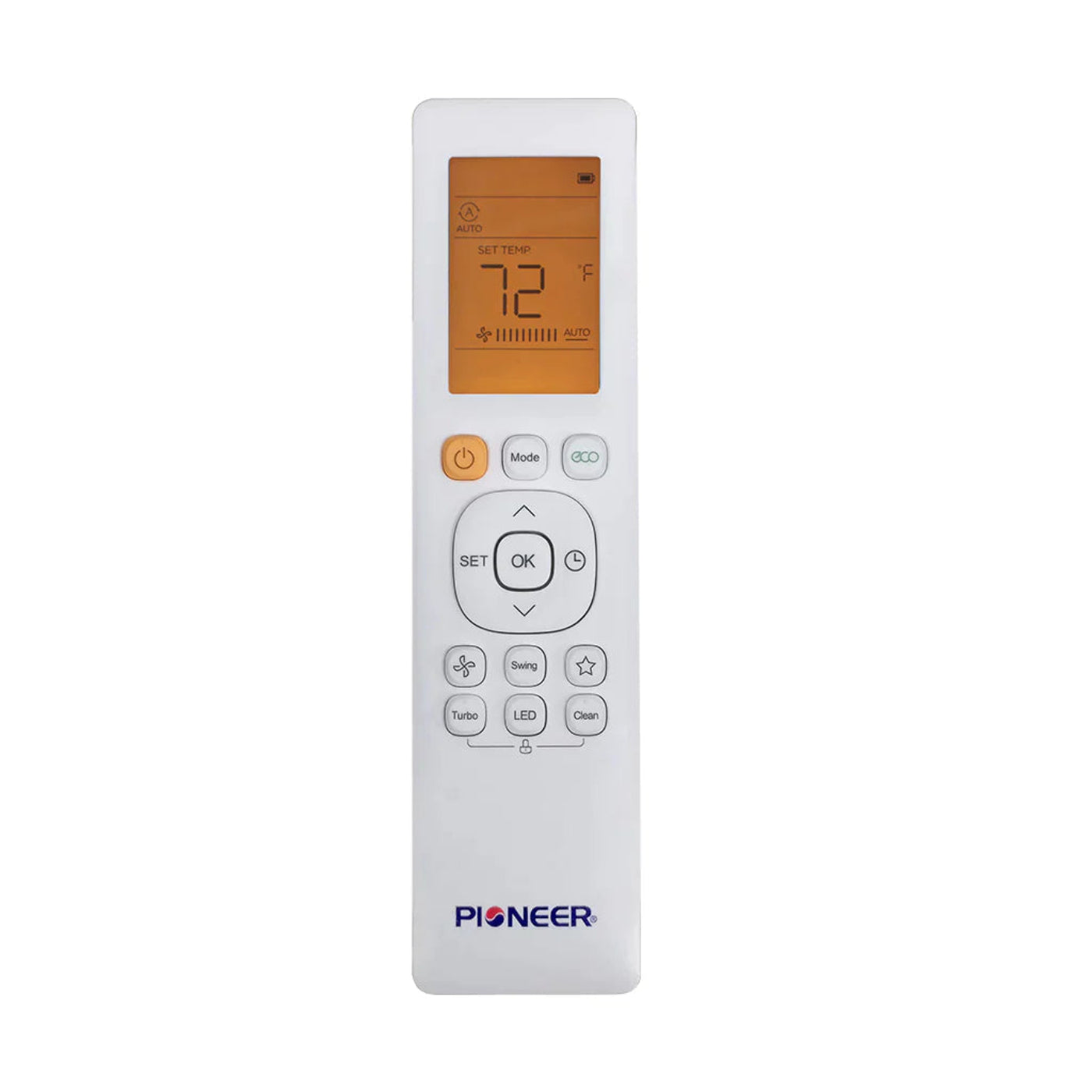

• Wireless Remote Control

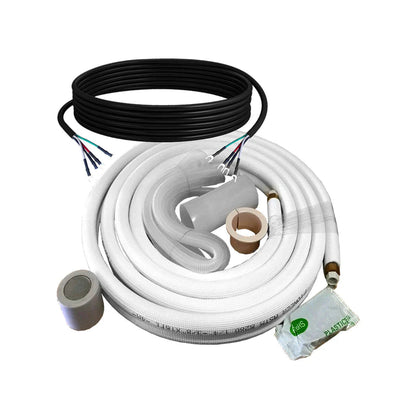

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Ultra High Efficiency Inverter++ floor/ceiling split heat pump system
• Cooling capacity: 18,000 BTU/H with 20.0 SEER efficiency
• Heating capacity: 18,000 BTU/H with 10.5 HSPF efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Floor/Ceiling Flex Mount Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $113.00
• Heating: $346.00
• Front Desk Control
  With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• 46° F Heating
• Refrigerant Leakage Detect
  Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function
  Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency Using
• Low Ambient Cooling
  With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.
• Follow Me
  Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Optional

• Wired Controller
  Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
• Remote in Engineer Mode


• Central Control Management
  The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Submittal Sheet

• Pioneer 18,000 BTU 20 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System Without Installation Kit (UYB018GMFILCAD-00): This versatile air conditioning system provides efficient cooling and heating for medium to large rooms, making it a great choice for areas up to 900 sq. ft. With its dual functionality as both an air conditioner and heat pump, it offers year-round comfort, adapting to your needs throughout the seasons.

• 20 SEER for Energy Efficiency: The 20 SEER (Seasonal Energy Efficiency Ratio) rating ensures this system offers high energy efficiency, helping you reduce cooling and heating costs over time. The energy-efficient operation makes it an eco-friendly and cost-effective solution for your climate control needs.

• Floor/Ceiling Installation Flexibility: The unique floor/ceiling installation option gives you the flexibility to place the unit in a variety of configurations, optimizing airflow and comfort in your space. Whether mounted on the floor or ceiling, it provides excellent coverage and performance.

• 18,000 BTU Capacity: With an 18,000 BTU capacity, this mini-split system is ideal for medium to large rooms, providing enough cooling and heating power for spaces like living rooms, dining areas, or larger bedrooms. It ensures consistent and efficient temperature control, no matter the weather.

• Heat Pump Functionality for Year-Round Comfort: The heat pump functionality makes this unit ideal for year-round use, efficiently cooling the space in the summer and providing warmth during colder months. It ensures that you can maintain a comfortable environment no matter the season, with quick temperature adjustments.

• Quiet Operation: Pioneer’s mini-split systems are known for their quiet performance. This model operates at low noise levels, ensuring a peaceful and undisturbed environment. Whether you’re cooling your space during the day or heating it at night, the quiet operation ensures minimal disturbance.

• No Installation Kit Included: Please note that this system does not come with an installation kit, so you will need to purchase the necessary installation components separately. This gives you the flexibility to choose the right kit for your specific setup but does require additional planning.

• Ideal for Flexible Spaces: Whether you want to install the system in a living room, office, or even a larger bedroom, the flexibility of the floor/ceiling installation option makes it a versatile choice for a wide range of spaces. It ensures optimal airflow and temperature control, no matter your room’s layout.

Q: What is the Pioneer 18,000 BTU 20 SEER Floor/Ceiling Mini-Split Air Conditioner Heat Pump System (UYB018GMFILCAD-00)?
A: The Pioneer 18,000 BTU Floor/Ceiling Mini-Split is a dual-purpose air conditioner and heat pump system designed for flexible installation in your home or office. It offers a 20 SEER energy efficiency rating, ensuring excellent performance and low energy consumption for both heating and cooling.

Q: What are the advantages of the Floor/Ceiling design?
A: The floor/ceiling design allows for versatile installation. It can be mounted on the floor for effective heating in colder climates or on the ceiling for optimal cooling. This flexibility makes it a perfect choice for spaces with limited wall space or rooms with special layout requirements.

Q: How much area can the 18,000 BTU system cool or heat?
A: The 18,000 BTU capacity is ideal for spaces ranging from 600 to 800 square feet. This makes it well-suited for medium to large rooms, such as living rooms, large offices, or small commercial spaces, offering effective climate control.

Q: What is the significance of the 20 SEER rating?
A: The 20 SEER rating indicates that the system is highly energy-efficient, reducing your electricity usage while maintaining comfortable temperatures. The higher the SEER, the more efficient the system is, leading to lower energy bills and a reduced environmental footprint.

Q: Can this system provide both cooling and heating?
A: Yes, this is a heat pump system, which means it can both cool your space in the summer and heat it in the winter, providing year-round comfort and versatility for any climate.

Q: Does this model come with an installation kit?
A: No, this particular model does not include an installation kit. Professional installation is recommended, and you will need to purchase any necessary components, such as line sets and wiring, separately.

Q: What makes this Pioneer system stand out from other mini-split systems?
A: The combination of the 18,000 BTU capacity, 20 SEER energy efficiency, and versatile floor/ceiling design makes this system ideal for various space sizes and installation preferences. Additionally, the inclusion of both cooling and heating functionality makes it suitable for year-round use.

• Regular Filter Cleaning: Clean the air filters every 1-2 months to ensure proper airflow and prevent dirt buildup. Rinse with water or vacuum the filter, then let it dry completely before reinstalling.

• Inspect Outdoor Unit: Check the outdoor unit every few months for dirt, leaves, or debris. Clean the coils and surrounding area to maintain efficient heat exchange. Use compressed air or a soft brush to remove debris.

• Clear the Condensate Drain: Ensure the condensate drain is free of blockages to prevent water from backing up. Clear the drain line periodically using a wet/dry vacuum or a long brush.

• Check Refrigerant Levels: If the system isn’t cooling or heating effectively, the refrigerant may be low. Have a professional technician inspect and recharge the refrigerant levels as needed.

• Ensure Proper Airflow: Keep the area around both the indoor and outdoor units clear of obstructions. This ensures good airflow and prevents the system from overworking.

• Inspect the Fan and Coils: Examine the fan and coils for dust and dirt buildup. Clean the evaporator and condenser coils to ensure maximum heat exchange efficiency. Dust the fan blades to prevent them from becoming clogged.

• Check the Drain Pan: Inspect the indoor unit’s drain pan for any water accumulation. If there is standing water, clean and ensure that the condensate drain is flowing properly.

• Test Heating and Cooling Functions: Occasionally check both cooling and heating functions. If either mode isn’t performing as expected, it may indicate an issue requiring attention from a professional.

• Annual Professional Maintenance: Have a certified technician perform an annual inspection, including checking refrigerant levels, inspecting the compressor, cleaning the entire system, and ensuring the system is running optimally.

• Preventative Maintenance: Regularly monitor the system’s operation and listen for unusual noises or reduced performance, and schedule professional maintenance when necessary.
