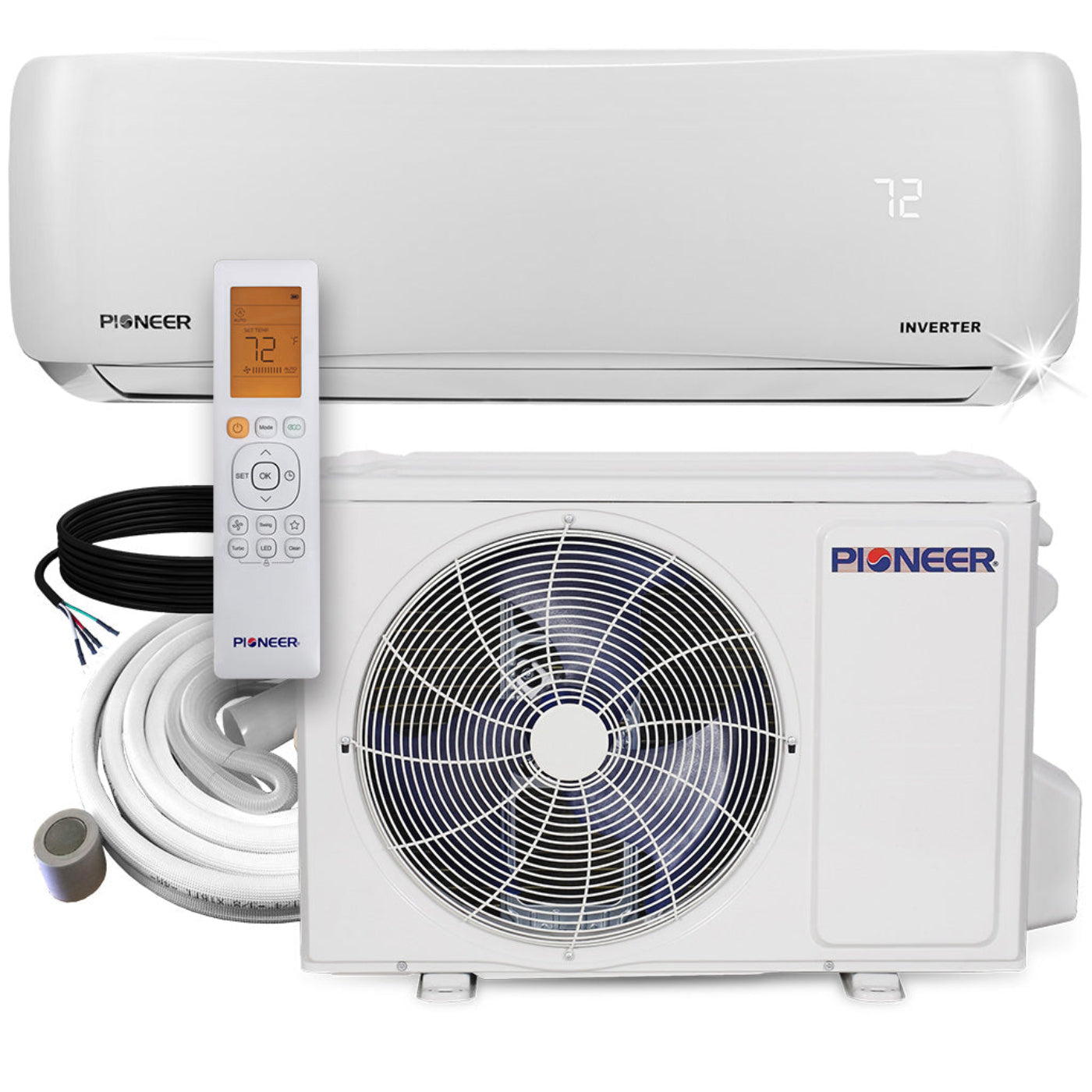

Pioneer 9,000 BTU 20.5 SEER 115V Ductless Mini-Split Inverter + Air Conditioner Heat Pump System with 50 ft. Line Sets - WYS009AMFI20RL-50

• Ultra-high efficiency ductless mini split inverter + ductless mini split heat pump system
• Cooling capacity: 9,000 BTU/H with 20.5 SEER/12.5 EER efficiency
• Heating capacity: 10,000 BTU/H with 10 HSPF/2.93 COP efficiency
• Voltage: 110~120V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• AHRI Estimated Annual Operating Costs:
• Cooling: $58.00
• Heating: $211.00

• Refrigerant Leakage Detect Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Low Ambient Heating With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.
• Follow Me Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

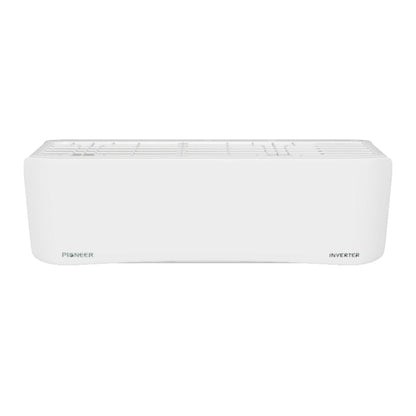

• Indoor Unit

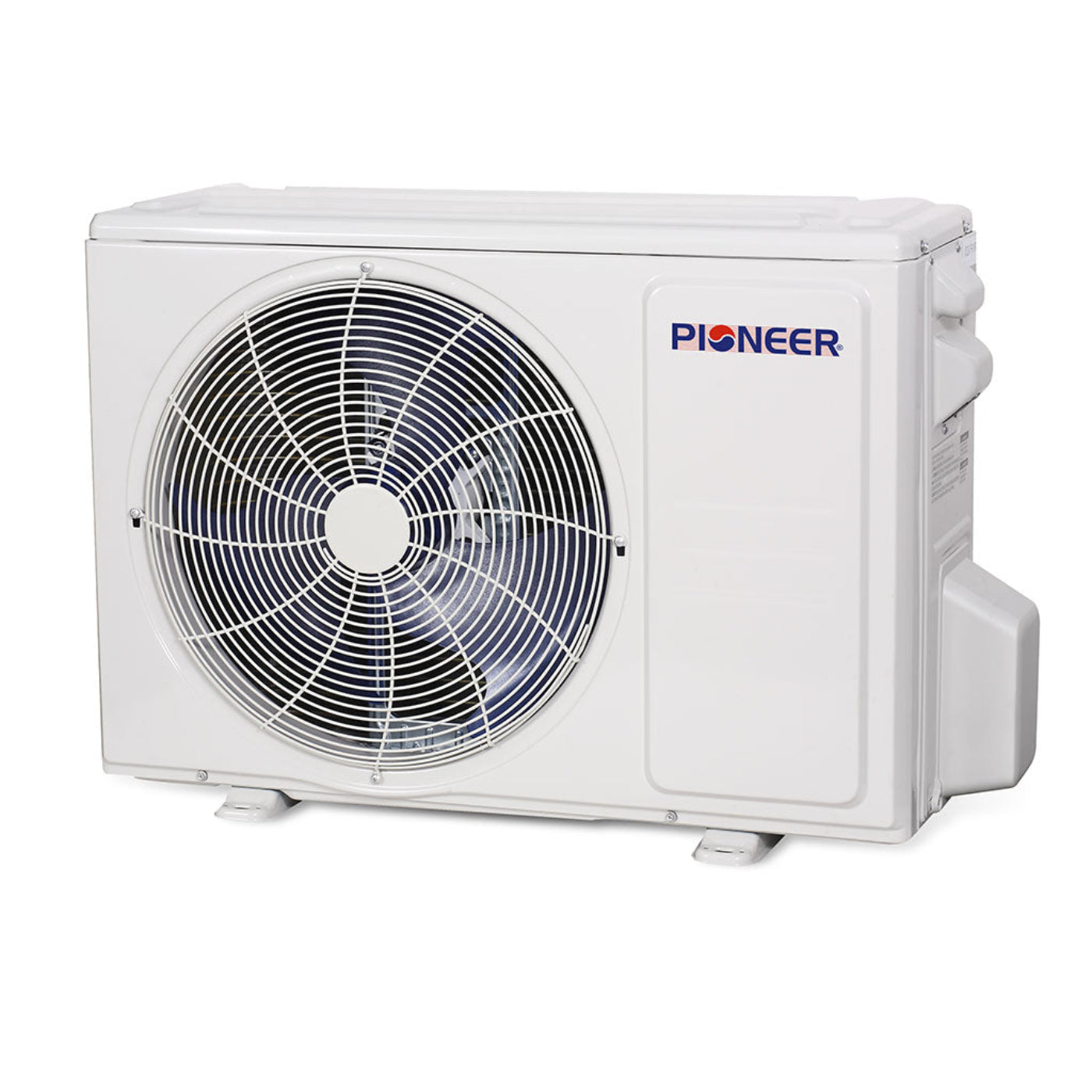

• Outdoor Unit

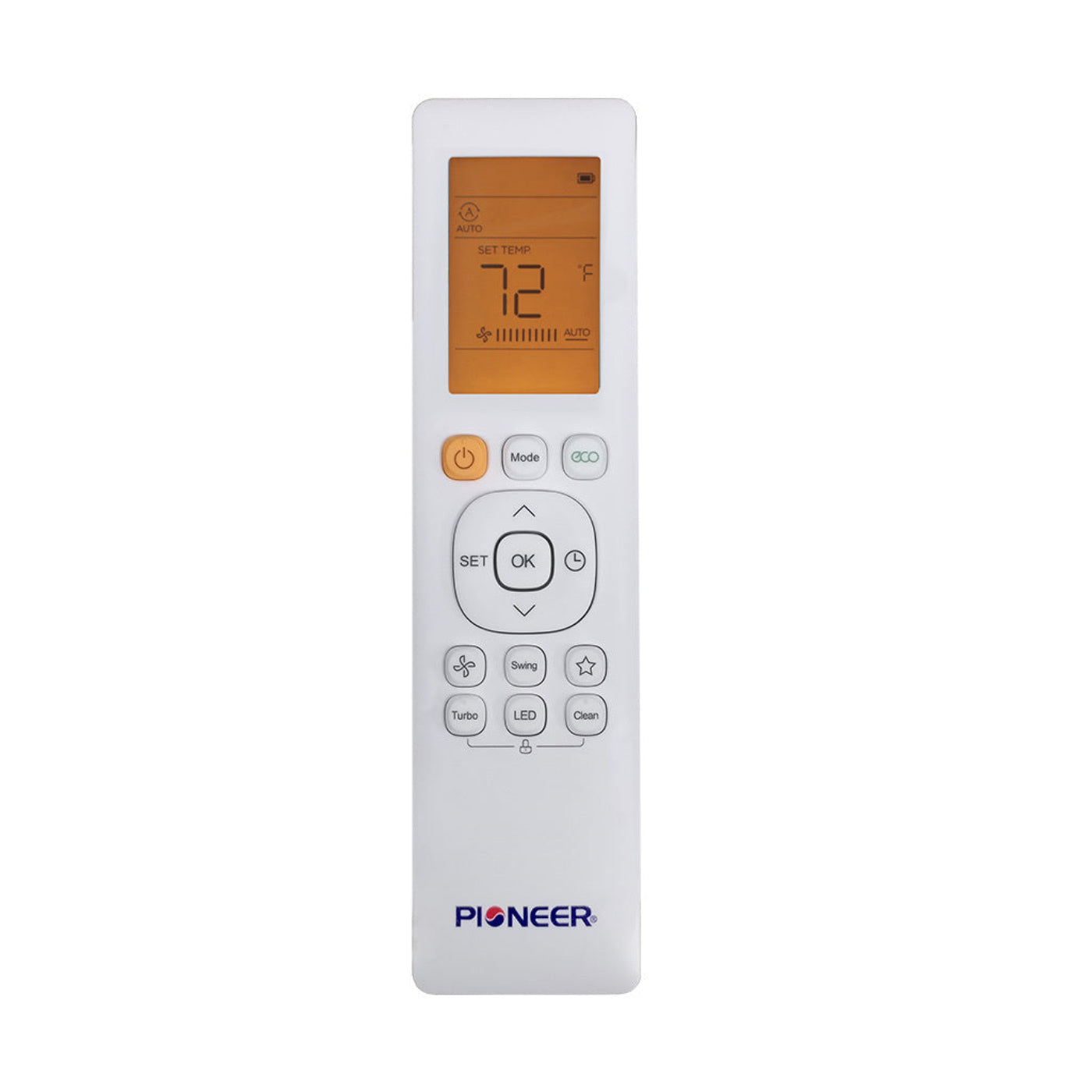

• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

What's Not Included and Required for Installation

• Electrical Requirements, such as Disconnect Box or Electrical Whip
• Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)

Important Note

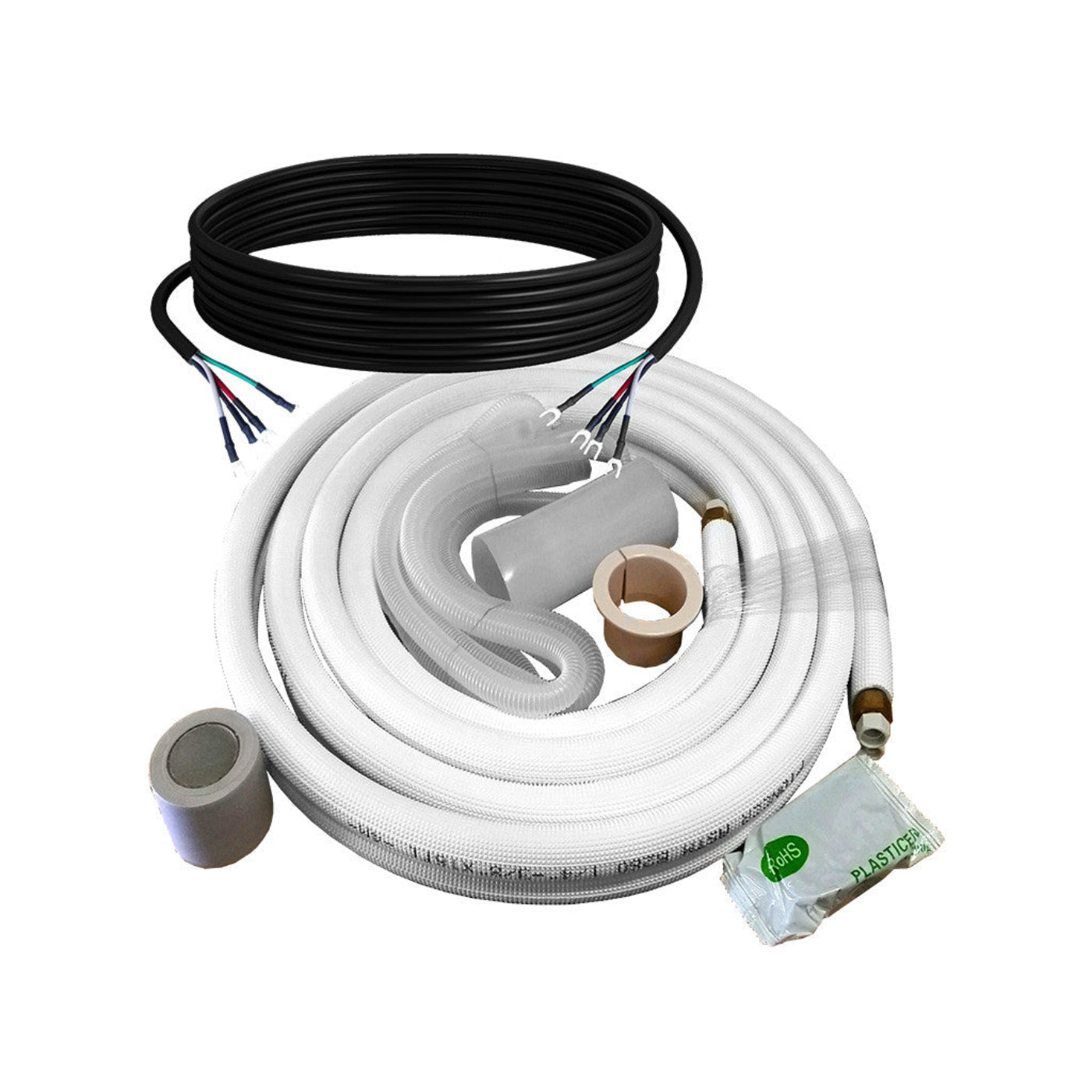

The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

• Technical Brochure

• User Manual

• Installation Manual

• Service Manual

• Disassembly Guide

• Energy Guide

• Energy-Efficient Performance: The 9,000 BTU capacity with a 20.5 SEER rating ensures efficient cooling and heating while keeping energy costs low.
• Inverter Technology: Provides smooth, quiet operation by adjusting compressor speed to suit your comfort needs, enhancing energy efficiency.
• Flexible Installation: Comes with 16 ft. line sets, offering flexibility for medium-sized rooms or longer connection distances.
• Quiet & Comfortable: Designed with advanced noise-reduction features to ensure a quiet and relaxing indoor environment.
• Year-Round Climate Control: Delivers both cooling in the summer and heating in the winter, making it perfect for year-round use.

Q: What is the Pioneer 9,000 BTU 20.5 SEER Ductless Mini-Split Inverter + Air Conditioner Heat Pump System?
A: This energy-efficient mini-split system provides both cooling and heating with a 20.5 SEER rating. Featuring Inverter technology, it ensures quiet operation, precise temperature control, and reduced energy consumption. It includes 16 ft. line sets for easy installation.

Q: How does Inverter technology improve the system’s performance?
A: The Inverter technology adjusts the compressor speed according to the temperature needs, enhancing energy efficiency, reducing noise, and ensuring consistent comfort.

Q: What size room can this system cover?
A: This system is ideal for cooling and heating rooms up to 350 sq. ft.

Q: Is this system suitable for residential use?
A: Yes, it’s perfect for residential applications, offering quiet operation and energy-efficient climate control.

Q: Does it require professional installation?
A: While the system comes with 16 ft. line sets, professional installation is recommended for optimal performance and longevity.

• Clean the Air Filters Regularly: Clean or replace the filters every 1-2 months, especially during periods of heavy use, to maintain efficient airflow.
• Inspect and Clean the Condensate Drain: Ensure the condensate drain line is clear and free from debris to prevent water damage and clogging.
• Check Refrigerant Levels: Have a licensed technician inspect refrigerant levels annually to ensure the system operates at peak efficiency.
• Keep the Outdoor Unit Clear: Regularly inspect and remove any leaves, dirt, or debris around the outdoor unit to ensure unobstructed airflow.
• Wipe the Indoor Unit: Use a damp cloth to clean the interior of the indoor unit, removing dust and buildup that could obstruct airflow.
