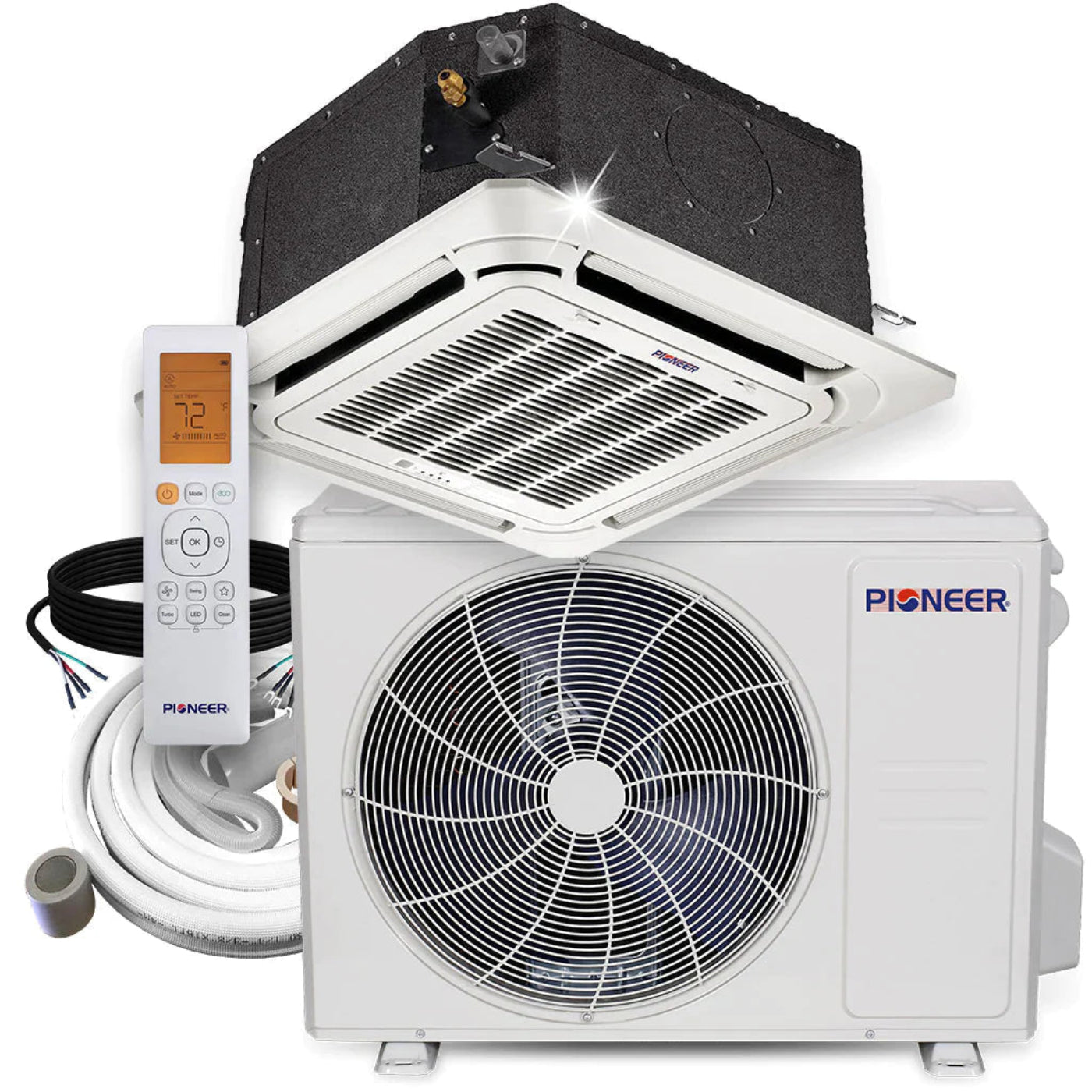

Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 10 ft. Line Sets - CYB009GMFILCAD-10

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 9,000 BTU/H with 20 SEER/13 EER efficiency
• Heating capacity: 10,000 BTU/H with 10.5 HSPF/3.08 COP efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• AHRI Estimated Annual Operating Costs:
• Cooling: $59.00
• Heating: $201.00
• Fresh Air Intake
  The Pioneer CYB series cassette offers a provision of fresh-air intake via an optional reserved 65-75 mm port. New outdoor air can be easily brought inside to replace stale room air.

• Built-in Drain Pump
  Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 30 inches for 9-18K models, and 40 inches for 24K and above models.

• 8-Way, 360° Airflow
  Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the room, thanks to an innovative design featuring 4 sides and 4 corners of airflow.

• Programmable Wired Controller Option
  The system can be operated by a wired controller (part number: TST-MLW-I-X2) which enables programming of weekly schedules, and usage without the handheld remote.

• Wi-Fi Controllable via Free App
  Control your new Pioneer CYB system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world. Requires separate purchase of the Smart Wi-Fi Kit

• Provision for Auxiliary Duct
  A great benefit of the CYB cassette system is the option for connecting a small auxiliary duct to the side of the indoor unit for cooling a small nearby room, like a closet or bathroom. This air outlet connection must be cut-out manually on the 9K-18K BTU size systems and is pre-made and reserved on the 24K BTU and above sized units.

• Indoor Unit

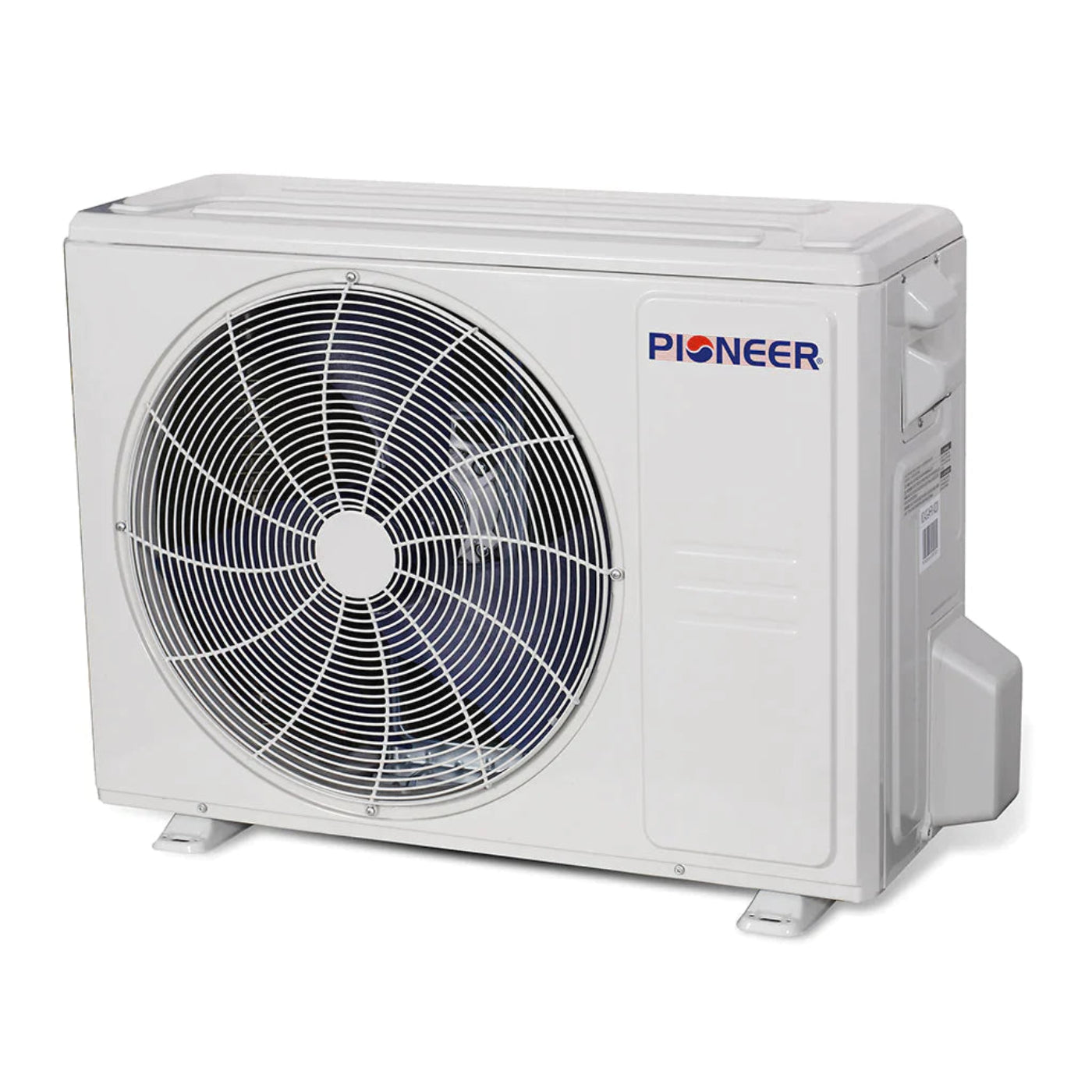

• Outdoor Unit

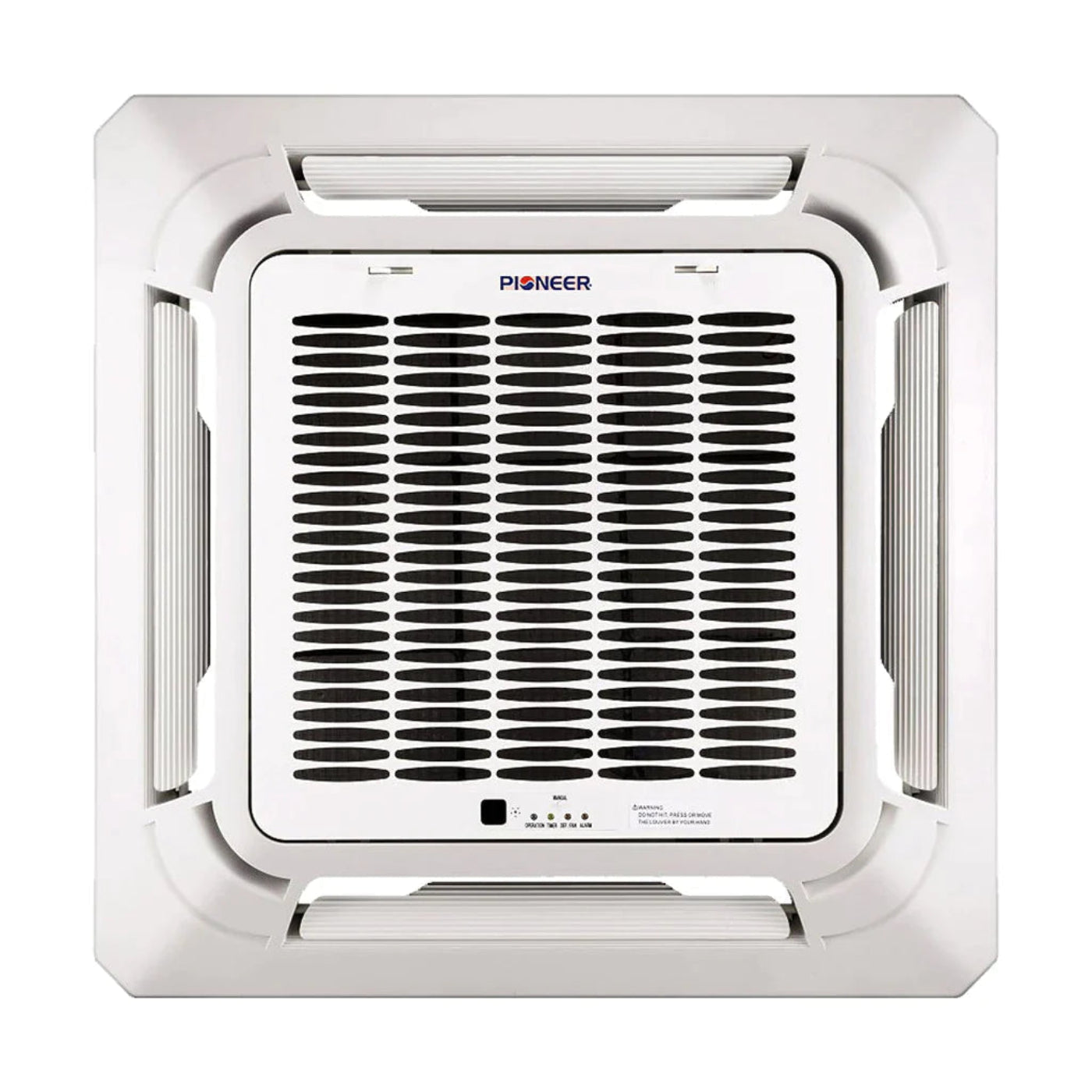

• Panel

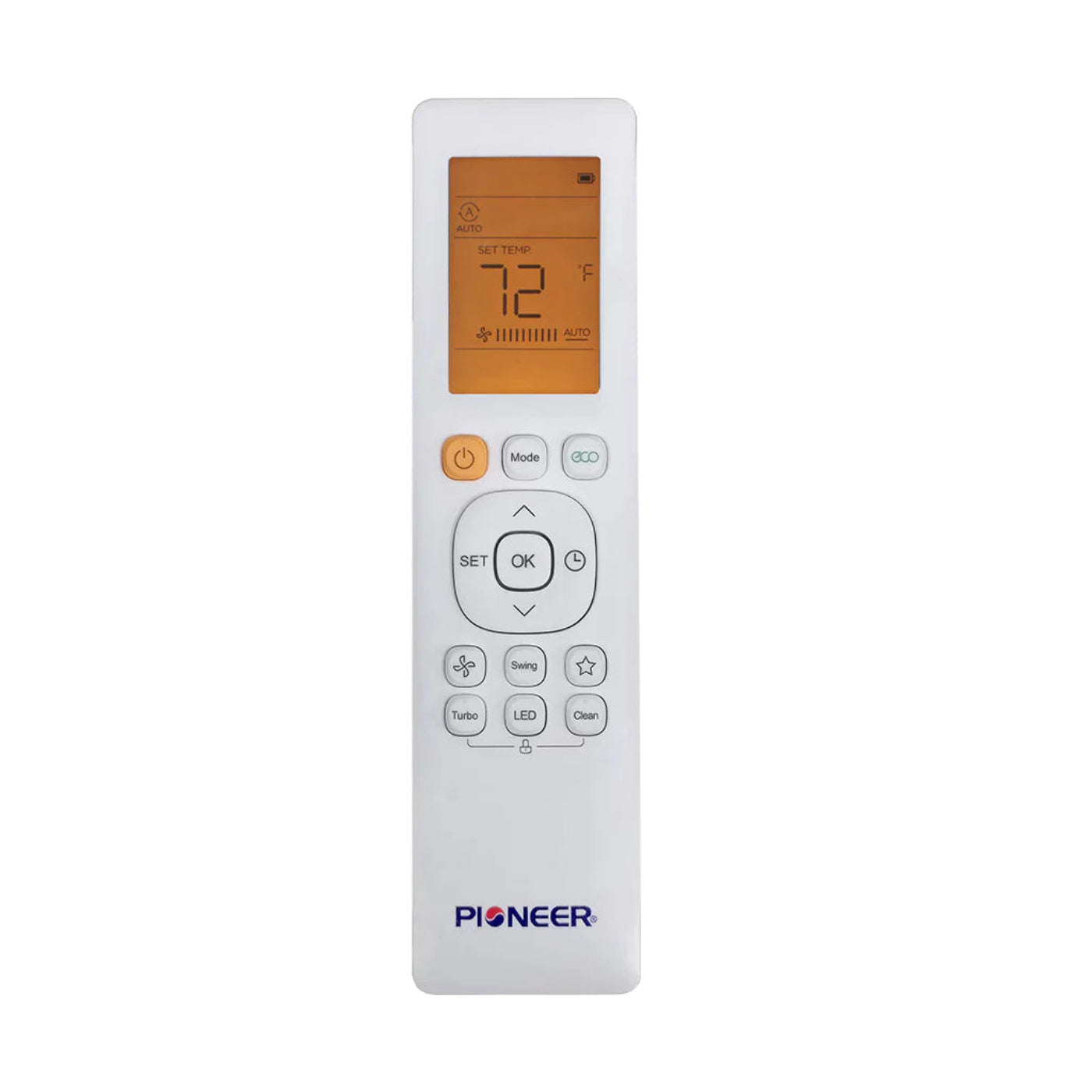

• Wireless Remote Control

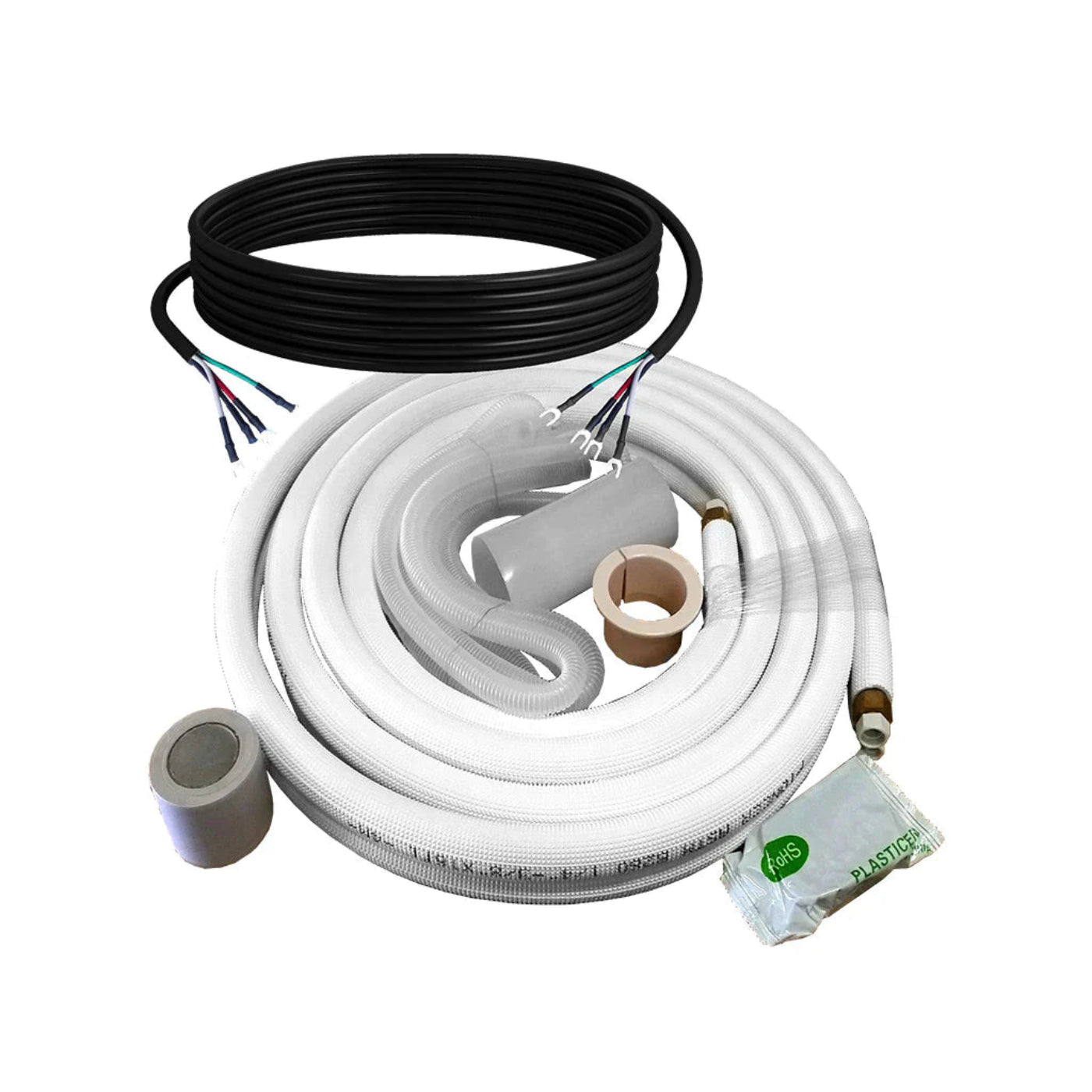

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Energy Guide
• Submittal Sheet

• Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 10 ft. Line Sets: This compact, high-performance mini-split system is perfect for smaller spaces that require both cooling and heating capabilities. The 8-way airflow ensures even temperature distribution, making it a top choice for those seeking consistent comfort.

• Energy Efficiency (20 SEER): With a 20 SEER rating, this system is designed to provide efficient heating and cooling, helping you save on energy costs without sacrificing performance. It’s a great option for users looking to maintain a comfortable indoor environment without a high energy bill.

• 8-Way Airflow: The 8-way compact cassette design directs airflow in multiple directions, ensuring that the entire space is evenly cooled or heated. This feature is especially useful in larger rooms or areas with varied cooling needs, allowing for uniform temperature distribution.

• Compact and Discreet Design: The ceiling cassette design allows the unit to be installed discreetly in the ceiling, blending seamlessly with the room’s decor. This makes it an ideal choice for spaces where aesthetics matter, as it won’t take up floor space or disrupt the visual appeal of the room.

• 10 ft. Line Sets: With 10 ft. of line sets included, this system offers flexibility for smaller installations. The line sets are easy to install, ensuring that the unit can be placed in a variety of locations without complicated installation requirements.

• 230V Power: Operating on 230V, this system is ideal for users who need a bit more power for their cooling and heating needs. The 230V configuration offers reliable performance and supports larger spaces or higher usage demands.

• Quiet Operation: Even during heavy use, this system operates quietly, ensuring that it won’t disrupt your home or office. It’s perfect for spaces where low noise levels are essential, such as bedrooms, offices, or quiet zones.

• Dual Heating and Cooling: As both an air conditioner and heat pump, this system provides versatile year-round performance, keeping you comfortable in both hot and cold weather. It’s an efficient solution that eliminates the need for separate heating and cooling units.

• Simple Installation: The cassette design makes installation easier compared to traditional wall-mounted units. The 10 ft. line sets offer the right flexibility for straightforward installation in rooms with limited space.

Q: What is the Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 10 ft. Line Sets (CYB009GMFILCAD-10)?
A: The Pioneer 9,000 BTU 8-Way Compact Cassette Mini-Split is a space-saving, high-efficiency air conditioner and heat pump system with a 20 SEER rating. This unit features an 8-way airflow design, providing excellent coverage and efficient cooling or heating. The system operates on 230V power and comes with 10 feet of line sets for installation.

Q: What does the 8-Way Compact Cassette design offer?
A: The 8-Way Compact Cassette design provides multi-directional airflow, ensuring even distribution of cool or warm air throughout the room. This makes it ideal for larger spaces where consistent air circulation is needed without the bulk of traditional wall-mounted units.

Q: What is the significance of the 20 SEER rating?
A: A 20 SEER rating indicates that the system is highly energy-efficient. The higher the SEER, the more efficiently the system uses electricity to cool or heat the space, which results in lower energy bills and better overall performance.

Q: Can this system be used for both cooling and heating?
A: Yes, the Pioneer 9,000 BTU Mini-Split system is equipped with a heat pump, allowing it to provide both air conditioning during the summer and heating in the winter, making it suitable for year-round use.

Q: What is the ideal room size for this 9,000 BTU system?
A: This system is ideal for cooling and heating rooms up to 400 square feet. It's well-suited for small to medium-sized spaces, such as bedrooms, offices, or small living areas.

Q: What is included in the package for the Pioneer 8-Way Compact Cassette system?
A: The system includes the indoor compact cassette unit, the outdoor unit, and 10 feet of line sets for installation. The line sets provide the necessary connection between the two units.

Q: Is professional installation required for the Pioneer Mini-Split system?
A: Yes, professional installation is recommended to ensure the system is installed correctly, especially with the 10 feet of line sets. Proper installation ensures the system operates efficiently and effectively.

Q: How does the Inverter+ technology work in this system?
A: The Inverter+ technology in this system adjusts the compressor speed based on the room’s cooling or heating needs. This results in more precise temperature control, quieter operation, and improved energy efficiency compared to fixed-speed systems.

Q: Does the Pioneer 9,000 BTU Mini-Split system come with a warranty?
A: Yes, this system typically comes with a manufacturer’s warranty for parts, offering peace of mind and support in case of any issues or defects during use.

• Clean Air Filters Regularly: Clean the cassette unit’s air filters at least once a month. Accumulated dust and debris can obstruct airflow and reduce system efficiency. Gently wash the filter with warm water or vacuum it, and allow it to dry completely before reinserting.

• Inspect the 10 ft. Line Sets: Check the 10 ft. line sets for any visible damage or signs of wear. Ensure that the line sets are securely attached, and that no leaks or kinks are present, which can affect refrigerant flow and overall system performance.

• Clear the Indoor Unit Vents: The 8-way cassette unit’s vents should be clear of any obstructions such as furniture, curtains, or objects. Blocked vents can impede airflow and cause the system to work harder, reducing efficiency.

• Clean the Outdoor Unit Coils: Inspect and clean the outdoor condenser coils every 3-6 months. Dirt, leaves, and debris can block heat transfer, causing the system to overheat. Use a soft brush or coil cleaner to remove buildup and maintain efficiency.

• Check the Condensate Drain Line: Periodically check the condensate drain to ensure it’s not clogged. A blocked drain line can lead to water damage, mold growth, and inefficient cooling or heating. Flush the drain line with water if needed to clear any blockages.

• Monitor Refrigerant Levels: If the system’s cooling or heating capacity drops, it may indicate low refrigerant levels. If you notice poor performance or ice buildup, contact a licensed technician to check and refill the refrigerant as needed.

• Ensure Proper System Drainage: Ensure the cassette unit is installed with proper drainage. Improper installation or a blocked drain can cause water to accumulate inside the unit, affecting its function and potentially causing leaks.

• Check for Leaks: Regularly inspect for refrigerant or water leaks around the unit. Leaks can reduce efficiency and may cause long-term damage to the system. If you find any leaks, contact a technician for repairs.

• Keep the Area Around the Outdoor Unit Clear: Ensure that the outdoor condenser unit has at least 12 inches of clearance from walls, shrubs, or debris to allow for proper airflow and heat dissipation.

• Lubricate Moving Parts: If the system has any moving components, such as fan blades or motors, apply a silicone-based lubricant periodically to reduce friction and extend the lifespan of these parts.

• Test System Performance: Run the system in both heating and cooling modes regularly to ensure it’s functioning correctly. If you notice temperature inconsistencies or performance issues, it may require servicing.

• Annual Professional Service: Have a professional technician inspect and service the system once a year. A professional will clean coils, check refrigerant levels, and inspect for potential issues that may affect performance.
