grab it before it's gone.
As low as possible.
Never used.
Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!
Performance Data | |
---|---|
Power Supply | 208~230V, 60Hz, 1Ph |
Cooling Rated Capacity | 9,000 BTU/h |
Cooling Capacity Range | 2,970~10,500 BTU/h |
Cooling SEER | 20.0 BTU/w |
Cooling EER | 13.0 BTU/w |
SEER2 | 20 |
Heating Rated Capacity | 10,000 BTU/h |
Heating Capacity Range | 2,230~11,650 BTU/h |
Heating HSPF4 | 10.5 BTU/w |
Heating C.O.P. | 3.08 W/W |
Refrigerant Type | R410A |
Suitable Area | 200~350 Sq.F |
Condenser | |
Breaker Needed | 15A (double-pole) |
Sound Level | 54.5 dB(A) |
Net Dimensions (WDH) | 30.3" W x 11.8" D x 21.8" H |
Carton Dimensions (WDH) | 35.3" W x 13.6" D x 14.6" H |
Net / Gross Weight | 64 / 69 Lbs |
Cool Mode - Outdoor Operating Temperature Range | 5° to 122°F |
Heat Mode - Outdoor Operating Temperature Range | -13° to 75°F |
Air Handler | |
Air Flow (Hi/Med/Lo) | 309 / 265 / 200 CFM |
Sound Level (Hi/Med/Lo) | 37.5 / 34.5 / 31.5 dB(A) |
Net Dimensions (WDH) | 22.5" W x 22.5" D x 10.3" H |
Carton Dimensions (WDH) | 25.8" W x 25.8" D x 11.5" H |
Net / Gross Weight | 32 / 38 Lbs |

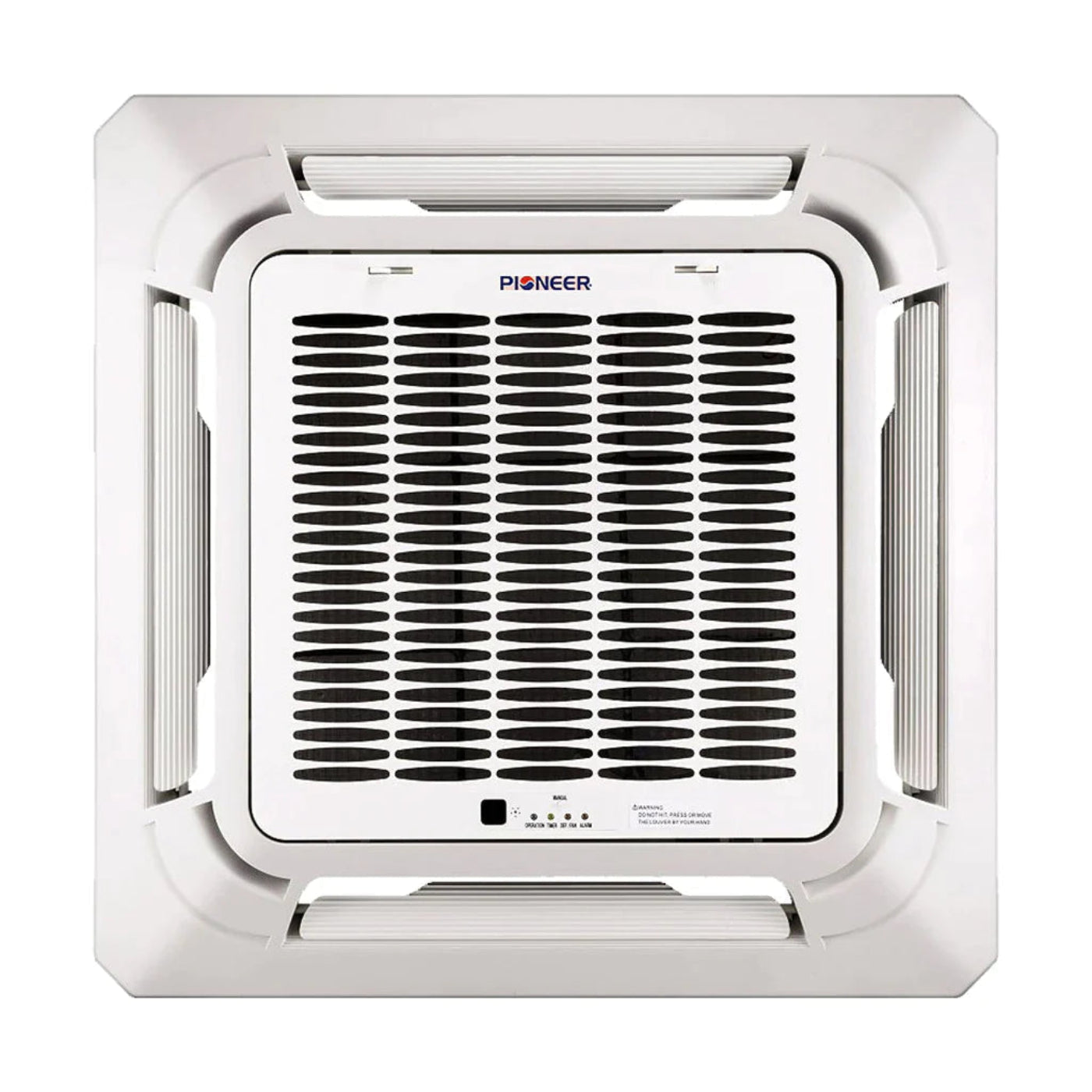

Panel Data | |
Product Dimensions | 25.5"W x 25.5"D x 2.0"H |
Weight | 28.0"W x 28.0"D x 5.0"H |
Net / Gross Weight | 6 / 10 Lbs |
Performance Data | |
---|---|
Power Supply | 110~120V, 60Hz, 1Ph |
Cooling Rated Capacity | 12,000 BTU/h |
Cooling Capacity Range | 3,700~13,000 BTU/h |
Cooling SEER | 20 BTU/w |
Cooling EER | 10.3 BTU/w |
SEER2 | 21.5 |
Heating Rated Capacity | 12,000 BTU/h |
Heating Capacity Range | 3,500~13,500 BTU/h |
Heating HSPF4/HSPF5 | 10.5 / 8.4 BTU/w |
Refrigerant Type | R410A/30 |
Suitable Area | 300~450 Sq.F |

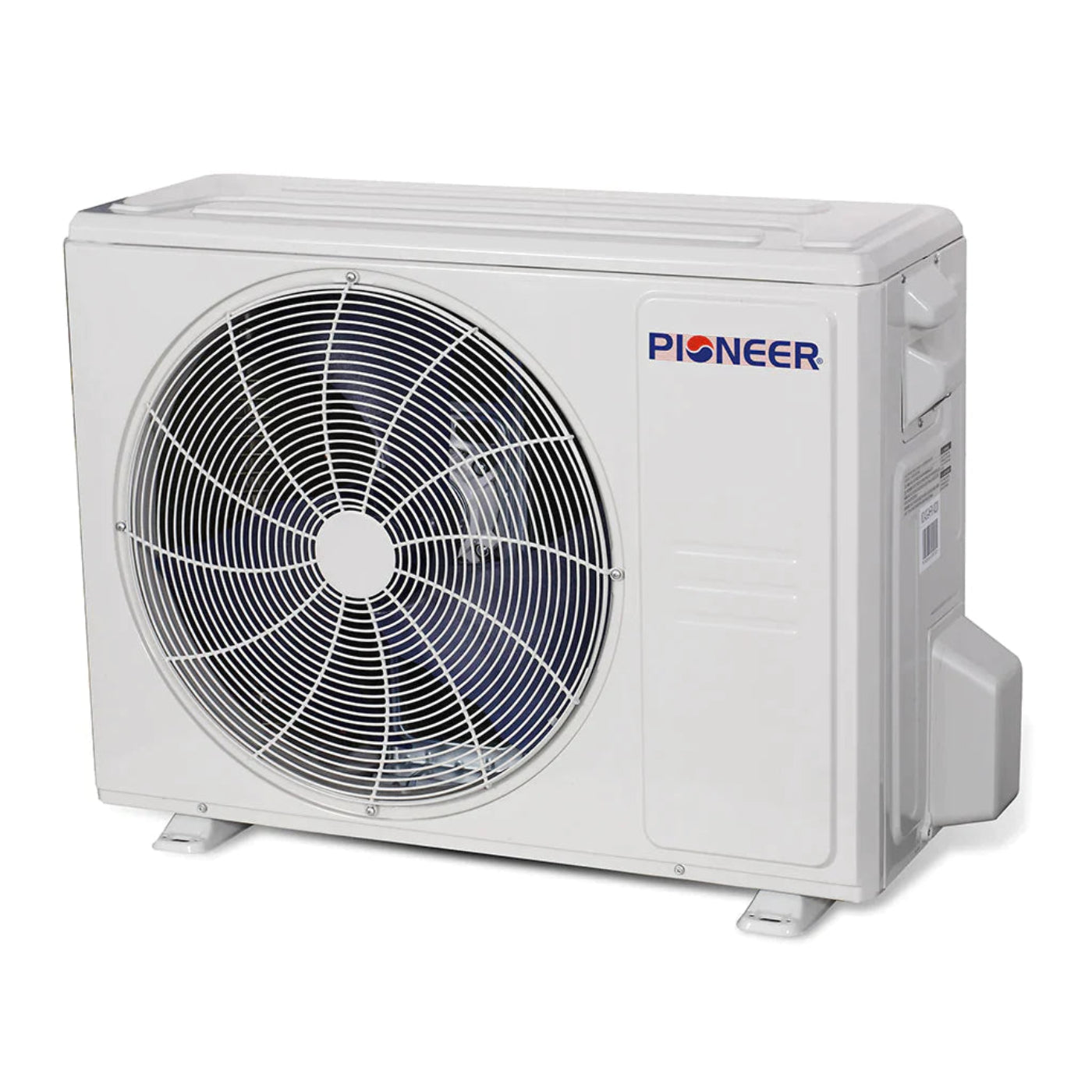

Condenser | |
Sound Level | 55.5 dB(A) |
Net Dimensions (WDH) | 30.1"W x 11.8" D x 21.81" H |
Carton Dimensions (WDH) | 34.8" W x 13.25" D x 24" H |
Net / Gross Weight | 62.2 / 67.7 lbs |
Cool Mode - Outdoor Operating Temperature Range | 5° to 122°F |
Heat Mode - Outdoor Operating Temperature Range | -13° to 75°F |
Air Handler | |
Air Flow (Hi/Med/Lo) | 309 / 206 / 176 CFM |
Sound Level (Hi/Med/Lo) | 41.5/ 30.5 / 26.0 dB(A) |
Net Dimensions (WDH) | 31.57" W x 7.44" D x 11.69" H |
Carton Dimensions (WDH) | 34.45" W x 11.22" D x 14.96" H |
Net / Gross Weight | 20 / 25 lbs |

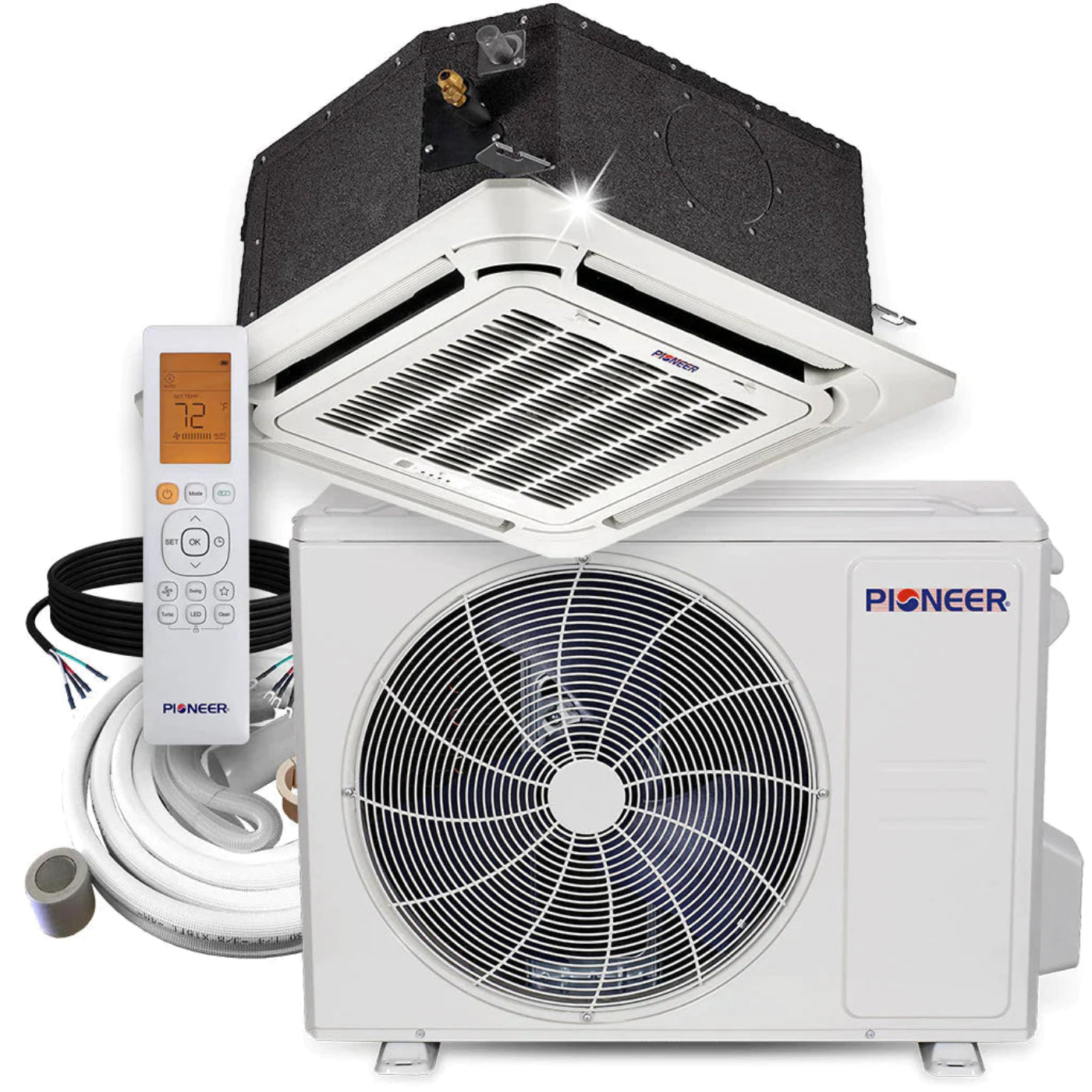

Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 16 ft. Line Sets: This highly efficient mini-split system combines the flexibility of 8-way airflow with a 20 SEER rating, delivering both cooling and heating capabilities. Ideal for medium-sized spaces, it provides consistent comfort year-round, with the convenience of a compact ceiling cassette design.
Energy Efficiency (20 SEER): With a 20 SEER rating, this unit maximizes energy savings while maintaining excellent performance. The higher SEER rating means reduced operational costs and a more eco-friendly option, making it a great investment for energy-conscious users.
8-Way Airflow: The 8-way airflow technology ensures that every corner of the room is effectively cooled or heated, preventing temperature fluctuations. This feature guarantees even air distribution, ensuring comfort throughout the space.
16 ft. Line Sets: The included 16 ft. line sets offer additional flexibility for installation, accommodating medium to larger spaces and various layouts. These extended line sets make it easier to place the outdoor unit further from the indoor unit, giving more installation options.
Compact Ceiling Cassette Design: The ceiling-mounted design allows the unit to blend seamlessly with the room's decor, saving space while maintaining a clean, professional look. The unit’s compact form is perfect for spaces where wall-mounted units might be intrusive.
Dual Heating and Cooling: As both an air conditioner and heat pump, this system efficiently adjusts to temperature changes, providing consistent warmth during colder months and effective cooling during hot weather. It’s ideal for year-round comfort in both residential and commercial environments.
Quiet Operation: The mini-split system operates quietly, ensuring a comfortable environment without the noise typically associated with traditional air conditioning systems. This makes it an excellent choice for bedrooms, offices, and other noise-sensitive areas.
230V Power: Designed for use in homes or businesses with 230V electrical systems, this unit offers enhanced power for larger or more demanding spaces, ensuring optimal performance during both cooling and heating.
Easy Installation: With 16 ft. of line sets included, this system provides flexibility for easy installation. The cassette design simplifies the setup compared to traditional wall-mounted systems, ensuring a hassle-free process.
Q: What is the Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 16 ft. Line Sets (CYB009GMFILCAD-16)?
A: The Pioneer 9,000 BTU 8-Way Compact Cassette Mini-Split is an energy-efficient air conditioner and heat pump system, featuring an 8-way airflow design for optimal air distribution. With a 20 SEER rating, it provides efficient cooling and heating and is equipped with 16 feet of line sets for installation.
Q: What are the benefits of the 8-Way Compact Cassette design?
A: The 8-way design ensures multi-directional airflow, which allows for even and efficient distribution of cool or warm air across the entire room. This feature is especially beneficial for rooms with irregular layouts or where centralized air delivery is desired.
Q: How does the 20 SEER rating impact energy usage?
A: The 20 SEER rating means the system is highly energy-efficient, using less electricity to achieve the same level of comfort compared to units with lower SEER ratings. This leads to reduced energy costs and a smaller carbon footprint.
Q: Can this system be used for both cooling and heating?
A: Yes, the Pioneer Mini-Split system includes a heat pump, making it versatile for both air conditioning in the summer and heating in the winter, ensuring year-round comfort.
Q: What size room is suitable for the 9,000 BTU system?
A: The 9,000 BTU system is suitable for rooms up to approximately 400 square feet, making it ideal for smaller to medium-sized spaces like bedrooms, small offices, or dens.
Q: What is included in the system package?
A: The package includes the indoor 8-way compact cassette unit, the outdoor unit, and 16 feet of line sets for installation, which allows for more flexibility in installation configurations.
Q: Is professional installation recommended for this system?
A: Yes, professional installation is highly recommended to ensure proper setup, especially with the 16 feet of line sets. This ensures the system operates efficiently and maximizes its lifespan.
Q: How does the Inverter+ technology improve performance?
A: Inverter+ technology adjusts the compressor speed based on the cooling or heating demands, ensuring optimal temperature control, quieter operation, and better energy efficiency than traditional fixed-speed units.
Q: Does the Pioneer 9,000 BTU Mini-Split system come with a warranty?
A: Yes, the system typically comes with a manufacturer's warranty for parts, providing peace of mind and support should any issues arise during its use.
Regular Filter Cleaning: Clean the air filters inside the cassette unit at least once a month. Dust and dirt can block airflow and reduce system efficiency. You can gently wash the filters with warm water or use a vacuum to remove dust. Be sure to let the filter dry completely before reinstalling.
Inspect the 16 ft. Line Sets: Check the 16 ft. line sets for any signs of damage or wear, such as cracks, kinks, or bends, as these can cause refrigerant leaks and hinder the system’s performance. Ensure that the line sets are properly insulated to prevent energy loss.
Clear Vents and Ducts: Ensure the 8-way cassette unit’s vents are clear of any obstructions, like furniture, curtains, or other objects. Blocked vents can restrict airflow, causing the system to overheat and operate inefficiently.
Outdoor Unit Coil Cleaning: Clean the outdoor condenser coils every 3 to 6 months. Leaves, dirt, and debris can accumulate on the coils, reducing their ability to transfer heat. Use a soft brush or coil cleaner to clean the coils without damaging them.
Check the Condensate Drain Line: Inspect and clean the condensate drain line regularly. Clogs in the drain line can cause water to back up, leading to water damage or mold buildup. If you notice water pooling inside the unit, clear any blockages in the drain.
Monitor Refrigerant Levels: If your system’s cooling or heating is not as effective, it might indicate low refrigerant levels. If you notice a drop in performance, contact a licensed technician to check and refill the refrigerant if necessary.
Ensure Proper Drainage: Ensure the cassette unit is installed with proper drainage. Any installation issues or blockages in the drainage system could cause water to accumulate inside the unit, which can damage the system and affect performance.
Inspect for Leaks: Regularly check both the indoor and outdoor units for any signs of refrigerant or water leaks. Leaks can cause a loss of efficiency and may result in the need for repairs. If you detect any, contact a professional technician immediately.
Maintain Clearances Around Outdoor Unit: Ensure the outdoor unit has at least 12 inches of clearance around it to allow proper airflow. Remove any obstructions such as shrubs, leaves, or debris that could block airflow and reduce the efficiency of the unit.
Lubricate Moving Parts: Periodically lubricate the moving components, such as fans and motors, to reduce wear and tear. This can help maintain smooth operation and extend the life of the system.
Test System Performance: Run the system periodically to ensure it is working efficiently. Check the cooling and heating functions to confirm they are both performing correctly. If you notice any temperature inconsistencies, contact a technician.
Annual Professional Maintenance: Schedule an annual inspection with a licensed technician to ensure your system is in top working condition. A technician can clean the coils, check the refrigerant levels, and inspect for any potential issues.
