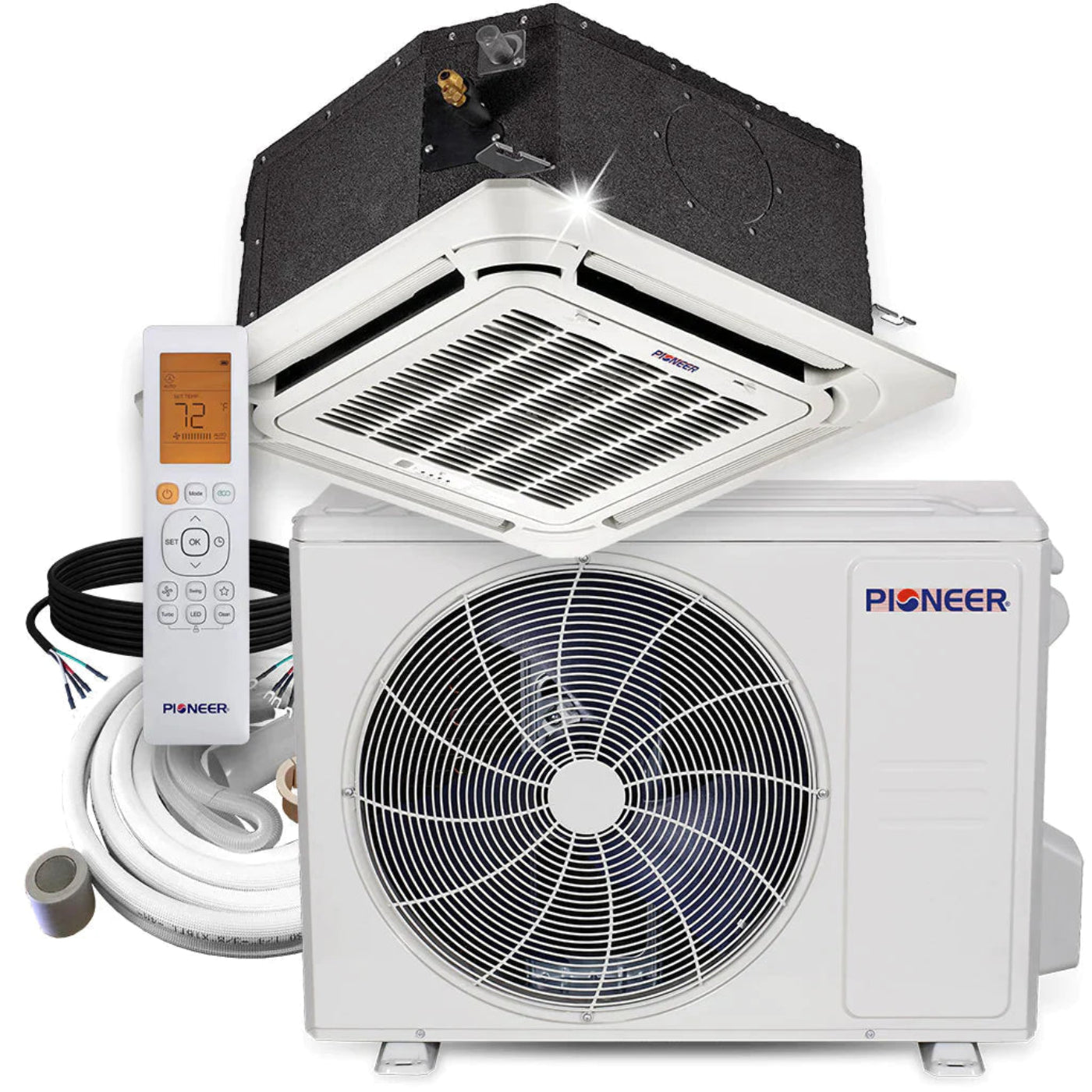

Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 33 ft. Line Sets - CYB009GMFILCAD-33

Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 33 ft. Line Sets - CYB009GMFILCAD-33

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 9,000 BTU/H with 20 SEER/13 EER efficiency
• Heating capacity: 10,000 BTU/H with 10.5 HSPF/3.08 COP efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $59.00
• Heating: $201.00
• Fresh Air Intake
  The Pioneer CYB series cassette offers a provision of fresh-air intake via an optional reserved 65-75 mm port. New outdoor air can be easily brought inside to replace stale room air.

• Built-in Drain Pump
  Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 30 inches for 9-18K models, and 40 inches for 24K and above models.

• 8-Way, 360° Airflow
  Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the room, thanks to an innovative design featuring 4 sides and 4 corners of airflow.

• Programmable Wired Controller Option
  The system can be operated by a wired controller (part number: TST-MLW-I-X2) which enables programming of weekly schedules, and usage without the handheld remote.

• Wi-Fi Controllable via Free App
  Control your new Pioneer CYB system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world. Requires separate purchase of the Smart Wi-Fi Kit

• Provision for Auxiliary Duct
  A great benefit of the CYB cassette system is the option for connecting a small auxiliary duct to the side of the indoor unit for cooling a small nearby room, like a closet or bathroom. This air outlet connection must be cut-out manually on the 9K-18K BTU size systems and is pre-made and reserved on the 24K BTU and above sized units.

• Indoor Unit

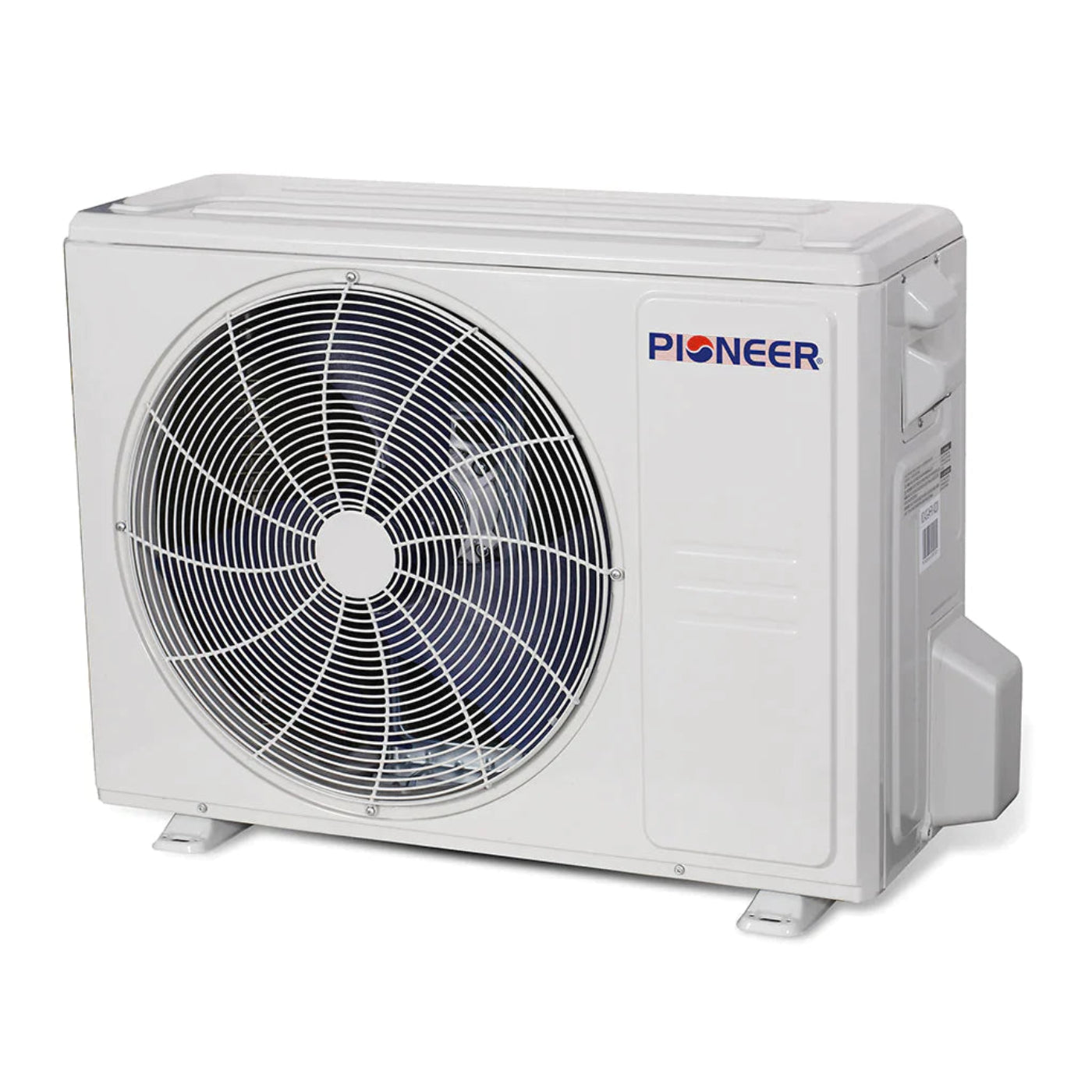

• Outdoor Unit

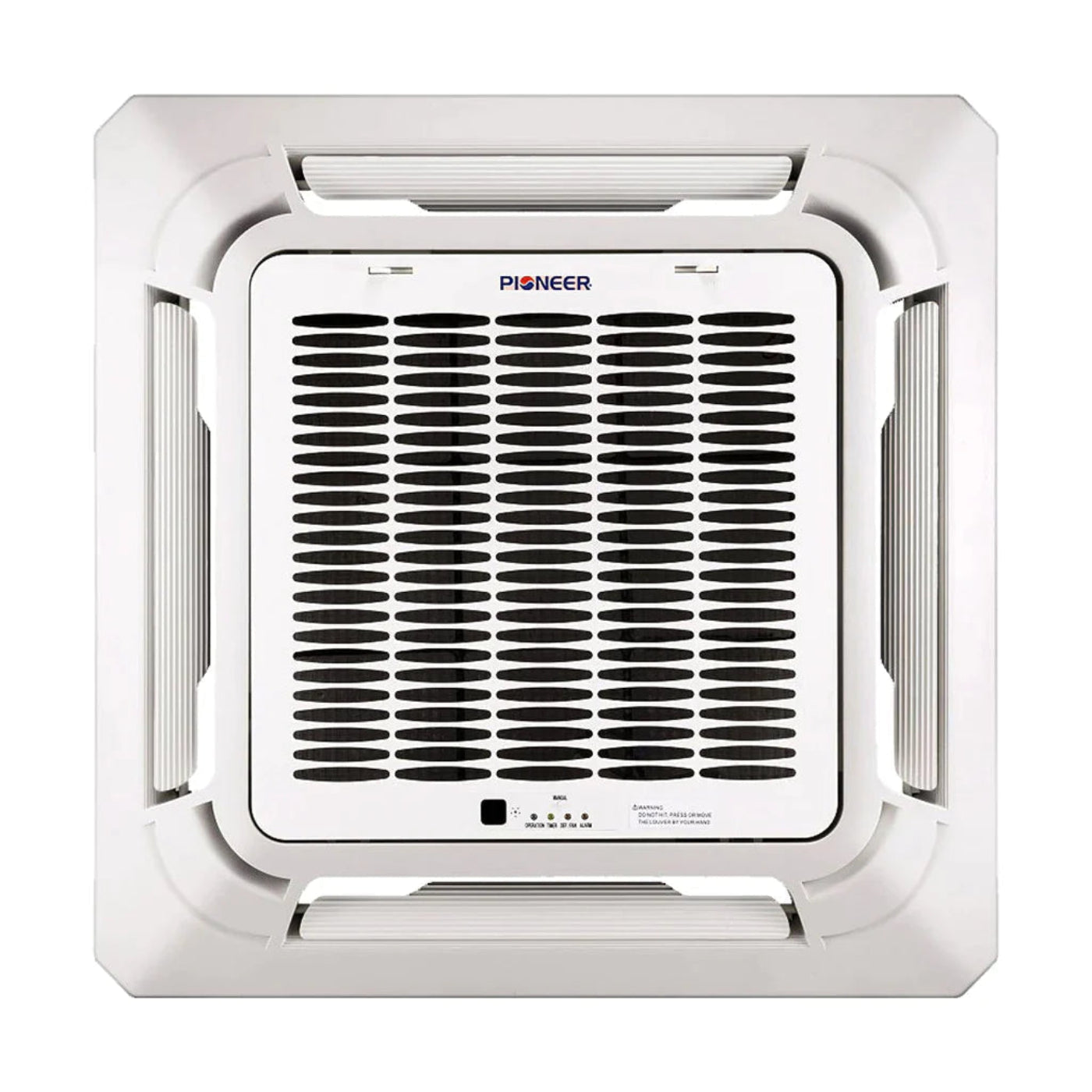

• Panel

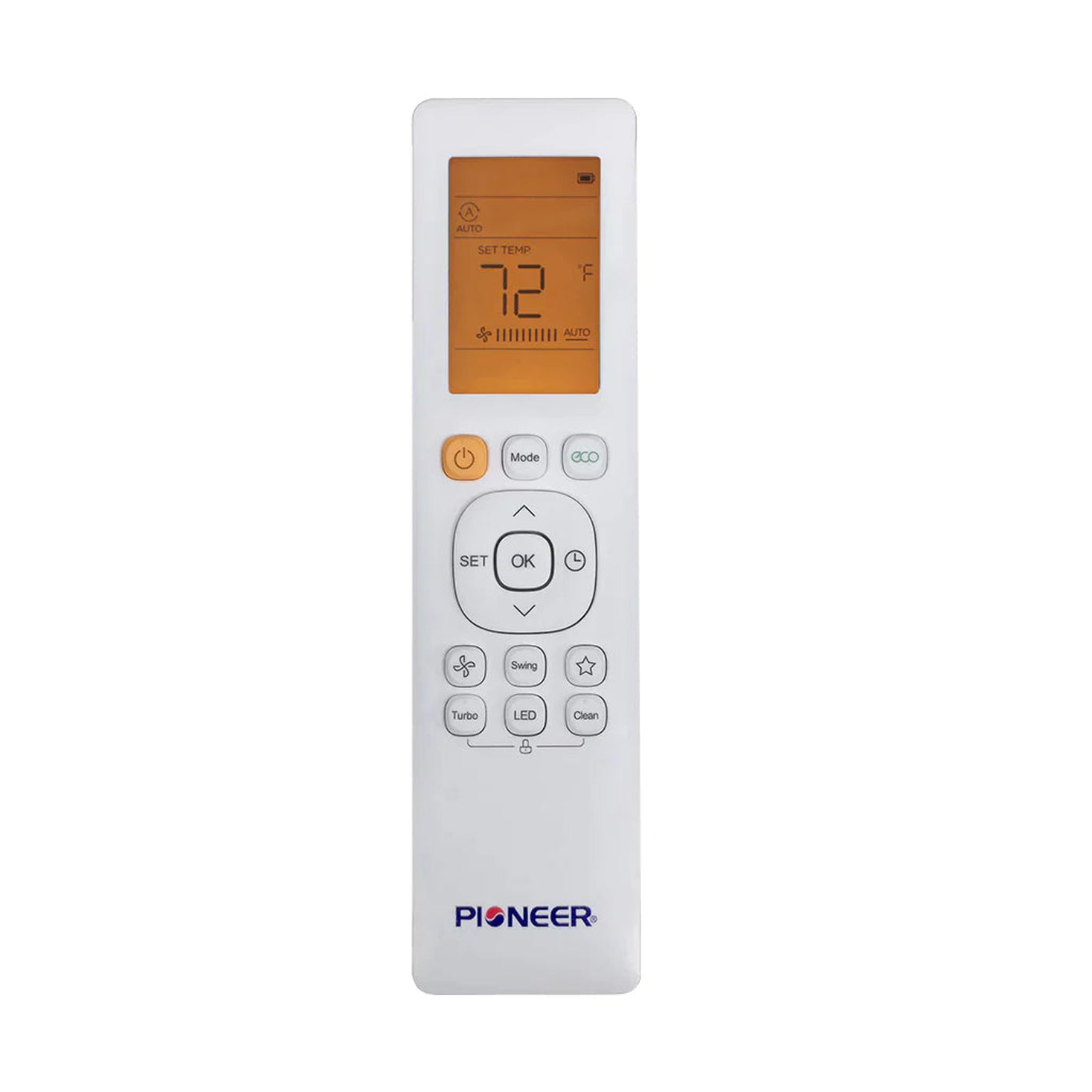

• Wireless Remote Control

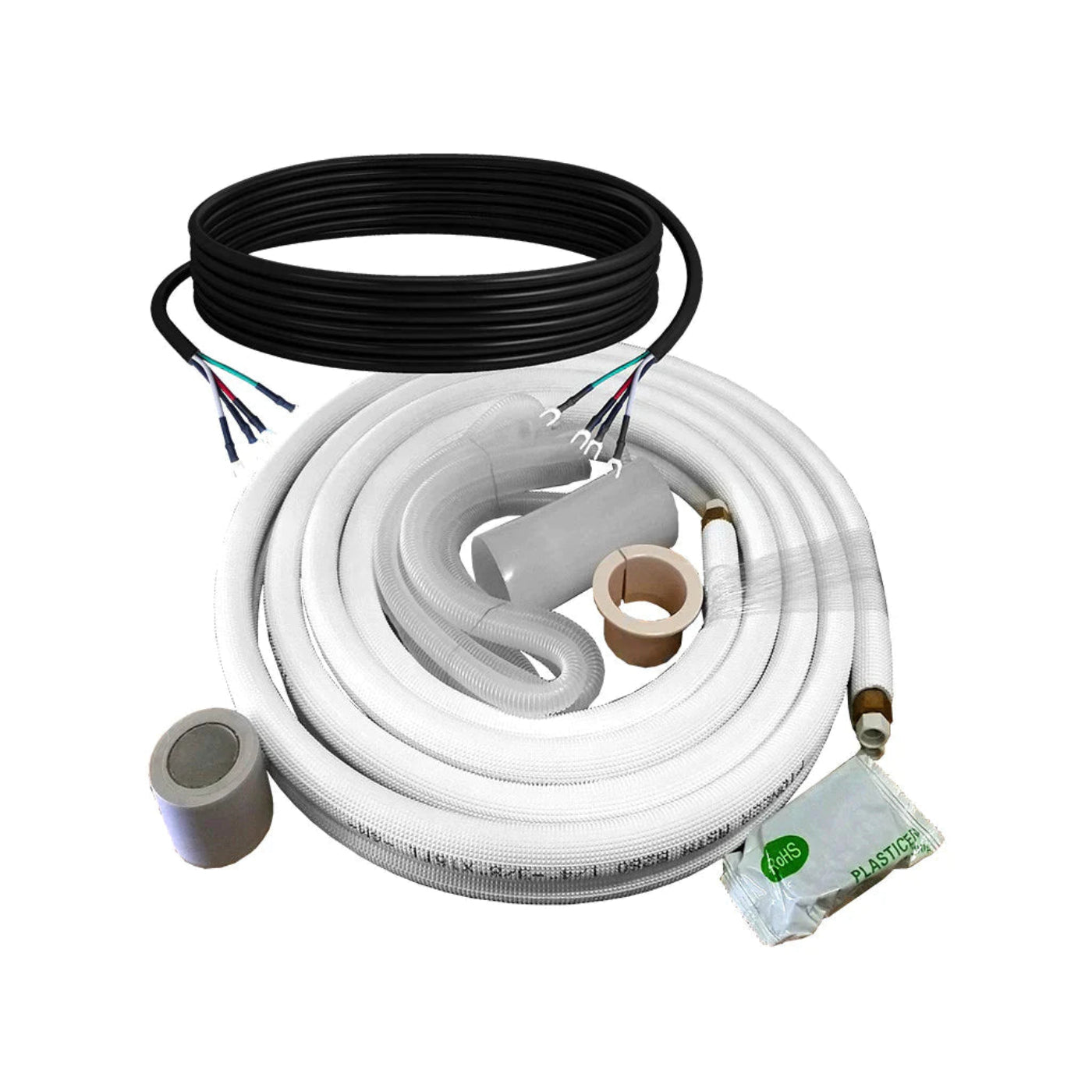

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Energy Guide
• Submittal Sheet

• Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 33 ft. Line Sets: This advanced mini-split system combines high energy efficiency with the flexibility of 8-way airflow, providing both cooling and heating for a comfortable indoor climate. The 33 ft. line sets make it a perfect solution for installations requiring a longer reach, offering greater flexibility in positioning the outdoor unit.

• Energy Efficiency (20 SEER): With a 20 SEER rating, this unit is designed to minimize energy consumption while delivering exceptional performance. This high level of efficiency helps reduce your energy bills, making it an excellent choice for those looking to save on operating costs.

• 8-Way Airflow: The 8-way airflow feature ensures even distribution of cooled or heated air throughout the room. This helps eliminate hot or cold spots, providing consistent comfort and a more uniform temperature experience.

• 33 ft. Line Sets: The longer 33 ft. line sets offer additional flexibility during installation, especially for larger or more complex spaces. This extended length allows the outdoor unit to be placed farther from the indoor unit, providing more options for optimal placement.

• Compact Ceiling Cassette Design: The ceiling cassette design makes it easy to blend the system into your space without taking up valuable wall or floor space. The sleek and unobtrusive installation is ideal for areas with limited space or for those who want a more modern, professional look.

• Dual Heating and Cooling: As both an air conditioner and heat pump, this system is designed to meet your needs year-round. Whether you need cooling in the summer or heating in the winter, this system provides reliable performance in both seasons.

• Quiet Operation: The unit operates quietly, providing comfort without noise disruption. This makes it a great choice for spaces like bedrooms, offices, or living rooms where a peaceful environment is key.

• 230V Power: The system operates on 230V, providing reliable performance for larger rooms or commercial spaces. This high-power configuration ensures that the unit can handle cooling and heating demands effectively.

• Easy Installation: The inclusion of 33 ft. line sets gives more flexibility in installation, allowing you to place the outdoor unit at a greater distance from the indoor unit. This makes it easier to find an optimal installation location, reducing installation complexity.

Q: What is the Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 33 ft. Line Sets (CYB009GMFILCAD-33)?
A: The Pioneer 9,000 BTU 8-Way Compact Cassette Mini-Split is an energy-efficient air conditioner and heat pump system. It features an 8-way airflow design for excellent air distribution and a 20 SEER rating for high efficiency. This system includes 33 feet of line sets for flexible installation options.

Q: What are the benefits of the 8-Way Compact Cassette design?
A: The 8-way airflow design provides multi-directional cooling and heating, ensuring uniform air distribution throughout the room. This feature makes it perfect for spaces with irregular layouts or areas where centralized air flow is needed.

Q: How does the 20 SEER rating improve energy efficiency?
A: A 20 SEER rating indicates that the system is highly energy-efficient. It uses less electricity to provide the same level of cooling or heating compared to lower SEER units, which translates to reduced energy costs and a smaller environmental footprint.

Q: Can this system be used for both cooling and heating?
A: Yes, this system functions as both an air conditioner and a heat pump, providing cooling during the summer and heating during the winter, ensuring year-round comfort in your space.

Q: What size room is suitable for this 9,000 BTU system?
A: The 9,000 BTU system is ideal for rooms up to approximately 400 square feet, making it great for smaller to medium-sized spaces such as bedrooms, offices, or living rooms.

Q: What is included in the system package?
A: The package includes the 8-way compact cassette indoor unit, the outdoor unit, and 33 feet of line sets for installation, offering flexibility in how the system is installed in your home or office.

Q: Is professional installation recommended?
A: Yes, professional installation is recommended, especially due to the 33 feet of line sets. Proper installation ensures optimal system performance, efficiency, and longevity.

Q: How does Inverter+ technology benefit this system?
A: The Inverter+ technology adjusts the compressor speed based on the current cooling or heating demands. This ensures more precise temperature control, reduces energy consumption, and leads to quieter operation compared to traditional fixed-speed systems.

Q: Does the Pioneer 9,000 BTU Mini-Split system come with a warranty?
A: Yes, the Pioneer Mini-Split system comes with a manufacturer’s warranty for parts, providing you with peace of mind should any issues arise during its use.

• Regular Filter Cleaning: Clean the air filters every month. Dust and debris can clog the filters and obstruct airflow, reducing efficiency. Wash the filters with warm water or vacuum them gently, and allow them to dry completely before reinserting.

• Inspect the 33 ft. Line Sets: Check the 33 ft. line sets for signs of damage or wear, such as cracks or bends, which could cause refrigerant leaks. Ensure the line sets are properly insulated to prevent energy loss and keep them free from obstructions.

• Clear the Vents: Ensure the 8-way cassette unit's vents are clear of any obstructions, like furniture or curtains. Blocked vents can limit airflow, forcing the system to work harder, which can reduce its lifespan and efficiency.

• Outdoor Unit Coil Cleaning: Clean the outdoor condenser coils every 3 to 6 months. Dirt, debris, and leaves can clog the coils and reduce their heat transfer capabilities. Use a soft brush or coil cleaner to gently remove any buildup without damaging the coils.

• Check the Condensate Drain Line: Inspect the condensate drain for clogs that can cause water to back up into the unit. A blocked drain can lead to water damage or mold growth. Flush the drain line with water periodically to keep it clear.

• Monitor Refrigerant Levels: If your system is not performing at its best, it could be due to low refrigerant levels. A drop in performance could indicate a refrigerant leak, so it’s important to contact a licensed technician for a checkup and refill if necessary.

• Ensure Proper Drainage: Confirm that the unit is installed with the proper drainage slope. Improper drainage can lead to water accumulation inside the unit, affecting its efficiency and causing potential water damage.

• Inspect for Leaks: Check for any refrigerant or water leaks around the indoor and outdoor units. Leaks can reduce performance and require repairs. If you notice any signs of leakage, it’s essential to contact a professional technician.

• Maintain Clearance Around the Outdoor Unit: Keep the area around the outdoor condenser unit clear of debris and obstructions. At least 12 inches of clearance is necessary for proper airflow and efficient operation.

• Lubricate Moving Parts: Periodically lubricate moving parts such as the fan and motor to prevent friction and wear. Use a silicone-based lubricant for smooth operation.
