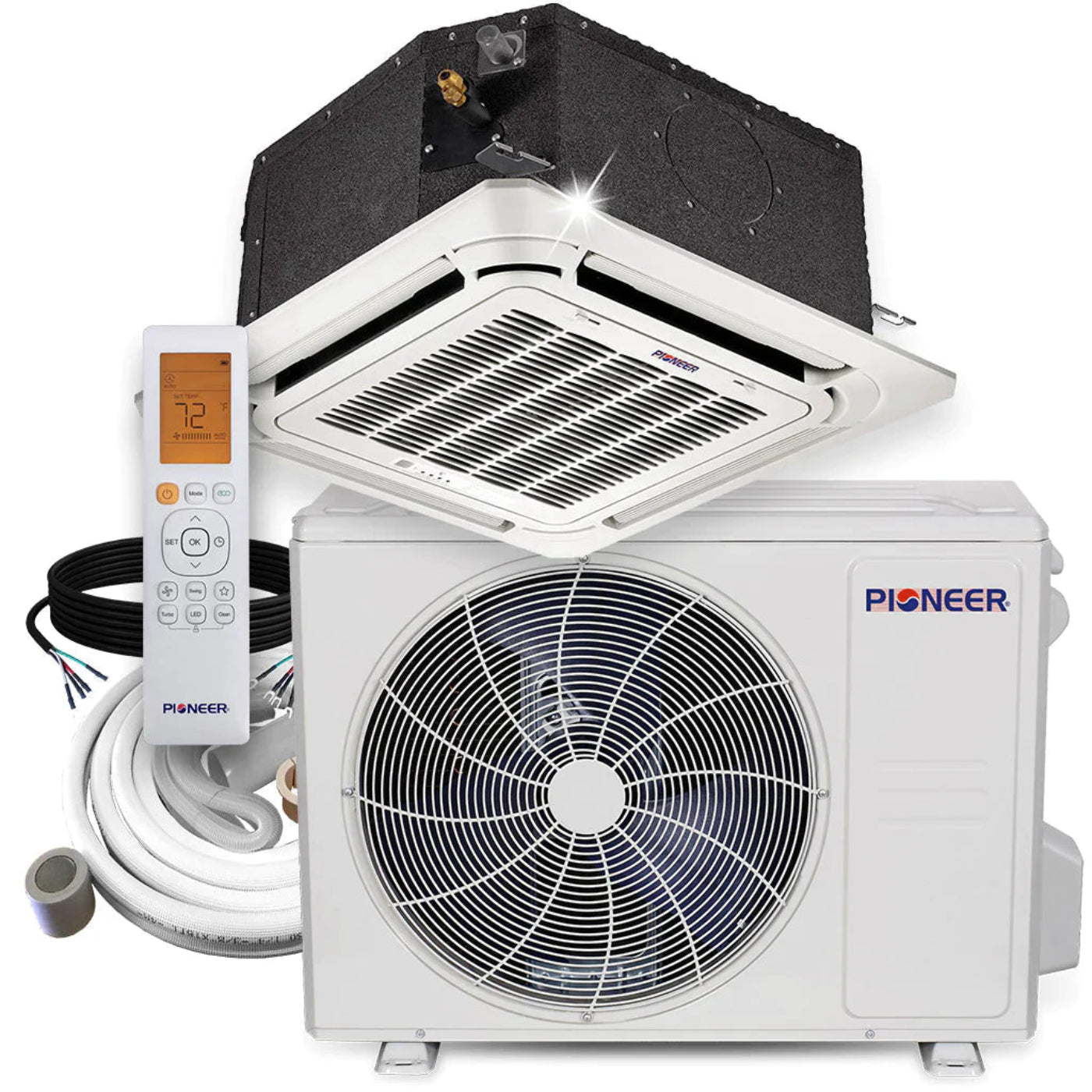

Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 50 ft. Line Sets - CYB009GMFILCAD-50

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 9,000 BTU/H with 20 SEER/13 EER efficiency
• Heating capacity: 10,000 BTU/H with 10.5 HSPF/3.08 COP efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $59.00
• Heating: $201.00
• Fresh Air Intake
  The Pioneer CYB series cassette offers a provision of fresh-air intake via an optional reserved 65-75 mm port. New outdoor air can be easily brought inside to replace stale room air.

• Built-in Drain Pump
  Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 30 inches for 9-18K models, and 40 inches for 24K and above models.

• 8-Way, 360° Airflow
  Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the room, thanks to an innovative design featuring 4 sides and 4 corners of airflow.

• Programmable Wired Controller Option
  The system can be operated by a wired controller (part number: TST-MLW-I-X2) which enables programming of weekly schedules, and usage without the handheld remote.

• Wi-Fi Controllable via Free App
  Control your new Pioneer CYB system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world. Requires separate purchase of the Smart Wi-Fi Kit

• Provision for Auxiliary Duct
  A great benefit of the CYB cassette system is the option for connecting a small auxiliary duct to the side of the indoor unit for cooling a small nearby room, like a closet or bathroom. This air outlet connection must be cut-out manually on the 9K-18K BTU size systems and is pre-made and reserved on the 24K BTU and above sized units.

• Indoor Unit

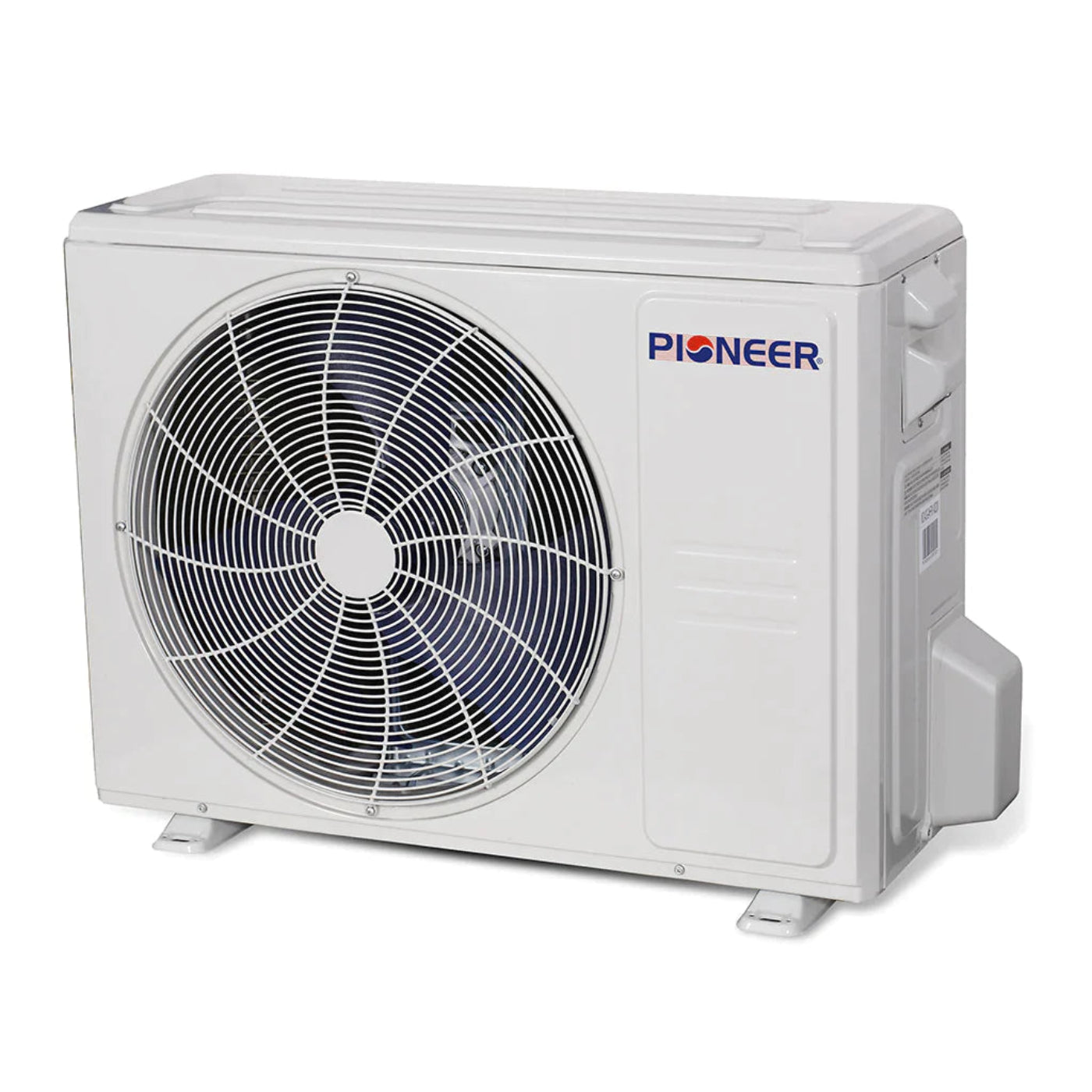

• Outdoor Unit

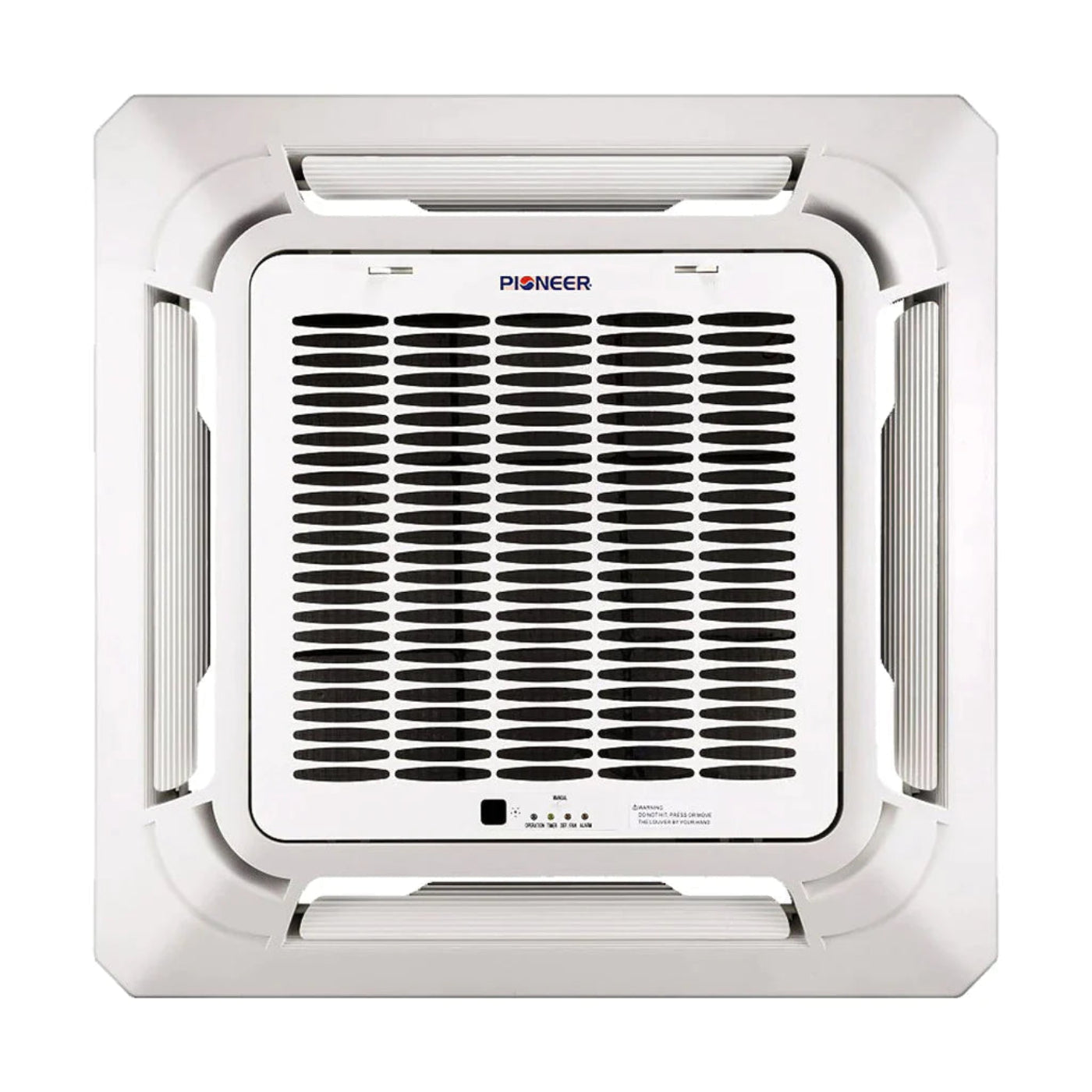

• Panel

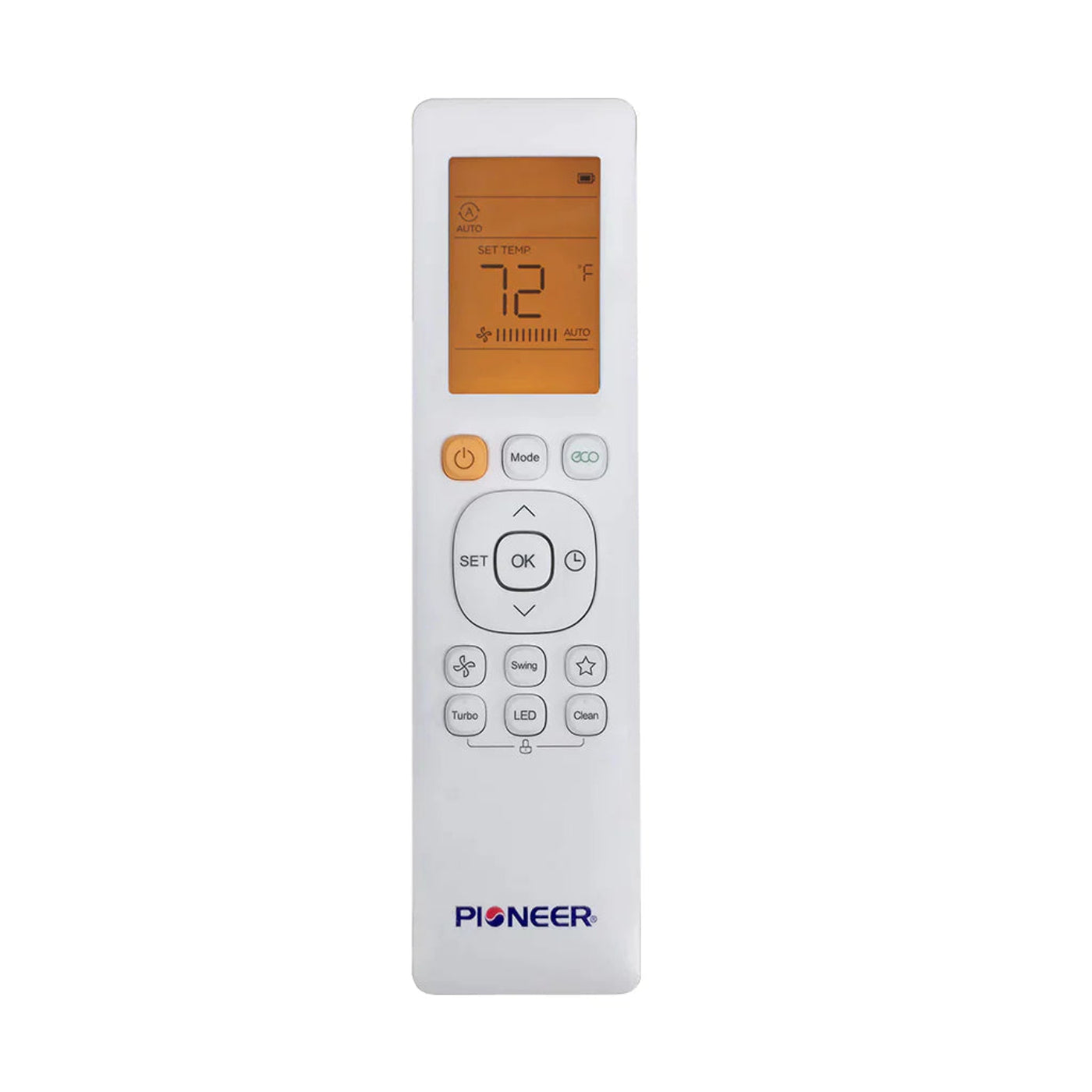

• Wireless Remote Control

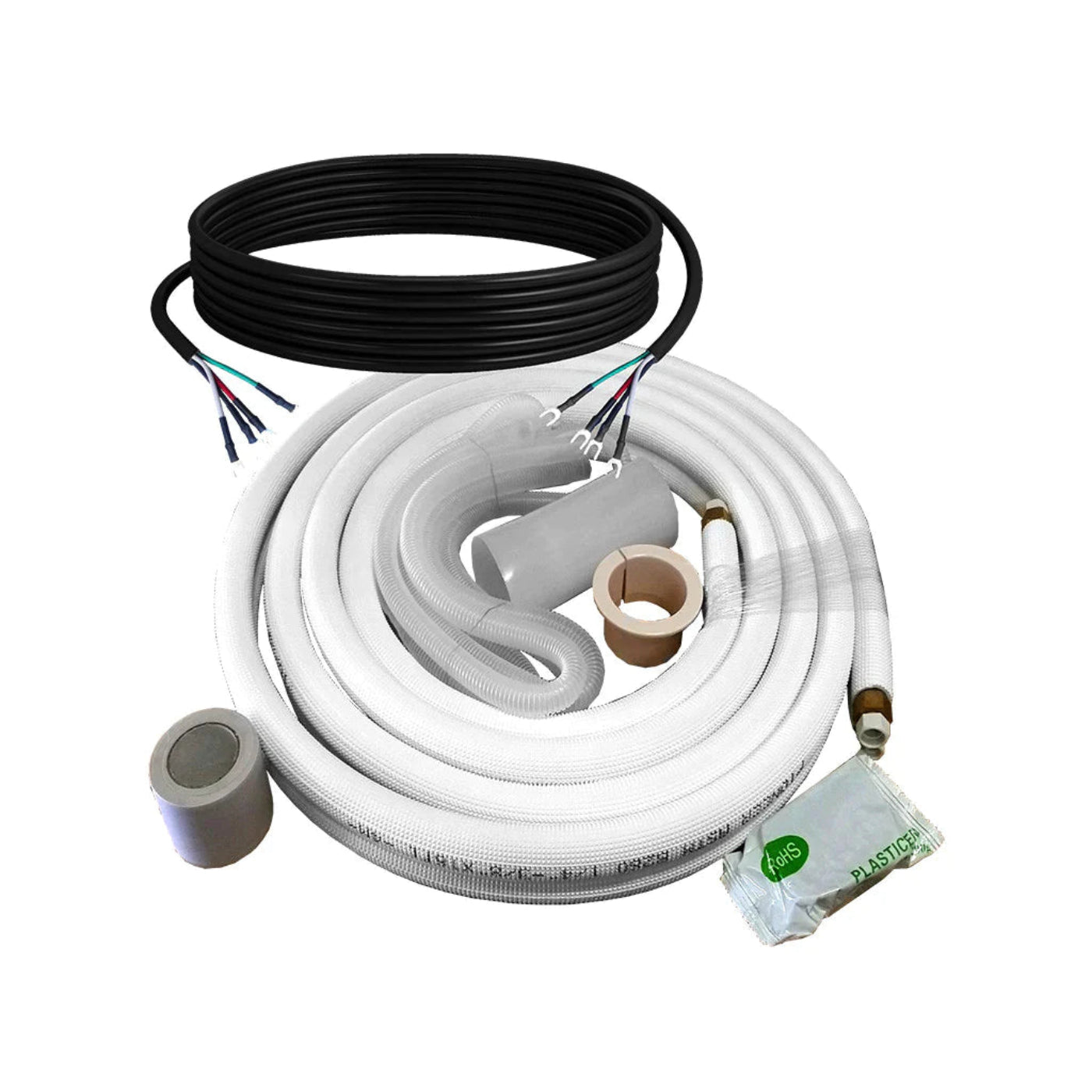

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Energy Guide
• Submittal Sheet

• Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 50 ft. Line Sets: This system offers exceptional performance with the flexibility of a 50 ft. line set, making it an excellent option for larger or more complex installations. With 8-way airflow and energy-efficient design, it ensures optimal comfort throughout the year, whether you need cooling in the summer or heating in the winter.

• Energy Efficiency (20 SEER): With an impressive 20 SEER rating, this system delivers superior efficiency, reducing both energy consumption and operational costs. It’s a smart choice for those looking to lower their energy bills without compromising on comfort.

• 8-Way Airflow: The 8-way airflow design ensures consistent and thorough air distribution, preventing hot or cold spots in your space. This feature makes it ideal for larger rooms or areas that require even temperature control.

• 50 ft. Line Sets: The inclusion of 50 ft. line sets provides even more installation flexibility, allowing you to position the outdoor unit further from the indoor unit. This is especially useful for larger homes or buildings where the outdoor unit needs to be placed at a greater distance.

• Compact Ceiling Cassette Design: The ceiling-mounted cassette design allows for seamless integration into your space without taking up valuable wall or floor space. Its sleek, unobtrusive appearance is perfect for modern interiors, keeping your environment clean and clutter-free.

• Dual Heating and Cooling: This system functions as both an air conditioner and heat pump, offering efficient cooling during hot months and reliable heating in colder weather. It’s a year-round solution for maintaining a comfortable indoor climate.

• Quiet Operation: With its quiet operation, this mini-split system ensures that your space remains peaceful and undisturbed, making it ideal for bedrooms, living rooms, or office spaces where noise sensitivity is important.

• 230V Power: Operating on 230V, this system offers ample power for larger spaces, ensuring consistent and efficient performance even in bigger rooms or commercial environments.

• Easy Installation: The extended 50 ft. line sets make installation more flexible, offering a wide range of placement options for the outdoor unit. This can simplify the installation process, particularly in larger or more challenging spaces.

Q: What is the Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System with 50 ft. Line Sets (CYB009GMFILCAD-50)?
A: The Pioneer 9,000 BTU 8-Way Compact Cassette Mini-Split is an efficient air conditioner and heat pump system with 20 SEER energy efficiency. It features 8-way airflow for even temperature distribution and includes 50 feet of line sets for versatile installation options.

Q: How does the 8-Way Compact Cassette design benefit the system?
A: The 8-way compact cassette design allows air to be distributed in multiple directions, ensuring even cooling and heating throughout the room. This feature is especially beneficial for spaces with unique layouts or larger rooms.

Q: What impact does the 20 SEER rating have on energy usage?
A: The 20 SEER rating signifies that the system is highly energy-efficient. It uses less power to maintain the desired temperature, which helps reduce your utility bills while providing effective cooling and heating.

Q: Can this unit be used for both cooling and heating?
A: Yes, this unit is equipped with a heat pump, allowing it to function as both an air conditioner for cooling and a heater for warming the space, providing year-round comfort.

Q: What size room can this system effectively cool or heat?
A: With a 9,000 BTU capacity, this system is best suited for rooms up to approximately 400 square feet, making it ideal for small to medium-sized spaces like bedrooms, offices, or living areas.

Q: What comes with the system package?
A: The package includes the 8-way compact cassette indoor unit, the outdoor unit, and 50 feet of line sets for installation. This extended length allows for greater flexibility in installation and setup.

Q: Should I hire a professional for installation?
A: Yes, professional installation is recommended, particularly due to the 50 feet of line sets. A qualified technician will ensure the system is properly installed for optimal performance, safety, and longevity.

Q: What are the advantages of Inverter+ technology?
A: The Inverter+ technology continuously adjusts the compressor’s speed to match the cooling or heating needs, which leads to better energy efficiency, more consistent temperatures, and quieter operation compared to traditional units.

Q: Does the Pioneer Mini-Split system come with a warranty?
A: Yes, the system comes with a manufacturer’s warranty for parts, giving you assurance that any potential issues will be addressed during the warranty period.

• Regular Filter Cleaning: Clean the air filters monthly. Dust and dirt can accumulate, blocking airflow and reducing efficiency. Use a vacuum or rinse them with warm water, ensuring they are completely dry before reinserting.

• Inspect the 50 ft. Line Sets: Check the 50 ft. line sets for damage, wear, or signs of refrigerant leakage, such as oil spots. Ensure the line sets are properly insulated to avoid energy loss and ensure safe operation.

• Ensure Clear Ventilation: Keep the 8-way cassette unit's vents free from obstructions like furniture or drapes. Blocked vents can impair airflow, forcing the system to work harder and reducing its lifespan.

• Outdoor Coil Cleaning: Clean the outdoor unit’s condenser coils every 3-6 months. Dirt, leaves, and debris can obstruct airflow and reduce heat exchange efficiency. Gently brush or use a coil cleaner to clean the coils without damaging them.

• Clear the Condensate Drain Line: Regularly inspect and clean the condensate drain line to avoid blockages that can lead to water backup. This can prevent water damage or mold growth. Use a soft brush or flush the line periodically to keep it clear.

• Monitor Refrigerant Levels: If you notice a decrease in cooling or heating performance, it may indicate low refrigerant levels. Leaks in the system can cause this, so it’s important to have a professional check and recharge the refrigerant as necessary.

• Proper Drainage: Ensure the unit is installed with proper drainage. A slope towards the drain is essential to avoid water pooling inside the unit, which can damage the system or create mold issues.

• Check for Leaks: Routinely check for refrigerant or water leaks around the indoor and outdoor units. Leaks can affect performance and lead to costly repairs, so contact a technician immediately if you detect any signs of leakage.

• Maintain Clearance Around the Outdoor Unit: Ensure the outdoor unit is unobstructed and has at least 12 inches of clearance around it to allow for adequate airflow. Remove any obstructions such as shrubs, dirt, or debris that could impede airflow.

• Lubricate Moving Parts: Periodically lubricate the fan and motor components to reduce friction and prevent wear. Use a silicone-based lubricant for the best results.

• System Performance Testing: Test the system regularly in both cooling and heating modes. If you notice issues such as inconsistent temperatures, strange noises, or poor airflow, it could indicate a problem that requires professional attention.

• Annual Professional Maintenance: Schedule an annual inspection and maintenance service with a certified technician. This will ensure all components, including refrigerant levels, coils, and moving parts, are in optimal condition and functioning efficiently.
