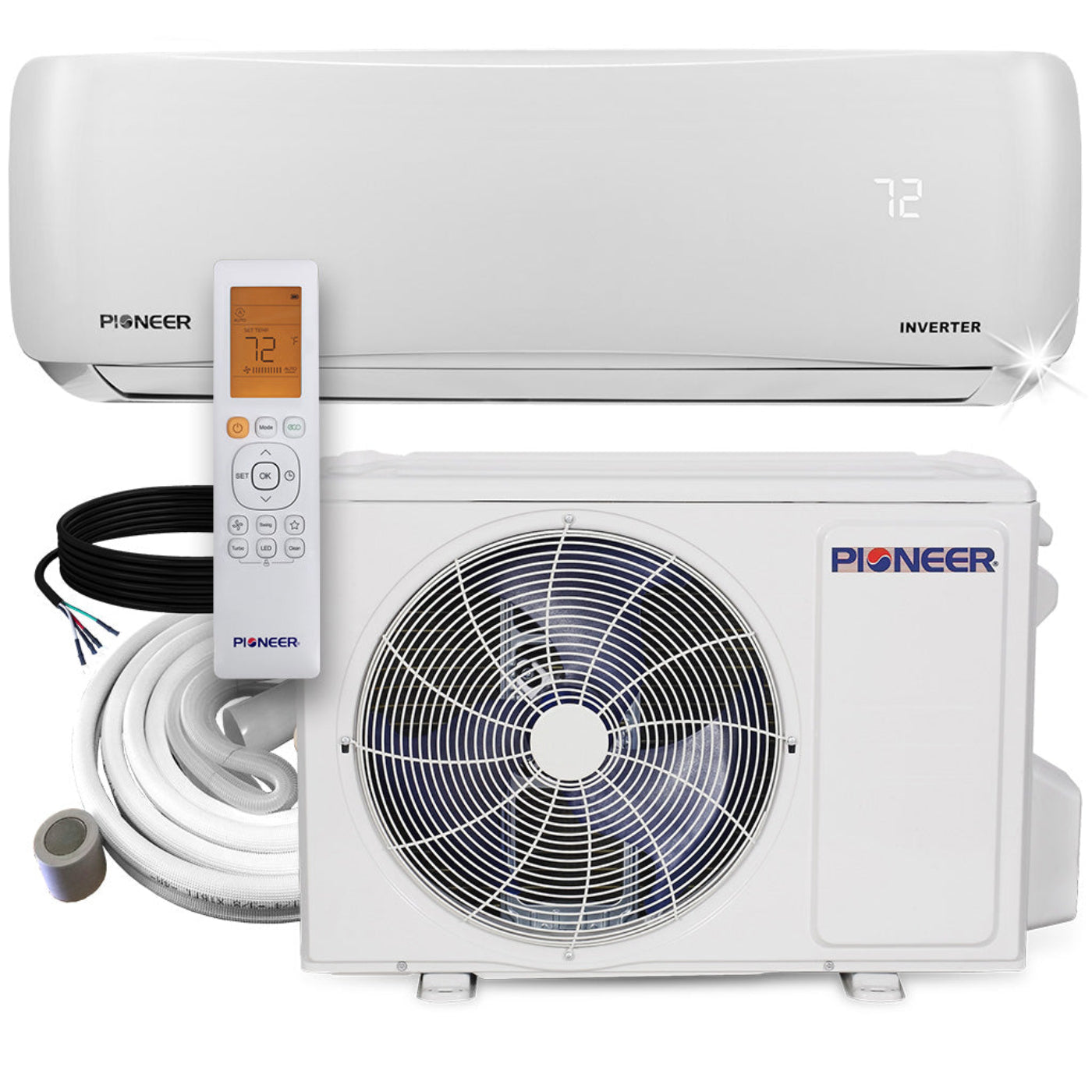

Pioneer 9,000 BTU 21.5 SEER 230V Ductless Mini-Split Inverter + Air Conditioner Heat Pump System with 10 ft. Line Sets - WYS009GMFI20RL-10

Pioneer 9,000 BTU 21.5 SEER 230V Ductless Mini-Split Inverter + Air Conditioner Heat Pump System with 10 ft. Line Sets - WYS009GMFI20RL-10

• Ultra-high-efficiency Pioneer 9,000 BTU 21.5 SEER 230V ductless mini-split inverter and air conditioner heat pump
• Cooling capacity: 9,000 BTU/H with 21.5 SEER efficiency
• Heating capacity: 10,000 BTU/H with 10 HSPF efficiency
• Voltage: 208~230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $55.00
• Heating: $211.00

• Refrigerant Leakage Detect Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Low Ambient Heating With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13°F.
• Follow Me Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Important Note

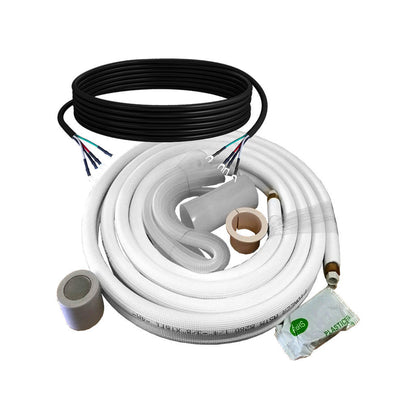

The installation kit is: 10 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

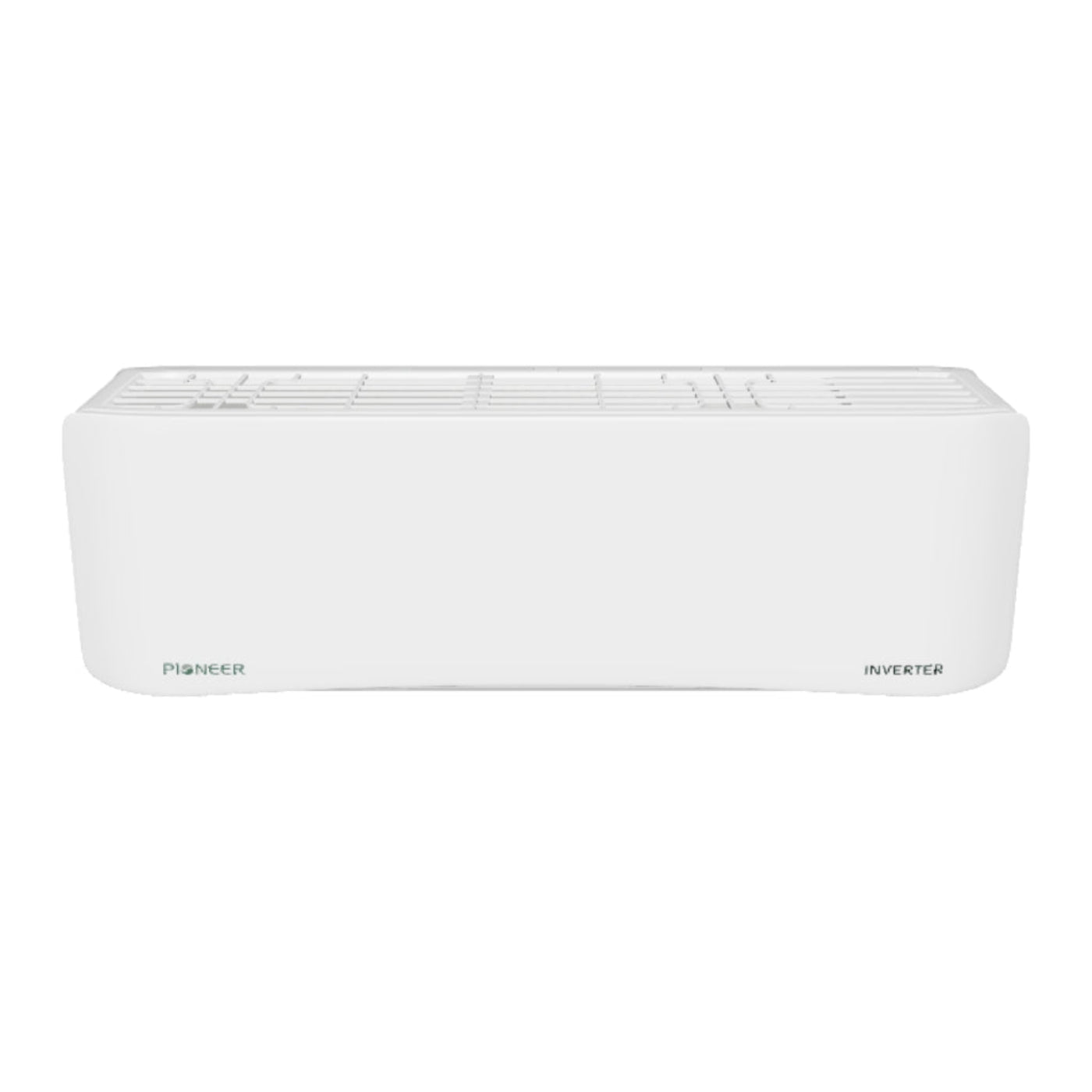

• Indoor Unit

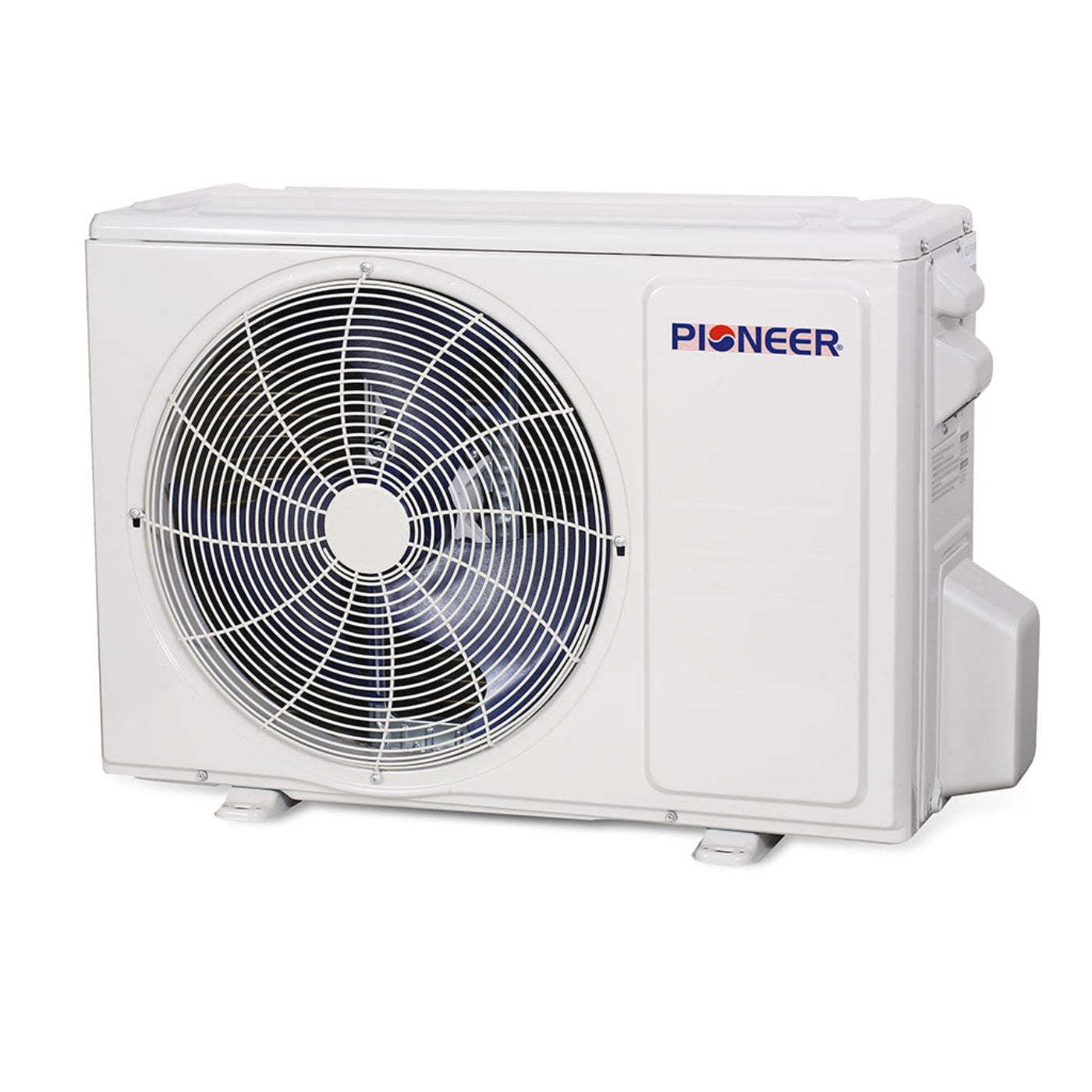

• Outdoor Unit

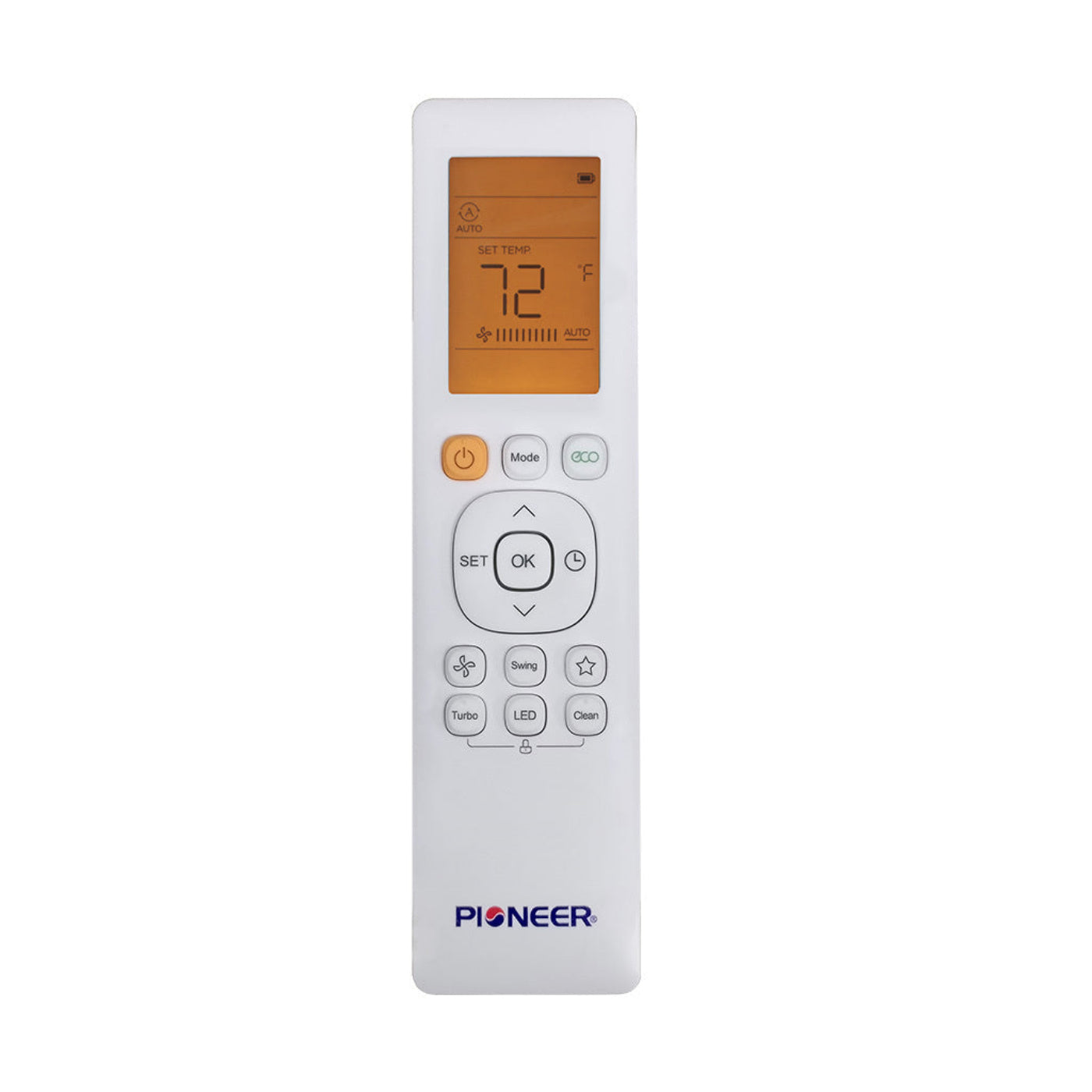

• Wireless Remote Control
• R410A Pre-Charged Outdoor Unit
• Flare Connection Leak Guard Sealer

• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Technical Brochure

• User Manual

• Installation Manual
• Service Manual
• Disassembly Guide
• Energy Guide

• Pioneer 9,000 BTU 21.5 SEER 230V Ductless Mini-Split Inverter + Air Conditioner Heat Pump System with 10 ft. Line Sets: This system combines excellent energy efficiency, advanced inverter technology, and versatile heating and cooling capabilities. The 21.5 SEER rating ensures that the system delivers high performance while maintaining low energy consumption. The 10 ft. line sets provide ease of installation, making it an ideal choice for smaller spaces or more straightforward installations.

• Energy Efficiency (21.5 SEER): With a 21.5 SEER rating, this unit stands out for its superior energy efficiency, meaning it delivers excellent cooling and heating performance while minimizing electricity use. The inverter technology helps adjust the power based on the room's demand, enhancing overall efficiency and keeping your energy bills low.

• Inverter+ Technology: The inverter+ system uses a variable-speed compressor that adjusts the cooling and heating output based on your needs. This results in smoother temperature control, quieter operation, and more efficient energy use, providing a comfortable environment with reduced energy costs.

• 10 ft. Line Sets: The inclusion of 10 ft. line sets makes installation straightforward, especially in smaller or less complex spaces. While offering sufficient flexibility, it keeps the overall setup simple, reducing installation time and potential costs.

• Quiet Operation: Operating quietly, this mini-split ensures that your indoor space remains undisturbed by loud equipment noise. Whether in a bedroom, office, or living room, this system provides a peaceful atmosphere while maintaining optimal temperature control.

• Dual Heating and Cooling: This system functions as both an air conditioner and a heat pump, providing year-round comfort. You’ll enjoy cool air during the summer months and efficient heating when temperatures drop, all with the same unit.

• 230V Power: Operating on 230V, this unit offers powerful performance suitable for moderate-sized spaces, delivering efficient cooling and heating with a stable power source. The 230V setup ensures it is more capable of handling the demands of residential or light commercial applications.

• Easy Installation: The 10 ft. line sets simplify installation and reduce the need for extensive adjustments. This makes the system easier and quicker to install, saving on labor costs, while still offering enough flexibility for optimal placement of the outdoor unit.

Q: What is the Pioneer 9,000 BTU 21.5 SEER 230V Ductless Mini-Split Inverter+ Air Conditioner Heat Pump System with 10 ft. Line Sets (WYS009GMFI20RL-10)?
A: The Pioneer 9,000 BTU Mini-Split system offers both cooling and heating functions with a 21.5 SEER rating for energy-efficient performance. This system operates on 230V and comes with 10 feet of line sets for easy installation in smaller spaces.

Q: What does the 21.5 SEER rating mean for energy efficiency?
A: A 21.5 SEER rating indicates high energy efficiency, meaning the system consumes less electricity while providing powerful cooling and heating. This helps reduce energy costs while maintaining a comfortable indoor environment.

Q: Can the system be used for both cooling and heating?
A: Yes, this system features a heat pump, which means it can be used for both cooling in the summer and heating in the winter, making it ideal for year-round use.

Q: What size room is suitable for this 9,000 BTU system?
A: The 9,000 BTU system is ideal for rooms up to approximately 400 square feet, such as small to medium-sized bedrooms, offices, or living rooms.

Q: How does the Inverter+ technology enhance the performance?
A: Inverter+ technology continuously adjusts the compressor's speed based on the room's cooling or heating needs. This leads to better energy efficiency, more stable temperature control, and quieter operation compared to traditional systems.

Q: What is included in the system package?
A: The system package includes the 9,000 BTU indoor unit, the outdoor unit, and 10 feet of line sets for installation, making it ideal for short-distance installations or smaller spaces.

Q: Is professional installation recommended?
A: Yes, professional installation is recommended to ensure the system is properly set up for optimal performance and efficiency. The 10 feet of line sets provide flexibility in placement, and a professional installer can ensure proper connection and operation.

Q: How does this system compare to other mini-split units?
A: This system stands out due to its high 21.5 SEER rating, providing better energy efficiency than many other systems. The 9,000 BTU capacity and Inverter+ technology make it an excellent option for smaller spaces while ensuring quiet and consistent performance.

Q: Does the Pioneer 9,000 BTU Mini-Split come with a warranty?
A: Yes, the system is covered by a manufacturer's warranty, which offers peace of mind and ensures that any potential issues are addressed during the warranty period.

• Clean the Air Filters Regularly: Clean or replace the air filters every 1-2 months. Dust and dirt buildup on the filters can obstruct airflow and reduce the system's efficiency. Use a vacuum or wash the filters with warm water, ensuring they are completely dry before reinserting.

• Inspect the 10 ft. Line Sets: Check the 10 ft. line sets for damage or wear, especially around the connection points. Look for oil stains, which could indicate refrigerant leaks. Ensure the line sets are properly insulated to prevent energy loss and to maintain system performance.

• Ensure Proper Airflow: Keep the indoor unit’s vents free of obstructions, such as furniture or curtains, to allow optimal airflow. Blockages can cause the system to overheat or reduce its efficiency. Position the unit in an area where airflow is not impeded.

• Clean the Outdoor Unit’s Coils: Every 3-6 months, clean the condenser coils on the outdoor unit. Debris, dirt, and leaves can accumulate and obstruct the coils, reducing heat exchange efficiency. Use a soft brush or coil cleaner to gently clean the coils.

• Clear the Condensate Drain Line: Inspect and clean the condensate drain line to avoid blockages. Standing water can lead to mold growth and system malfunctions. Flush the line with water periodically or use a wet/dry vacuum to clear any debris.

• Monitor Refrigerant Levels: If you notice a decrease in cooling or heating efficiency, it may be due to low refrigerant levels. Have a professional technician check and recharge the refrigerant as needed, as leaks can lead to energy loss and damage to the system.

• Check for Leaks: Inspect both the indoor and outdoor units for signs of refrigerant or water leaks. Leaks can compromise performance and lead to costly repairs. If you find any leaks, have them addressed immediately by a professional.

• Proper Drainage: Ensure that the unit is installed with proper drainage and has a slight slope towards the drain. This will prevent water buildup inside the system, which can cause damage or mold issues.

• Lubricate Moving Parts: Lubricate the fan motor and other moving parts to reduce friction and prevent wear. Use an appropriate lubricant designed for HVAC systems.

• Test System Performance: Regularly run the system in both cooling and heating modes to ensure it’s functioning properly. If there are any performance issues, such as inconsistent temperatures or unusual sounds, it may require professional attention.

• Maintain Clearance Around the Outdoor Unit: Ensure the outdoor condenser unit has at least 12 inches of clearance around it to allow proper airflow. Keep the area around the unit free from leaves, debris, or any obstructions that could block airflow.

• Annual Professional Maintenance: Schedule an annual inspection by a certified technician to ensure that all components of the system are functioning efficiently. The technician will check refrigerant levels, clean the coils, inspect the line sets, and perform any necessary repairs.
