Pioneer 24,000 BTU 20 SEER 8-Way Compact Cassette Air Handler - CYB024GMFILCAD-25

Pioneer 24,000 BTU 20 SEER 8-Way Compact Cassette Air Handler - CYB024GMFILCAD-25

Indoor units of this type of ceiling-mount ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Cassette systems also come with remote supply ducting and fresh air intake options. Our ceiling cassette mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mount ductless mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

• Cooling capacity: 24,000 BTU/H with 20.0 SEER efficiency
• Heating capacity: 24,400 BTU/H with 10.5 HSPF efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• Front Desk Control. With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• Temperature Compensation. Temperature compensation function eliminates the difference in temperature between the floor and ceiling by mixing the different layers of air. Consequently, the time for cooling the room is reduced, and a cold offset rising stream of warm air by stirring.
• Refrigerant Leakage Detect. Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function. Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency start
• Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
• Follow Me (Remote Thermostat). Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.
• 46°F Heating. In heating operation, the preset temperature of the air conditioner can be as low as 46°F, which keeps the room temperature steady at 46°F and prevents the house from freezing when it is unoccupied for a long time in severe cold weather.

Optional

• Ionizer. Release negative ions, eliminate odor, dust, smoke and pollen particles to give you fresh and healthy air.
• Wired Controller. Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
• Remote in Engineer Mode
• Central Control Management. The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.

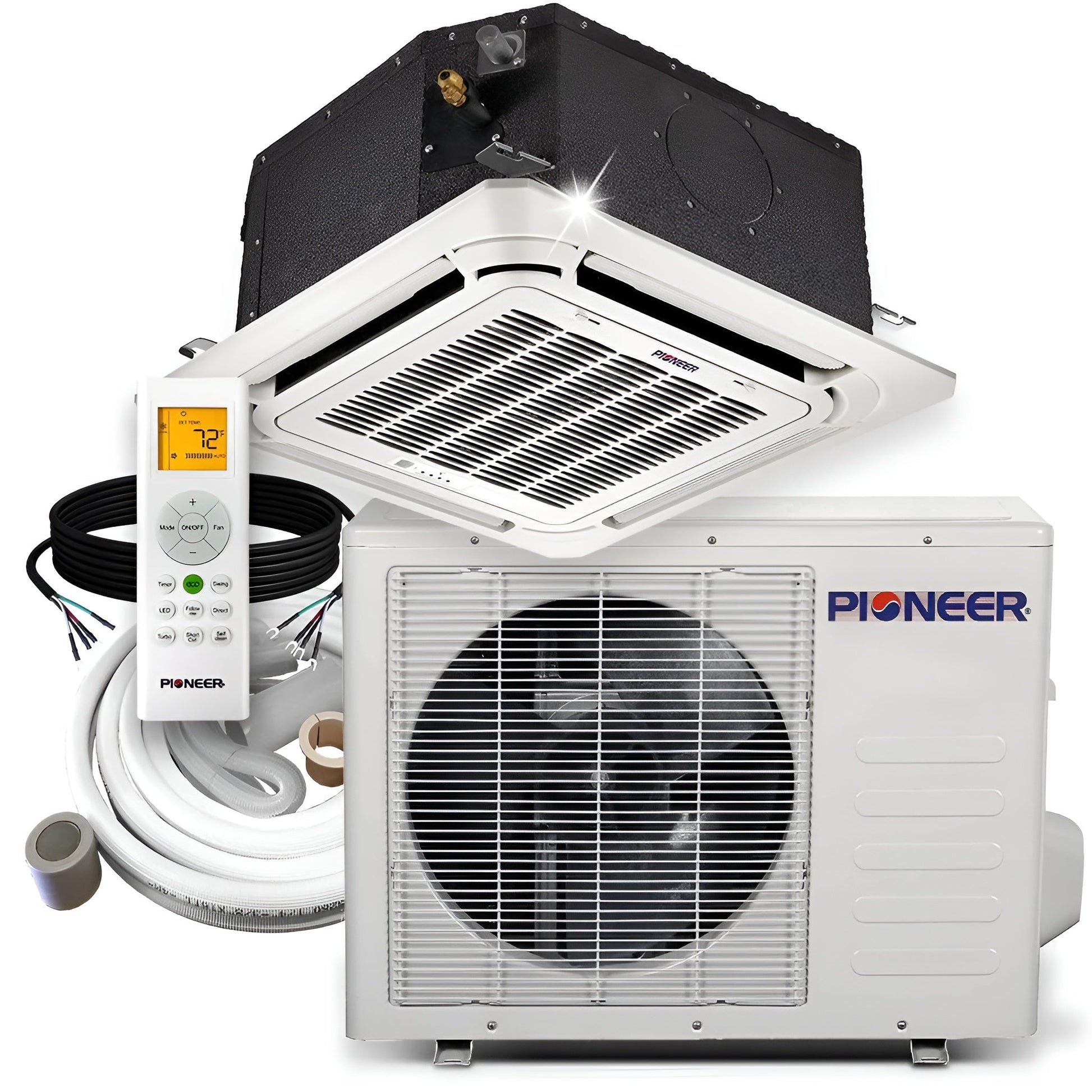

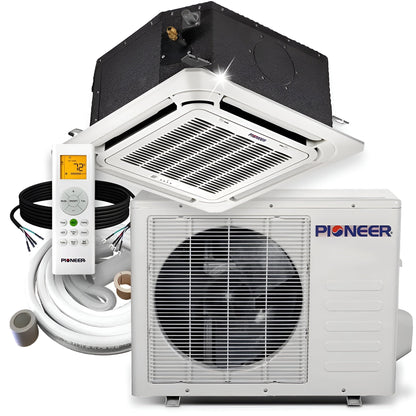

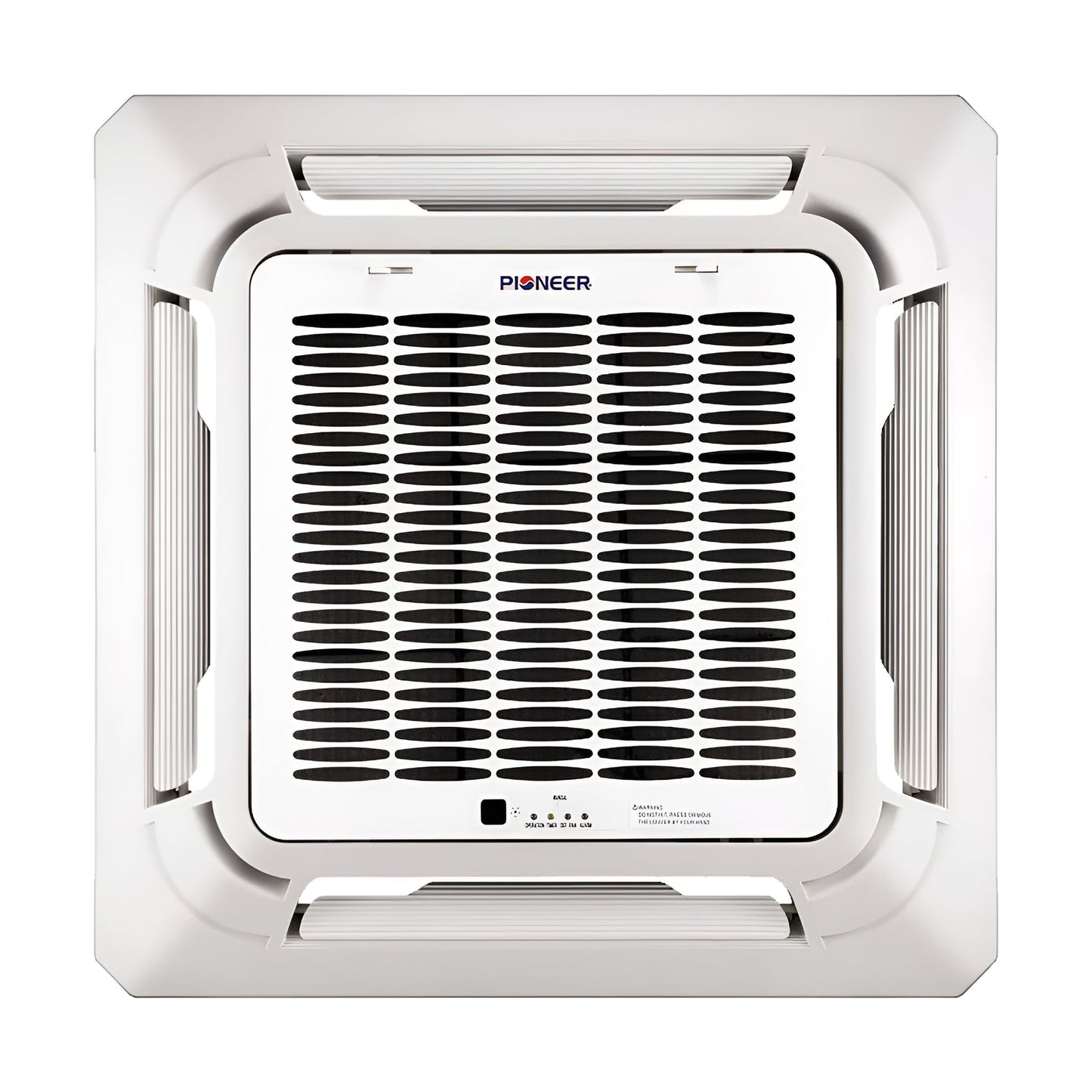

• • Indoor Unit

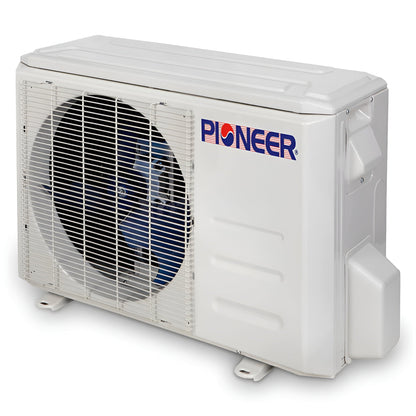

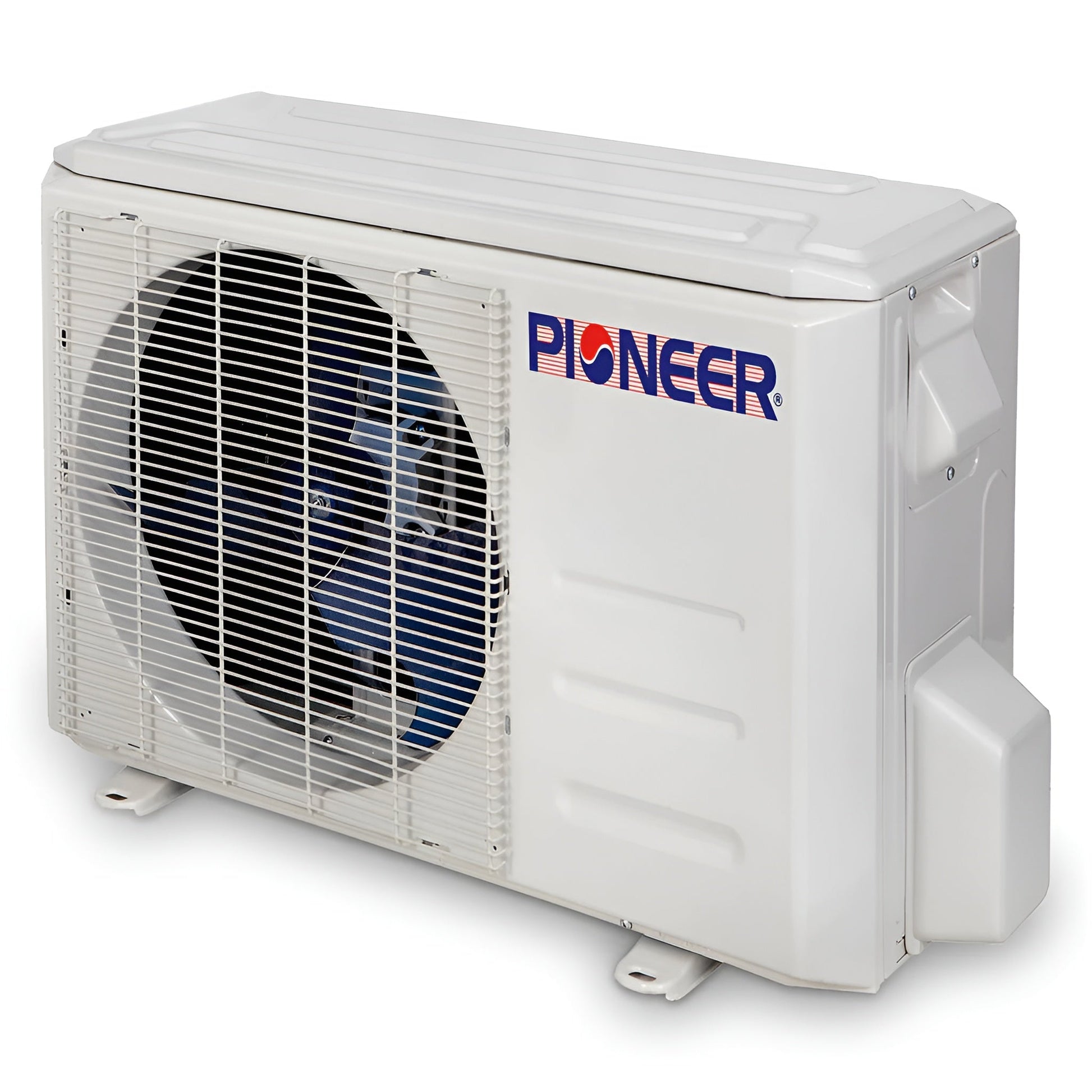

  • Outdoor Unit

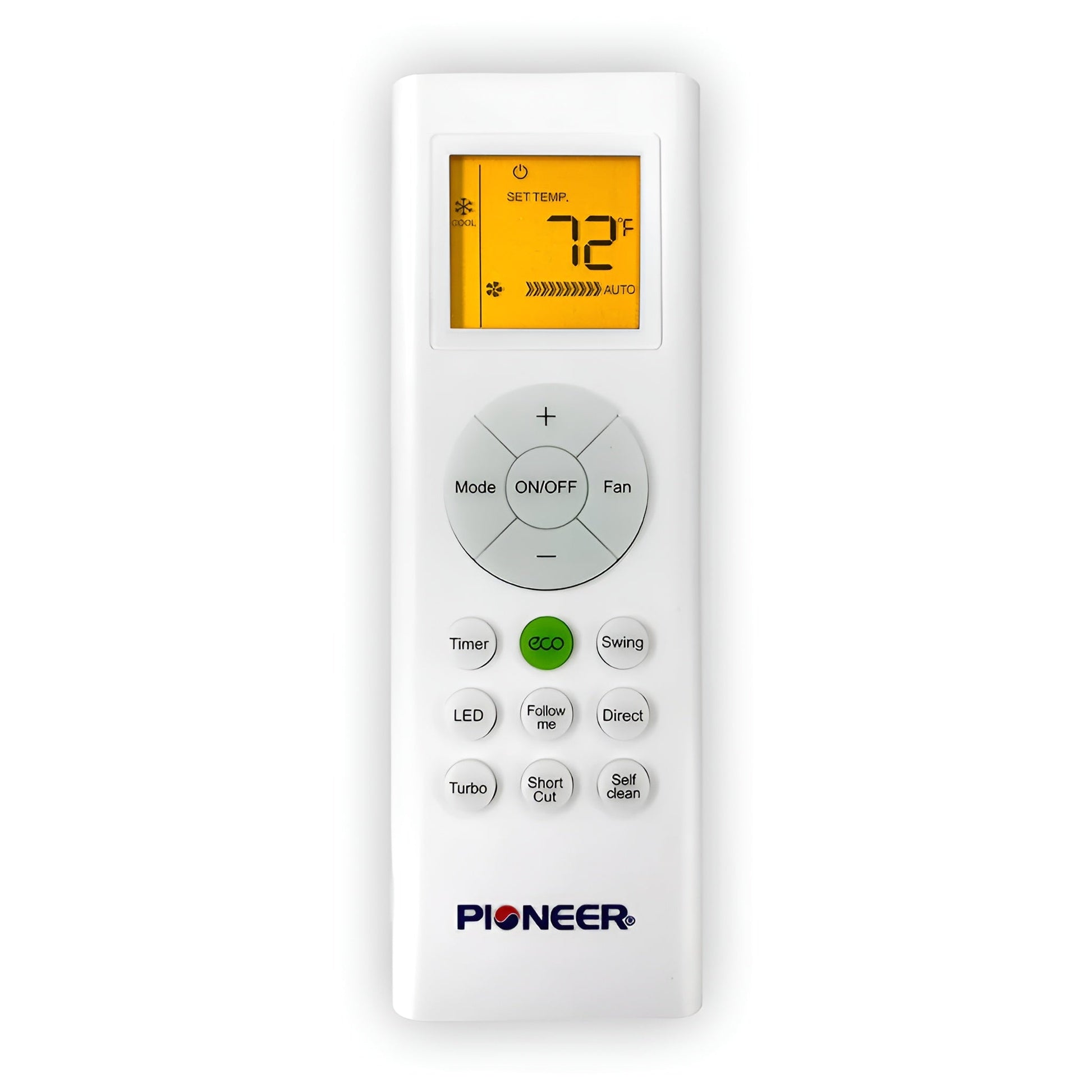

  • Wireless Remote Control
  • R410A Pre-Charged Outdoor Unit
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

• 24,000 BTU Capacity: Ideal for large rooms or open spaces, delivering powerful cooling and heating performance.
• 20 SEER Energy Efficiency: High energy efficiency helps reduce electricity consumption, keeping your utility bills low without sacrificing performance.
• 8-Way Airflow: Ensures uniform and efficient air distribution throughout the room for consistent comfort in every corner.
• Compact Cassette Design: The slim, ceiling-mounted cassette blends seamlessly into your space, offering a discreet and modern look.
• Inverter Technology: Provides precise temperature control, quieter operation, and improved energy efficiency for optimal comfort.
• Quiet Performance: Engineered for minimal noise, making it ideal for living rooms, offices, or bedrooms where peace is essential.
• Easy Installation: Includes a 25 ft. pre-charged refrigerant line set, simplifying installation and reducing setup time.

Q: What is the cooling capacity of the Pioneer 24,000 BTU 8-Way Compact Cassette Air Handler?
A: This air handler provides 24,000 BTU of cooling power, ideal for larger rooms or spaces that require efficient climate control.

Q: What is the SEER rating of the Pioneer 24,000 BTU Compact Cassette Air Handler?
A: It has a 20 SEER rating, offering high energy efficiency and reducing energy costs.

Q: What are the key features of the Pioneer 24,000 BTU 8-Way Compact Cassette Air Handler?
A: This air handler features an 8-way air distribution system, quiet operation, WiFi compatibility, advanced filtration, and flexible installation options for seamless integration into your space.

Q: Does the Pioneer Compact Cassette Air Handler provide both cooling and heating?
A: Yes, it is compatible with heat pump systems, providing both cooling and heating for year-round comfort.

Q: Is the Pioneer 24,000 BTU 8-Way Compact Cassette Air Handler easy to install?
A: Yes, it comes with a 25 ft. lineset and is designed for easy ceiling installation, offering flexible air distribution and saving space.

• Clean or Replace Filters: Inspect and clean the filters every 2-4 weeks to maintain optimal airflow. Replace the filters annually or if they become worn or damaged.
• Clean the Coils: Clean the evaporator coils at least once a year to remove dirt and debris that can reduce system efficiency and cooling performance.
• Inspect the Drain Line: Check the condensate drain line for clogs and ensure it is free from debris. Regular cleaning helps prevent water leaks and mold growth.
• Check Refrigerant Levels: Ensure refrigerant levels are adequate for efficient operation. If you notice reduced cooling or heating performance, contact a professional to check and refill if necessary.
• Clear Airflow Paths: Ensure the intake and exhaust vents are free of obstructions. Regularly inspect the unit for any blockages that could affect airflow.
• Professional Annual Service: Schedule an annual inspection with a technician to check refrigerant levels, clean coils, inspect for leaks, and ensure overall system performance.
