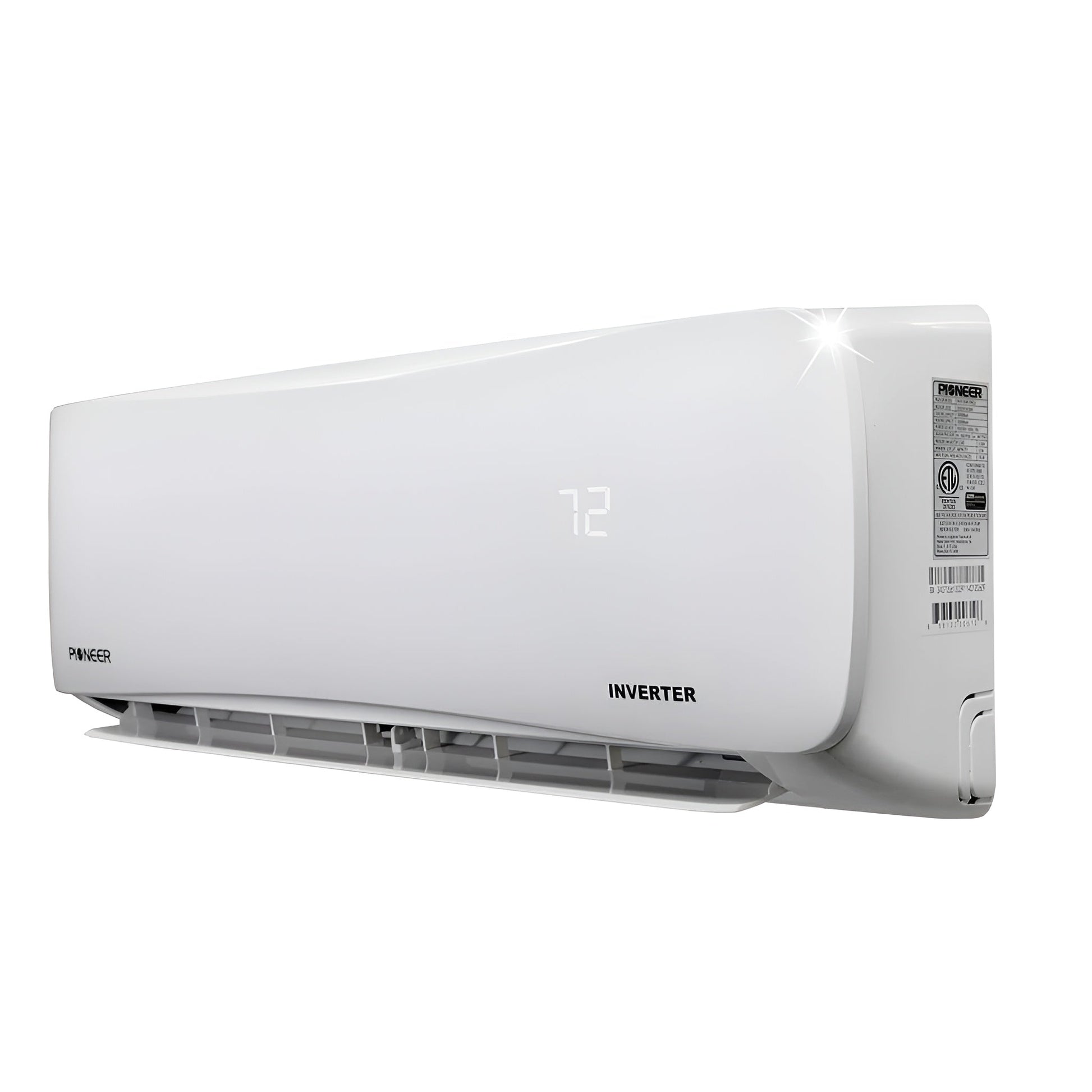

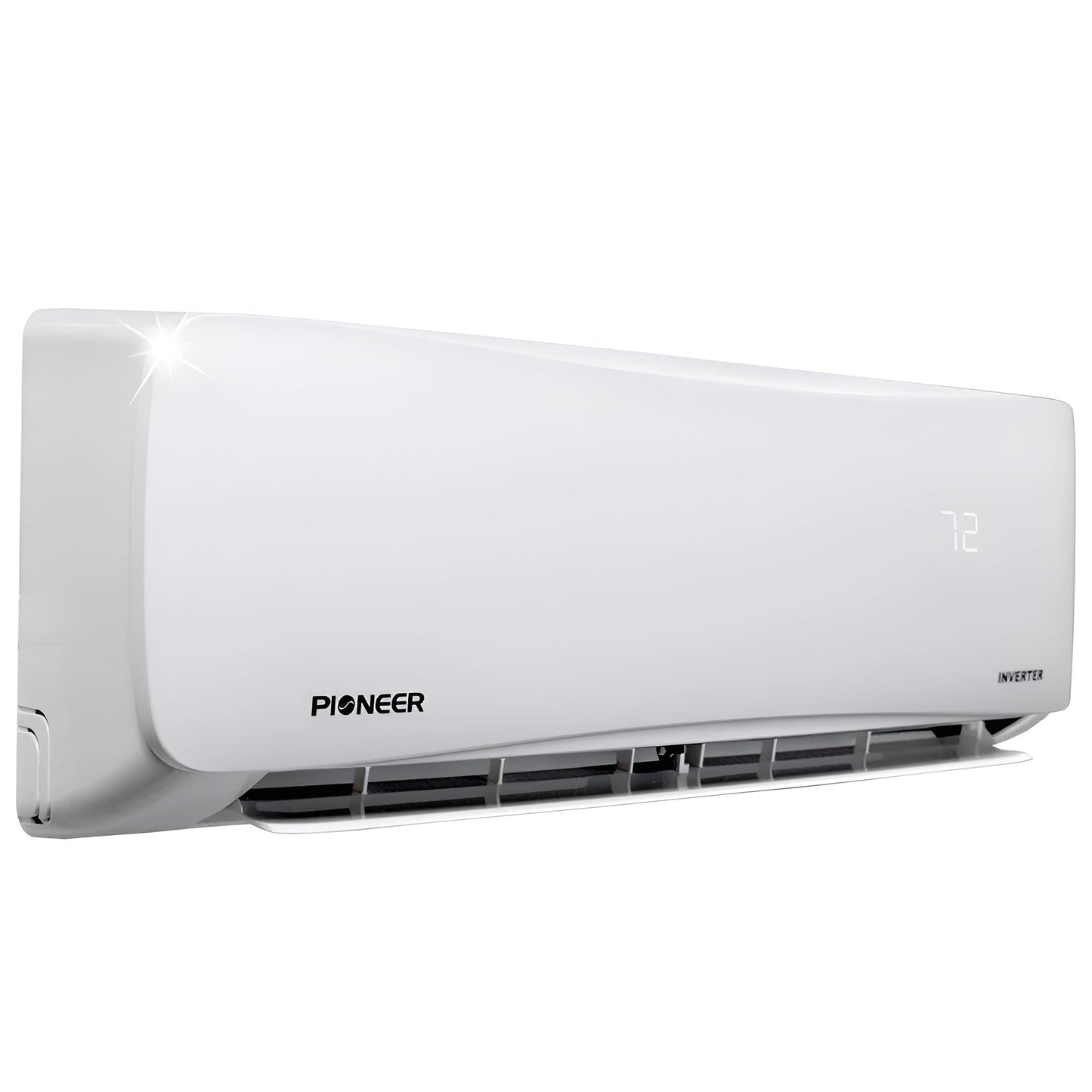

Pioneer Multi Zone 24,000 BTU 20.5 SEER Wall Mount Air Handler - WS024GMFI22HLE-25

Pioneer Multi Zone 24,000 BTU 20.5 SEER Wall Mount Air Handler - WS024GMFI22HLE-25

Inverter++ Variable Speed Multi Split Systems we offer are available in a mix and match fashion and fully user selectable and customizable. Multi Zone Wall Mount Type Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 24,000 BTU/Hr. (2 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 20.5 S.E.E.R. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit. Matches with Quint (5) zone Multi Split Outdoor Units.

IMPORTANT

The installation kit is: 25 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Compatible Outdoor Units

Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required we offer as follows:

• Quad Zone: YN040GMFI22M4D
• Quint Zone: YN050GMFI22M5D


Notes

• Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.
• Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.

• Every order placed is first checked by our engineering and if there are any errors we will contact you and work with you to reselect for a correct matchup.

• Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.

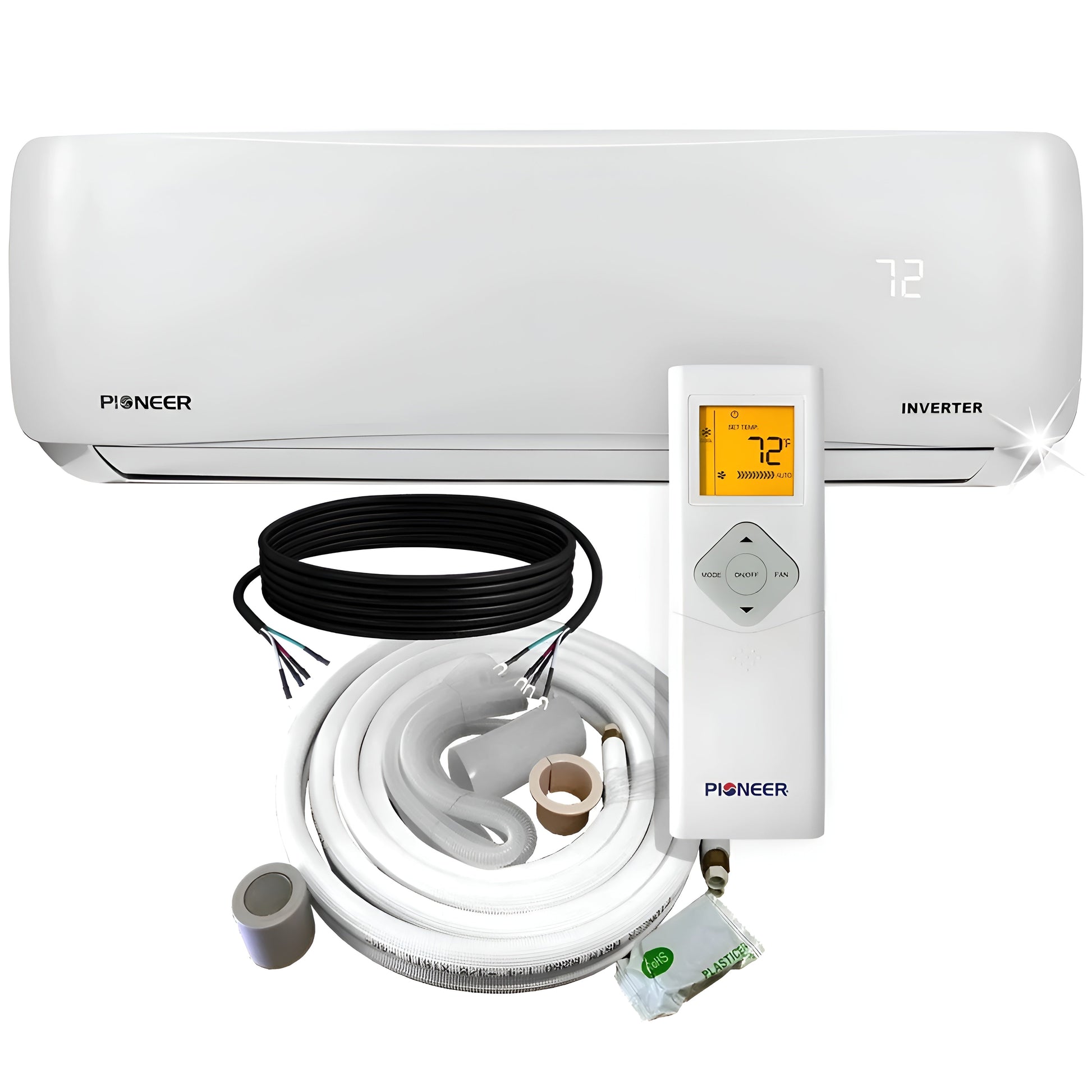

What's Includes

• Indoor Unit

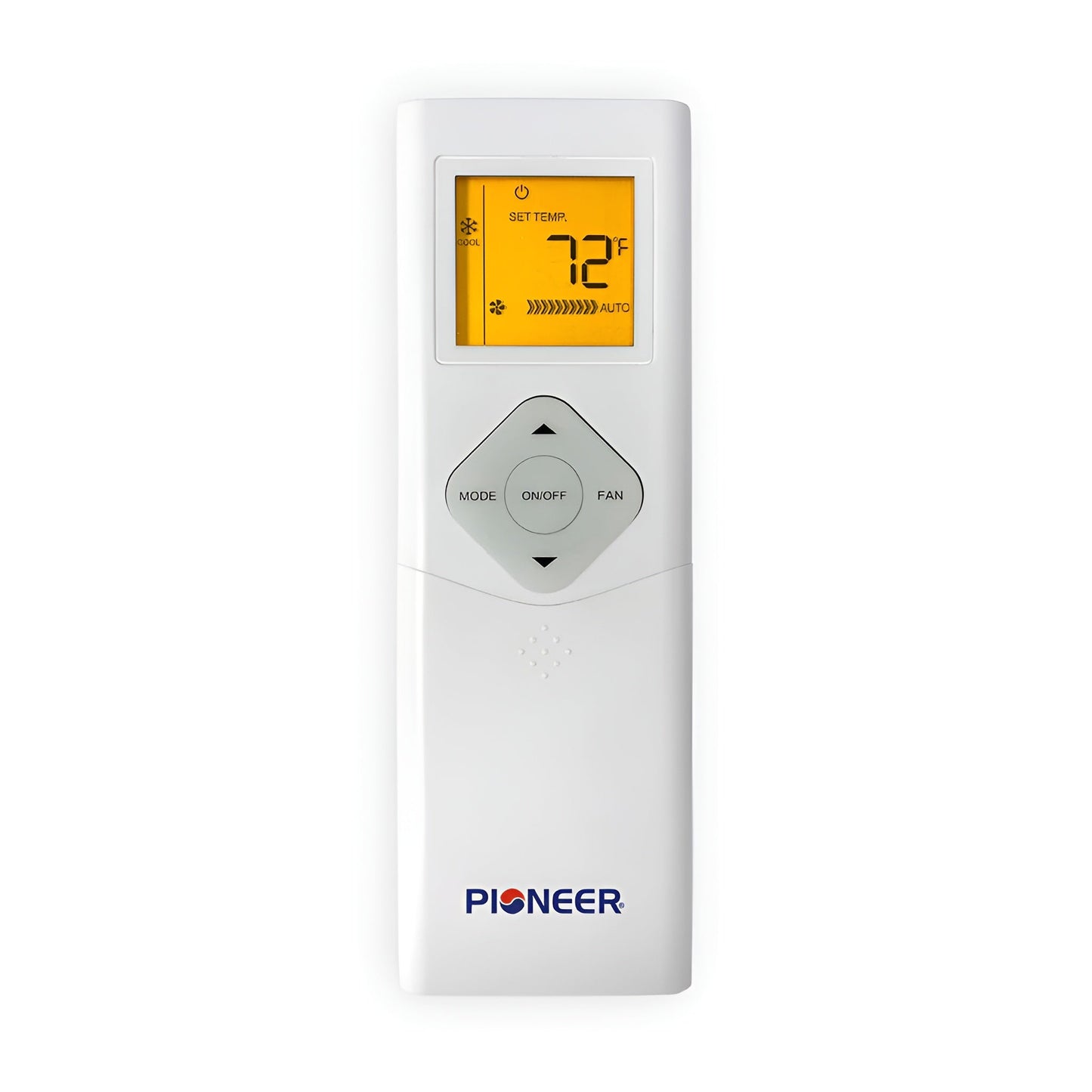

• Wireless Remote Control
• 25 Ft. Installation Kit
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Dual Zone: YN020GMFI22M2E
• Triple Zone: YN030GMFI22M3E
• Quad Zone: YN040GMFI22M4E
• Quint Zone: YN050GMFI22M5E

Notes

• • Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.
  • Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.

  • Every order placed is first checked by our engineering and if there are any errors we will contact you and work with you to reselect for a correct matchup.

  • Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.

Specifications

INSTALLATION & GUIDES

• Matching Table
• Specification Table

What Our Experts Think

• 24,000 BTU Capacity: Ideal for larger homes or multi-zone spaces, delivering efficient cooling and heating for multiple rooms or areas.
• 20.5 SEER Energy Efficiency: High energy efficiency that helps reduce electricity consumption while maintaining reliable, consistent comfort across all zones.
• Multi-Zone Capability: Independently control the temperature in different rooms, providing personalized comfort for each space, perfect for families or larger homes.
• Wall-Mount Design: Compact and space-saving, the wall-mounted unit provides flexible installation options and maintains a clean, sleek look.
• Inverter Technology: Ensures precise temperature control, reduced noise, and energy savings, keeping your home comfortable and efficient year-round.
• Quiet Performance: Designed to operate with minimal noise, ensuring a peaceful atmosphere in bedrooms, living rooms, and other quiet areas.
• Easy Installation: Includes a 25 ft. pre-charged refrigerant line set, streamlining the installation process and minimizing setup time.


Q&A

Q: What is the cooling capacity of the Pioneer Multi Zone 24,000 BTU Wall Mount Air Handler?
A: This air handler provides 24,000 BTU of cooling power, ideal for larger rooms or multiple zones in a multi-zone system.

Q: What is the SEER rating of the Pioneer Multi Zone 24,000 BTU Wall Mount Air Handler?
A: It features a 20.5 SEER rating, offering excellent energy efficiency and helping to reduce overall energy consumption.

Q: What are the key features of the Pioneer Multi Zone 24,000 BTU Wall Mount Air Handler?
A: This system includes quiet operation, advanced air filtration, WiFi compatibility for remote control, and inverter technology for enhanced energy savings.

Q: Does the Pioneer Multi Zone Wall Mount Air Handler provide both cooling and heating?
A: Yes, it is compatible with heat pump systems, providing both cooling and heating for year-round climate control.

Q: Is the Pioneer Multi Zone 24,000 BTU Wall Mount Air Handler easy to install?
A: Yes, it comes with a 25 ft. lineset and is designed for wall-mounted installation, offering flexibility and ease of setup.

Maintenance Tips

• Clean or Replace Filters: Clean the filters every 2-4 weeks to maintain optimal airflow and efficiency. Replace filters annually or if they are damaged or excessively dirty.
• Clean the Coils: Clean the evaporator coils at least once a year to remove dust and debris. This will ensure efficient heat transfer and proper system operation.
• Inspect the Drain Line: Regularly check the condensate drain line for clogs or blockages and clear them to prevent water leaks and mold buildup.
• Monitor Refrigerant Levels: Ensure refrigerant levels are adequate for effective cooling and heating. If you notice a decrease in performance, contact a professional to check and recharge the refrigerant if necessary.
• Clear Airflow Paths: Ensure that the air handler’s intake and exhaust vents are free from obstructions and debris. Proper airflow is essential to prevent strain on the system and optimize efficiency.
• Schedule Annual Professional Maintenance: Have a technician perform an annual inspection to check refrigerant levels, clean components, and ensure overall system performance.
