Pioneer 12,000 BTU 21.5 SEER Ductless Mini-Split Inverter++ - WYS012AMFI22RL-25

Pioneer 12,000 BTU 21.5 SEER Ductless Mini-Split Inverter++ - WYS012AMFI22RL-25

• Cooling capacity: 12,000 BTU/H with 21.5 SEER/12.5 EER efficiency
• Heating capacity: 12,000 BTU/H with 11.5 HSPF/3.38 COP efficiency
• Voltage: 110~120 V, 60 Hertz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• Sleep Mode. The function enables the air conditioner to automatically increase cooling or decrease heating 1°C per hour for the first two hours, then holds steady for the next 5 hours, after that it will switch off. This function maintains both energy savings and comfort at night.
• Temperature Compensation. Temperature compensation function eliminates the difference in temperature between the floor and ceiling by mixing the different layers of air. Consequently, the time for cooling the room is reduced, and a cold offset rising stream of warm air by stirring.
• Refrigerant Leakage Detect. Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function. Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency start
• Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
• 1W Standby. Intelligent on-off technology enables Pioneer products automatically enter energy-saving mode when standby, cut energy consumption from normal 5W to 1W or 0.5W per hour which counts 80%~90% of saving.
• 2-way Draining. Both left and right sides of the indoor unit are possible for outstretch of connective piping and drainage hose for easy installation.
• Follow Me (Remote Thermostat). Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.
• 46°F Heating. In heating operation, the preset temperature of the air conditioner can be as low as 46°F, which keeps the room temperature steady at 46°F and prevents the house from freezing when it is unoccupied for a long time in severe cold weather.
• Chassis Heating Belt. Heating belt is fitted on the base plate of the outdoor unit to prevent defrosting water accumulation, which improves heat transfer efficiency.

Optional

• High Density Filter. Compared with ordinary dust filter, the anti-dust effect of this high density filter can increase more than 50%, it can clean dust, pollen up to 80%.
• Wireless Control. With the Wireless control, you can easily turn off each indoor unit that it is paired, outside your home via your smart phone. Furthermore, you can turn it on before you come back.
• Remote in Engineer Mode

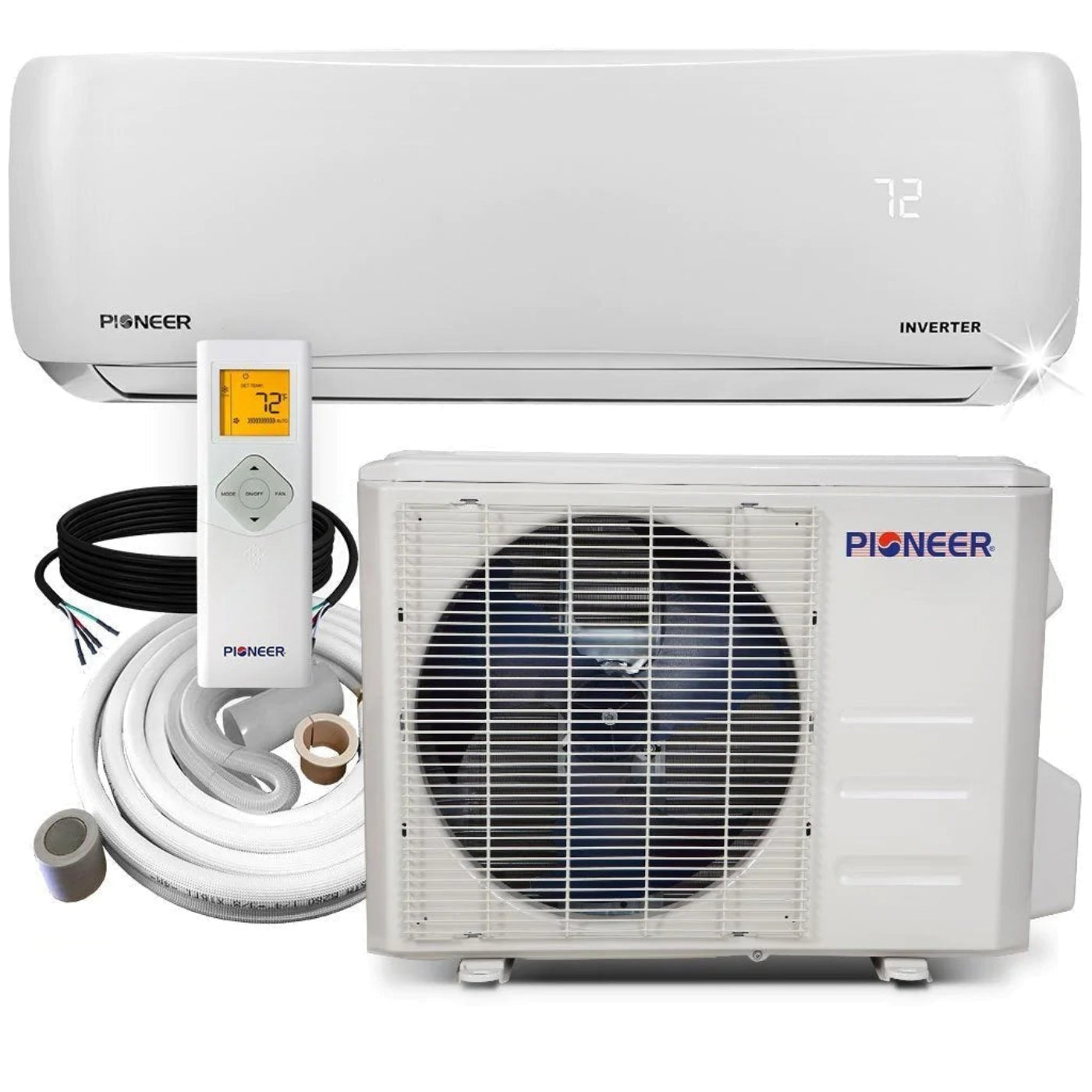

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• R410A Pre-Charged Outdoor Unit
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

• User Manual
• Installation Manual
• Service Manual
• Energy Guide

• Powerful Cooling & Heating: 12,000 BTU capacity efficiently cools and heats spaces up to 500 sq. ft.
• High Efficiency: 21.5 SEER rating ensures energy savings and lower utility bills.
• Inverter++ Technology: Provides precise temperature control, quieter operation, and enhanced efficiency.
• Ductless Design: Easy to install with minimal disruption, ideal for homes, offices, and small spaces.
• Smart Features: Remote control, timer function, and multiple modes for customized comfort.
• Whisper-Quiet Operation: Designed for minimal noise, ensuring a peaceful environment.
• All-Season Performance: Reliable cooling in summer and efficient heating in winter.

Q: What is the cooling capacity of the Pioneer 12,000 BTU 21.5 SEER Ductless Mini-Split?
A: This unit provides 12,000 BTU of cooling power, ideal for rooms up to 500 sq. ft.

Q: What is the energy efficiency rating of this mini-split system?
A: It has an impressive 21.5 SEER rating, ensuring energy-efficient operation and lower utility costs.

Q: Does the Pioneer WYS012AMFI22RL-25 provide heating as well?
A: Yes, it features a heat pump function for both cooling and heating year-round comfort.

Q: What features does this ductless mini-split offer?
A: It includes an inverter compressor, remote control, quiet operation, and multiple fan speeds for customized comfort.

Q: Is professional installation required?
A: While DIY installation is possible, professional installation is recommended for optimal performance and warranty protection.

• Clean or Replace Filters: Wash air filters every 2-4 weeks to maintain airflow and efficiency.
• Inspect & Clean Coils: Check indoor and outdoor coils for dust buildup and clean as needed to prevent inefficiencies.
• Ensure Proper Drainage: Regularly inspect and clear the condensate drain line to prevent clogs and water leaks.
• Check Outdoor Unit: Keep the outdoor condenser free from debris, leaves, and obstructions for optimal airflow.
• Professional Servicing: Schedule an annual inspection to check refrigerant levels and system performance.
