Pioneer 36,000 BTU 17.5 SEER Ductless Mini-Split Inverter+- WYS036GMFI20RL-25

• Cooling capacity: 36,000 BTU/H with 17.5 SEER efficiency

• Heating capacity: 36,000 BTU/H with 12 HSPF efficiency
• Voltage: 208~230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

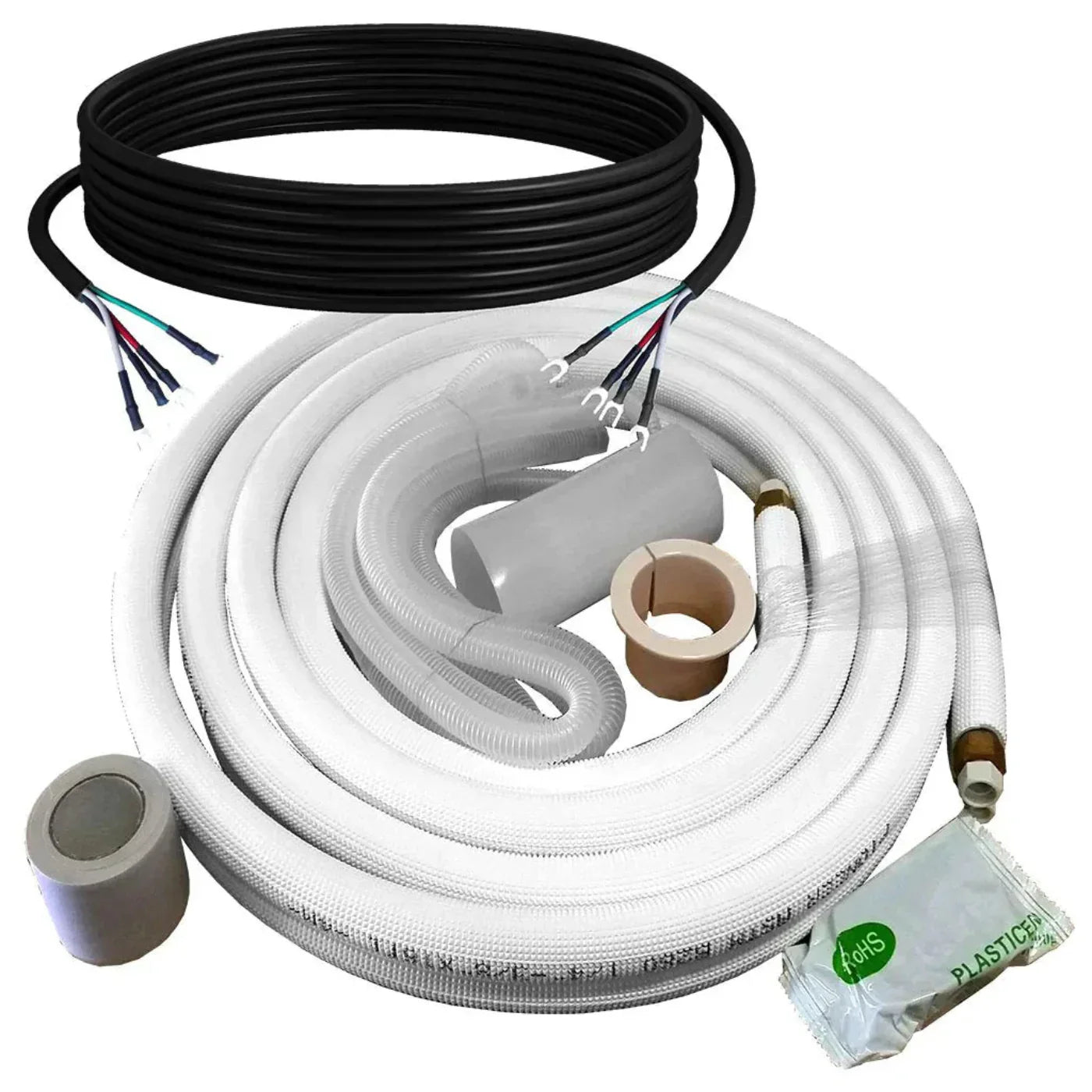

• Customizable length copper line set with flare connections

• Front Desk Control. With a smart control board, Pioneer air conditioners can be turned on/off via long-distance control signals.

• 46° F Heating

• Refrigerant Leakage Detect. Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function. Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency Using
• Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
• Follow Me. Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

• Wired Controller. Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.

• Remote in Engineer Mode

• Central Control Management. The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.

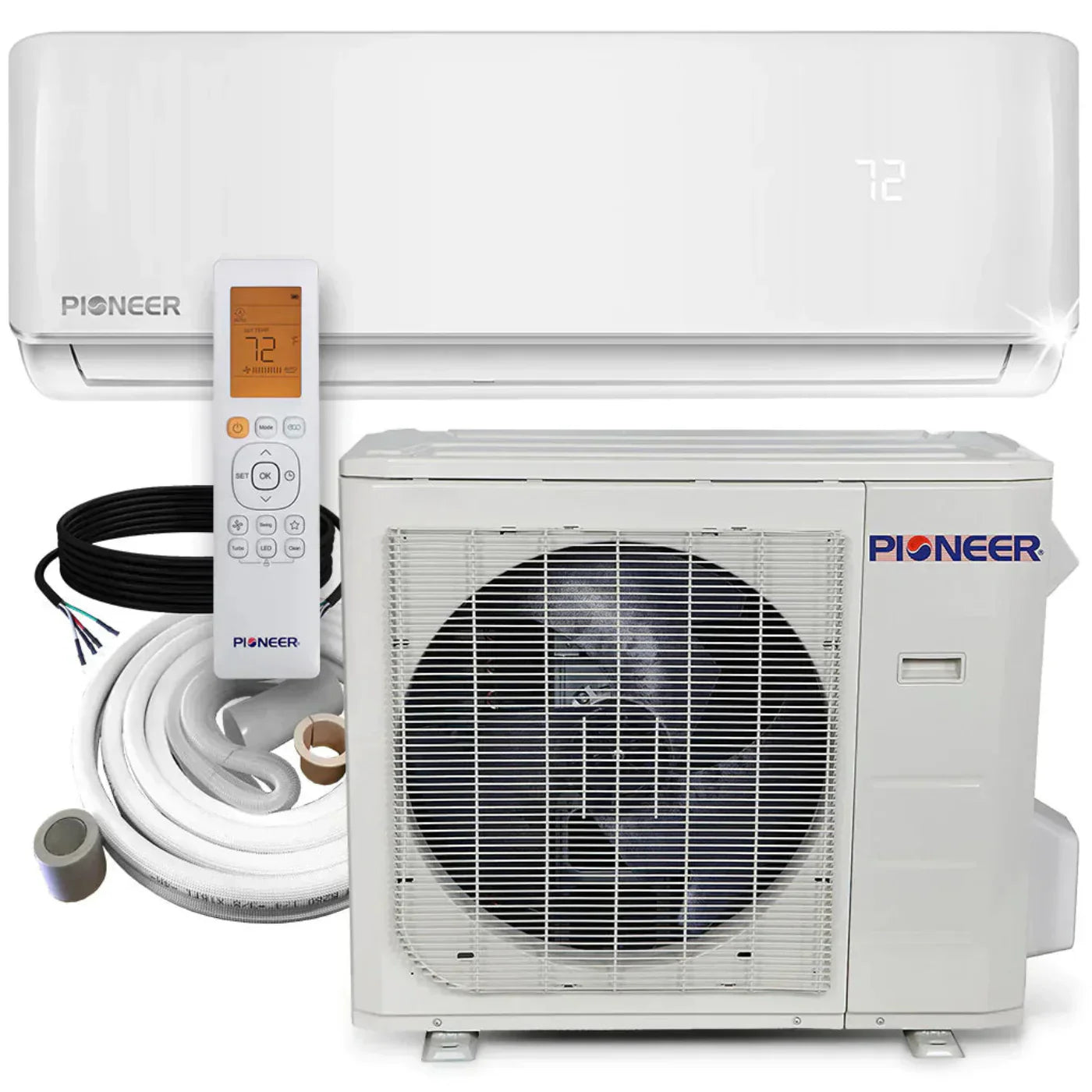

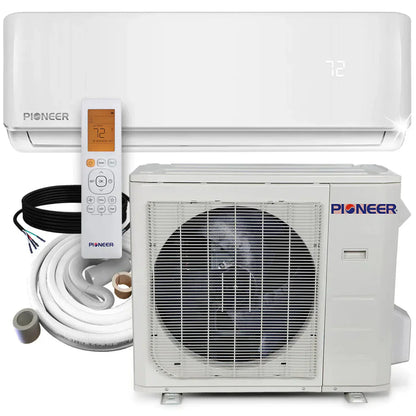

• Indoor Unit

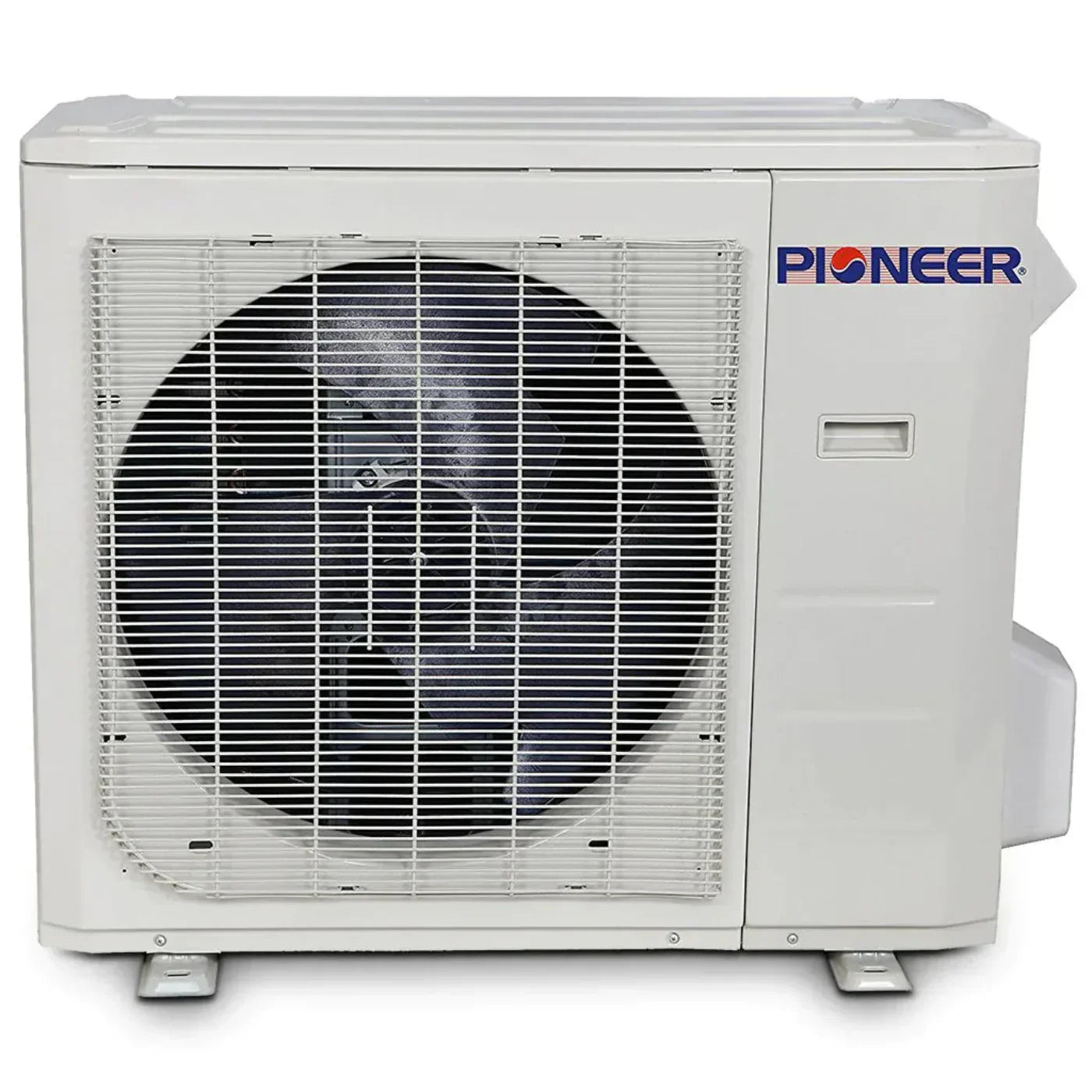

• Outdoor Unit
• Wireless Remote Control
• R410A Pre-Charged Outdoor Unit
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Technical Brochure
• User Manual

• Installation Manual
• Service Manual
• Energy Guide

• High Performance – 36,000 BTU capacity ideal for cooling and heating large spaces with strong, consistent output.
• Energy Efficient – 17.5 SEER rating offers a balance of power and energy savings, reducing operational costs.
• Inverter Technology – Provides more precise temperature control and reduces energy usage by adjusting the compressor speed.
• Comfort All Year – Reliable heating and cooling for any climate, ensuring year-round comfort.
• Quiet & Discreet – Runs quietly, making it a great choice for bedrooms, living rooms, and offices.
• Easy Installation – Complete system with indoor and outdoor units and installation accessories for a simple setup.

Q: What is the Pioneer 36,000 BTU Ductless Mini-Split Inverter+?
A: The Pioneer 36,000 BTU Ductless Mini-Split Inverter+ is a high-performance air conditioning and heating system designed for larger spaces. It offers 17.5 SEER energy efficiency with inverter technology, providing consistent comfort while minimizing energy consumption.

Q: What is the advantage of the 17.5 SEER rating?
A: The 17.5 SEER rating ensures excellent energy efficiency, helping you reduce electricity costs while maintaining a comfortable climate. The inverter technology automatically adjusts the compressor speed to maintain the desired temperature without wasting energy.

Q: What size area can this system effectively cool or heat?
A: With a 36,000 BTU capacity, this mini split system is designed for larger rooms or multiple rooms, effectively cooling or heating spaces up to 1,500 square feet. It is ideal for large living rooms, open-concept spaces, or multi-room setups.

Q: Does this system provide both heating and cooling?
A: Yes, the Pioneer 36,000 BTU Mini-Split offers both heating and cooling, making it a versatile solution for year-round comfort. The system is perfect for controlling indoor temperatures throughout all seasons.

Q: What makes the inverter technology important?
A: Inverter technology in this system ensures variable speed operation of the compressor, allowing it to adjust based on the temperature needs. This results in quieter operation, improved comfort, and energy savings, as the system does not cycle on and off like conventional systems.

Q: Is an installation kit included with the system?
A: Yes, the system comes with an installation kit to help set up the unit, but professional installation is recommended to ensure optimal performance and longevity.

• Clean or Replace Air Filters: Clean or replace the air filters every 1-3 months to maintain proper airflow and system efficiency. A clogged filter reduces performance and increases energy consumption.
• Inspect and Clean Coils: Dirt and debris on the evaporator and condenser coils can decrease efficiency. Clean both coils every 6-12 months using a soft brush or coil cleaner to maintain optimal heat exchange.
• Check and Clear the Condensate Drain: A blocked condensate drain can cause water leaks and mold buildup. Regularly inspect and flush the drain line with warm water or use a wet/dry vacuum to clear any clogs.
• Monitor Refrigerant Lines and Insulation: Check refrigerant lines for leaks or damage, and ensure the insulation is intact. This helps prevent energy loss and keeps the system running efficiently.
• Keep the Outdoor Unit Clear: Make sure there are no obstructions (e.g., leaves or dirt) around the outdoor condenser unit to ensure proper airflow and avoid overheating.
• Test System Performance Regularly: Run the system in both heating and cooling modes to ensure it’s performing efficiently. If you notice inconsistent temperatures or reduced airflow, schedule a professional inspection.
• Listen for Unusual Noises: Unusual sounds such as rattling or hissing could indicate problems with the fan or refrigerant. Address these issues promptly by consulting a technician.
• Schedule Annual Professional Maintenance: To keep the system running at peak performance, have a technician inspect refrigerant levels, clean internal components, and check for any wear and tear. Regular maintenance ensures long-term reliability.
