The Ge Fanuc QPJ-2D100-L2P is a high-performance display unit. Designed for industrial applications, it delivers precise and clear visual information, enhancing monitoring and control within GE FANUC systems.

Information About QPJ-2D100-L2P

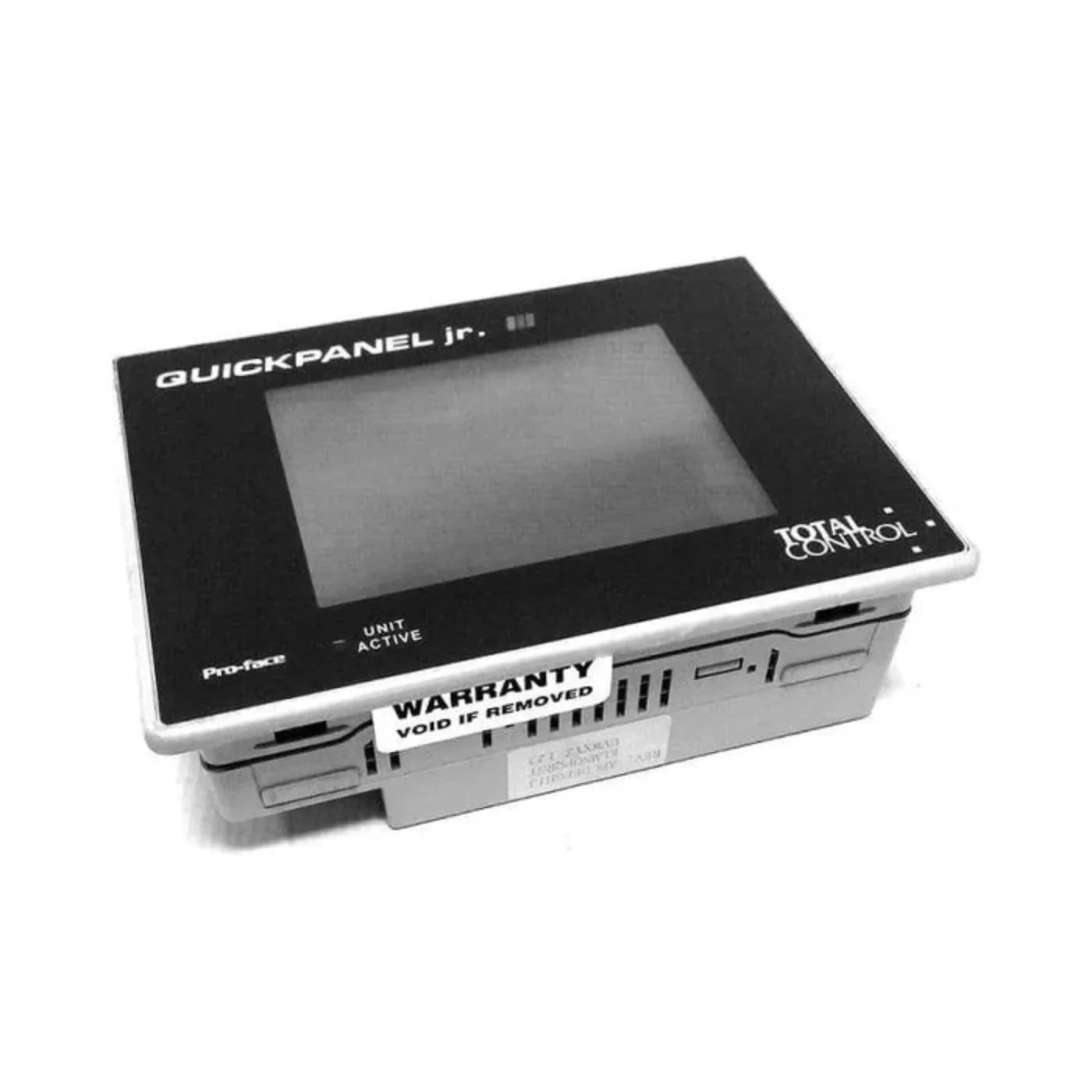

This model is one of several out of the QuickPanel series of touch screen panels. These Human/Machine interface modules are outfitted with a 5 inch screen, lit with a monochrome, LCD display. The ID number for this catalog of products is “QPJ-2D100-L2P.”

The QPJ-2D100-L2P model is outfitted with these general specifications. Mechanically, it has dimensions that make it 5 inches tall, 6.75 inches wide, and has a depth of 2.125 inches. The standard weight for this miniature touch screen module is only 1.5 pounds.  The resolution displays an image that’s made of 240 x 320 pixels, with a viewing area that has a width of 4 inches and a height of 3 inches. The image is captured in monochrome, composed of flashing white and gray.

The QPJ-2D100-L2P’s environmental specifications allow it to operate in temperatures ranging between 0 to 50 degrees Celsius, or 32 to 122 degrees Fahrenheit.  This model is also able to operate without producing any condensation, within a range of relative humidity that’s between 5 to 85 percent.

Electrically, the internal systems of the QPJ-2D100-L2P requires an operating voltage of direct current, ranging between 20.4 to 27.6 volts. The maximum about of power that this touch screen consumes is up to 12 watts, and has an immunity with up to 20 milliseconds of power failure. This model is able to withstand up to 1500 V/AC, (at 10 milliamperes over 1 minute, max), before overloading. The insulation is at 10 M (@ 500 V/AC)

Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.

Specifications

What our Experts Think

• Precision Output Control: Delivers 6 analog current outputs (0–20 mA or 4–20 mA), ideal for accurate process control.

• Dual Power Compatibility: Operates on both 115VAC and 125VDC, offering flexible installation options.

• Heavy-Duty Industrial Use: Rugged design built for harsh environments—resistant to vibration, moisture, and electrical noise.

• Built-In Diagnostics: Real-time fault detection and LED status indicators for each channel enhance reliability and ease of maintenance.

• Modular Flexibility: Compatible with GE Genius I/O systems, making it easy to scale or upgrade your automation setup.

• Safe & Isolated Channels: Individual channel isolation helps prevent cross-talk and improves system safety.

Q&A

Q: What is the GE Fanuc IC660BBA105?
A: The IC660BBA105 is a Genius I/O analog output module designed for GE Fanuc Series 90-30 PLCs. It provides six independent 4-20 mA current-sourcing outputs, commonly used in industrial automation applications

Q: What are the electrical specifications?
A: It operates on a 115 VAC or 125 VDC power supply and offers a resolution of 6 µA. The module has an accuracy of 0.15% of full-scale reading and a thermal drift of 35 PPM per degree Celsius.

Q: What is the update rate and baud rate?
A: The output update rate is 25 milliseconds, and it supports baud rates of 76.8/38.4 kbaud for communication

Q: What is the physical size of the module?
A: The module measures 22.44 cm (H) x 8.89 cm (W) x 10.00 cm (D) and weighs approximately 3.15 lbs

Q: What are the wiring recommendations?
A: For field signal wires, AWG #14 (2.1 mm²) is recommended, with a minimum of AWG #20 (0.54 mm²). For serial bus wiring, AWG #12 (3.3 mm²) is recommended for single-wire connections, and AWG #14 (2.1 mm²) for dual-wire connections.

Q: Is the module compatible with other Genius I/O modules?
A: Yes, the IC660BBA105 is compatible with all Genius bus controllers and can be configured using a handheld monitor (version 3.7 or later) and Logicmaster 6 software (version 4.02 or later)

Maintenance Tips

• Regularly Inspect for Physical Damage: Check for signs of wear, corrosion, or physical damage, especially around connectors and mounting points.

• Ensure Proper Ventilation: Maintain adequate airflow around the module to prevent overheating.

• Verify Secure Module Connections: Ensure that all modules are securely seated in their respective slots to prevent communication issues.

• Monitor Power Supply: Check that the power supply is stable and within the specified voltage range to prevent damage to the module and connected devices.

• Keep the Environment Clean: Regularly clean the module to remove dust and debris, which can affect performance and cause overheating.

• Check Expansion Connections: If using expansion modules, ensure that the connections are secure and that the total system does not exceed the maximum supported configuration.

• Update Firmware as Necessary: Keep the firmware updated to ensure compatibility with other modules and to benefit from performance improvements
