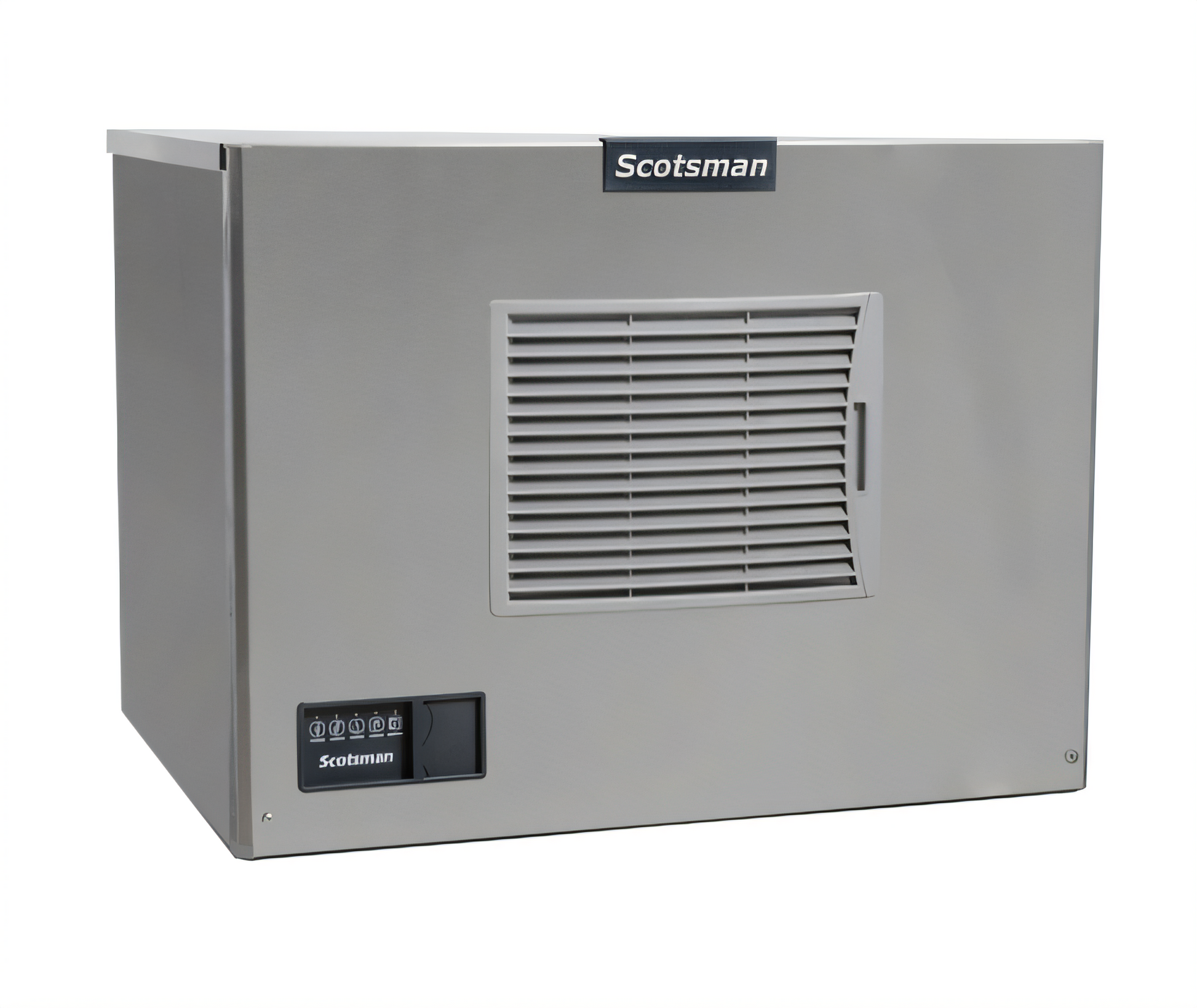

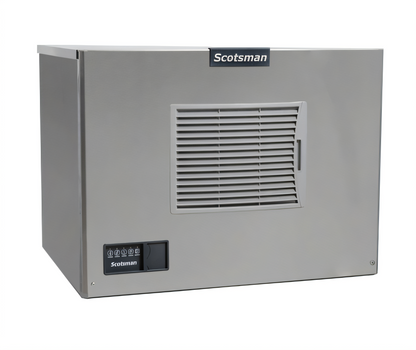

Scotsman MC0330MA-32 Prodigy ELITE Ice Machines - MC0330MA-32

Scotsman MC0330MA-32 Prodigy ELITE Ice Machines - MC0330MA-32

Prodigy ELITE Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 400 lb/24 hours at 70°/50° (288 lb AHRI certified at 90°/70°), medium cube size, ICELINQ mobile app, Bluetooth connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 208-230v/60/1-ph, 7.1 amps, cULus, NSF, engineered and assembled in USA

Specifications

Drawings

• Aqsl_scotsman_mc0330ma-sa_p.dwg
• Aqsl_scotsman_mc0330ma-sa_e.dwg
• Aqsl_scotsman_mc0330ma-sa_s.dwg
• Qf_scotsman_mc0330ma_sa_cat.zip

Documents

• Cutsheet
• Prodigy elite® product presentation
• Warranty statement
• Icelinq app demo
• Icelinq video
• Sellsheet
• Owner's manual
• Introducing prodigyelite video

What our Experts Think

• High Daily Production: Produces up to 400 lbs of medium (7/8" x 7/8" x 7/8") cube ice per day, ideal for high-demand commercial environments.

• Smart Connectivity: Integrated Bluetooth® technology with the ICELINQ® mobile app provides real-time diagnostics, remote adjustments, and step-by-step cleaning guidance.

• Efficient Operation: Equipped with WaterSense adaptive purge control, it reduces scale buildup, improving reliability and reducing the need for frequent maintenance.

• User-Friendly Interface: Features AutoAlert™ external indicator lights and a QR code for easy access to service manuals, troubleshooting, and warranty info.

• Space-Saving Design: Its 30" width and front-facing removable air filter allow for easy installation in tight spaces without compromising durability.

• Energy Efficient: Consumes 7.1 amps at 208-230V, promoting energy savings while maintaining a high output.

• Easy Maintenance: Simple one-touch cleaning and a removable air filter make upkeep hassle-free, ensuring long-lasting performance.

Q&A

Q: What is the ice production capacity of the Scotsman MC0330MA-32?
A: It produces up to 400 lbs of medium-sized (7/8" x 7/8" x 7/8") ice per day under optimal conditions (70°F air / 50°F water). The AHRI-certified output is 288 lbs/day at 90°F air / 70°F water.

Q: How does the ICELINQ® mobile app enhance usability?
A: The app offers Bluetooth connectivity for real-time diagnostics, guided cleaning, settings adjustments, and maintenance reminders.

Q: What maintenance features does this model include?
A: It features one-touch cleaning, WaterSense adaptive purge control to reduce scale buildup, and an AutoAlert™ panel with external indicators for operational status.

Q: Is this ice machine energy-efficient?
A: Yes, it consumes 6.23 kWh per 100 lbs of ice produced, making it energy-efficient for commercial use.

Q: What are the dimensions and power requirements?
A: The unit measures 30" W x 24" D x 23" H and operates on 208-230V/60Hz/1-phase power, drawing 7.1 amps.

Q: Does it require plumbing?
A: No, it has a self-contained air-cooled condenser, eliminating the need for additional plumbing.

Maintenance Tips

• Scale Removal & Water Filter Replacement: Use Scotsman-approved scale remover to eliminate mineral build-up. Replace water filters to maintain high-quality ice production and water flow.

• Sanitization: After scale removal, sanitize the entire water system to prevent microbial growth.

• Air Filter Cleaning: Remove and clean the air filter to ensure proper airflow and efficient cooling.

• Condenser Coil Cleaning: Clean the condenser coils to avoid overheating and maintain optimal performance.

• ICELINQ Mobile App: Utilize the ICELINQ® app for real-time diagnostics, guided cleanings, and maintenance alerts.

• AutoAlert™ Panel: Monitor machine status through the AutoAlert™ panel, which provides visual indicators for maintenance needs.
