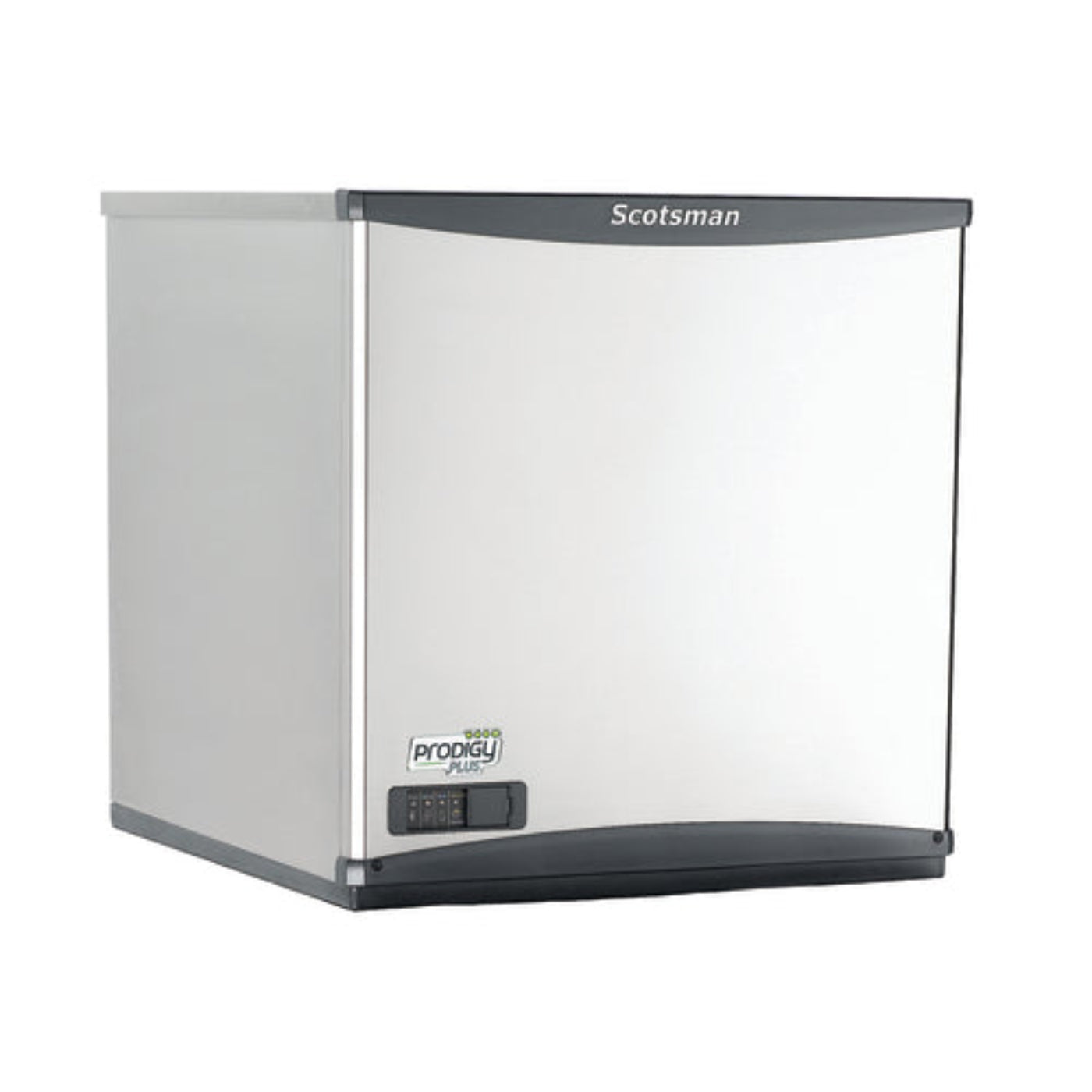

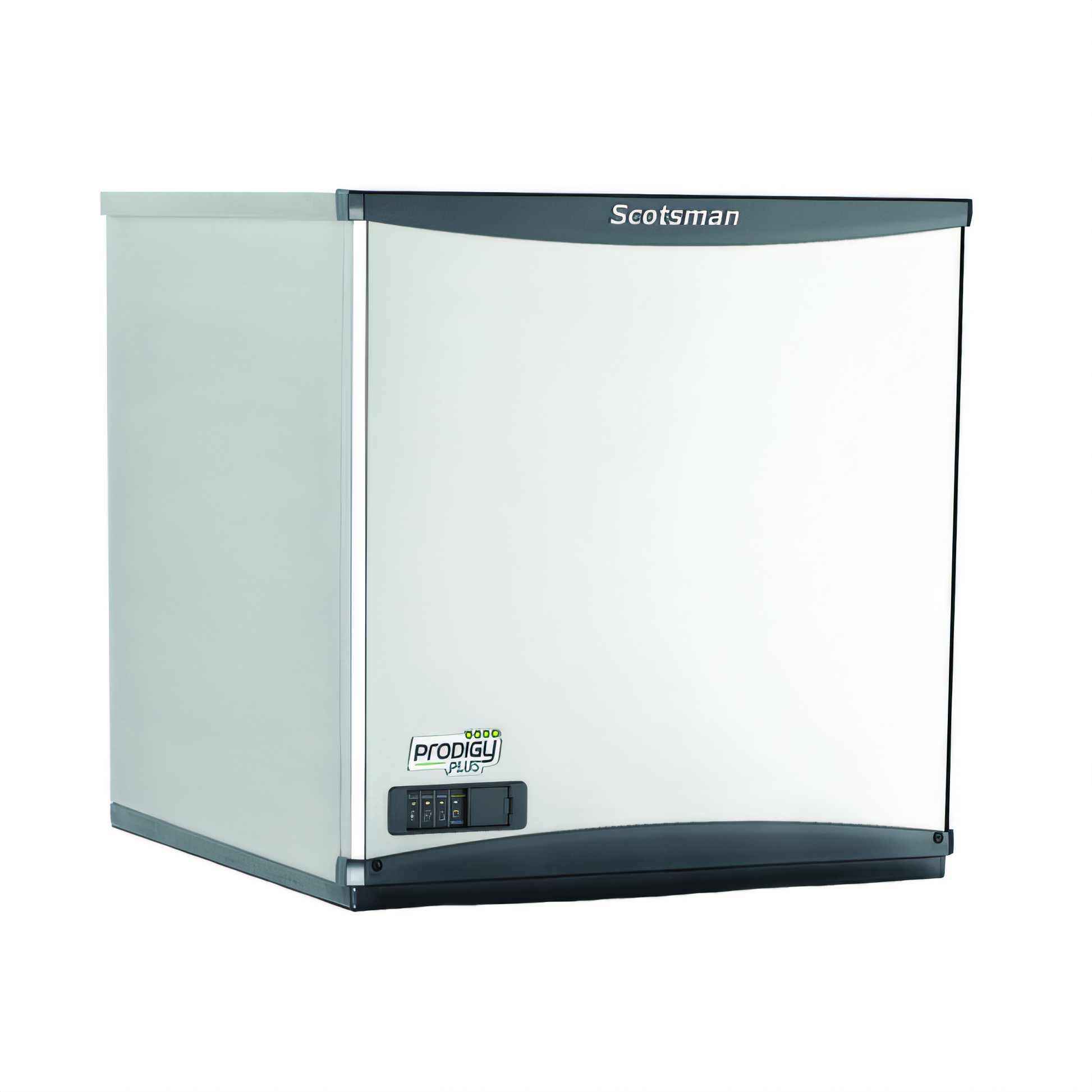

Scotsman Prodigy™ Plus Ice Machines - NS0622W-1
Prodigy Plus Ice Maker, nugget style, Original Chewable Ice, water-cooled, self-contained condenser, production capacity up to 715 lb/24 hours at 70°/50° (581 lb AHRI certified to 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 14.4 amps, NSF, cULus, engineered and assembled in USA
Specifications
| Manufacturer |
Scotsman |
| Brand Name |
Prodigy™ Plus |
| Certifications |
NSF, cULus, AHRI |
| Height |
23.0 in |
| Width |
22.9 in |
| Depth |
24.0 in |
| Shipping Weight |
180.0 lbs |
| Production per 24 hr |
Up to 715 lb (581 lb AHRI certified at 90°/70°) |
| Cube Type |
Nugget (Original Chewable Ice®) |
| Cooling System |
Water-cooled |
| Refrigeration Type |
Self-contained refrigeration |
| Construction |
Stainless steel finish, stainless auger and evaporator |
| Additional Features |
AutoAlert™ indicating lights, unit-specific QR code, one-touch cleaning, sealed maintenance-free bearings, AgION™ antimicrobial protection |
| Refrigerant |
R-404A |
| Electrical |
115 V / 60 Hz / 1 ph, 14.4 amps |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
High Ice Production: Produces up to 715 lbs of soft, chewable nugget ice per day, ideal for high-demand environments like restaurants, bars, and healthcare facilities.
-
Water-Cooled Efficiency: Utilizes a water-cooled condenser, making it suitable for installations where air-cooled units are not feasible, and ensuring consistent performance in warmer environments.
-
Energy and Water Efficient: Consumes 3.80 kWh of energy per 100 lbs of ice produced and uses 12 gallons of potable water per 100 lbs of ice produced, making it more efficient than traditional cubed ice machines.
-
Advanced Diagnostics: Features AutoAlert™ indicator lights for maintenance alerts and a unit-specific QR code for quick access to service manuals and warranty information.
-
Durable Construction: Built with stainless steel evaporator and auger, and protected with AgION™ antimicrobial technology to inhibit microbial growth, ensuring longevity and hygiene.
-
Compact Footprint: Measures 22" W x 24" D x 23" H, fitting into tight spaces while providing high ice production capacity.
Q&A
Q: What is the Scotsman NS0622W-1 Ice Machine?
The Scotsman NS0622W-1 is a water-cooled, 22" wide nugget ice machine from the Prodigy Plus series, capable of producing up to 715 lbs of soft, chewable nugget ice per day.
Q: What type of ice does it produce?
It produces soft nugget ice, often referred to as "The Original Chewable Ice®," measuring 7/16" x 5/16" x 3/8".
Q: Is it energy-efficient?
Yes, it uses 40% less water and 15% less energy compared to traditional cube ice machines.
Q: What refrigerant does it use?
The unit utilizes R-404A refrigerant.
Q: What does it have?
The NS0622W-1 is NSF, cULus, and AHRI certified, ensuring compliance with industry standards for safety and performance.
Q: Where is it manufactured?
The Scotsman NS0622W-1 is engineered and assembled in the USA.
Maintenance Tips
-
Monthly Cleaning: Utilize the one-touch cleaning feature to sanitize the ice machine.
-
Descaling: Use Scotsman Clear One Scale Remover every 3–6 months to prevent mineral buildup.
-
Water Filter Replacement: Replace the water filter every 6 months to ensure optimal ice quality.
-
Air Filter Maintenance: Remove and rinse the front-located air filter monthly to maintain proper airflow.
-
Professional Service: Schedule annual maintenance with a certified technician to ensure peak performance and extend machine life.
