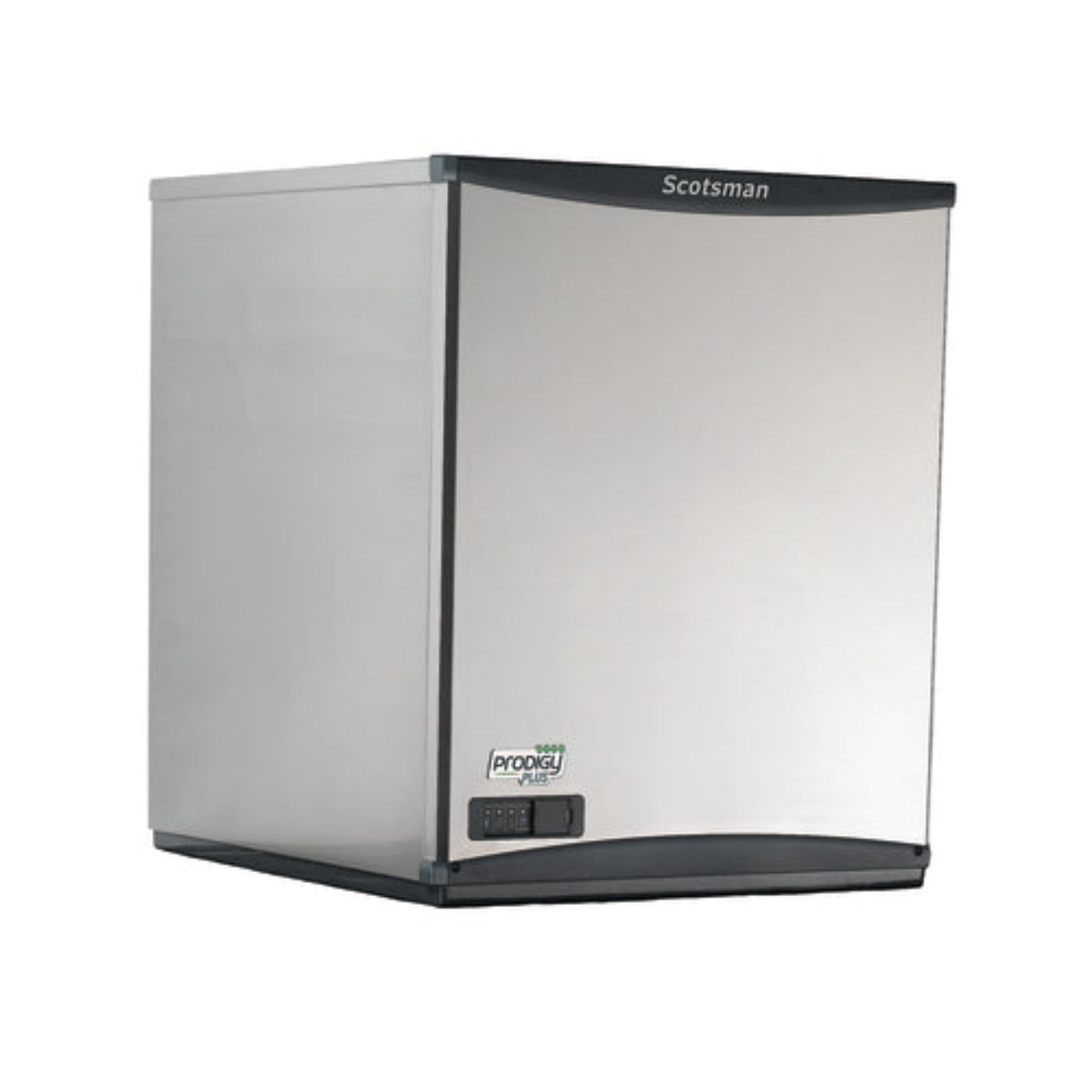

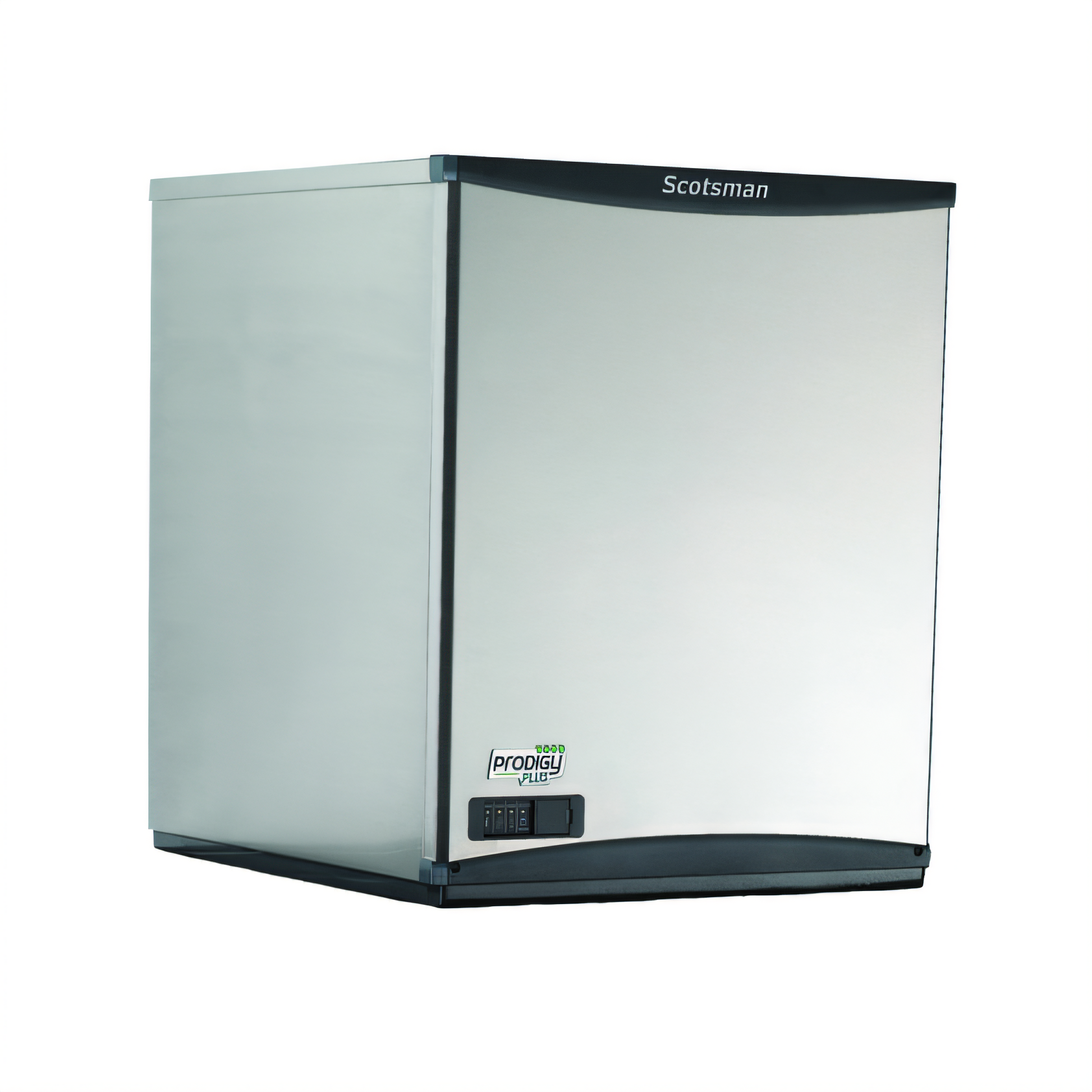

Scotsman Prodigy™ Plus Ice Machines - NS0922L-1

Scotsman  Prodigy™ Plus Ice Machines - NS0922L-1

Prodigy Plus Ice Maker, nugget style, Original Chewable Ice®, remote low side (condenser & compressor separate), production capacity up to 1090 lb/24 hours at 70°/50° (915 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, heat and noise reduced via remote low side configuration, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, NSF, cULus, engineered and assembled in USA

Specifications

Drawings

• Qf_scotsman_ns-nh_0922l_ns-nh_1322l_cat.zip

Documents

• Cutsheet
• Flyer
• Parts list
• Product presentation
• Installation manual
• Sell sheet

What our Experts Think

• High Ice Production: Produces up to 956 lbs of soft, chewable nugget ice per day, with an AHRI-certified output of 784 lbs at 90°F air and 70°F water conditions, making it ideal for high-demand environments like restaurants, bars, and healthcare facilities.

• Air-Cooled Efficiency: Utilizes an air-cooled condenser, eliminating the need for water hookups and making it suitable for installations where water-cooled units are not feasible.

• Energy and Water Efficient: Consumes 3.65 kWh of energy per 100 lbs of ice produced and uses 12 gallons of potable water per 100 lbs of ice produced, making it more efficient than traditional cubed ice machines.

• User-Friendly: Equipped with AutoAlert™ indicator lights for maintenance alerts and a unit-specific QR code for quick access to service manuals and warranty information.

• Durable Construction: Built with stainless steel evaporator and auger, and protected with AgION™ antimicrobial technology to inhibit microbial growth, ensuring longevity and hygiene.

• Compact Footprint: Measures 22.9" W x 24" D x 27" H, fitting into tight spaces while providing high ice production capacity.

Q&A

Q: What is the Scotsman NS0922A-6 Ice Machine?
The Scotsman NS0922A-6 is a 22" wide, air-cooled, self-contained nugget ice machine from the Prodigy Plus® series, capable of producing up to 956 lbs of soft, chewable nugget ice per day at 70°F air and 50°F water.

Q: What type of ice does it produce?
It produces the Original Chewable Nugget Ice, a soft and chewable ice ideal for beverages and fountain drinks.

Q: Is it energy-efficient?
Yes, it uses 3.65 kWh of energy per 100 lbs of ice and 12.0 gallons of water per 100 lbs of ice, resulting in lower operational costs

Maintenance Tips

• Clean Regularly: Perform routine cleaning every 6 months to prevent scale build-up and ensure optimal performance.

• Inspect Water Filter: Replace the water filter every 6 months or as recommended by the manufacturer.

• Check Airflow: Ensure proper airflow around the machine by keeping vents clear and clean.

• Monitor Ice Production: Regularly check ice production levels and make adjustments to settings if needed.

• Sanitize: Clean the bin and ice maker components to prevent mold and bacteria growth.

• Professional Servicing: Schedule annual servicing by a certified technician for optimal longevity.
