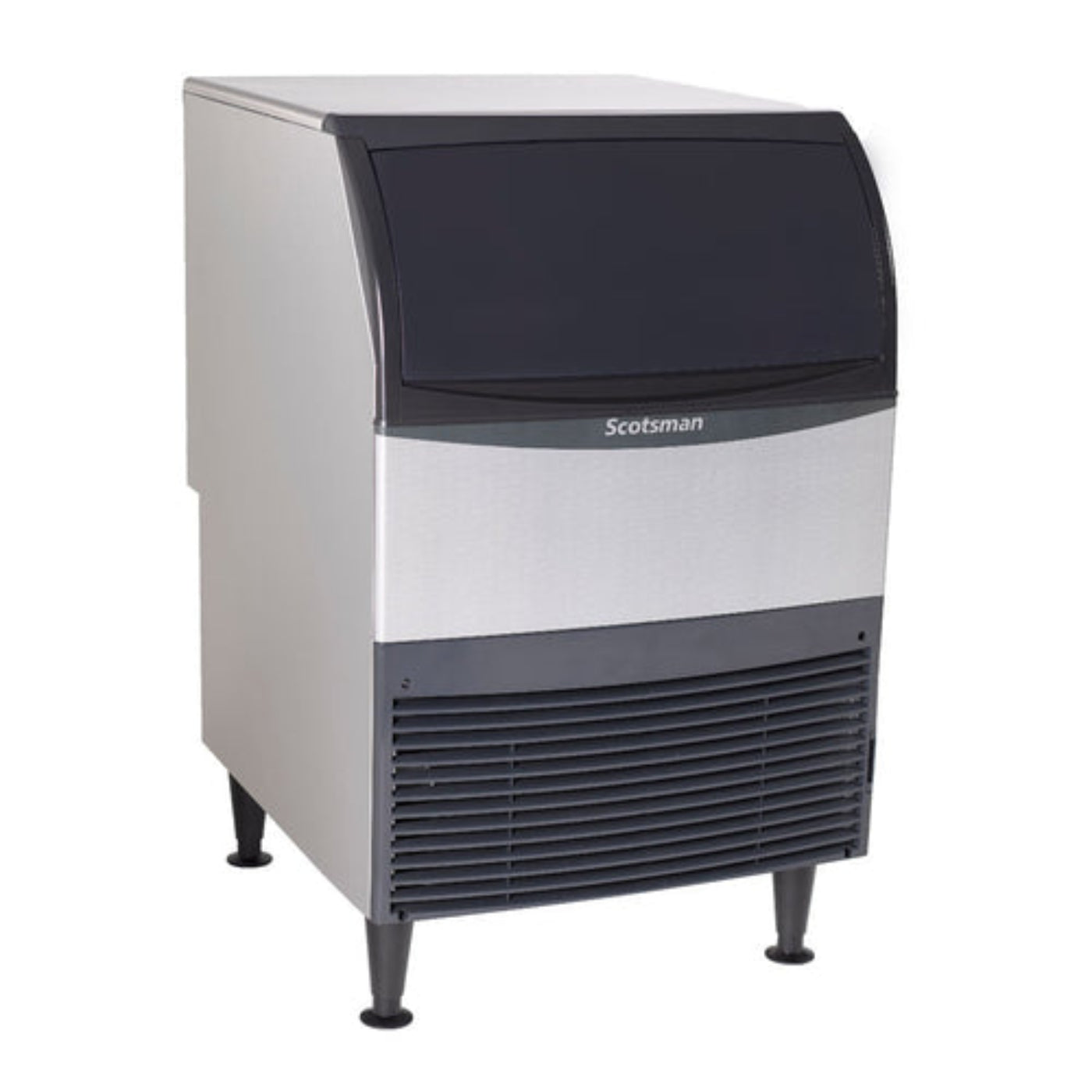

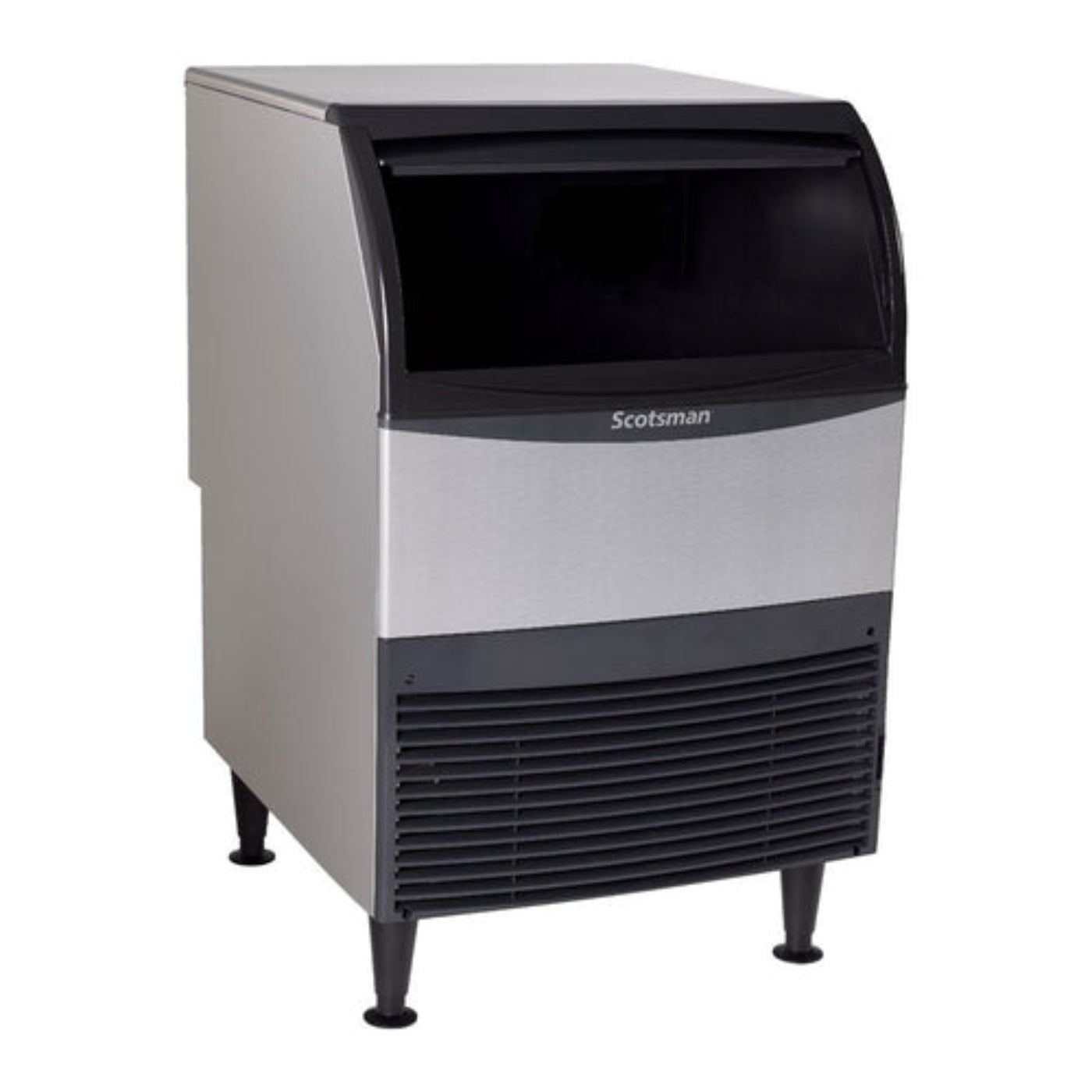

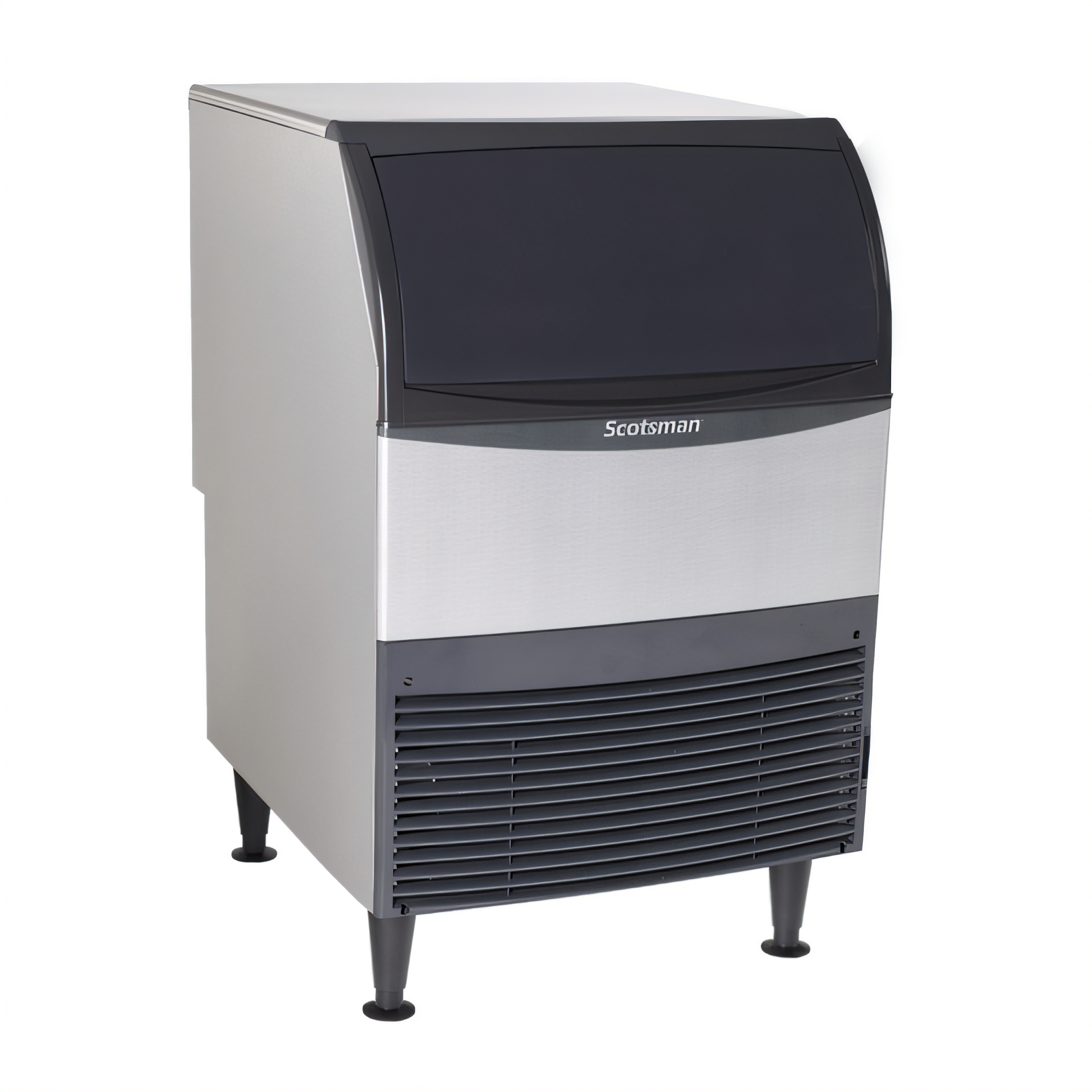

Scotsman Ice Machines - UC2024MW-1
Undercounter Ice Maker with Bin, cube style, water-cooled, 24" width, self-contained condenser, production capacity up to 230 lb/24 hours at 70°/50° (188 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, medium cube size, recessed utility chase, unit specific QR code, ice scoop included, 6" adjustable legs, 115v/60/1-ph, includes 5.5’ power cord with NEMA 5-15P plug, NSF, cULus, ENERGY STAR®, engineered and assembled in USA
Ice Maker with Bin, Cube Style, water cooled, self contained condenser, production capacity up to 230 lb production/24 hours at 70°/50° (188 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, clear medium cube, recessed utility chase, ice scoop, includes 6" legs, 5.5' power cord with NEMA 5-15P plug, 115v/60/1-ph, cULus, NSF,
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus, AHRI, ENERGY STAR |
| Height |
39.0 in |
| Width |
24.0 in |
| Depth |
28.5 in |
| Shipping Weight |
150.0 lbs |
| Bin Storage Capacity |
51 - 100 lb bin capacity |
| Cooling Type |
Water-cooled |
| Cube Type |
Full size/dice |
| Production per 24 hr |
Up to 230 lb at 70°F air / 50°F water |
| 188 lb AHRI certified at 90°F air / 70°F water |
|
| Refrigeration |
Self-contained refrigeration |
| Energy Efficiency |
ENERGY STAR® |
| Finish |
Stainless steel |
| Condenser Type |
Water-cooled |
| Bin Type |
Front facing |
| Additional Features |
Recessed utility chase, unit-specific QR code, ice scoop included, 6" adjustable legs, includes power cord with NEMA 5-15P plug |
| Electrical |
115v/60/1-ph, 5.5' power cord with NEMA 5-15P plug |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
High-Volume Production: Produces up to 230 lbs of medium cube ice daily, with an 80 lbs storage capacity, making it ideal for high-demand environments like restaurants and bars
-
Compact & Space-Saving: Its 24" width and front-breathing design eliminate the need for side clearance, allowing for flexible placement in tight spaces.
-
Water-Cooled Efficiency: Utilizes R-134A refrigerant and a water-cooled condenser, ensuring consistent performance even in warmer environments.
-
Durable Construction: Built with heavy-duty, rust-free front panels and corrosion-resistant aluminum alloy side panels for maximum lifespan.
-
User-Friendly: Includes a slide-back door for easy access, a removable external air filter for easy cleaning, and a unit-specific QR code for quick access to service manuals and warranty history.
-
Energy Efficient: Meets new U.S. federal energy efficiency requirements and uses non-ozone depleting refrigerant, aligning with eco-friendly initiatives.
Q&A
Q: What is the Scotsman UC2024MW-1 Ice Machine?
The Scotsman UC2024MW-1 is a compact, water-cooled undercounter ice machine designed for commercial use. It produces up to 230 lbs of medium cube ice per day and stores up to 80 lbs, making it ideal for establishments with limited space.
Q: What type of ice does it produce?
It produces medium-sized cube ice (7/8" x 7/8" x 7/8"), known for its slow-melting properties, making it perfect for beverages and blended drinks.
Q: Is it energy-efficient?
Yes, it meets U.S. federal energy efficiency requirements and uses non-ozone-depleting R-134A refrigerant.
Q: Where is it manufactured?
The Scotsman UC2024MW-1 is designed, engineered, and assembled in the USA.
Maintenance Tips
-
Descale Quarterly: Use manufacturer-approved cleaner to remove mineral buildup.
-
Change Water Filters: Replace every 6 months for consistent ice quality and machine longevity.
-
Clean Condenser Coils: Keep coils free of dust and debris to maintain efficiency.
-
Inspect Water Lines: Regularly check for leaks or clogs to prevent downtime.
-
Sanitize Ice Bin: Clean weekly to ensure hygienic ice production.
-
Annual Checkup: Have a certified technician perform a full inspection yearly.
