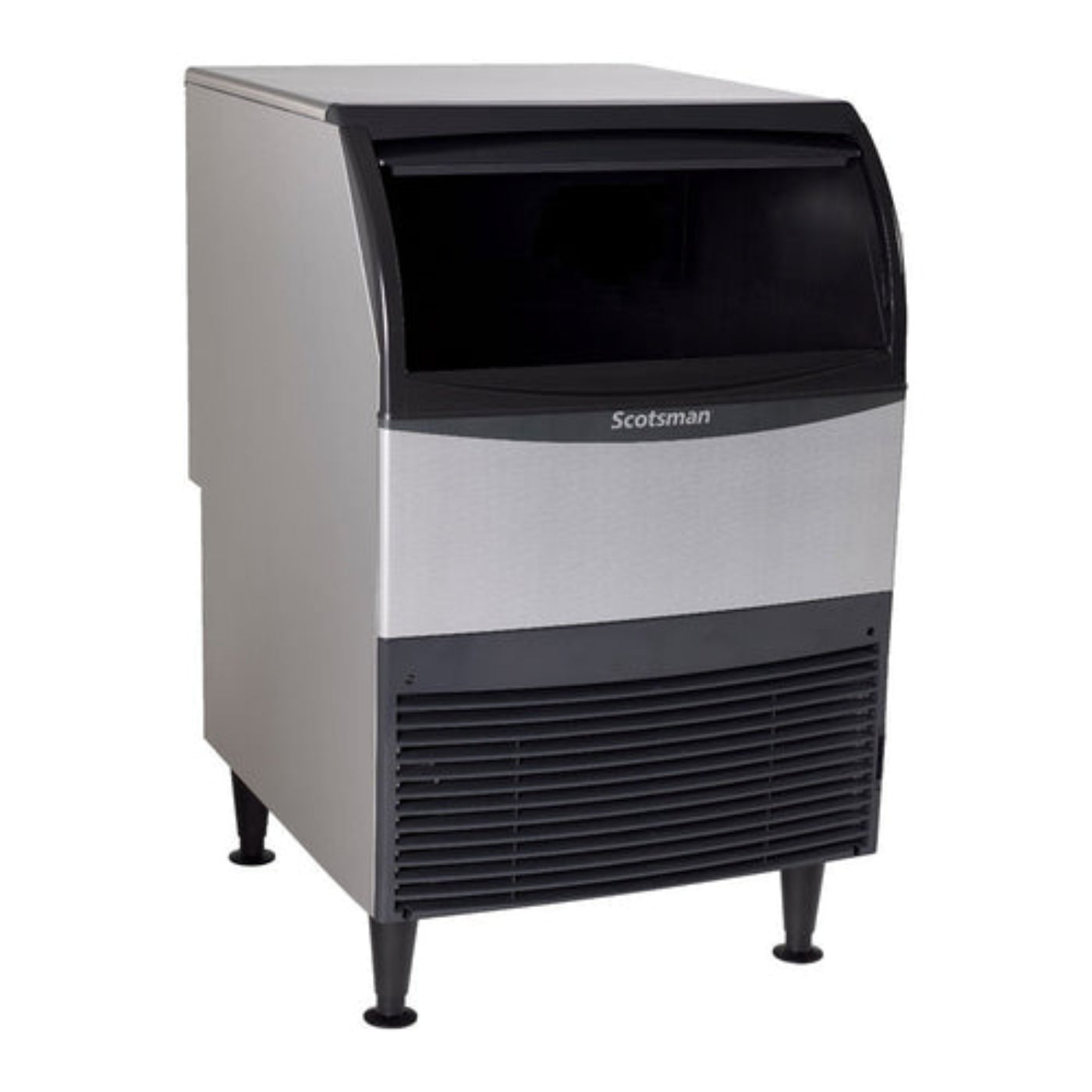

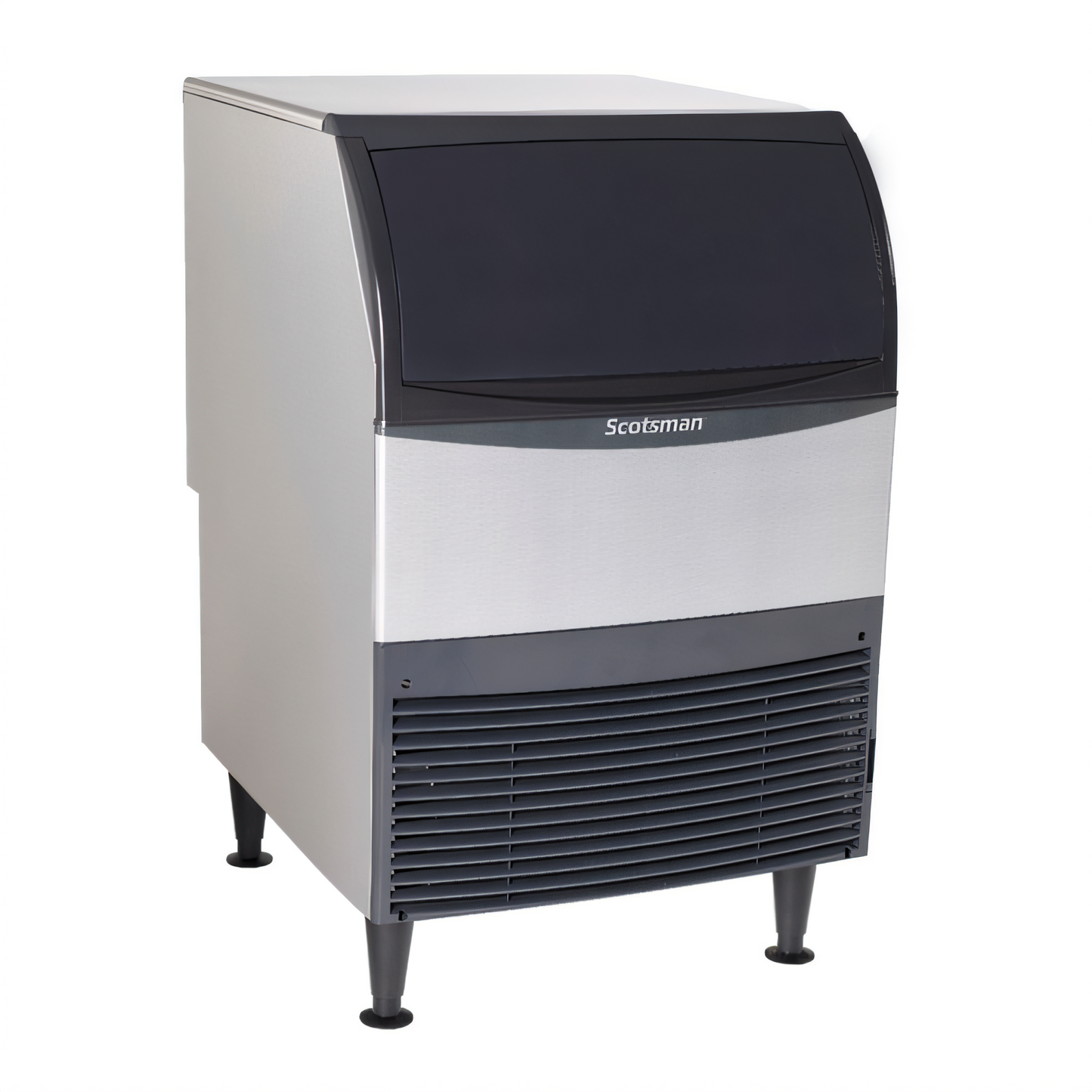

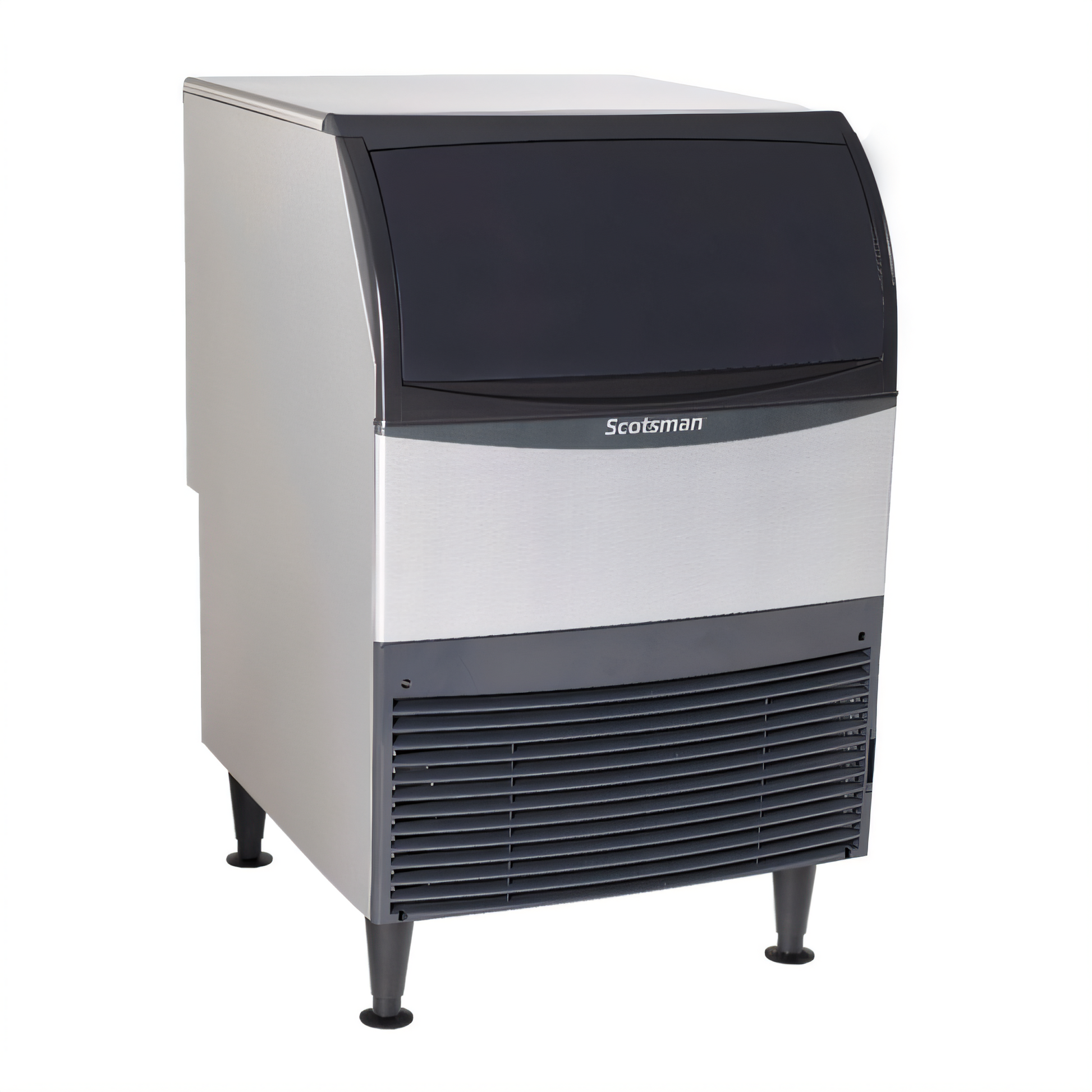

ScotsmanIce Machines - UC2024SW-1
Undercounter Ice Maker with Bin, cube style, water-cooled, 24" width, self-contained condenser, production capacity up to 230 lb/24 hours at 70°/50° (188 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, small cube size, recessed utility chase, unit specific QR code, ice scoop included, 6" adjustable legs, 115v/60/1-ph, includes 5.5’ power cord with NEMA 5-15P plug, NSF, cULus, ENERGY STAR®, engineered and assembled in USA
Ice Maker with Bin, Cube Style, water cooled, self contained condenser, production capacity up to 230 lb production/24 hours at 70°/50° (188 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, clear small cube, recessed utility chase, ice scoop, includes 6" legs, 5.5' power cord with NEMA 5-15P plug, 115v/60/1-ph, cULus, NSF, designed/engineered/assembled in USA.
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus, AHRI, ENERGY STAR |
| Height |
39.0 in |
| Width |
24.0 in |
| Depth |
28.5 in |
| Shipping Weight |
150.0 lbs |
| Condenser Type |
Water-cooled |
| Cube Type |
Half size / half dice (small cube size) |
| Energy Efficiency |
ENERGY STAR® |
| Production per 24 hr |
Up to 230 lb at 70°F air / 50°F water |
| 188 lb AHRI certified at 90°F air / 70°F water |
|
| Bin Storage Capacity |
51 - 100 lb bin capacity (80 lb) |
| Refrigeration |
Self-contained refrigeration |
| Finish |
Stainless steel |
| Additional Features |
Recessed utility chase, unit-specific QR code, ice scoop included, 6" adjustable legs |
| Electrical |
115v/60/1-ph, includes 5.5’ power cord with NEMA 5-15P plug |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
Compact & Efficient: At just 24" wide, this unit produces up to 227 lbs of small cube ice daily, with an 80 lb storage bin, making it ideal for bars, cafes, and break rooms.
-
Space-Saving Design: Front-breathing and recessed utility chase eliminate the need for side and rear clearance, allowing flexible placement in tight spaces.
-
User-Friendly Features: Equipped with an ergonomic slide-back door for easy access, a front-accessible air filter for cleaning, and a unit-specific QR code for quick access to service manuals and warranty history.
-
Durable Construction: Built with rust-free front panels and corrosion-resistant aluminum alloy side panels for maximum lifespan.
-
Energy Efficient: Meets new U.S. federal energy efficiency requirements and uses non-ozone depleting R-134A refrigerant.
-
Easy Installation: Comes with a power cord and NEMA 5-15P plug, making setup straightforward.
Q&A
Q: What is the Scotsman UC2024SA-1 Ice Machine?
The Scotsman UC2024SA-1 is a compact, air-cooled undercounter ice machine designed for commercial use. It produces up to 227 lbs of small cube ice per day and stores up to 80 lbs, making it ideal for establishments with limited space.
Q: What type of ice does it produce?
It produces small cube ice measuring 7/8" x 7/8" x 3/8", known for its slow-melting properties, making it perfect for beverages and blended drinks.
Q: Is it energy-efficient?
Yes, it meets U.S. federal energy efficiency requirements and uses non-ozone-depleting R-134A refrigerant.
Q: Where is it manufactured?
The Scotsman UC2024SA-1 is designed, engineered, and assembled in the USA.
Maintenance Tips
-
Sanitize Regularly: Clean the ice bin and interior monthly to maintain hygiene.
-
Descale Every 3–6 Months: Use Scotsman-approved cleaner to prevent scale buildup.
-
Replace Water Filter: Change every 6 months for clean, clear ice and peak efficiency.
-
Keep Vents Clear: Ensure proper airflow by dusting air vents and condenser coils.
-
Check Water Supply: Inspect hoses and fittings for leaks or blockages.
-
Annual Service: Schedule professional maintenance to extend unit life and avoid costly repairs.
