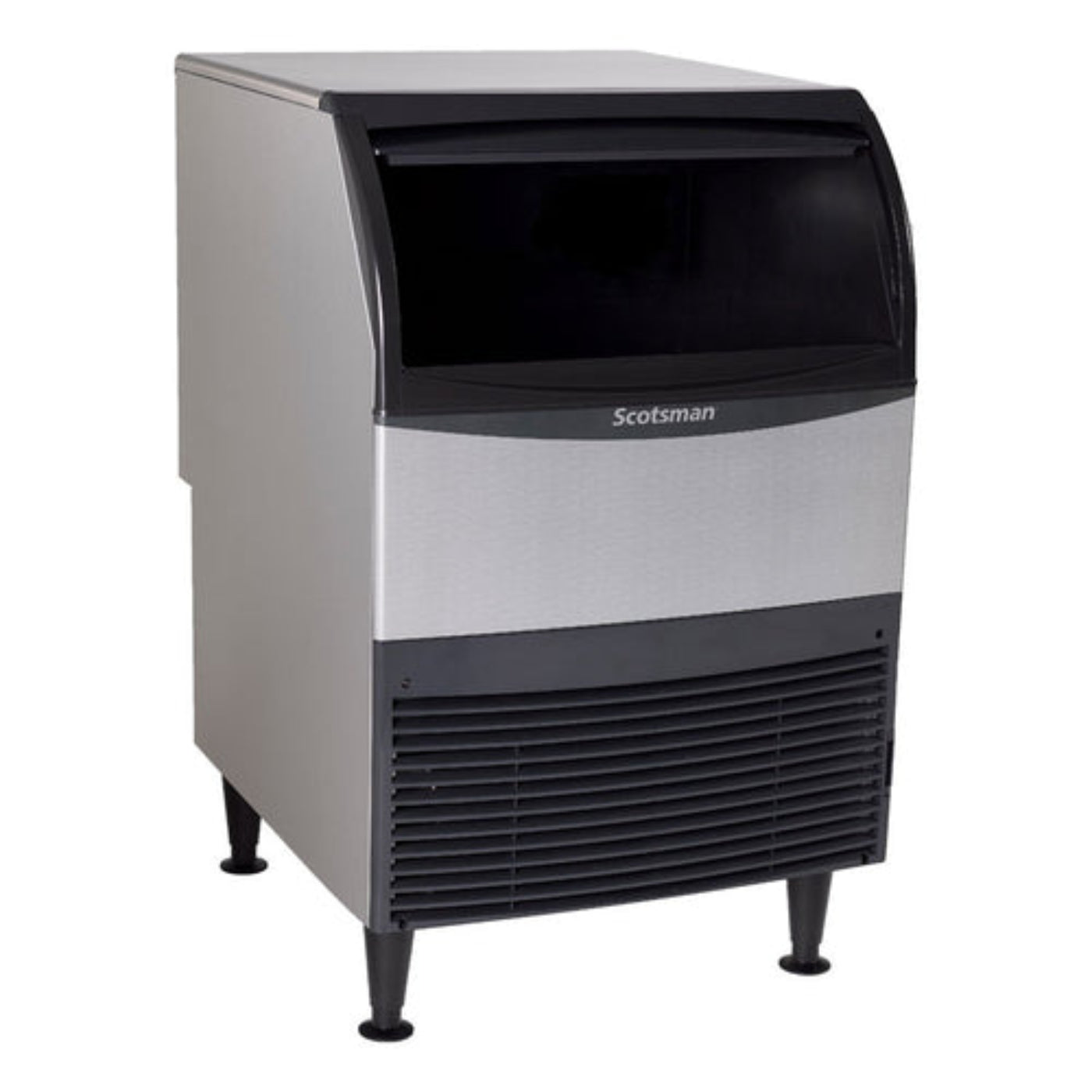

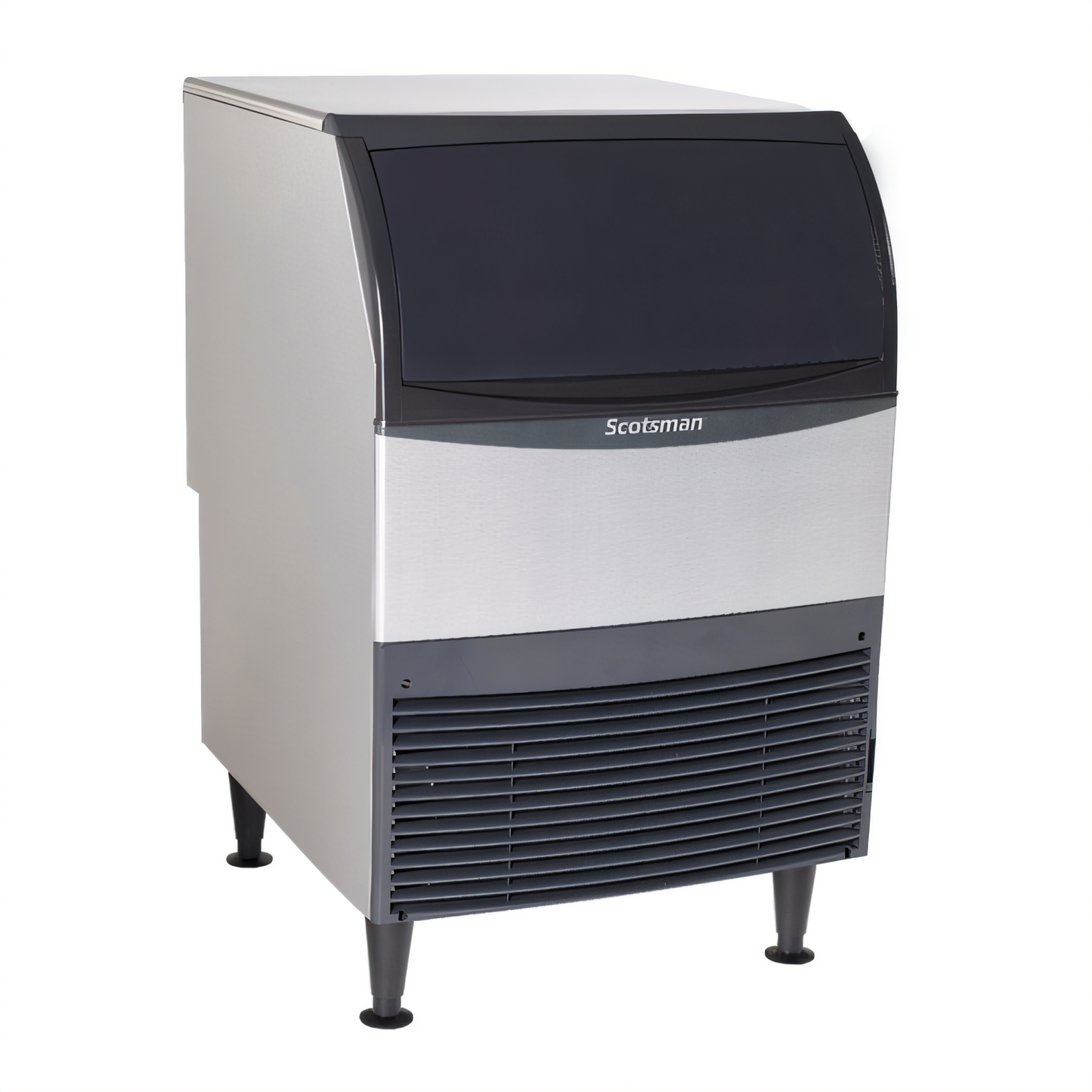

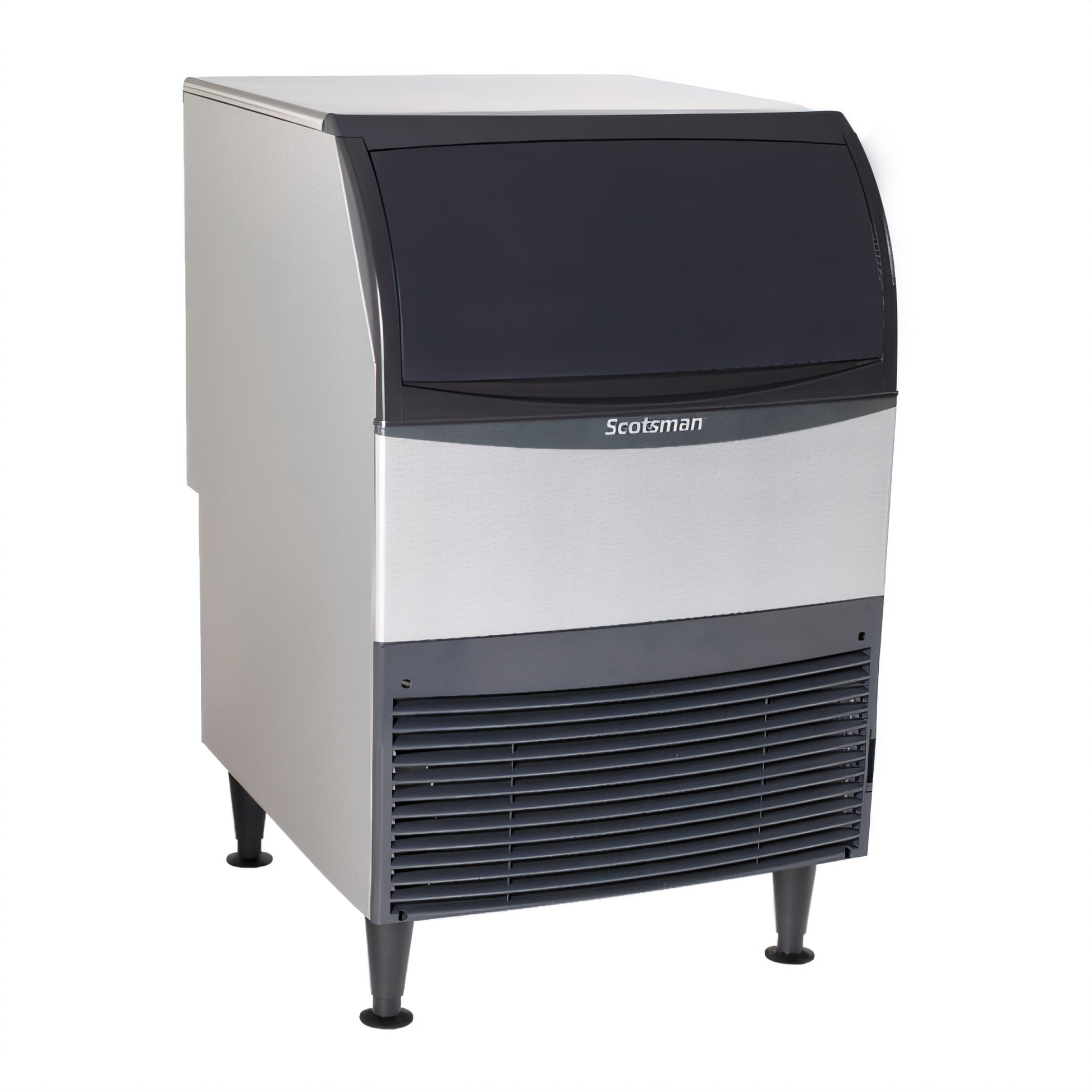

Scotsman Ice Machines - UC2724MA-1
Undercounter Ice Maker with Bin, cube style, air-cooled, 24" width, self-contained condenser, production capacity up to 282 lb/24 hours at 70°/50° (210 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, medium cube size, front facing removable air filter, recessed utility chase, unit specific QR code, ice scoop included, 6" adjustable legs, 115v/60/1-ph, includes 5.5’ power cord with NEMA 5-15P plug, NSF, cULus, engineered and assembled in USA
Ice Maker with Bin, Cube Style, air cooled, self contained condenser, production capacity up to 282 lb production/24 hours at 70°/50° (210 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, clear medium cube, recessed utility chase, front air intake and exhaust, removable external air filter, ice scoop, includes 6" legs, 5.5' power cord with NEMA 5-15P plug, 115v/60/1-ph, cULus, NSF, designed/engineered/assembled in USA
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus, AHRI |
| Height |
39.0 in |
| Width |
24.0 in |
| Depth |
28.5 in |
| Shipping Weight |
175.0 lbs |
| Cube Type |
Full size / dice (medium cube size) |
| Condenser Type |
Air-cooled |
| Production per 24 hr |
Up to 282 lb at 70°F air / 50°F water |
| 210 lb AHRI certified at 90°F air / 70°F water |
|
| Bin Storage Capacity |
51 - 100 lb bin capacity (80 lb) |
| Refrigeration |
Self-contained refrigeration |
| Finish |
Stainless steel |
| Additional Features |
Front-facing removable air filter, recessed utility chase, unit-specific QR code, ice scoop included, 6" adjustable legs |
| Electrical |
115v/60/1-ph, includes 5.5’ power cord with NEMA 5-15P plug |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
High Production Capacity: Produces up to 282 lbs of medium-sized ice cubes per day, with an 80 lb storage capacity, making it ideal for high-demand environments like restaurants, bars, and cafes.
-
Compact & Space-Saving Design: At just 24" wide, this unit fits into tight spaces and features a front-breathing design, eliminating the need for side clearance and allowing for flexible placement.
-
User-Friendly Features: Equipped with an ergonomic slide-back door for easy access, a removable external air filter for easy cleaning, and a unit-specific QR code for quick access to service manuals and warranty history.
-
Durable Construction: Built with rust-free front panels and corrosion-resistant aluminum alloy side panels for maximum lifespan.
-
Energy Efficient: Meets new U.S. federal energy efficiency requirements and uses non-ozone depleting R-134A refrigeran
Q&A
Q: What is the Scotsman UC2724MA-1 Ice Machine?
The Scotsman UC2724MA-1 is a compact, air-cooled undercounter ice machine designed for commercial use. It produces up to 282 lbs of full-size cube ice per day and stores up to 80 lbs, making it ideal for establishments with limited space.
Q: What type of ice does it produce?
It produces full-size cube ice measuring 7/8" x 7/8" x 7/8", known for its slow-melting properties, making it perfect for beverages and blended drinks.
Q: Is it energy-efficient?
Yes, it meets U.S. federal energy efficiency requirements and uses non-ozone-depleting R-134A refrigerant.
Q: What warranty does it come with?
It includes a 3-year parts and labor warranty on all components and a 5-year parts warranty on the compressor and evaporator.
Q: Where is it manufactured?
The Scotsman UC2724MA-1 is designed, engineered, and assembled in the USA.
Maintenance Tips
-
Monthly Cleaning: Sanitize the ice bin and internal surfaces to prevent microbial growth.
-
Descale Every 3–6 Months: Use Scotsman-recommended descaler to remove mineral buildup.
-
Replace Water Filter Biannually: Ensure consistent ice quality and machine longevity.
-
Clear Air Vents & Condenser Coils: Keep free of dust to maintain cooling efficiency.
-
Inspect Water Lines: Regularly check for leaks, clogs, or kinks.
-
Professional Tune-Up Yearly: Have a technician inspect components and settings annually.
