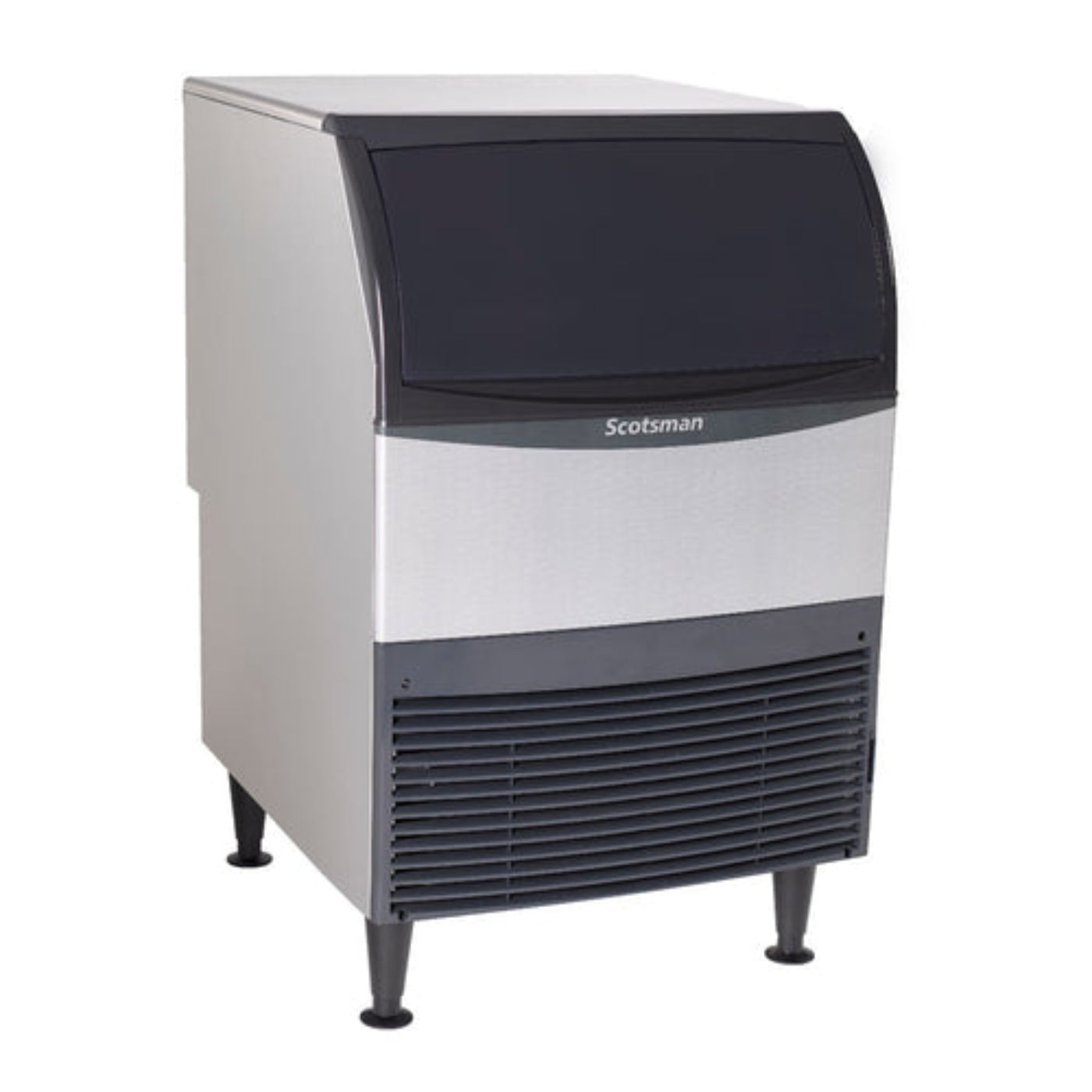

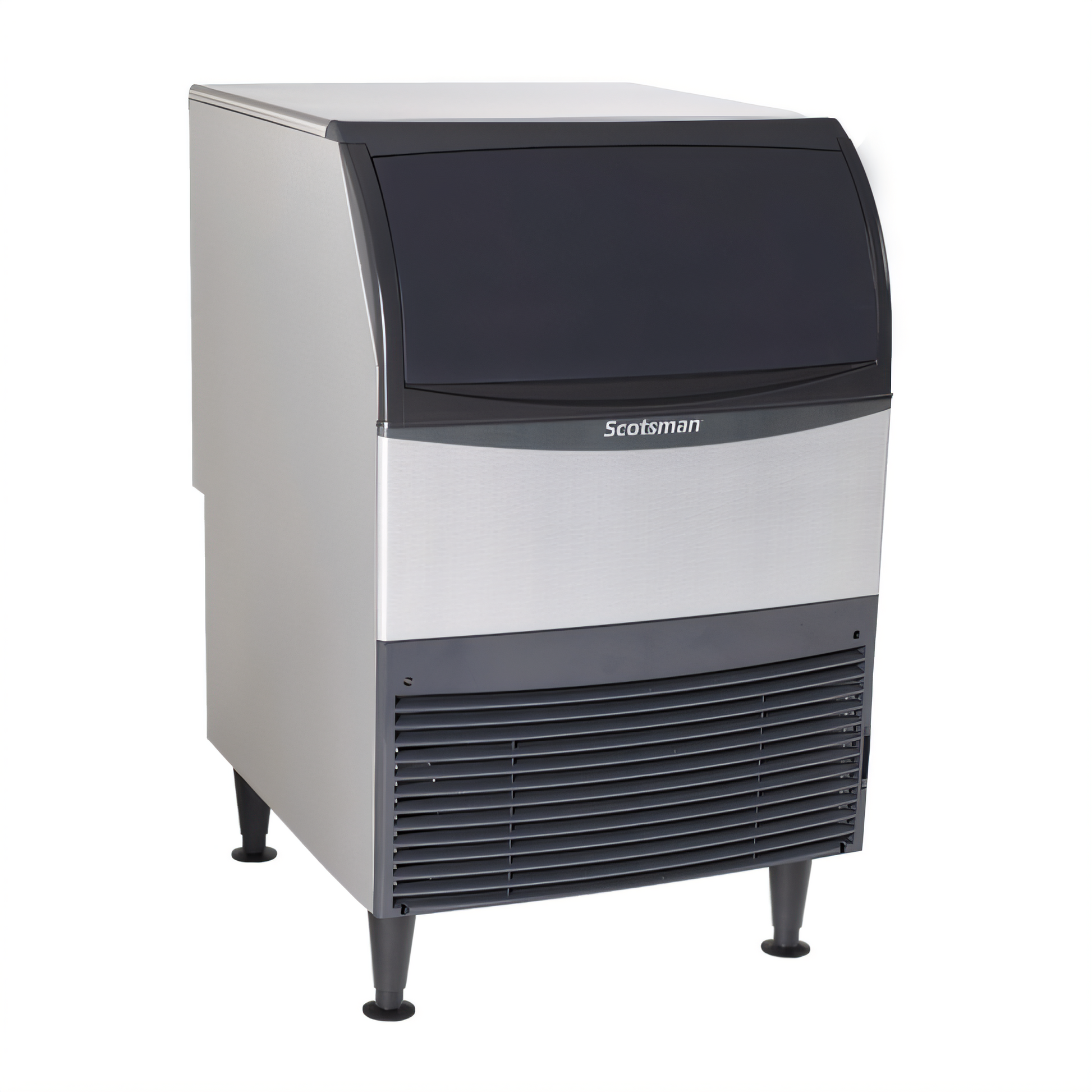

Scotsman Ice Machines - UC2724MA-6
Undercounter Ice Maker with Bin, cube style, air-cooled, 24" width, self-contained condenser, production capacity up to 270 lb/24 hours, 80 lb bin storage capacity, medium cube size, front facing removable air filter, recessed utility chase, unit specific QR code, ice scoop included, 6" adjustable legs, 230v/50/1-ph, engineered and assembled in USA (Export Model, 50hz version)
Specifications
| Manufacturer |
Scotsman |
| Height |
39.0 in |
| Width |
24.0 in |
| Depth |
29.0 in |
| Shipping Weight |
175.0 lbs |
| Cube Type |
Full size / dice (medium cube size) |
| Condenser Type |
Air-cooled |
| Production per 24 hr |
Up to 270 lb/24 hours |
| Bin Storage Capacity |
80 lb |
| Refrigeration |
Self-contained refrigeration |
| Finish |
Stainless steel |
| Additional Features |
Front-facing removable air filter, recessed utility chase, unit-specific QR code, ice scoop included, 6" adjustable legs |
| Electrical |
230v/50/1-ph (Export model, 50Hz version) |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
High Ice Output – Produces up to 270 lbs of medium cube ice per day, with an 80 lb built-in storage bin—ideal for restaurants, cafes, and healthcare facilities. CME Corp
-
Compact & Flexible Design – At just 24" wide, this undercounter unit fits tight spaces and features front-breathing ventilation, requiring no side clearance.
-
Energy Efficient – Operates on 230V/50Hz, helping reduce utility costs while meeting environmental standards. Amazon
-
User-Friendly Features – Equipped with an ergonomic slide-back door, removable external air filter, and unit-specific QR code for quick access to service manuals and guides.
-
Durable Construction – Built with a rust-free front panel and corrosion-resistant aluminum alloy side panels, ensuring long-lasting performance.
-
Easy Installation – Includes a power cord, ice scoop, and adjustable legs for quick setup.
Q&A
Q: What type of ice does the Scotsman UC2724MA-6 produce?
A: This unit produces medium-sized, crystal-clear cube ice, ideal for beverages and food service use.
Q: How much ice can it produce daily?
A: The UC2724MA-6 produces up to 282 lbs of ice per day under standard conditions.
Q: What is the storage capacity of this machine?
A: It has an integrated storage bin that holds up to 80 lbs of ice.
Q: Is the UC2724MA-6 suitable for undercounter installation?
A: Yes, its compact undercounter design is perfect for bars, cafes, and commercial kitchens.
Q: What are the electrical requirements?
A: This model operates on a 115V/60Hz/1-phase power supply (UC2724MA-6).
Q: Does it have a self-contained condenser?
A: Yes, it features a self-contained air-cooled condenser for easy setup and operation
Maintenance Tips
-
Semi-Annual Cleaning: Perform a thorough cleaning every six months to maintain sanitation and efficiency.
-
Descaling Internal Components: Prepare a solution by mixing 5 oz (150 cc) of Scotsman Clear 1 Scale Remover with 2.5 quarts (2.4 liters) of warm potable water (95°F to 115°F). Remove the spray bar and ice level control plate, soak them in the solution, and clean thoroughly.
-
Sanitizing the System: After descaling, sanitize the machine by mixing 4 oz (118 ml) of NuCalgon IMS sanitizer with 2.5 gallons (9.5 liters) of warm potable water (90°F to 110°F). Pour half of this solution into the sump and run the machine in wash mode for 10 minutes.
-
Cleaning the Ice Storage Bin: Use the remaining sanitizer solution to thoroughly clean the interior of the ice storage bin, ensuring all surfaces are sanitized.
-
Air Filter Maintenance: Regularly remove and clean the external air filter to maintain proper airflow and cooling efficiency.
-
Drain Line Inspection: Ensure the drain line is clear and unobstructed to prevent water backup and potential overflows.
