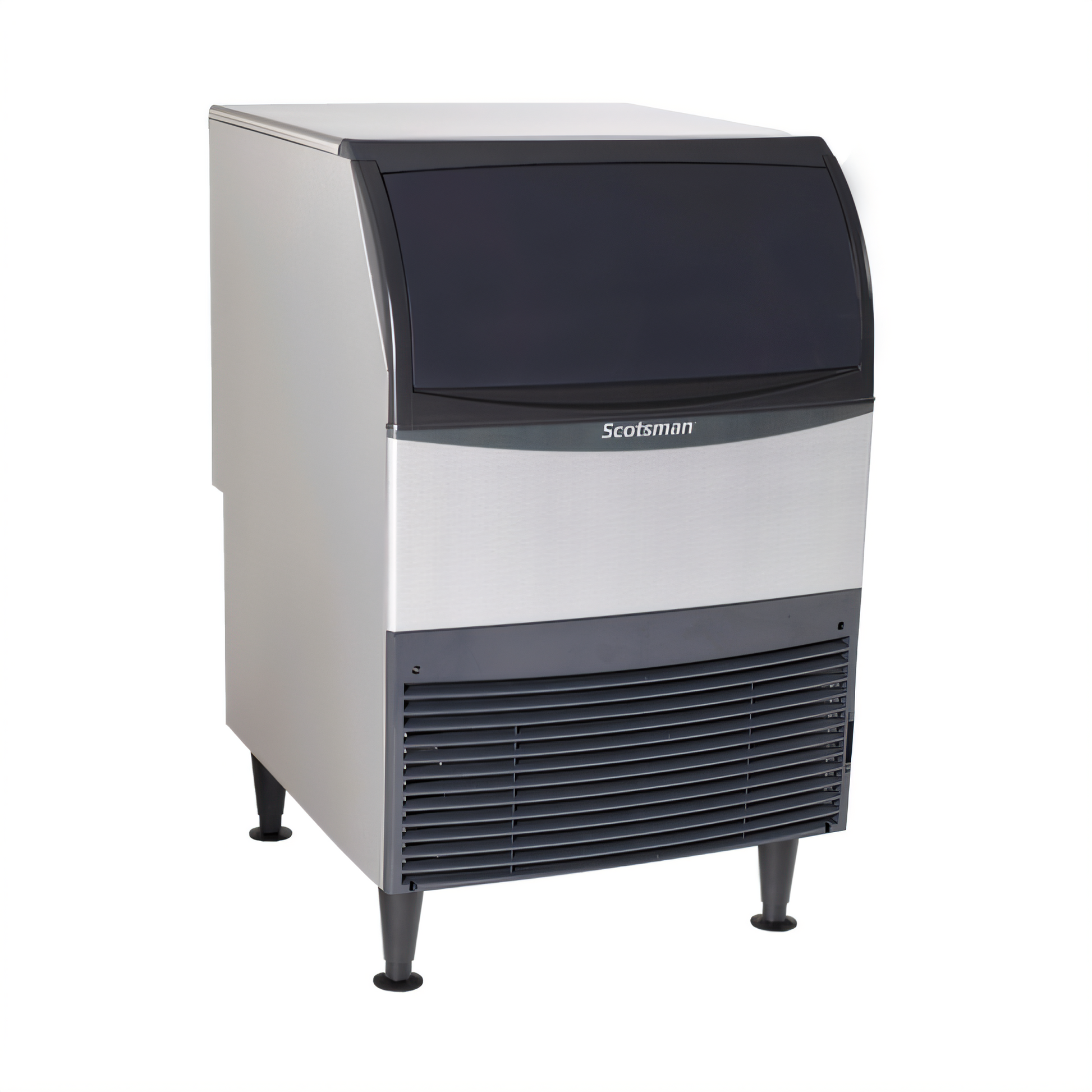

Scotsman Ice Machines - UF424W-1
Undercounter Ice Maker with Bin, Flake Style, water cooled, 24" width, self contained condenser, production capacity up to 440 lb production/24 hours at 70°/50° (330 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, sealed maintenance-free bearings, stainless steel auger & evaporator, recessed utility chase, unit specific QR code, ice scoop, includes 6" adjustable legs, 115v/60/1-ph, includes 5.5' power cord with NEMA 5-15P plug, cULus, NSF, engineered and assembled in USA
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus, AHRI |
| Height |
39.0 in |
| Width |
24.0 in |
| Depth |
28.5 in |
| Shipping Weight |
200.0 lbs |
| Finish |
Stainless steel |
| Cooling Type |
Water-cooled |
| Bin Storage Capacity |
80 lb (0 - 99 lb range) |
| Ice Production (24 hr) |
Up to 440 lb at 70°F air / 50°F water |
| 330 lb AHRI certified at 90°F air / 70°F water |
|
| Ice Type |
Flake |
| Installation Type |
Undercounter |
| Condenser Type |
Self-contained |
| Materials |
Stainless steel auger & evaporator |
| Bearings |
Sealed, maintenance-free |
| Utility Chase |
Recessed |
| Additional Features |
Unit-specific QR code, ice scoop included, 6" adjustable legs |
| Electrical |
115v / 60Hz / 1-ph, includes 5.5' power cord with NEMA 5-15P plug |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
Water-Cooled Efficiency: Ideal for hot environments where air-cooled units struggle—consistent performance regardless of ambient temperature.
-
High Production Capacity: Generates up to 440 lbs of flake ice per day—perfect for healthcare, seafood displays, and blended beverages.
-
Space-Saving Design: Compact, undercounter footprint (24") makes it easy to fit into tight spaces.
-
Premium Flake Ice: Soft, moldable ice preserves product freshness and improves drink presentation.
-
Reliable Brand: Scotsman is a top choice in commercial ice machines, known for durability and innovation.
-
Easy to Maintain: Front-access servicing and simple controls reduce downtime and maintenance costs.
-
ADA Compliant: Built to meet accessibility standards, enhancing usability across all setups.
Q&A
Q: What is the Scotsman UF424W-1 Ice Machine?
A: The Scotsman UF424W-1 is a high-performance undercounter ice machine designed for commercial use, providing reliable, clear, and consistent ice production in a compact size.
Q: What type of ice does the Scotsman UF424W-1 produce?
A: It produces nugget ice, ideal for soft drinks, smoothies, and healthcare applications.
Q: How much ice can the UF424W-1 produce?
A: This model can produce up to 400 lbs of nugget ice per day, with a storage capacity of up to 130 lbs.
Q: Is the Scotsman UF424W-1 energy efficient?
A: Yes, it is ENERGY STAR certified, ensuring reduced energy consumption and lower operating costs.
Q: Where can the Scotsman UF424W-1 be used?
A: Perfect for bars, restaurants, cafes, and healthcare facilities that require compact, high-quality ice production.
Maintenance Tips
-
Regular Cleaning: Clean the evaporator and condenser coils every 3-6 months to prevent dust buildup and ensure efficient operation.
-
Sanitize Water System: Sanitize the water reservoir, filter, and ice storage bin quarterly to avoid bacterial growth.
-
Check Water Filter: Replace the water filter every 6 months or as recommended to ensure clean ice production.
-
Inspect for Leaks: Regularly check for water or refrigerant leaks to prevent system damage.
-
Keep Drain Clear: Ensure the drain is free from debris to avoid water backup.
-
Monitor Temperature: Keep the machine at the optimal operating temperature (typically 50°F-90°F) for efficient performance.
-
Professional Servicing: Schedule annual professional maintenance to extend the lifespan of the unit.
