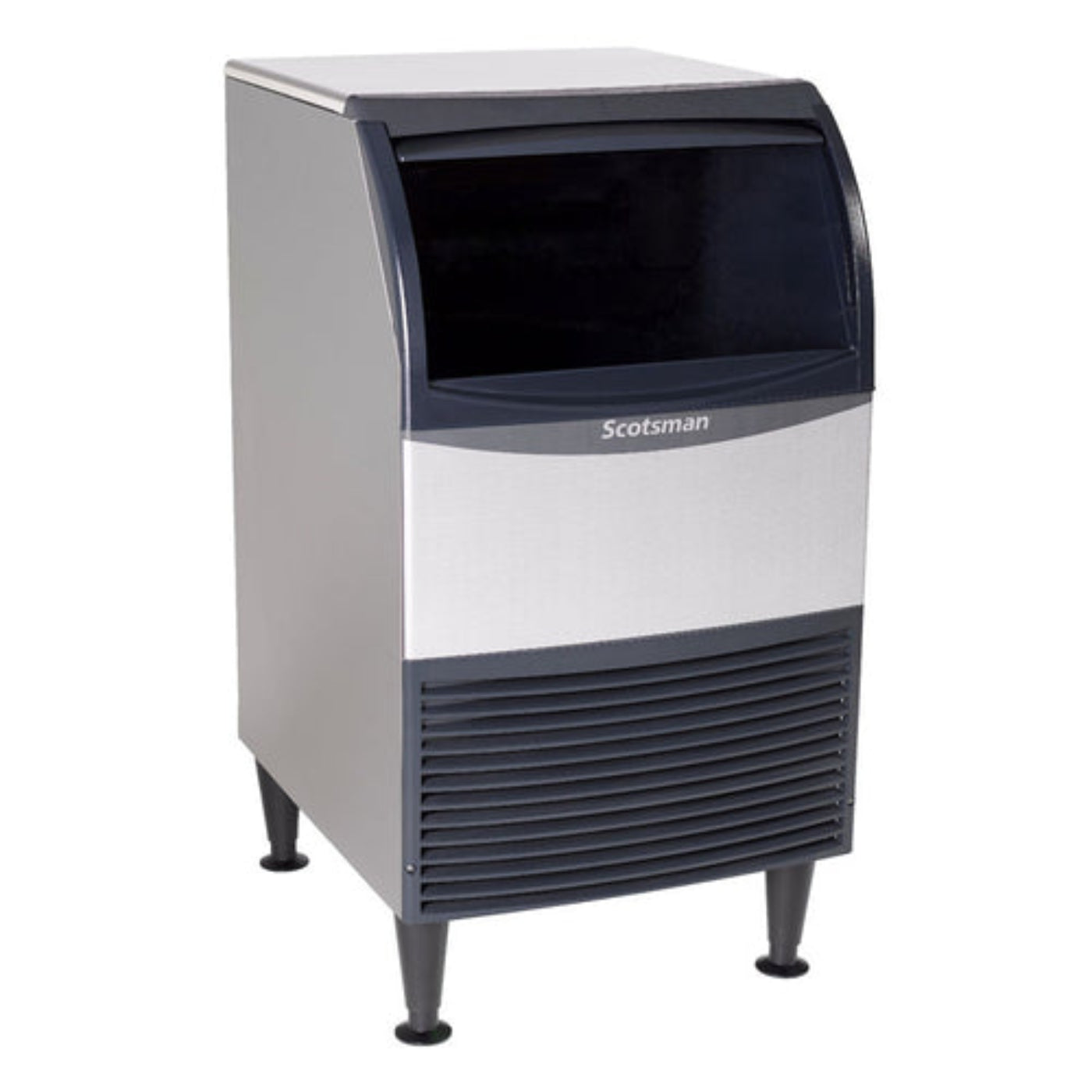

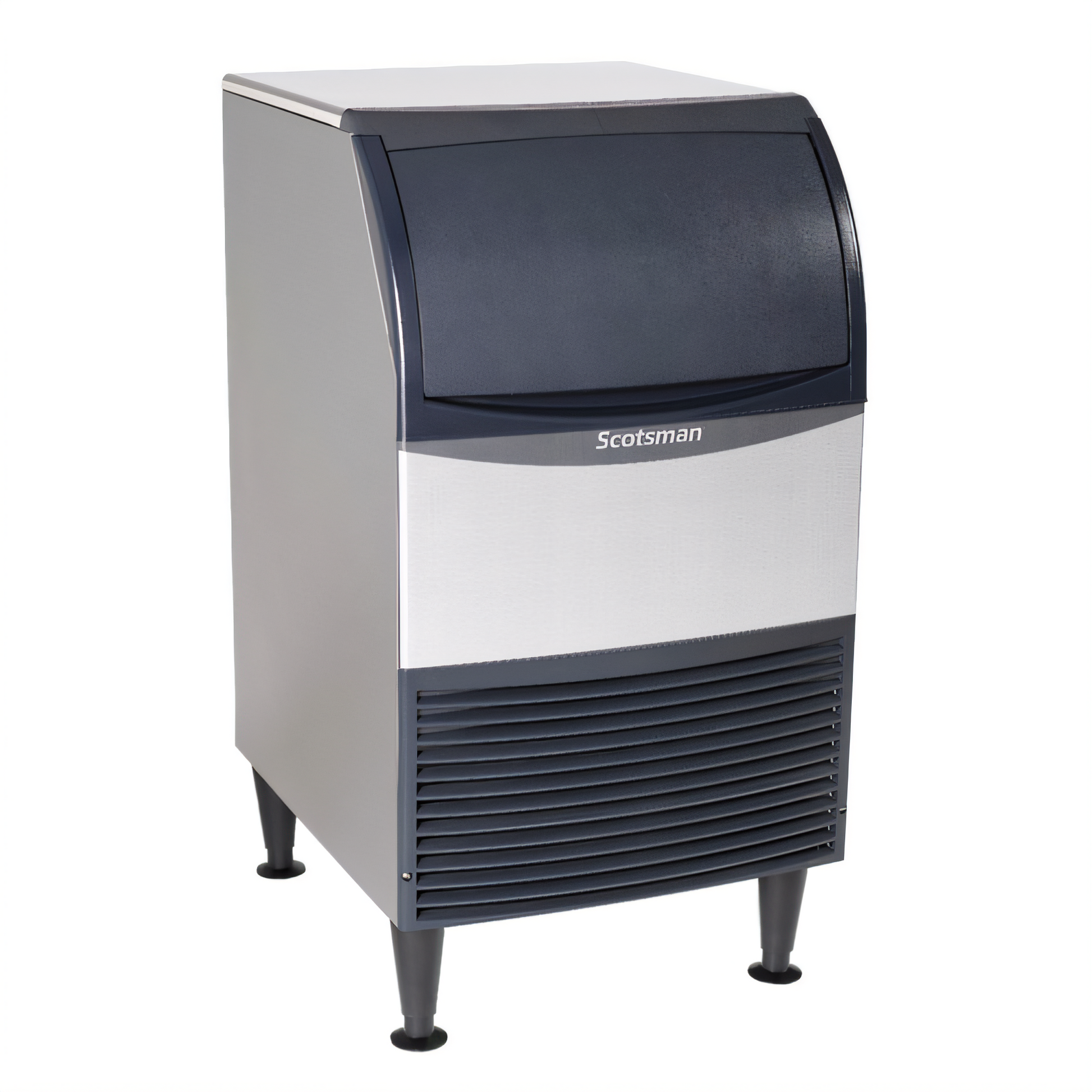

Scotsman Ice Machines - UN1520A-1
Undercounter Ice Maker with Bin, nugget style, air-cooled, 20 width, self-contained condenser, production capacity up to 167 lb/24 hours at 70°/50° (125 lb AHRI certified at 90°/70°), 57 lb bin storage capacity, Original Chewable Ice, sealed maintenance-free bearings, stainless steel evaporator & auger, ADA compliant with floor mount kit, unit specific QR code, ice scoop included, 6" adjustable legs, 115v/60/1-ph, includes power cord with NEMA 5-15P plug, NSF, cULus, ENERGY STAR, engineered and assembled in USA
Ice Maker with Bin, Nugget Style, air cooled, self contained condenser, production capacity up to 167 lb production/24 hours at 70°/50° (125 lb AHRI certified at 90°/70°), 57 lb bin storage capacity, stainless steel evaporator and auger, sealed bearings, front air intake and exhaust, ice scoop, includes 6" legs, 5.5' power cord with NEMA 5-15P plug, 115v/60/1-ph, ENERGY STAR, cULus, NSF, ADA compliant (with floor mount kit), designed/engineered/assembled in USA.
Specifications
| Manufacturer |
Scotsman |
| Certifications |
NSF, cULus, AHRI, ADA Compliant, ENERGY STAR |
| Height |
38.0 in |
| Width |
20.0 in |
| Depth |
24.0 in |
| Shipping Weight |
129.0 lbs |
| Bin Storage Capacity |
57 lb (51 - 100 lb range) |
| Cooling Type |
Air-cooled |
| Ice Production (24 hr) |
Up to 167 lb at 70°F air / 50°F water |
| 125 lb AHRI certified at 90°F air / 70°F water |
|
| Ice Type |
Nugget (Original Chewable Ice®) |
| Finish |
Stainless steel |
| Installation Type |
Undercounter |
| Condenser Type |
Self-contained |
| Refrigeration |
Self-contained refrigeration |
| Materials |
Stainless steel evaporator & auger |
| Bearings |
Sealed, maintenance-free |
| ADA Compliant |
Yes, with floor mount kit |
| Additional Features |
Unit-specific QR code, ice scoop included, 6" adjustable legs |
| Electrical |
115v / 60Hz / 1-ph, includes power cord with NEMA 5-15P plug |
| Energy Efficiency |
ENERGY STAR® |
| Country of Origin |
Engineered and assembled in USA |
Drawings
Documents
What our Experts Think
-
High Ice Output – Produces up to 1,520 lbs of nugget ice daily, perfect for high-demand businesses such as large restaurants, resorts, and healthcare facilities.
-
Nugget Ice Excellence – Offers chewable, soft nugget ice that is perfect for drinks, food displays, and medical use.
-
Compact Footprint – Despite its high capacity, the undercounter design fits in tight spaces, maximizing room efficiency.
-
Energy Efficient – Features air-cooled technology that reduces electricity consumption while providing consistent ice production.
-
Heavy-Duty Construction – Built with a stainless steel exterior, ensuring durability and long-lasting performance in commercial environments.
-
Low Maintenance – Self-cleaning system and simple design make upkeep easy, keeping operations running smoothly.
Q&A
Q: What is the ice production capacity of the Scotsman UN1520A-1?
The Scotsman UN1520A-1 produces up to 167 lbs of nugget ice per day under optimal conditions (70°F air / 50°F water) and stores up to 57 lbs in its integrated bin.
Q: What type of ice does the UN1520A-1 produce?
This model produces chewable nugget ice, known for its soft texture and slow melting properties, ideal for beverages and food displays.
Q: What are the dimensions of the UN1520A-1?
The unit measures 20" W x 24" D x 38" H, allowing it to fit in tight spaces and under ADA-compliant counters with an optional floor mount kit.
Q: Is the Scotsman UN1520A-1 energy-efficient?
Yes, it operates with R-134A refrigerant, which is non-ozone-depleting, and meets the latest EPA and DOE energy efficiency codes.
Maintenance Tips
-
Regular Cleaning: Perform a cleaning cycle every 6 months using Scotsman Clear 1 scale remover
-
Sanitization: After descaling, sanitize the system with a solution of NuCalgon IMS III and potable water.
-
Condenser Maintenance: Vacuum the condenser fins and brush off any loose dirt. If grease is embedded, use coil cleaner to wash it out.
-
Optical Sensor Cleaning: Remove and clean the photo sensors with a solution of scale remover and water. Rinse thoroughly before reinstalling.
-
Water Filter Replacement: Replace water filters as recommended by the manufacturer to ensure optimal water quality.
-
Drain Line Inspection: Regularly check and clean the drain line to prevent clogs and ensure proper drainage.
-
Ice Bin Cleaning: Wash the ice storage bin and rinse with hot water to flush out the drain and melt all ice made during the cleaning process.
