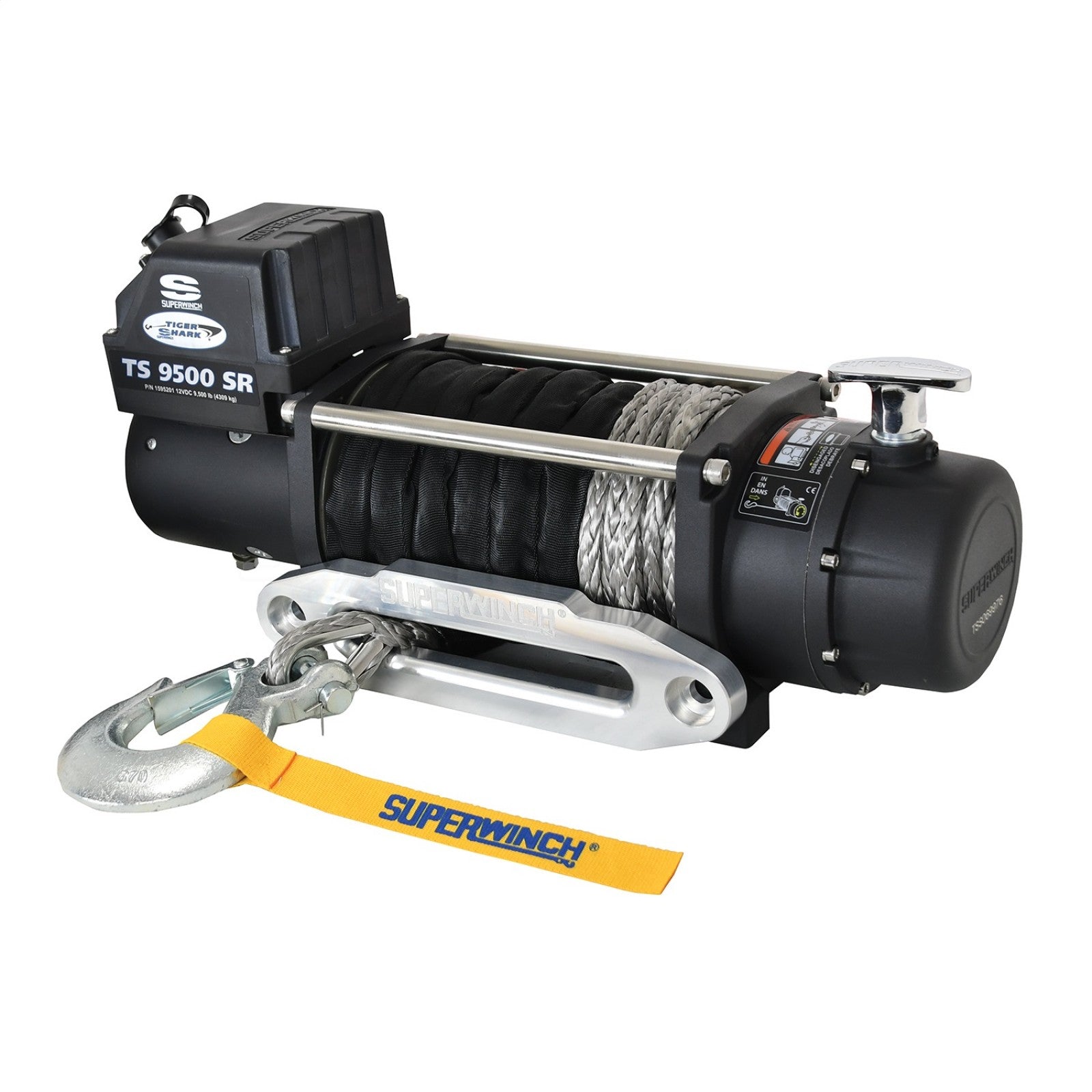

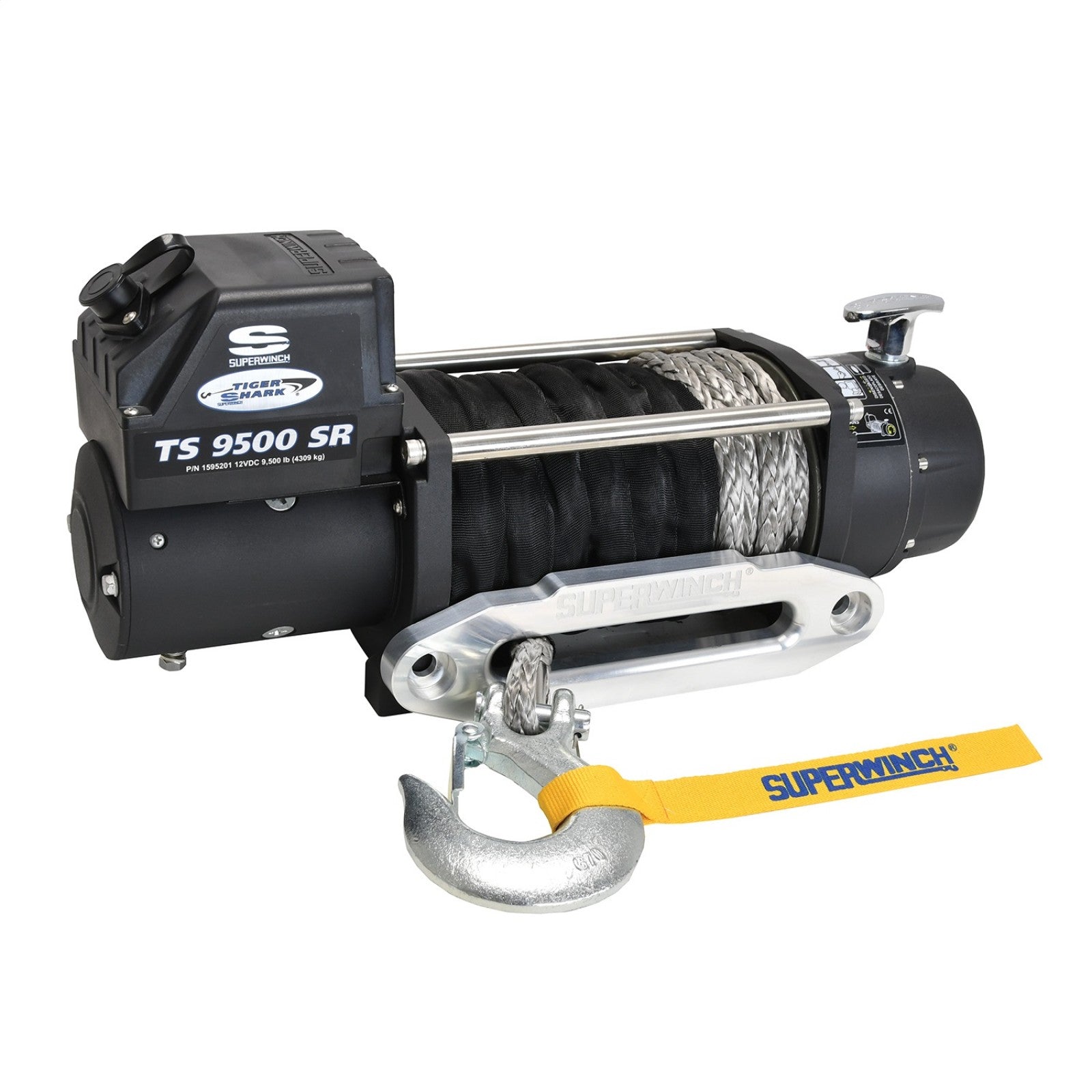

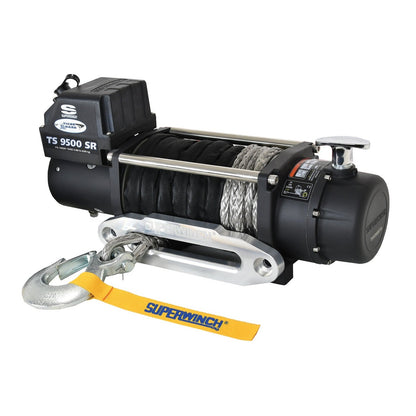

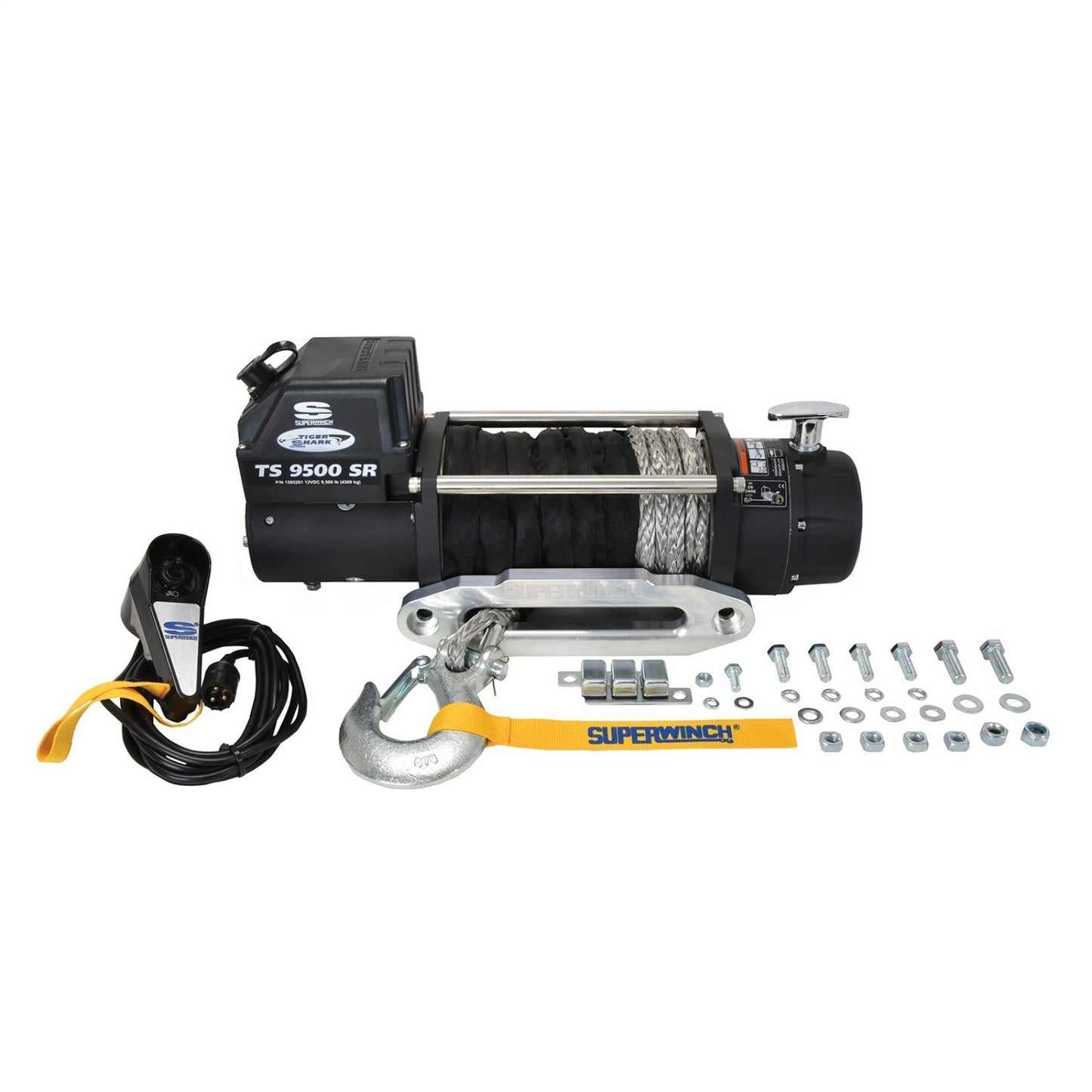

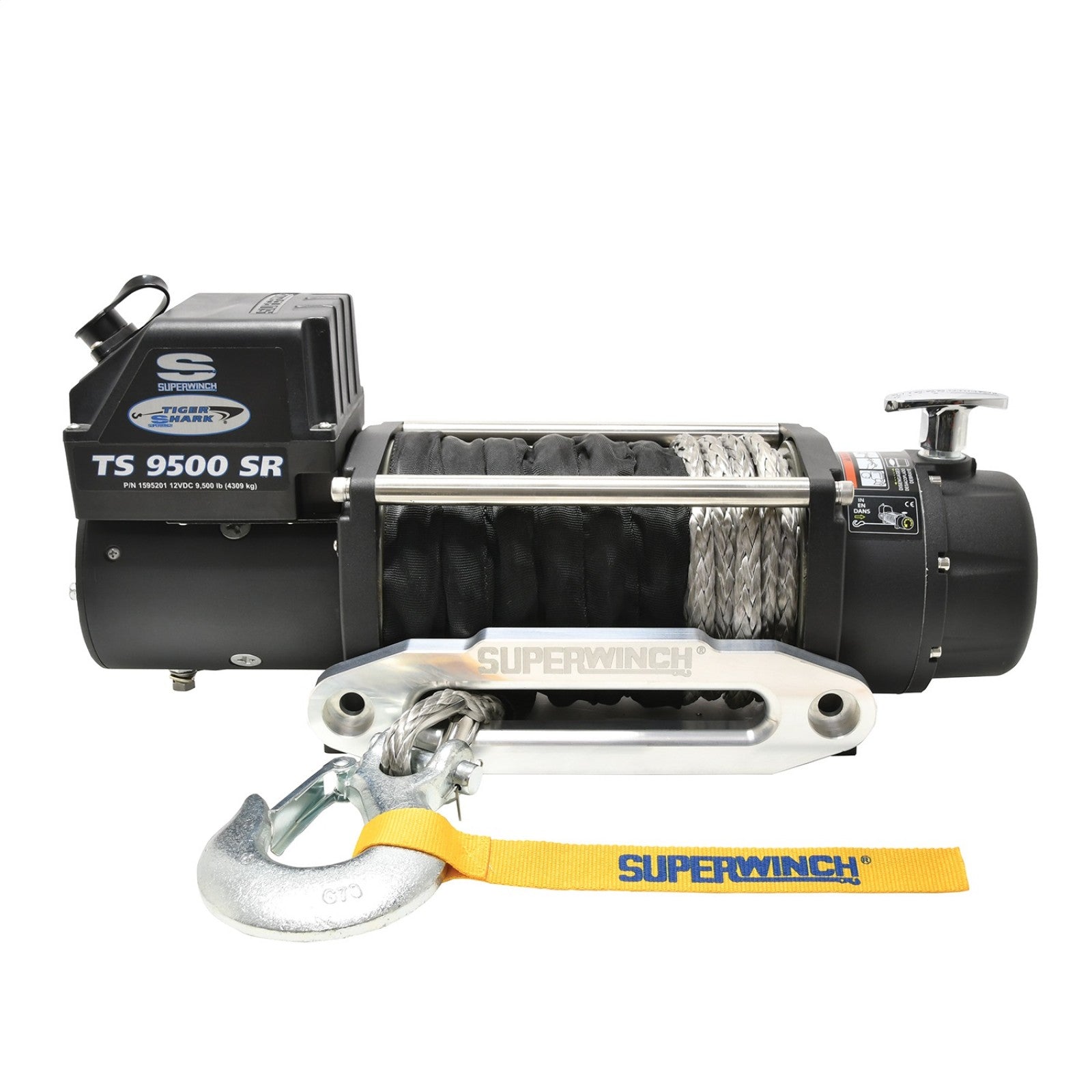

Superwinch Tiger Shark 9500SR Synthetic Rope Winch - 1595201
One of Superwinch's most popular winches, the Tiger Shark 9500SR comes standard with 3/8 synthetic rope, an automatic load holding brake, better drums (thicker, fabricated steel), and stainless steel hardware, and tie bars. Dollar for dollar, there's no better winch than the Superwinch Tiger Shark.
- 12V DC 9,500 lbs rated line pull
- 5.2 HP motor
- 3-Stage planetary gearing with 218:1 ratio

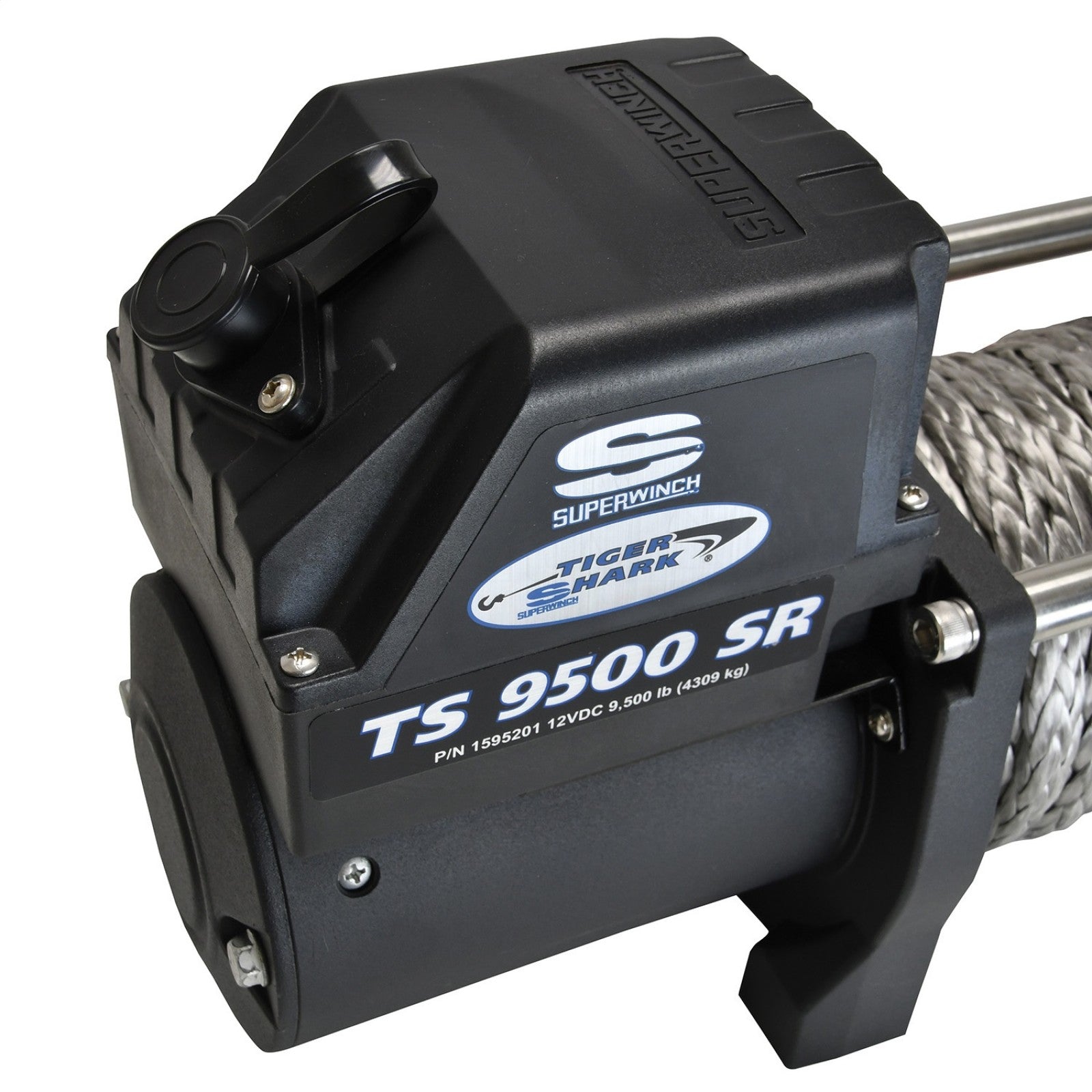

- Weather sealed solenoid

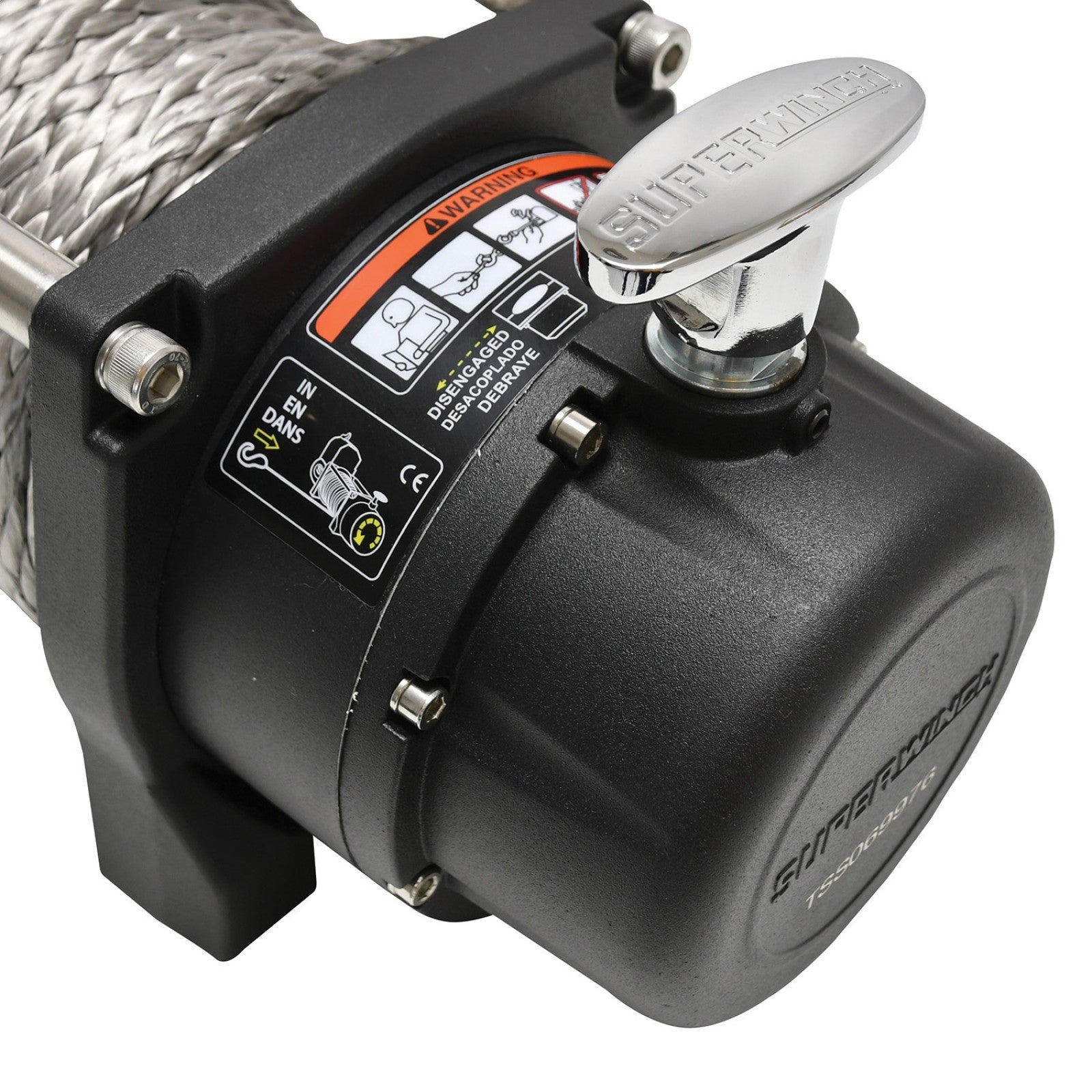

- Ergonomic pull and turn freespool

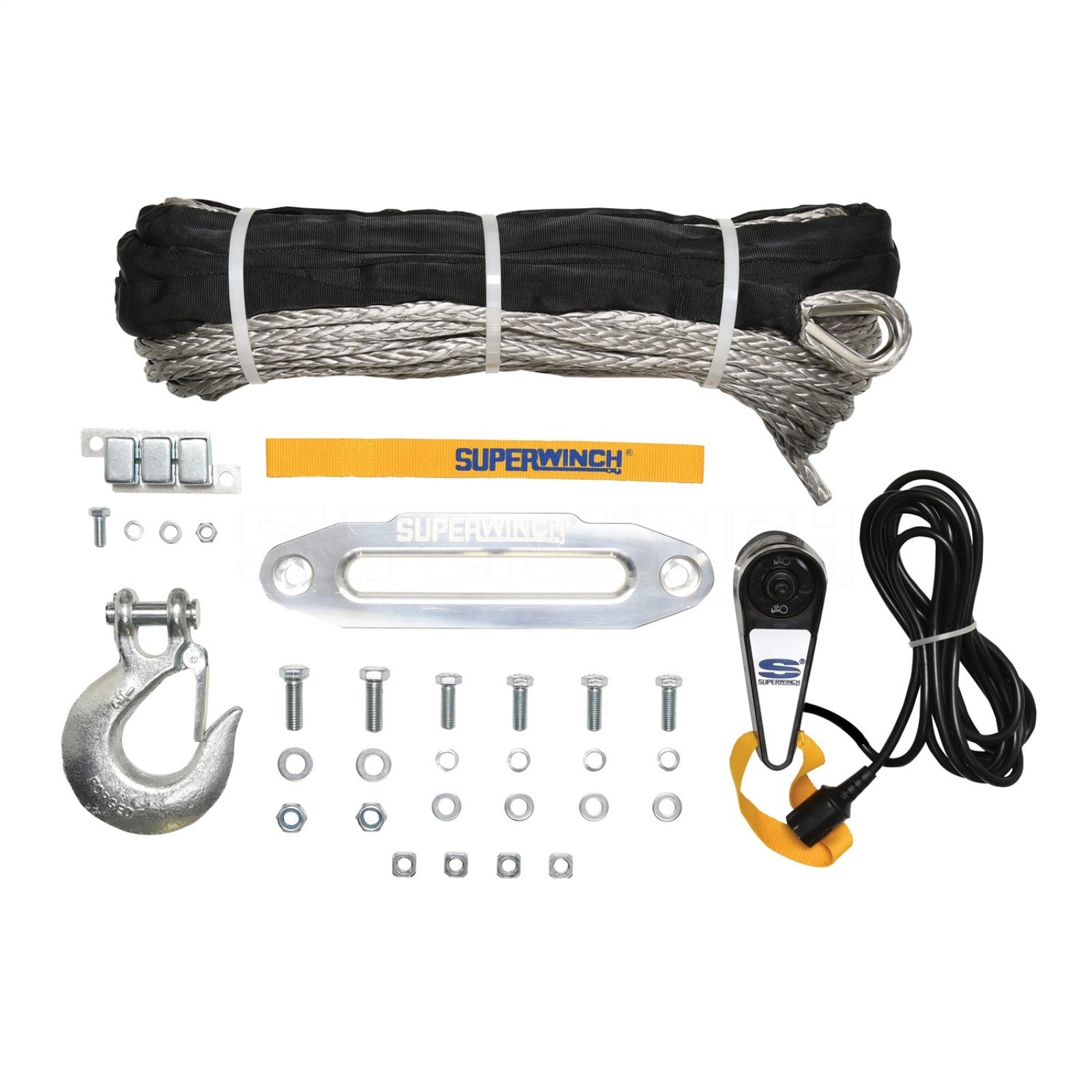

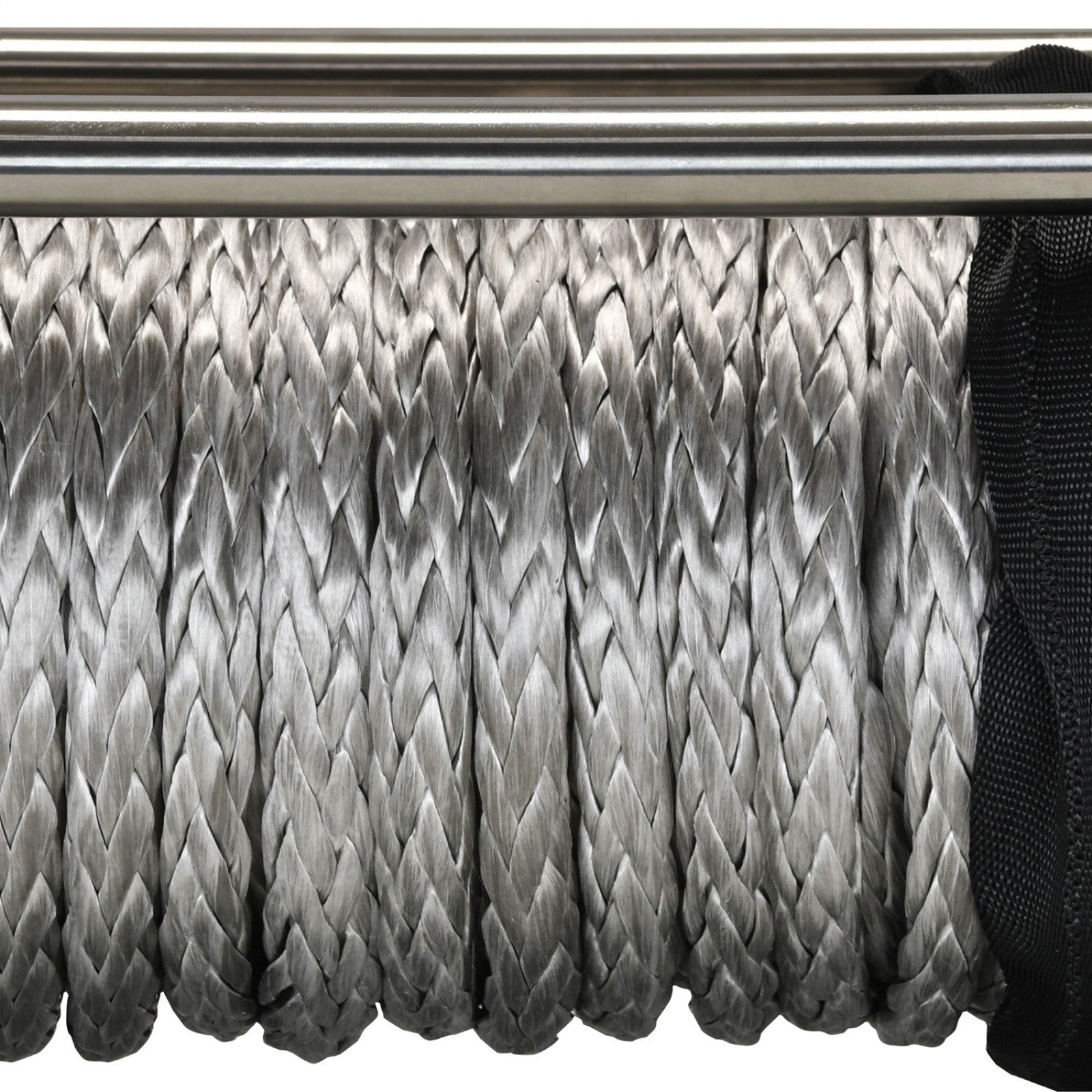

- 3/8 in x 80 ft synthetic rope
- Automatic load holding brake design

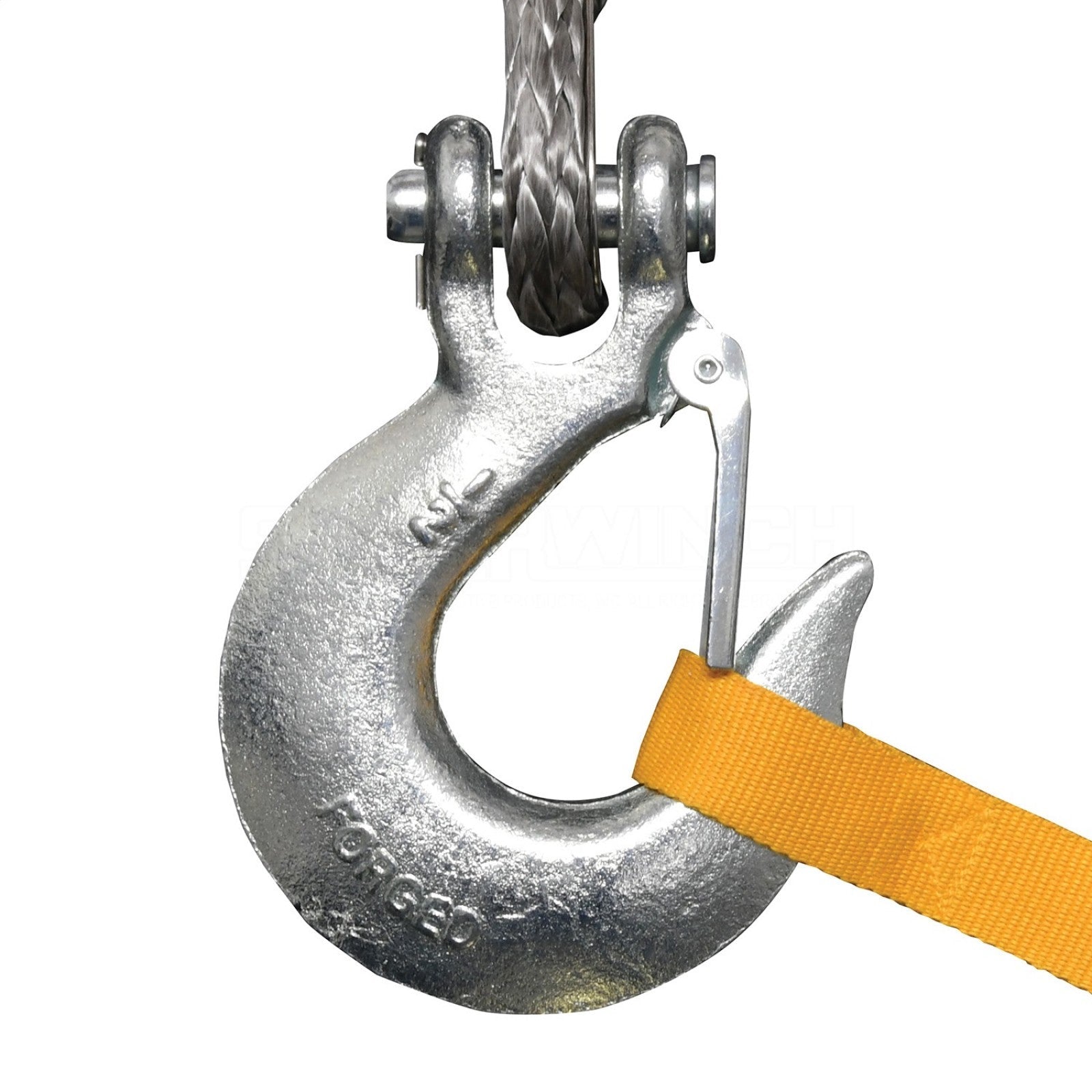

- Heavy-duty, clevis pinned, latched hook
- Aluminum hawse fairlead

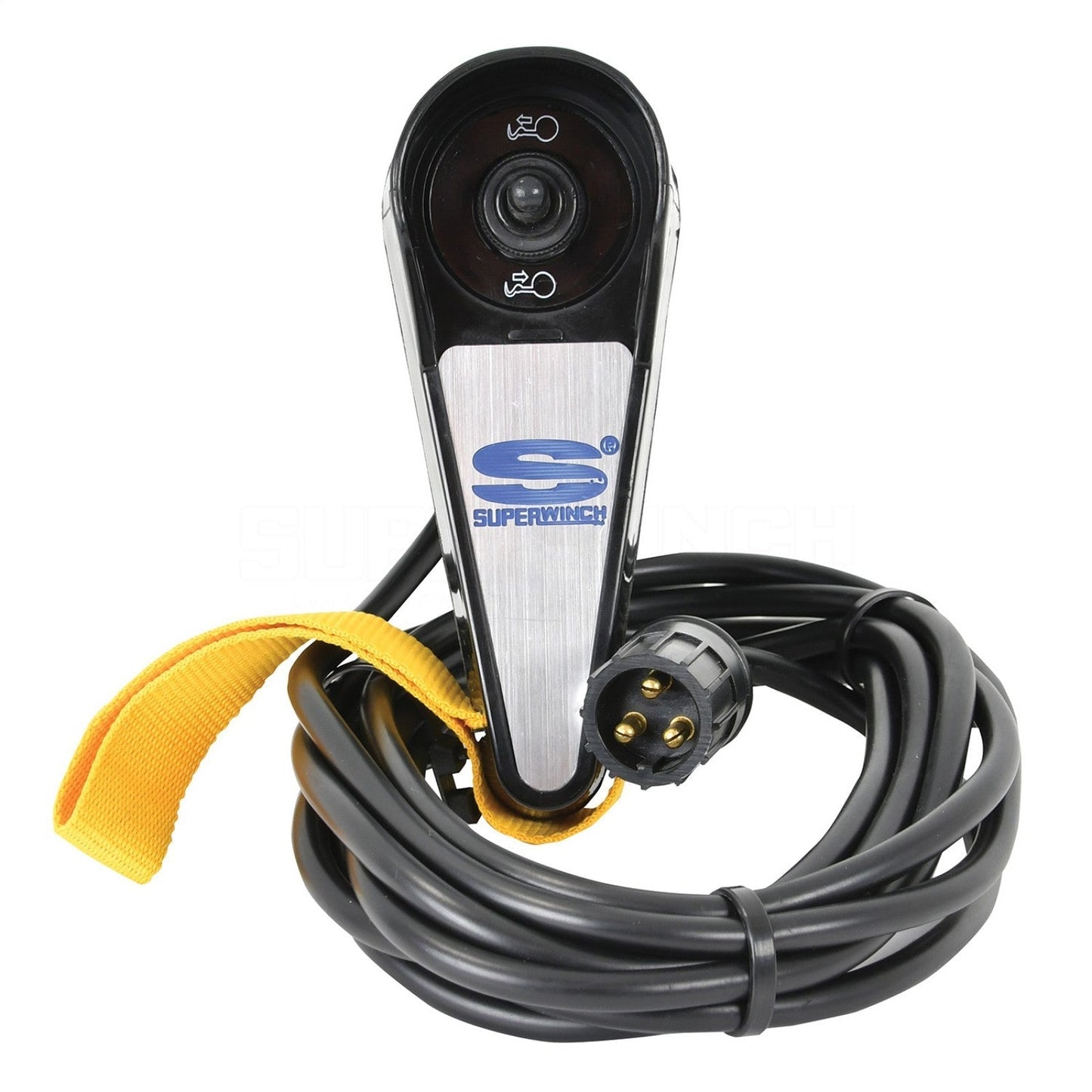

- Rugged handheld remote control
- Stainless steel tiebars
Specifications
| Rated Line Pull |
9,500 lbs (4309 kg) |
| Motor |
Sealed 5.2 HP Series Wound |
| Gearing |
3-Stage Planetary |
| Gear Ratio |
218:1 |
| Solenoid |
Weather Sealed Solenoid and Circuit Breaker Protected |
| Clutch |
Pull and Turn, Ergo |
| Brake |
Mechanical, Automatic Load Holding (in Motor) |
| Rope |
Synthetic 3/8" x 80' |
| Hook |
Heavy Duty Clevis Pinned Latched |
| Fairlead |
Anodized Aluminum Hawse |
| Remote |
12' Rubber Sealed Hand-held |
| Dimensions |
20.8" L x 6.3" W x 9.2 H (529mm L x 160mm W x 234.5mm H) |
| Drum Diameter |
2.5" (63.5mm) |
| Drum Length |
9" (228.6mm) |
| Installed Weight |
59 lbs. (26.7kg) |
| Shipping Weight |
63 lbs (28.6 kg) |
| Warranty |
Limited 2 Year Warranty |
| UPC |
0 22705 00360 5 | 0 22705 00365 0 |
| Line Pull: 0 lbs (0 kgs) |
80 Amps Motor Draw/19 FPM (5.7 MPM) Line Speed |
| Line Pull: 9,500 lbs (4,309 kgs) |
340 Amps Motor Draw/4 FPM (1.2 M/M) Line Speed |
| Lead Wires |
6' (1.8m) x 4 gauge (25mm² ) |
What Our Experts Think
-
9,500 lb. Towing Capacity: Ideal for medium-duty recovery and towing applications.
-
Synthetic Rope: Lightweight, durable, and safer than traditional steel cable with less recoil.
-
Fast Line Retrieval: Quick, efficient winching for smooth and rapid operation.
-
Heavy-Duty Construction: Built to endure tough conditions and prolonged use.
-
Wireless Remote Control: Offers convenient, hands-free operation for safer use.
-
Corrosion-Resistant: Designed to withstand harsh environments, perfect for off-road adventures.
Q&A
Q: What are the key features of the Tiger Shark 9500SR Synthetic Rope Winch?
A: This winch provides 9,500 pounds of pulling capacity, features durable synthetic rope for safer handling, and is powered by a 12V DC motor. It also includes a wireless remote for ease of operation.
Q: What is the pulling capacity of the Tiger Shark winch?
A: The Tiger Shark 9500SR winch has a 9,500-pound pulling capacity, making it suitable for medium to heavy-duty recovery and towing tasks.
Q: How is synthetic rope different from steel cable?
A: Synthetic rope is lighter, safer, and more resistant to wear and tear compared to steel cable. It also reduces the risk of recoil injury during operation.
Q: Does the winch come with a remote control?
A: Yes, the Tiger Shark 9500SR includes a wireless remote, allowing you to control the winch safely from a distance.
Q: What applications is this winch designed for?
A: This winch is ideal for off-road recovery, vehicle towing, and other heavy-duty tasks in challenging environments.
Maintenance Tips
-
Inspect the synthetic rope: Regularly check for fraying, cuts, or wear; replace if necessary.
-
Clean the rope: Wash with mild soap and water, then allow it to dry completely to prevent dirt buildup.
-
Lubricate moving parts: Apply lubricant to the winch’s gears and motor to ensure smooth operation.
-
Check connections: Ensure all electrical connections are secure and free from corrosion.
-
Test the winch: Periodically run the winch to ensure it functions properly, especially if it has been idle for a while.
