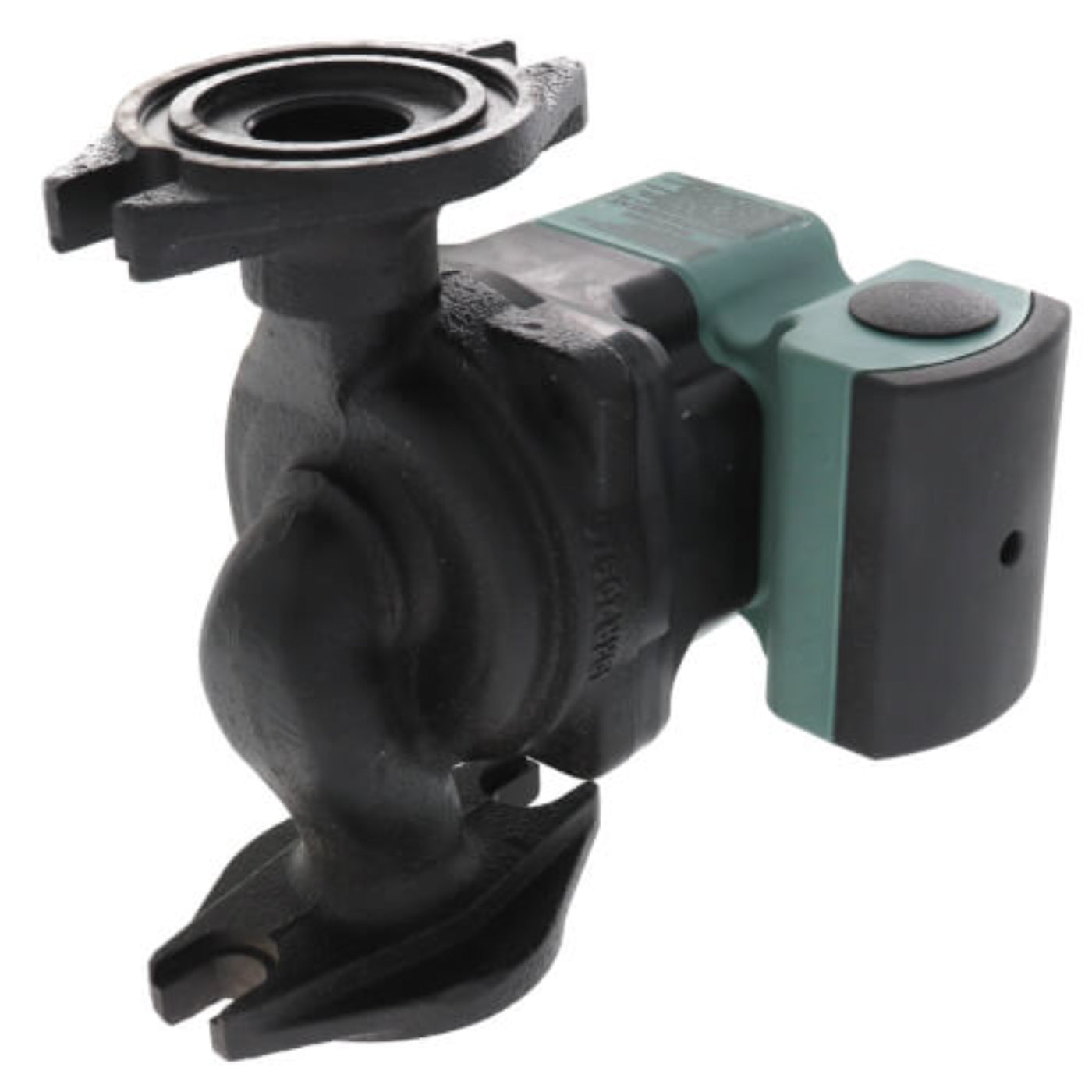

Taco VR1816HY2FC2A00 Viridian Infinitely Variable ECM High Efficiency Circulator Less Flanges Standard 120V - VR1816-HY2-FC2A00

The Taco VR1816HY2FC2A00 is a high-efficiency circulator designed for residential and commercial heating applications. This circulator features infinitely variable speed settings, enabling precise flow control for various heating systems. It is powered by an ECM permanent magnet motor that significantly reduces energy consumption.

The Taco VR1816 circulator provides reliable and efficient operation. Its advanced motor technology allows for adjustable speed and pressure settings, which can be optimized based on system demands.

Features

• Flanged connection for easy installation
• Up to sixteen gallons per minute maximum flow rate
• Automatic unblocking and air purging capabilities
• Brand: Taco
• MPN: VR1816HY2FC2A00

Specifications

• Horse Power: 1/20
• Voltage: 120V
• Amperage: 0.54
• Max Flow Rate: 16 gpm
• Max Head: 18 ft
• Connection Type: Flanged
• Weight: 5.7 lbs
• Application: Commercial
• Warranty: 1 Year

what Our Experts Think

• The Taco VR1816-HY2-FC2A00 Viridian Circulator delivers top-tier energy efficiency with its infinitely variable ECM motor, cutting power consumption by up to 85%.

• Designed for residential and light commercial hydronic systems, it automatically adjusts flow to match system demand for maximum comfort and performance.

• Features three operating modes — Delta-T, Delta-P, and Fixed Speed — for precise system control and versatility.

• LED status panel provides real-time feedback for easy setup and monitoring.

• Compact and flange-less design allows for flexible installation in tight spaces.

• Ideal for heating, cooling, and domestic hot water recirculation systems using 120V power.

Q&A

• Q: What type of motor does it use?
  A: An ECM (Electronically Commutated Motor) for high-efficiency variable speed control.

• Q: Is it suitable for both residential and light commercial systems?
  A: Yes, it’s designed for both applications requiring energy-smart hydronic circulation.

• Q: Does it include flanges?
  A: No, this model comes without flanges for installation flexibility.
