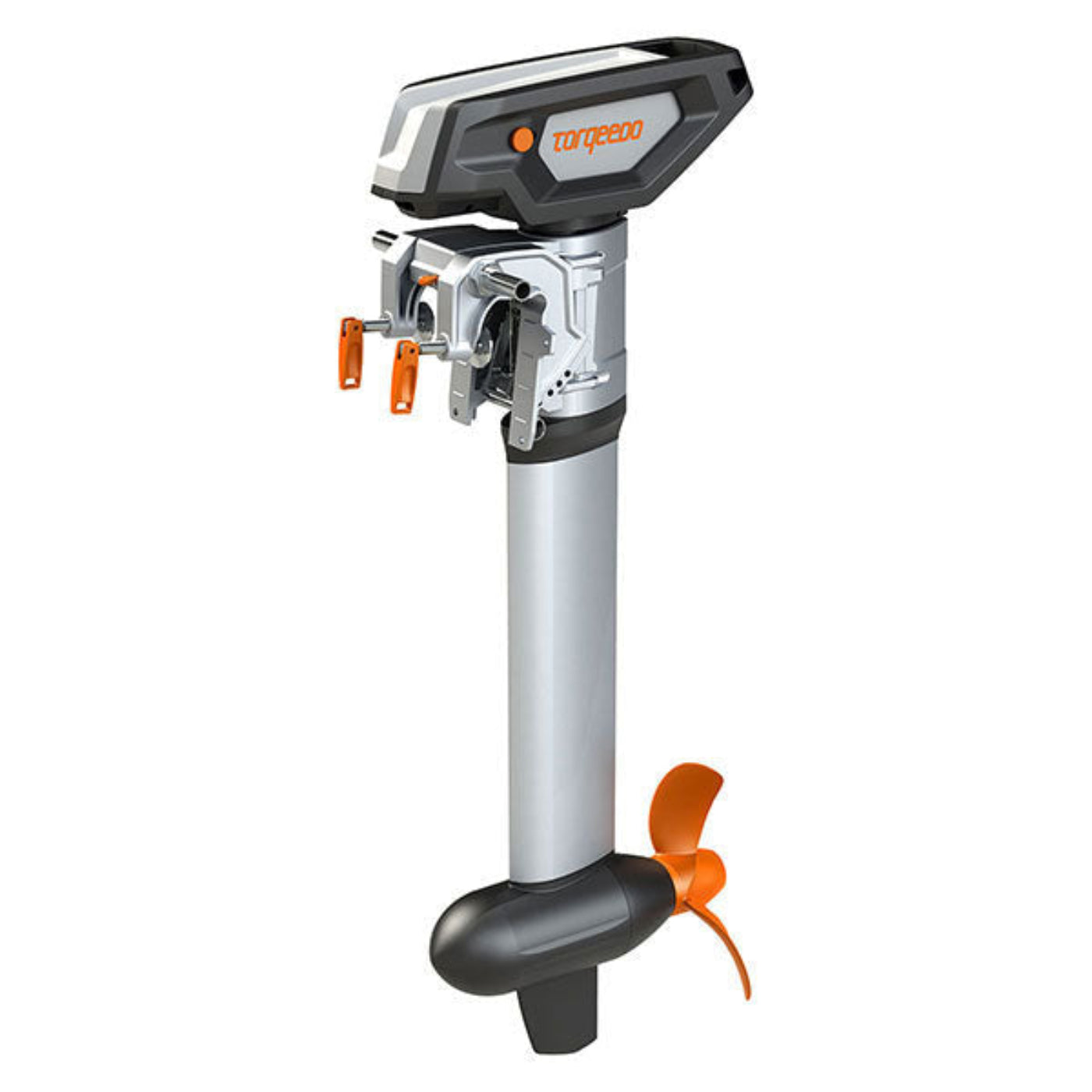

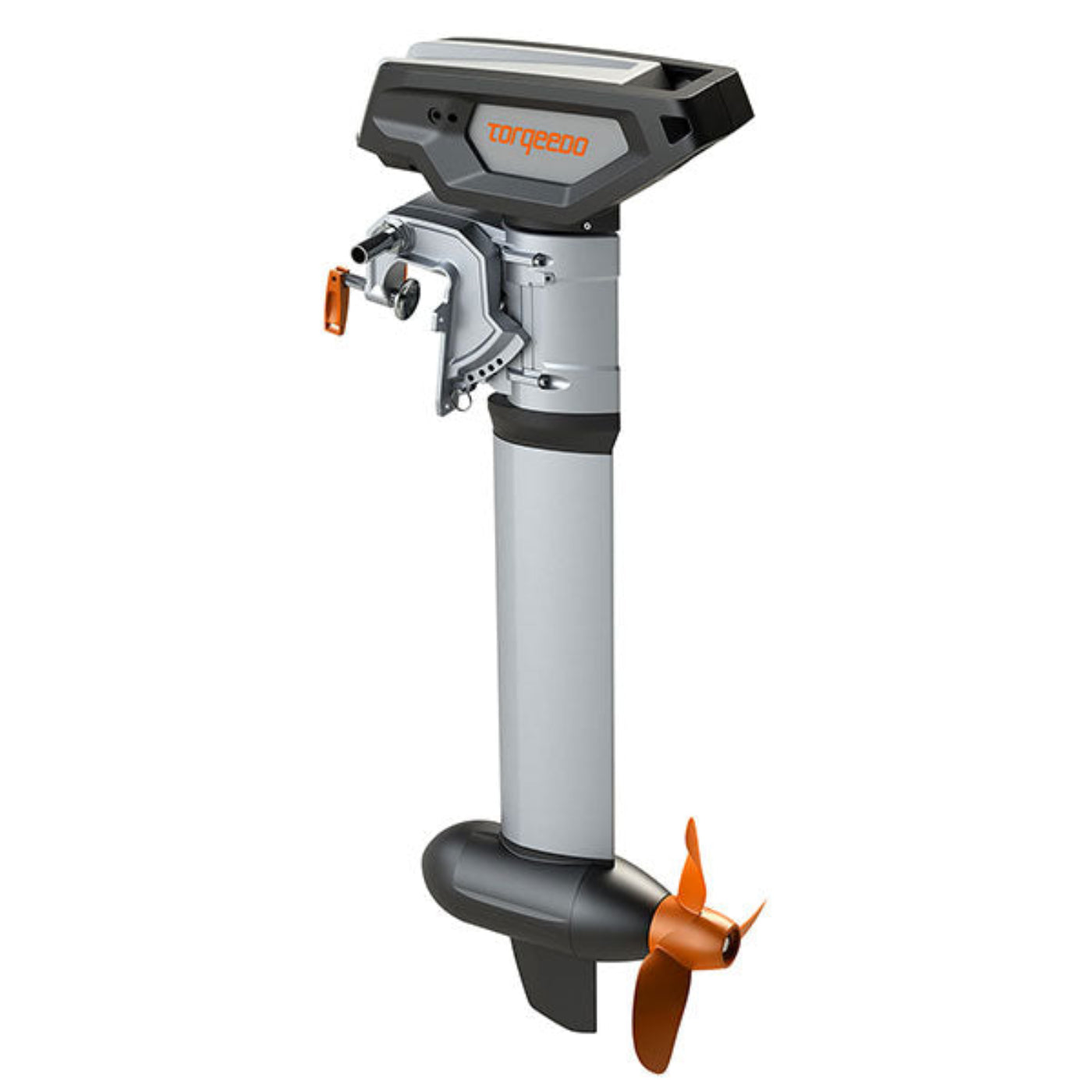

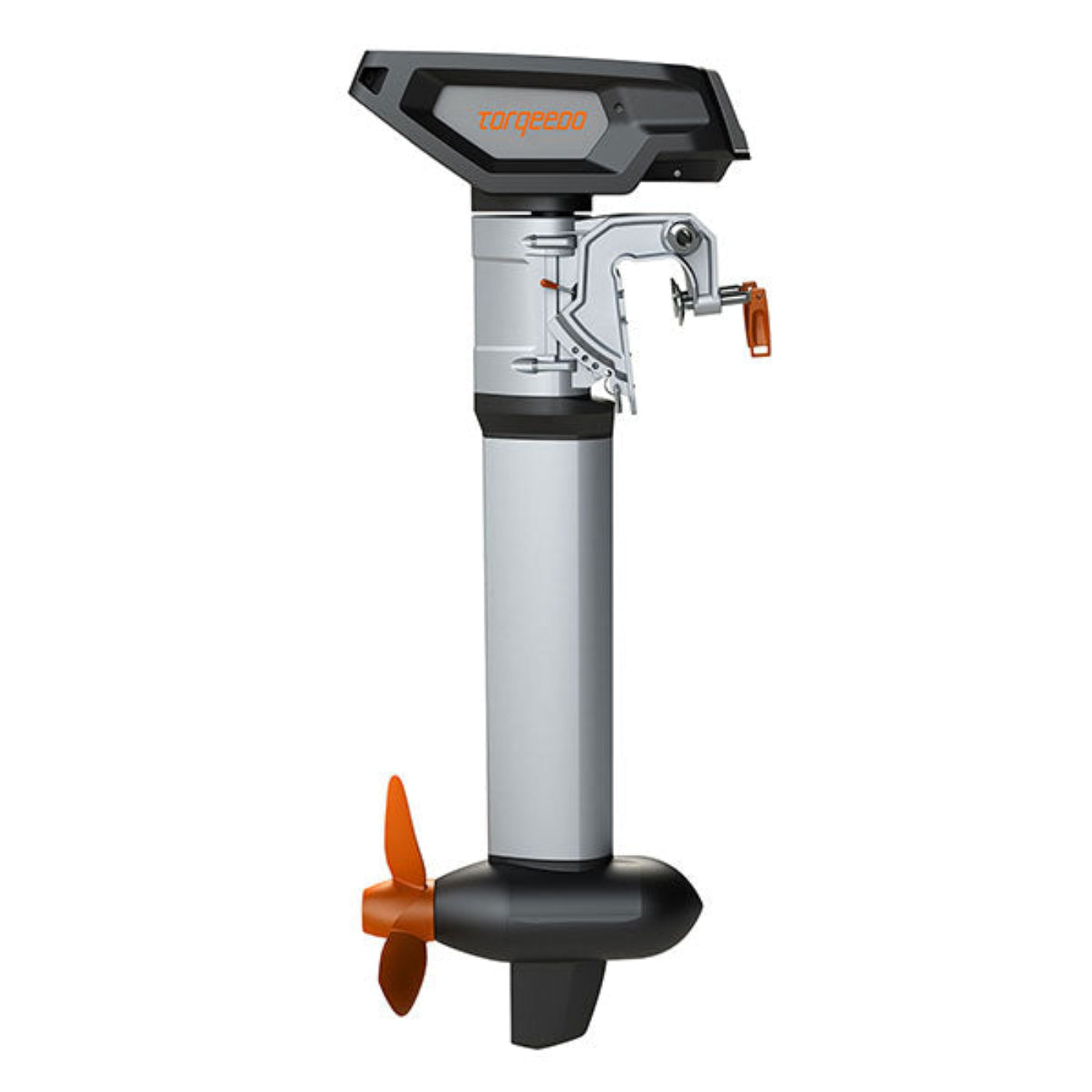

Torqeedo Cruise 6.0 R TorqLink - 1262-00
Cruise 6.0 R Electric Outboard Motor
The new models of the Cruise 6.0 have been improved to meet the demanding challenges of everyday commercial use; making them ready to take on the harshest environmental conditions, for example with dinghies and sailboats up to 6 tons.
This makes the Cruise even more rugged in the event that it runs aground and even better protected against corrosion when used extensively in saltwater.
The Cruise 6.0 is comparable to a 9.9 HP petrol outboard and can be easily mounted on your boat with a couple of tools, regardless of whether the remote or tiller version. A power supply from at least one lithium battery (Power 48-5000) or with lead batteries (lead-gel or AGM) must be provided for operation.
Please call our customer service team to verify this is the right motor for your vessel. This item is non-refundable.
Equipment Included: Outboard with TorqLink data communication, connection to remote steering, cable set (4.4 m, 35 mm²) including main switch and propeller B 12.5 x 17 HSP
Features
- High-efficiency outboard with 6,000 W input power, equivalent to a 9.9 HP petrol outboard.
- All Cruise models are suitable for inflatables and other small boats.
- We recommend the Cruise 6.0 for dinghies and sailboats up to 6 tons.
- Remote steering connector option.
- Everything is waterproof to min IP67.
- Rugged aluminium pylon with integral fin – extra robust even when running aground.
- Shaft sealant rings are mounted in a protected area on the inside of the pylon.
- Highest-grade seawater-proof aluminium for long service life, even in the harshest conditions.
- Lubricant-free polymer plain bearings protect against damage from fishing lines or debris and provide improved mechanical support for propeller shaft – wear-resistant and maintenance-free.
- Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties.
Specifications
| Input Power in Watts |
6000 |
| Propulsive Power in Watts |
3504 |
| Comparable Petrol Outboards (Propulsive Power) |
9.9 HP |
| Comparable Petrol Outboards (Thrust) |
15 HP |
| Maximum Overall Efficiency |
58% |
| Static Thrust |
230 lbs |
| Nominal Voltage |
48 |
| Total Weight |
20.6 kg (S) / 21.0 kg (L) |
| Shaft Length |
62.5 cm (S) / 75.5 cm (L) |
| Standard Propeller |
Propeller B 12.5 x 17 HSP |
| Alternative Propeller Options |
Propeller B 12 x 13 THR |
| Maximum Propeller Speed |
1130 rpm |
| Control |
Remote throttle |
| TorqLink |
Yes |
| Steering |
Provision to connect to standard remote steering; lockable |
| Tilting Device |
Manual with grounding protection |
| Tilt Angle |
360° lockable |
| Trim Device |
Manual, 4-step |
| Integrated On-board Computer |
Yes |
| Stepless Forward/Reverse Drive |
Yes |
What our Experts Think
-
High-Efficiency Performance: With a 6,000 W input power, the Cruise 6.0 R provides robust thrust suitable for various boating activities.
-
TorqLink Communication System: Equipped with TorqLink, Torqeedo's advanced communication system, it ensures seamless data exchange between the motor, battery, and throttle, enhancing operational efficiency and performance.
-
Remote Steering Compatibility: The 'R' model includes a remote steering link arm, making it compatible with standard steering systems for enhanced control and maneuverability
-
Durable Construction: Built with a rugged aluminum pylon featuring an integral fin, the motor offers additional protection, especially when running aground.
-
Battery Compatibility: While optimized for use with Torqeedo's Power 48-5000 battery, the Cruise 6.0 R is also compatible with other 48-volt batteries, provided they meet the motor's power requirements. Note that using non-Torqeedo batteries may require additional components and could affect performance.
Q&A
Q: What is the Torqeedo Cruise 6.0 R TorqLink?
A: The Cruise 6.0 R TorqLink is a high-efficiency electric outboard motor designed for boats up to 6 tons, delivering performance equivalent to a 9.9 HP gasoline outboard.
Q: What is TorqLink?
A: TorqLink is Torqeedo's advanced communication system that enables seamless data exchange between system components, such as the motor, battery, and throttle, enhancing performance and user experience.
Q: What are the key features of the Cruise 6.0 R TorqLink?
A: Key features include a 6,000 W input power, compatibility with the Power 48-5000 battery for optimal performance, a remote steering link arm for standard steering systems, and a rugged aluminum pylon with an integral fin for added protection.
Q: What accessories are included with the Cruise 6.0 R TorqLink?
A: The package includes the outboard motor with TorqLink communication, a remote steering link arm, a 4.5-meter cable set with main switch and propeller, a 3-meter TorqLink data cable, and a tilt switch.
Maintenance Tips
-
Regular Cleaning: After each use, especially in saltwater environments, rinse the motor with fresh water to prevent corrosion.
-
Inspect Propeller: Check the propeller for damage or debris before each outing. Ensure it's securely attached and free from obstructions.
-
Battery Maintenance: Use the recommended Power 48-5000 battery for optimal performance. Regularly monitor the battery's charge state and ensure it's properly balanced. Disconnect the battery from the system when storing the motor for extended periods.
-
Cooling System Check: If your system includes a water cooling system, regularly inspect the water supply, pump functionality, and clean any filters to prevent overheating.
-
Steering and Throttle Inspection: Ensure that the steering system and TorqLink throttle (sold separately) are functioning correctly. Regularly check for secure connections and inspect cables for wear.
-
Firmware Updates: Keep the motor's firmware updated to benefit from performance improvements and new features. Check the manufacturer's website periodically for available updates.
-
Professional Servicing: For any maintenance beyond routine checks, or if you encounter issues such as reduced performance or unusual noises, consult a certified Torqeedo dealer or service center.
